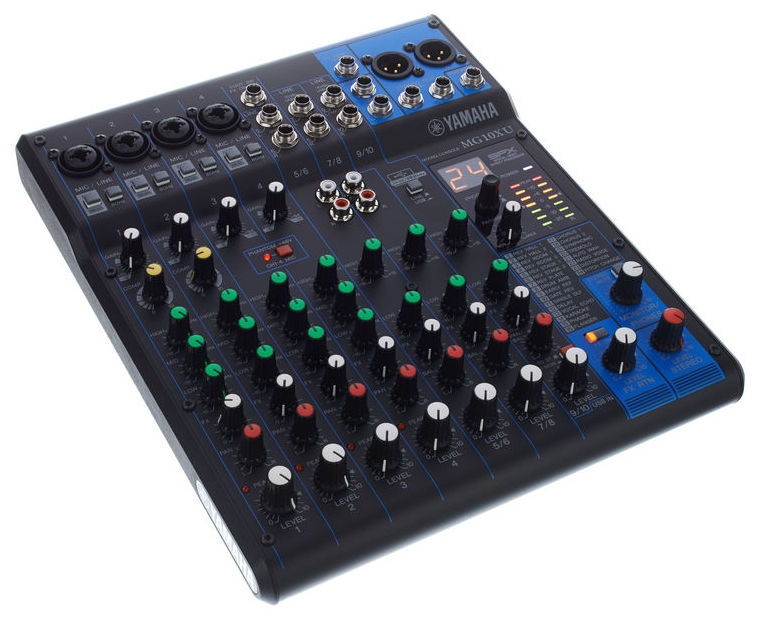

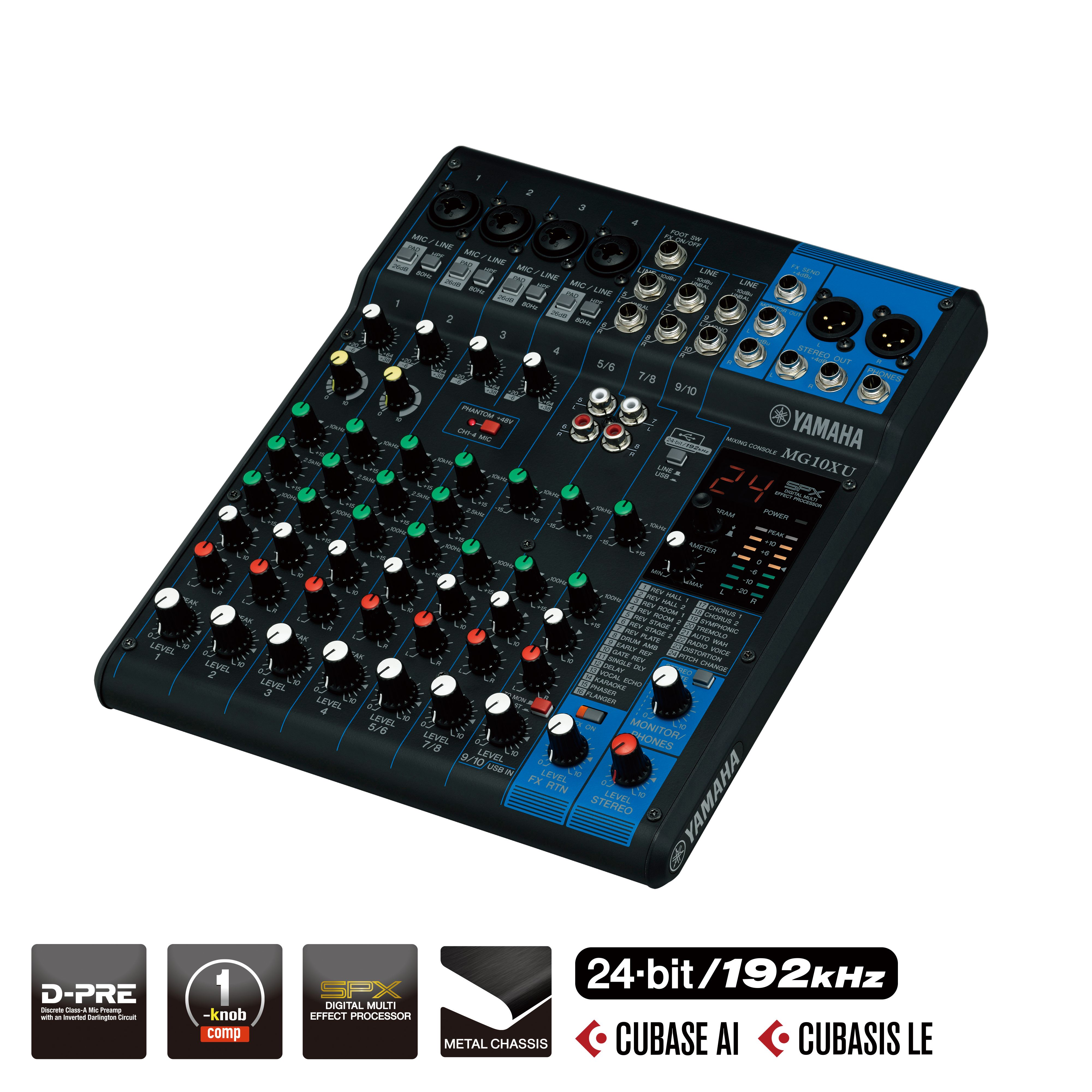

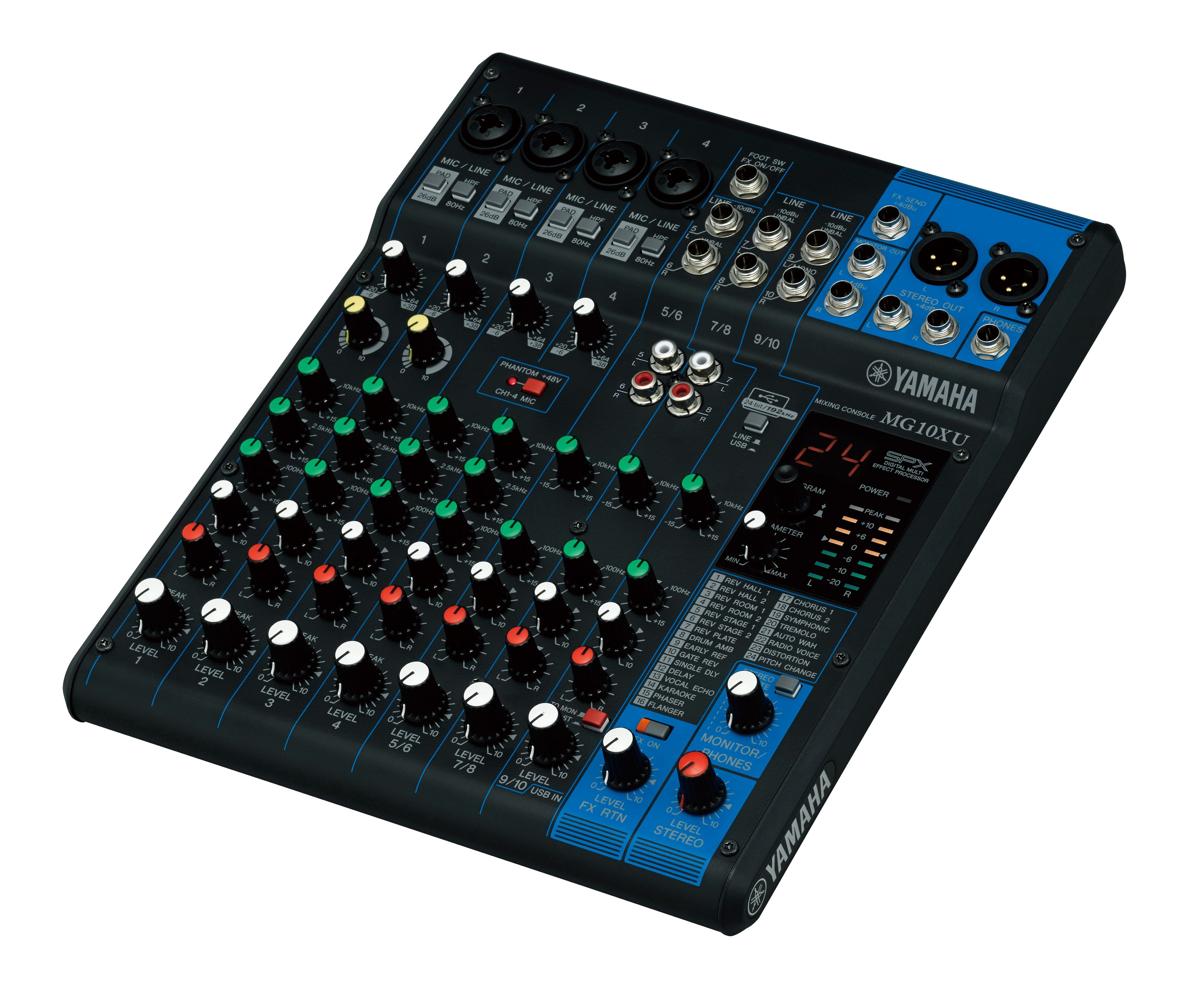

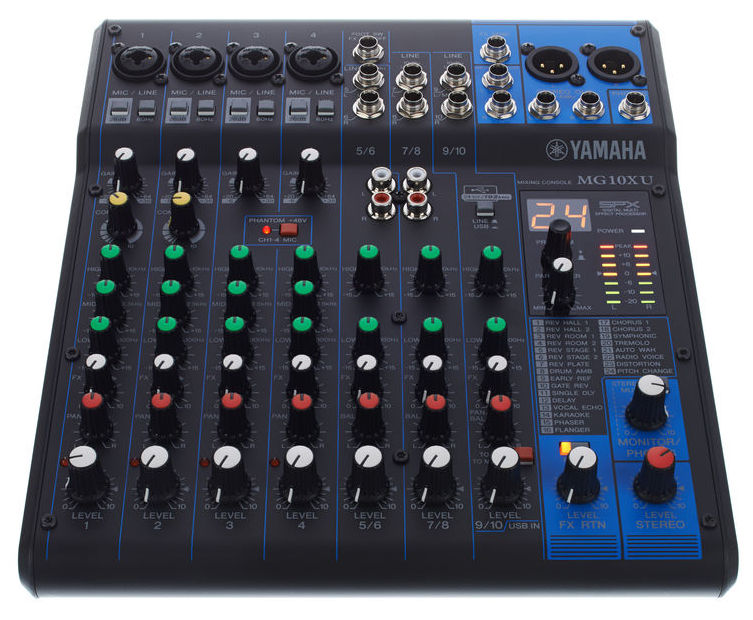

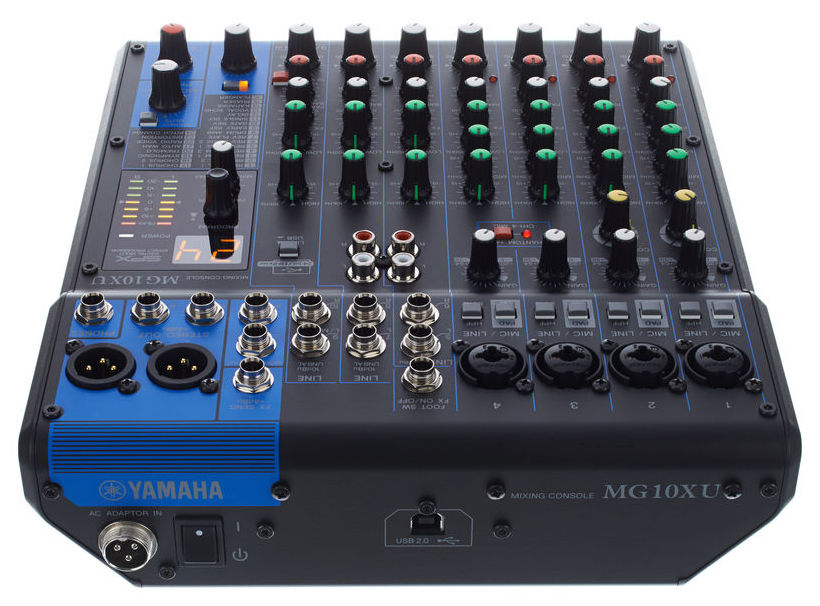

Yamaha MG 10XU

Yamaha MG 10XU, audio mixer with 10 input channels, USB interface and built-in effects processor:

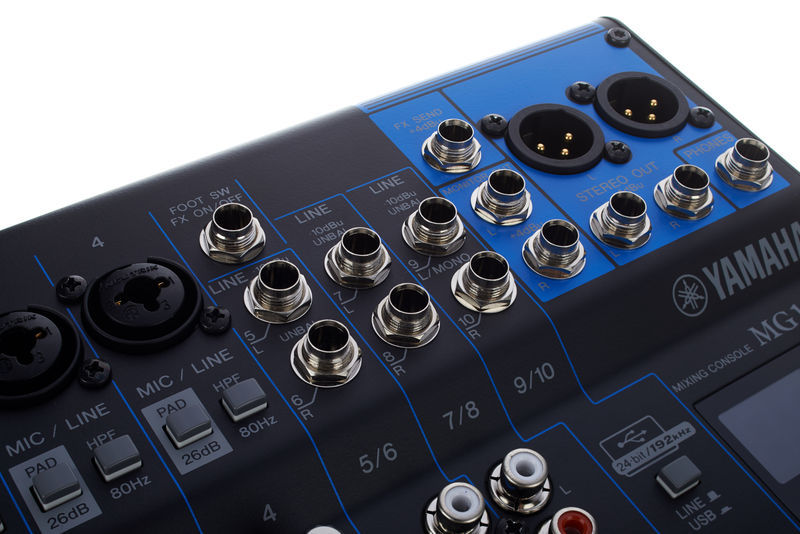

• 4 mono inputs, microphone/line combo XLR/Jack
• 3 dual stereo line inputs, 1 stereo bus
• balanced XLR or Jack outputs, headphone output
• 1 x auxiliary send
• 1 x stereo monitoring output
• 3-band equaliser for mono channels and 2-band for stereo channels
• compressor on channels 1 and 2: +22 dBu to -8 dBu, ratio 1:1 to 4:1
• D-PRE microphone preamps with inverted Darlington circuit

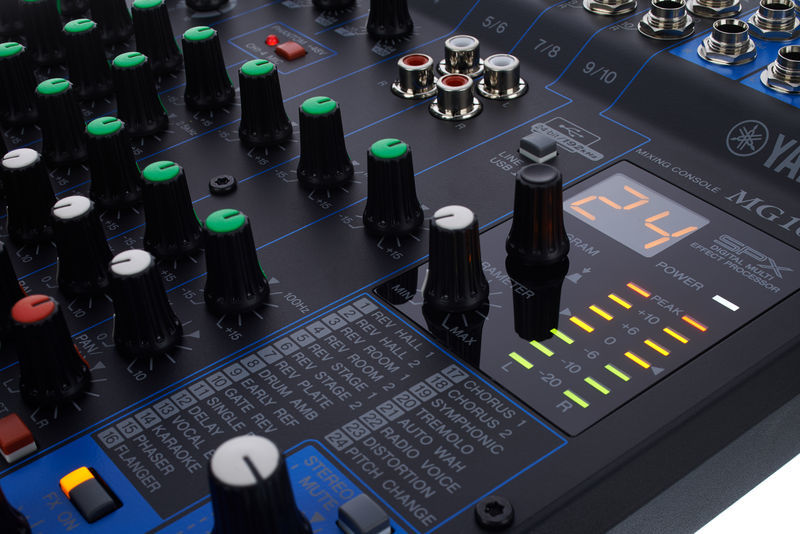

• effects processor with 24 programs
• 26 dB pad on mono channels
• switchable high-pass filter on mono channels, 80Hz
• phantom power +48V

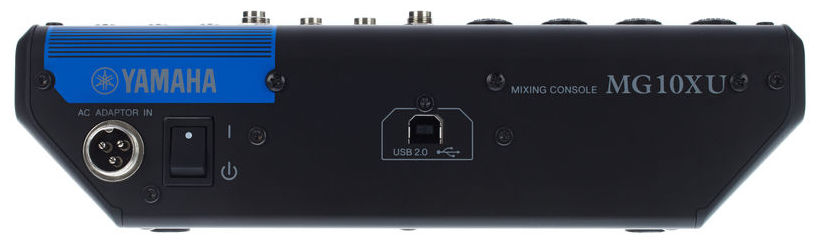

• USB interface 2 inputs / 2 outputs at 24-bit / 192kHz - USB cable required (not included)
• includes download version for Cubase AI DAW
• solid metal chassis
• dimensions: 244 x 71 x 294 mm
• weight: 2.1 kg
