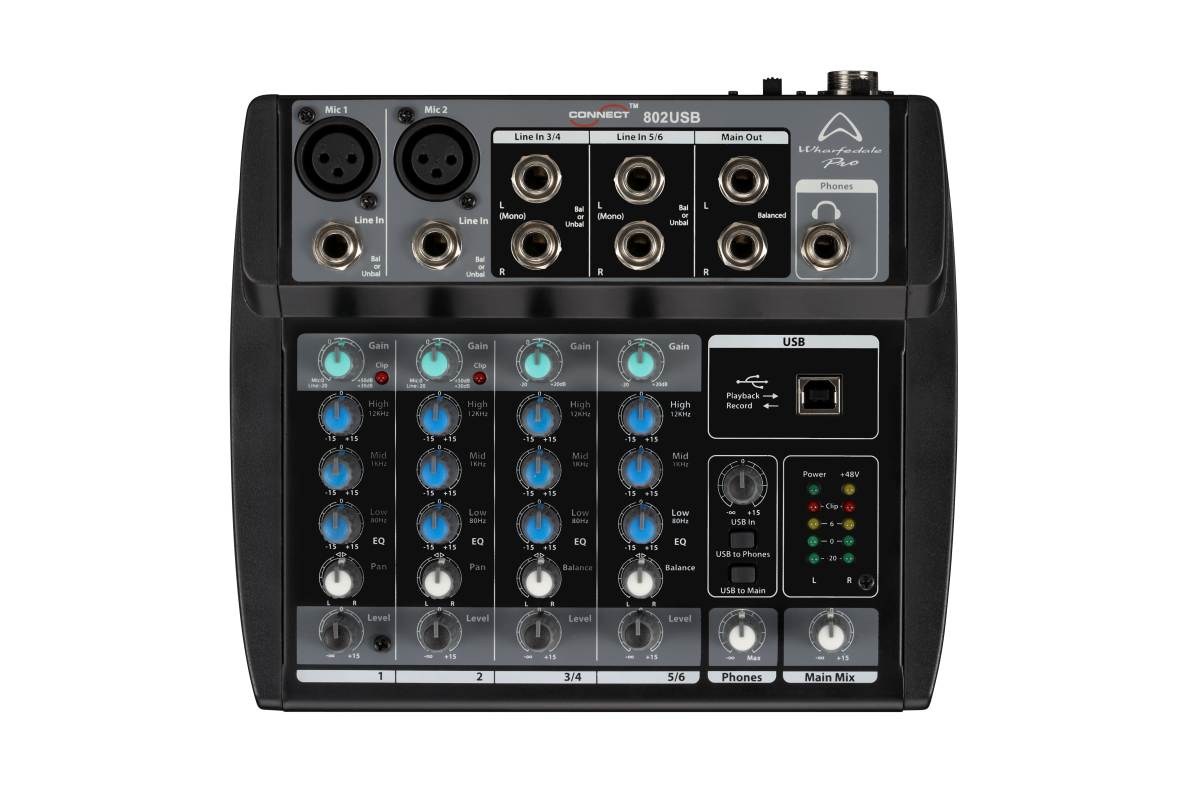

Wharfedale Pro Connect 802 USB

Audio mixer Wharfedale Pro Connect 802 USB

16 reviews | write your a review

Audio mixer

16-bit / 48kHz USB interface for high-quality audio.
2 mono microphone/line channels and 2 stereo channels for versatile use.
3-band EQ for enhanced sound control.
phantom Power for condenser microphones.
compact design, ideal for home recordings and small setups.

Over 200 units sold with 0.75% warranty claims.

83⁹⁰ €

In stock and deliverable.

Central warehouse: 2 In stores: 1

Add to cart

also deliverable via

432 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details better price?

Wharfedale Pro Connect 802 USB Add to cart: 83⁹⁰ €

Wharfedale Pro Connect 802 USB, compact and versatile analogue mixer with 2 mono microphone/line channels and 2 stereo channels, ideal for home recordings, small sound reinforcement, fixed installations. The microphone input has Phantom Power.

16-bit / 48kHz USB interface
Channels: 2 mono microphone/line + 2 stereo
Maximum input level:
- Microphone: +10dBu
- Line: +20dBu
- 2TK/auxiliary input: +20dBu
Maximum output level: +22dBu
Mono channel gain/amplification: 50dB Variable (-50~0dB)/ (-40dB~ +10dB)
2 x 4 segment LED display
Frequency response: 20Hz-20kHz ±1dB
Maximum headphone output level: greater than 150mw @ 32 ohms
3-band EQ
- High (±15dB) 12kHz Shelving
- Mid (±15dB) 1KHz Shelving
- Low (±15dB) 80Hz Shelving
Harmonic distortion THD: less than <0.0025% @ +14dBu
Dimensions: 311 x 77 x 226 mm
Weight: 1.95 kg

Product code: WP-091301-**A

Unit of sale: piece

Specifications:

Number of mono mic/line channels:	2
Number of stereo channels:	2
Effects processor:	no
Audio interface (USB/FireWire):	USB

Similar products

Behringer Xenyx 502S

64⁷⁹ €

in stock

Yamaha MG 10X

233⁵⁵ €

in stock

Connect 802 USB

Wharfedale Pro Connect 802 USB

83⁹⁰ €

in stock

Studiomaster C6-12

244⁴⁴ €

in stock

Yamaha MG 10

199⁵³ €

in stock

Studiomaster C2-4

91⁵⁵ €

in stock

Customer reviews:

write a review

Gruia Florian 26.06.2025, 21:12

Warfedale pro connect

This mixer is very good, at least for what I need it's okay. Thanks to the team.

Automatic translation · Show original

Valeriu Rotariu 14.07.2024, 20:17

Very good quality-price ratio

Works very well with Ableton and Sonar Platinum, has no latency, adjusts very well in Asio, quality recording and very good audio playback.

Automatic translation · Show original

Raduca Mihai Daniel 23.06.2023, 20:13

Versatility, easy to use!

A good product for the price/quality ratio. For someone at entry level, it's sufficient. I had one issue with the first mixer, in that the power supply didn't work, but the Soundcreation team was extremely prompt and within two days I received a package with another product in exchange. Honestly, I didn't expect it to arrive so quickly, and thanks again to your team for the promptness. An excellent, impeccable service! I confidently recommend Soundcreation! Back to the mixer, I connected a microphone and a bass guitar and there's still room for other instruments, no problem. I needed a small mixer to not take up much space to connect a few instruments and one or two microphones. It's easy to use, without too many complex functions - I leave those to the professionals. :)

Automatic translation · Show original

Florin 08.05.2021, 18:41

Excellent product

I think it's one of the best small analog mixers. Only digital ones are better than it.

Automatic translation · Show original

Cristian Tania Alexandra 11.12.2020, 12:13

Very satisfied

The package was very well packed, confirmation of order receipt and by phone, etc. A friendly team with quality services. I recommend it with pleasure.

Thank you soundcreation!

Automatic translation · Show original

Osiac Tiberiu 29.10.2020, 22:08

MIXER

I am very satisfied with this mixer. I love listening to filtered music... and this small and lively mixer does just that... It sweetens the sound... I give a 10 for the mixer and a 10 for the soundcreation team... I will be back...

Automatic translation · Show original

Dragan Ion 19.02.2020, 15:10

Very good for me!

The mixer does exactly what it says in the technical manual, it has a good signal-to-noise ratio. Thanks to the sound card and the three-band EQ for the stereo channels, it's worth every penny! All the products I ordered from this store arrived well packaged, respect for the team!

Automatic translation · Show original

Mocanu Iulian 04.12.2019, 09:14

Review

I am very satisfied, it works very well, I recommend.

Automatic translation · Show original

Veres Ludovic 03.01.2019, 23:15

Extremely Satisfied

I am very satisfied. For what I use the mixer for, it is perfect. And about the SoundCreation team, all my respect. Trustworthy guys!!

Automatic translation · Show original

Ghetea Marius 01.09.2018, 22:51

Very satisfied!!!!

Perfect for what I use it for! I recommend! Thank you team!!!

Automatic translation · Show original

Diac Ciprian 11.07.2018, 04:35

A very good mixer

I am satisfied with the product, I recommend it.

Automatic translation · Show original

Ciprian 20.06.2018, 15:51

Beyond Expectations!

First impression (it arrived a few hours ago) I'm satisfied.
Solid construction, good sound, powerful, excellent signal-to-noise ratio. It's better than the Xenyx502USB.
I tested both a condenser microphone (AT2035) and a dynamic microphone (Xm1800S) as well as an electro-acoustic guitar.
The signal level in the headphones is very strong.
No driver needed, it's plug and play (I have Windows 10) and it's very stable, no interruptions, no crackling. It's a good product and can be used without problems for sound reinforcement/recording.
EXCELLENT price-quality ratio (I paid 298 RON for it).
IT DOES NOT POWER THROUGH USB, it has a separate power supply. It comes without the USB cable (only the mixer and power supply are in the box).
The mix potentiometer between the signal from the PC and the signal from the mixer is excellent, it only affects the signal from the PC, it doesn't affect the signal level from the mixer.
It doesn't have ASIO so using it with a DAW will be done through ASIO4ALL and it works perfectly (tested on Cubase).
It has an on/off button which is very useful, there's no need to always unplug the power connector (which is securely attached by screwing).
I recommend this mixer to anyone who wants good quality at a very low price.
It has a PHANTOM POWER button that activates on both microphone channels.
Again, the signal-to-noise ratio is excellent, the preamps being of very good quality.
The Soundcreation team is prompt as usual, congratulations, the product arrived in less than 24 hours (from Timisoara to Bucharest) and the product came packaged in thick bubble wrap (it could have fallen from a height and nothing would have happened).

Automatic translation · Show original

Marian 07.02.2017, 19:19

A quality mixer

This is a mixer that perfectly meets the needs of a home studio or for field use if you're into that. The fact that it has USB connectivity makes it even easier to connect it to a computer or interfaces that support USB mixers.

Automatic translation · Show original

Alexandru Borcea 03.03.2016, 20:19

President

I think I will buy a bigger mixer next year.

Automatic translation · Show original

Maria Luncanita 24.07.2015, 19:20

Thank you!

I purchased the product some time ago and I am very satisfied with it.

Automatic translation · Show original

Dan 18.12.2012, 19:37

A very good mixer at a low price

The mixer has very good features for home studio recordings. It has really cool corrections. This is a recording made by my son - Teo with a SHURE SM 58 microphone: http://www.youtube.com/watch?v=zyA0MthIoN8 Thanks to the Soundcreation team for their professionalism!

Automatic translation · Show original
