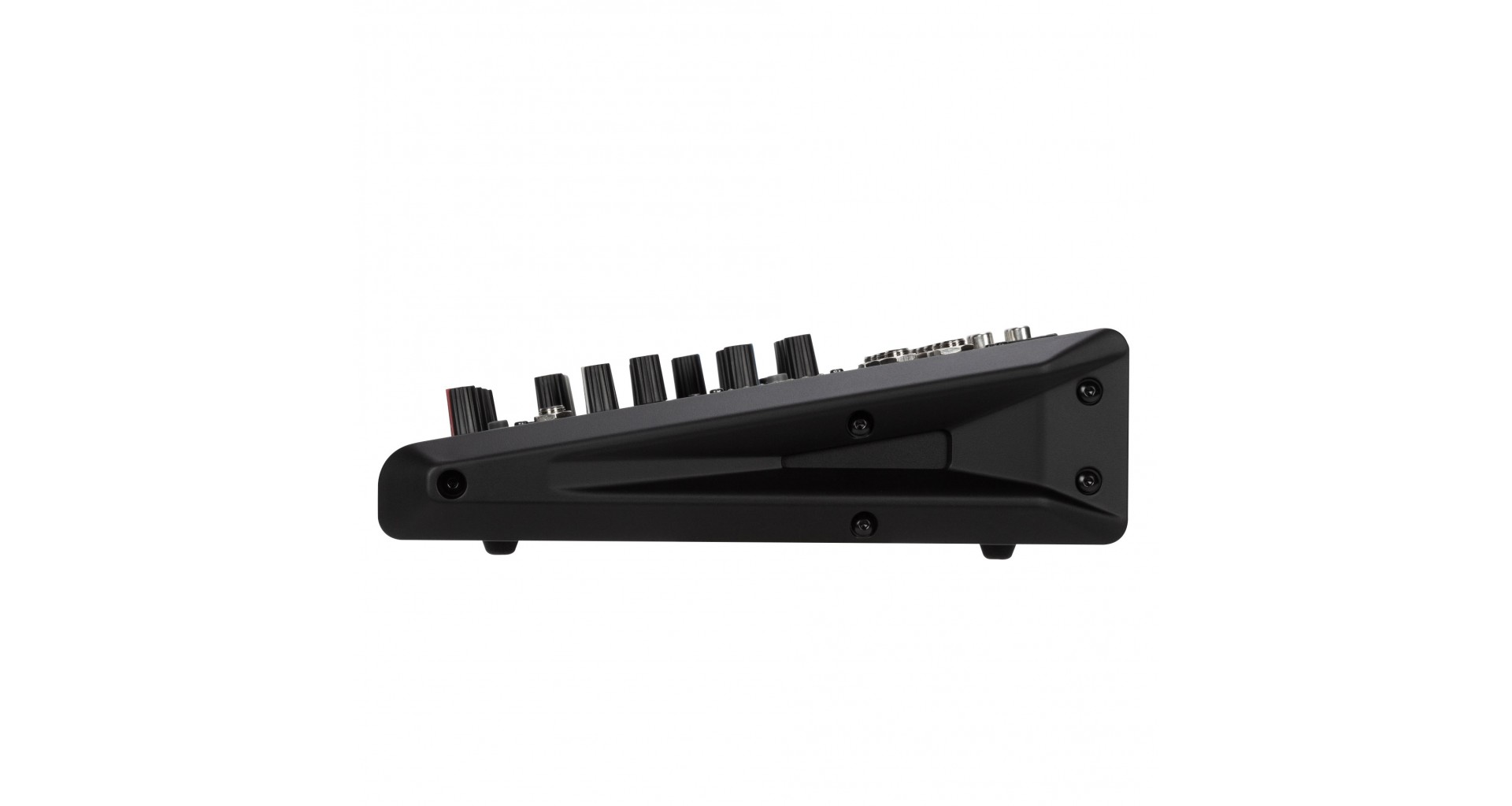

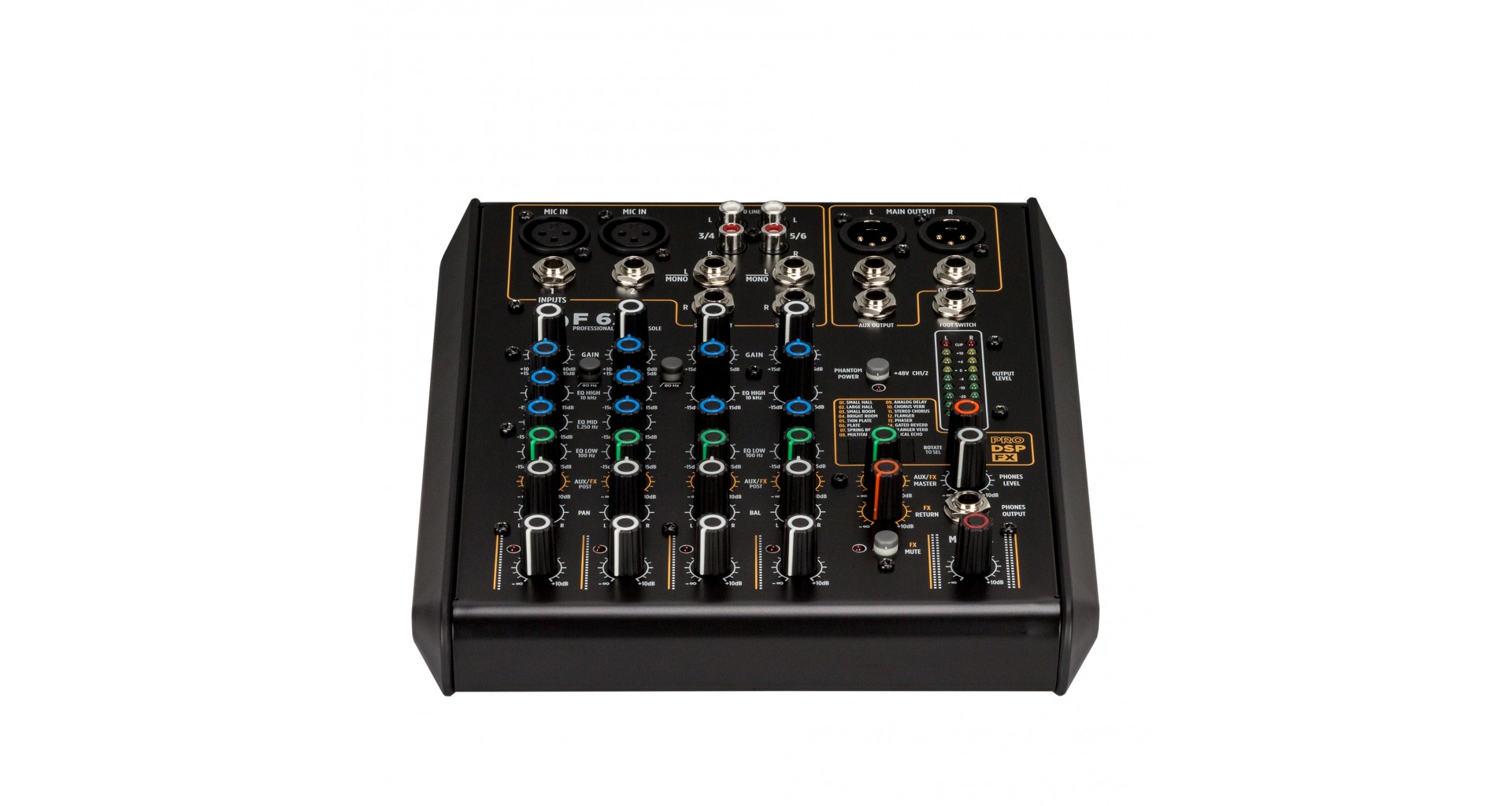

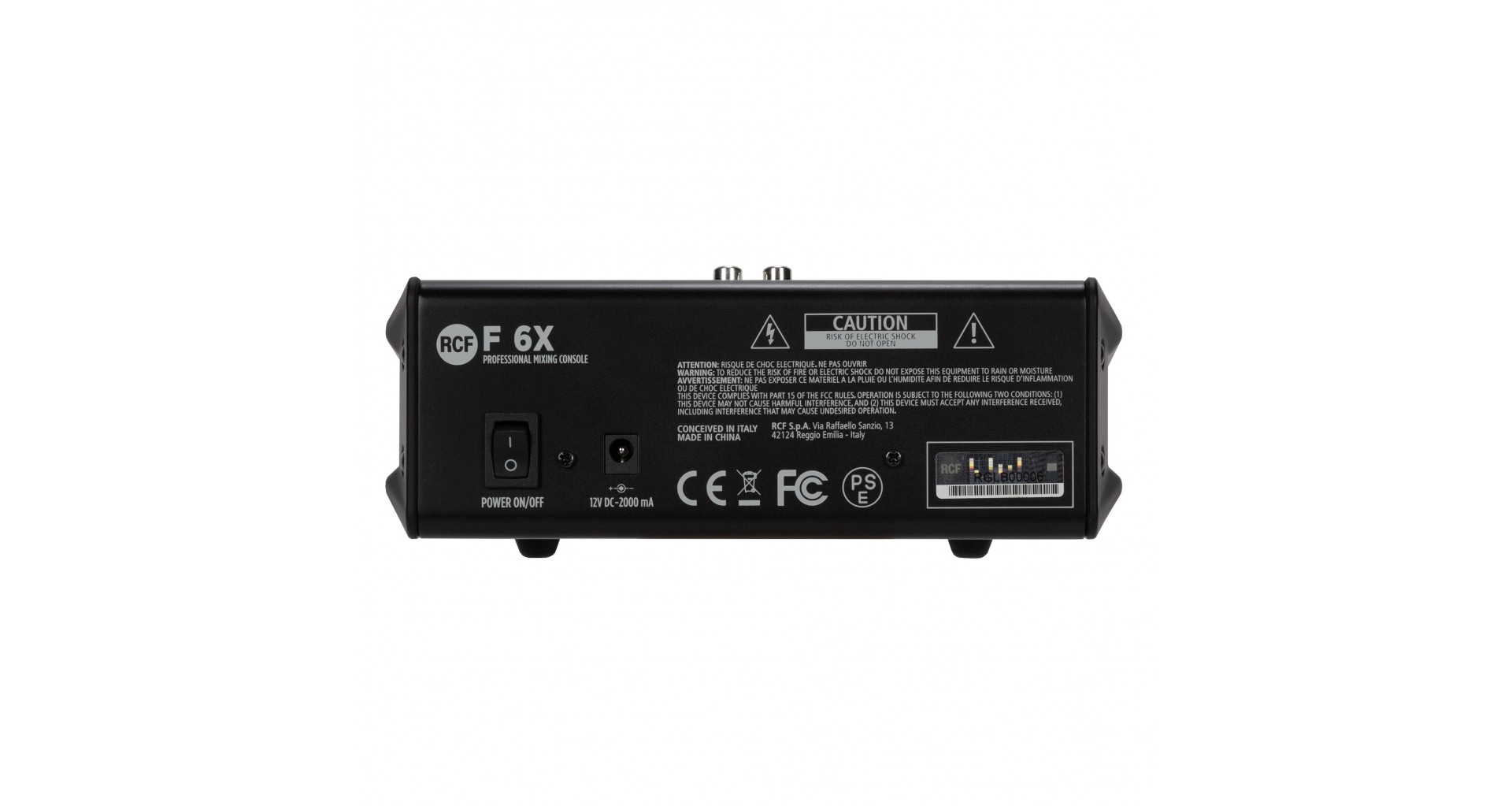

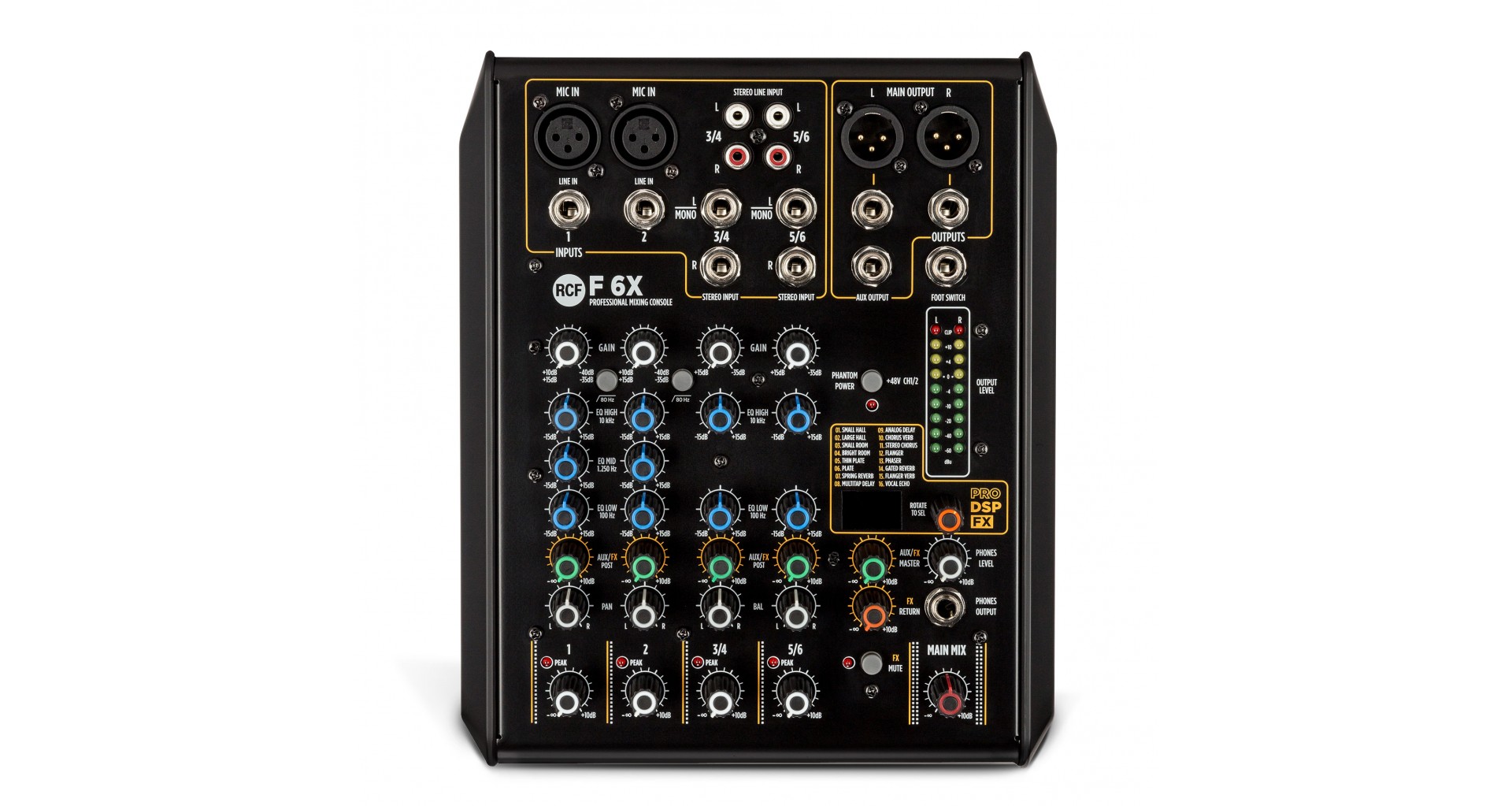

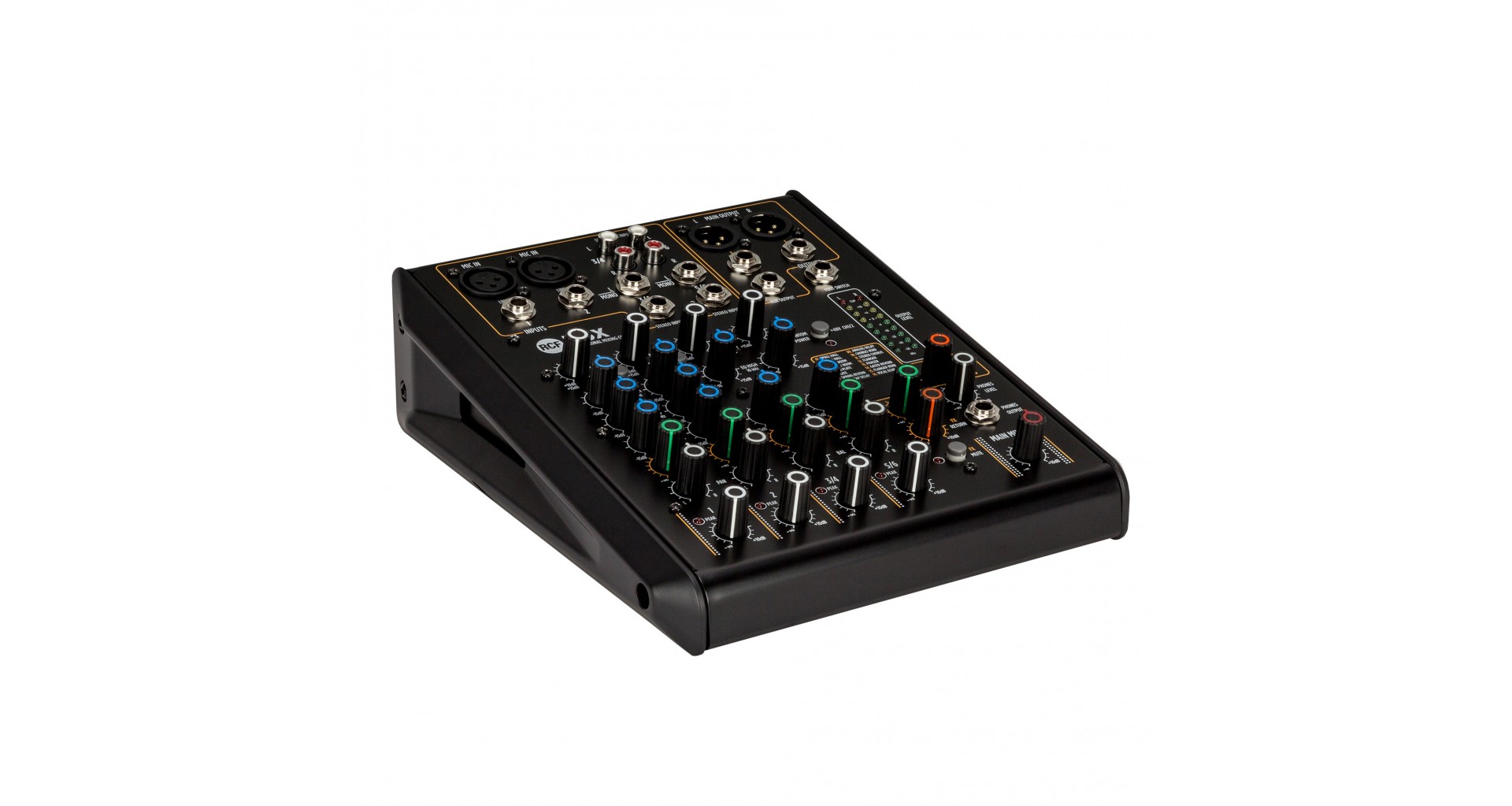

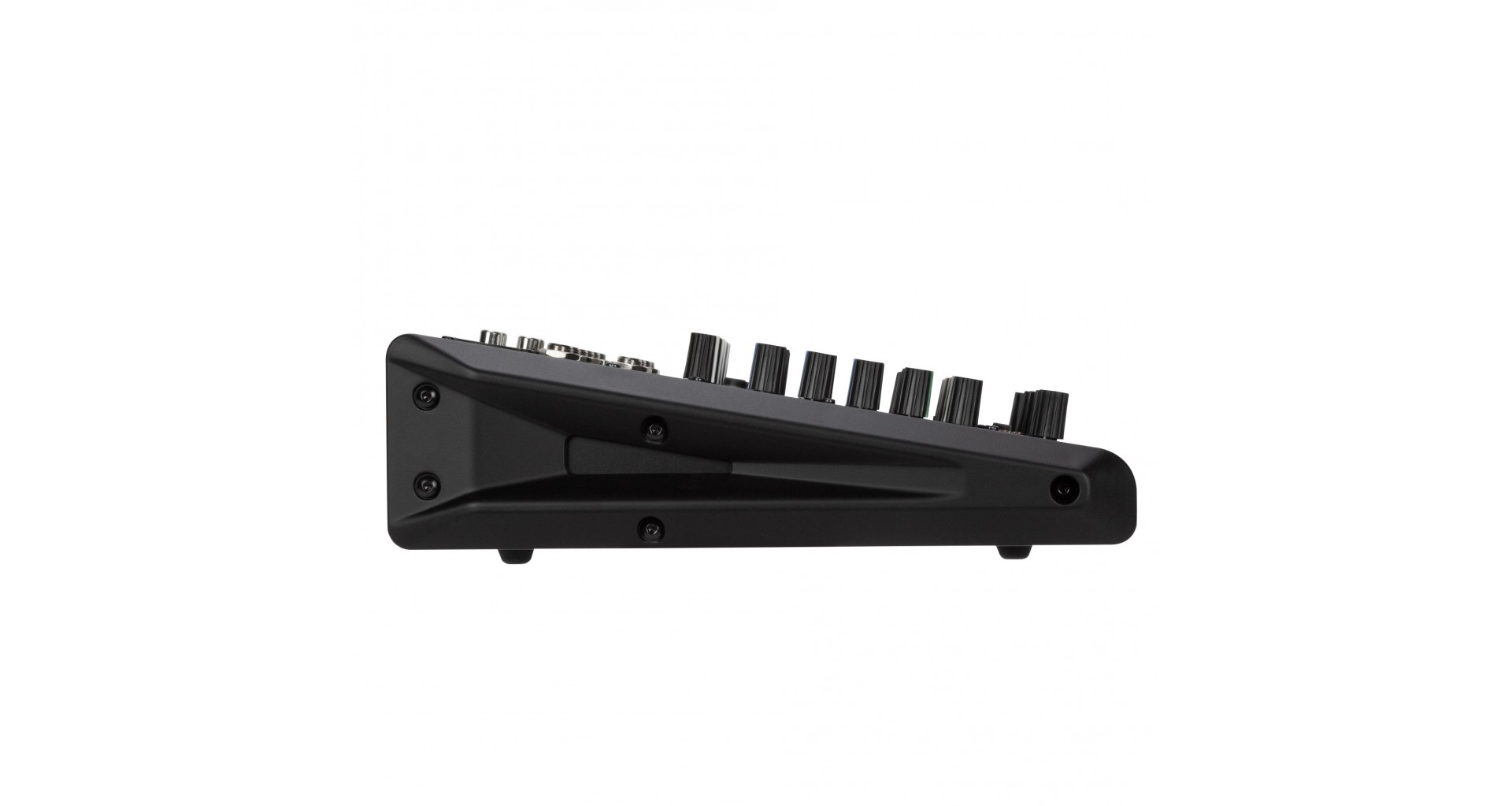

RCF F-6X

RCF F-6X, audio mixer with 2 Mono inputs and 4 stereo, PRO DSP FX effects processor with 16 presets.

Features:

• 2 x Mic/Line inputs
• 2 x stereo line inputs
• 1 x Aux/FX (post)
• Balanced main audio output from input to output
• 16 PRO DSP FX presets

Technical Specifications:

• Frequency response: 20 - 20 kHz
• Power supply: External
• Power consumption: 12W
• THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): <.0,02% A-Weighted
• Recommended voltage: 100 V - 240 V
• Line inputs: 2
• Microphone inputs: 2
• Stereo line: 2
• Low cut: 80 Hz
• Phantom power +48V: Yes
• Gain range: 0 dB ÷. -50 dB
• Gain selection: 20 dB ÷. -30 dB
• Input noise level: -124 dBu
• Microphone input impedance: 14 kohm
• Line input impedance: 21 kohm
• Stereo input impedance: 15 kohm
• Stereo line gain selection: 20 dB ÷. -30 dB
• Main mix: 1
• AUX output: 1
• FX Send: 1
• Headphone: 1
• Main output level: 28 dBu
• AUX output level: 28 dBu
• Headphone output impedance: 150 ohm
• EQ:
  • High:+/-15 dB @ 10 kHz Shelving
  • Mid:+/-15 dB @ 1.250 kHz, Bell
  • Low:+/-15 dB @ 100 Hz Shelving
• Footswitch: Yes
• Chassis material: Metal
• Colour: Black
• Dimensions: 255 x 210 x 79 mm
• Weight: 1.8 kg
