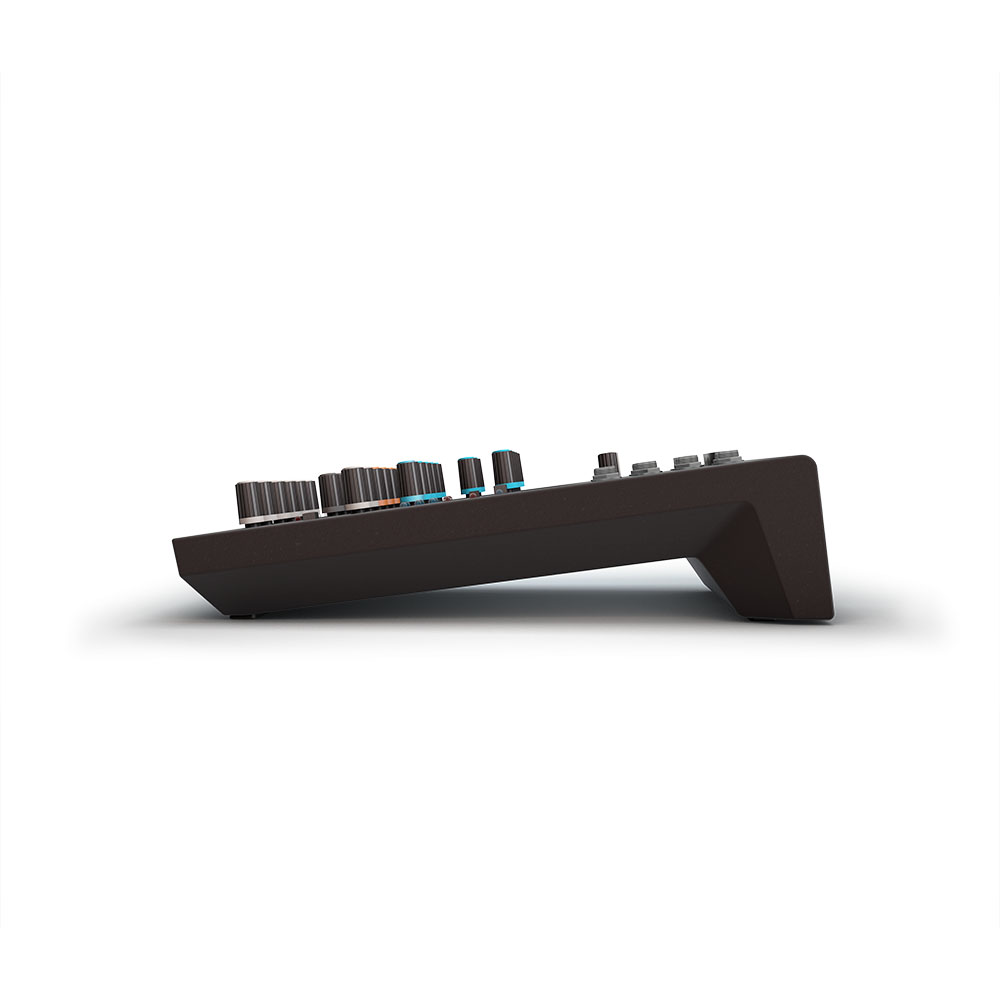

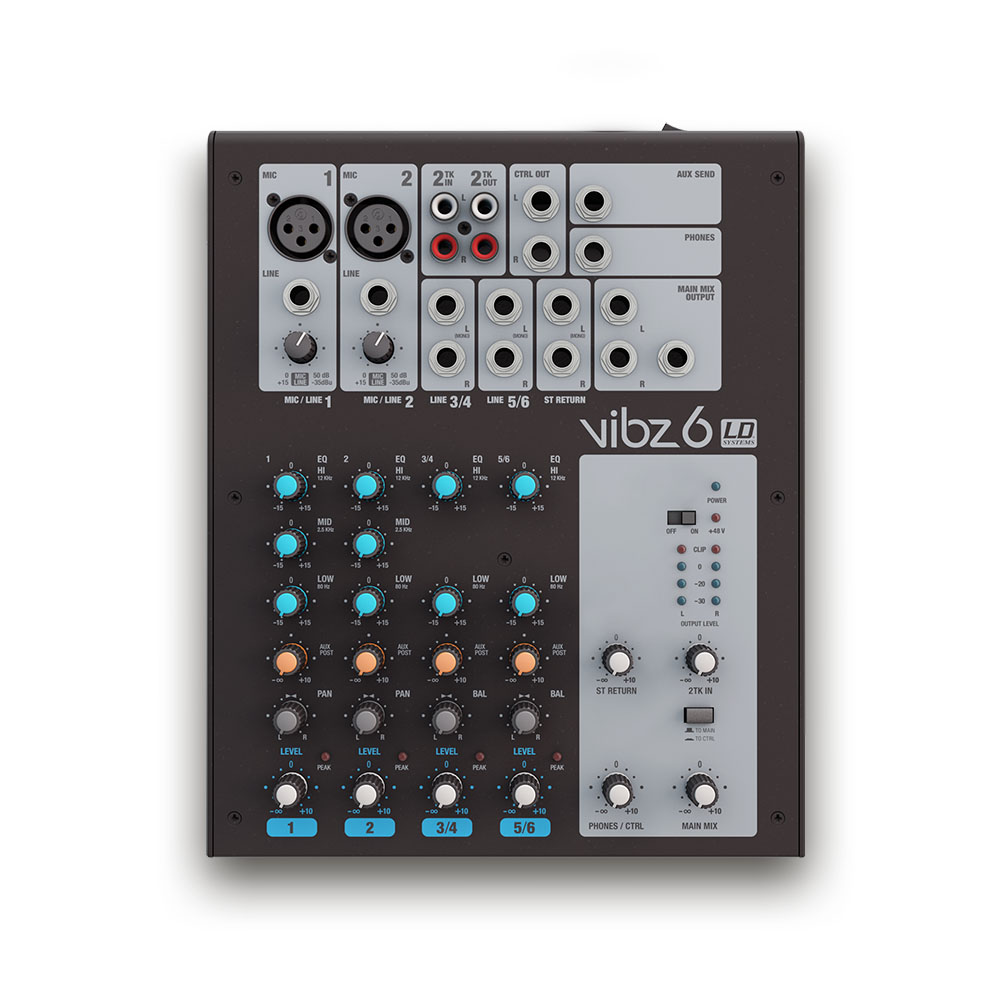

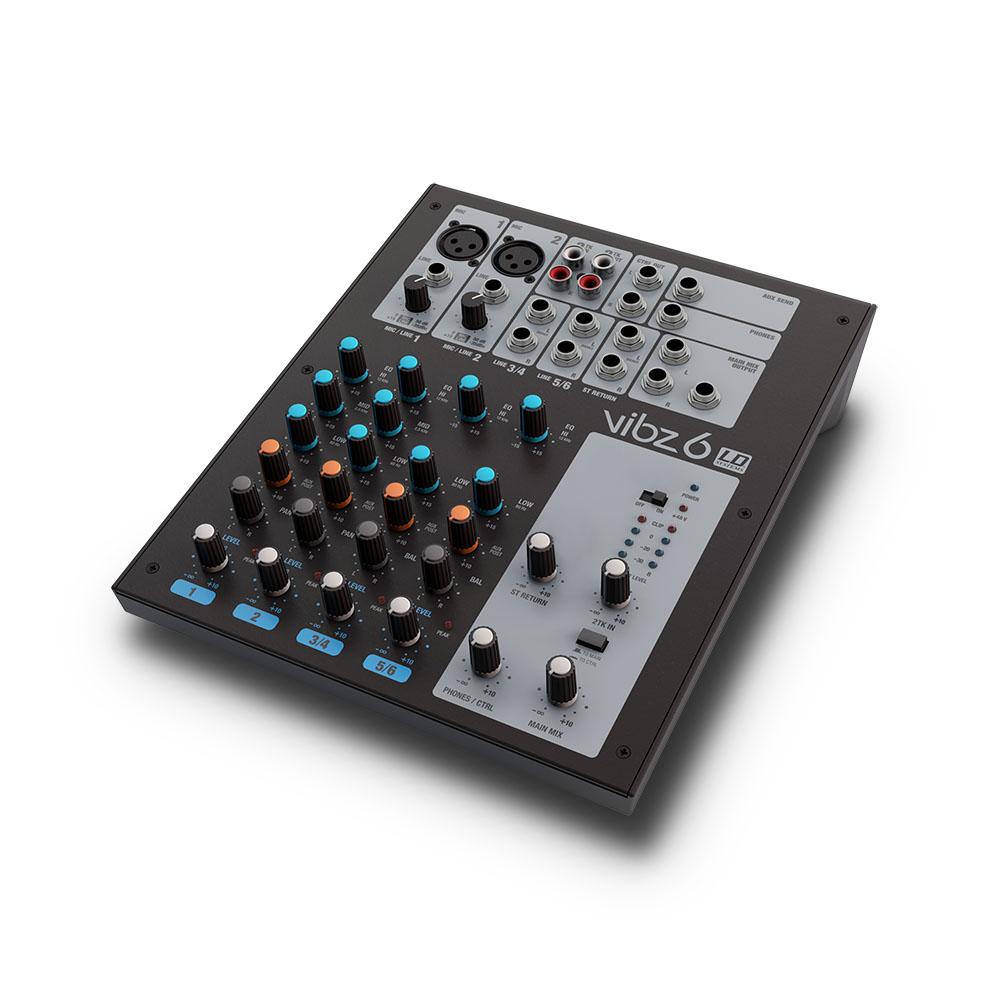

LD Systems VIBZ 6 - analogue mixer with 6 channels ideal for bands, home recording and installations. It offers two balanced microphone inputs, with high-quality preamplifiers, phantom power and a 3-band EQ with +/-15 dB adjustment, two stereo line inputs with a 2-band EQ, which are compatible in mono. The master section is equipped with adjustable outputs for monitors and a headphone output. The mixer is also equipped with inputs/outputs for recording and playback devices. It is powered by an external power supply with a screw connector.
Technical specifications:
- Number of channels: 6
- Mono channels:
- Number of mono line/microphone input channels: 2

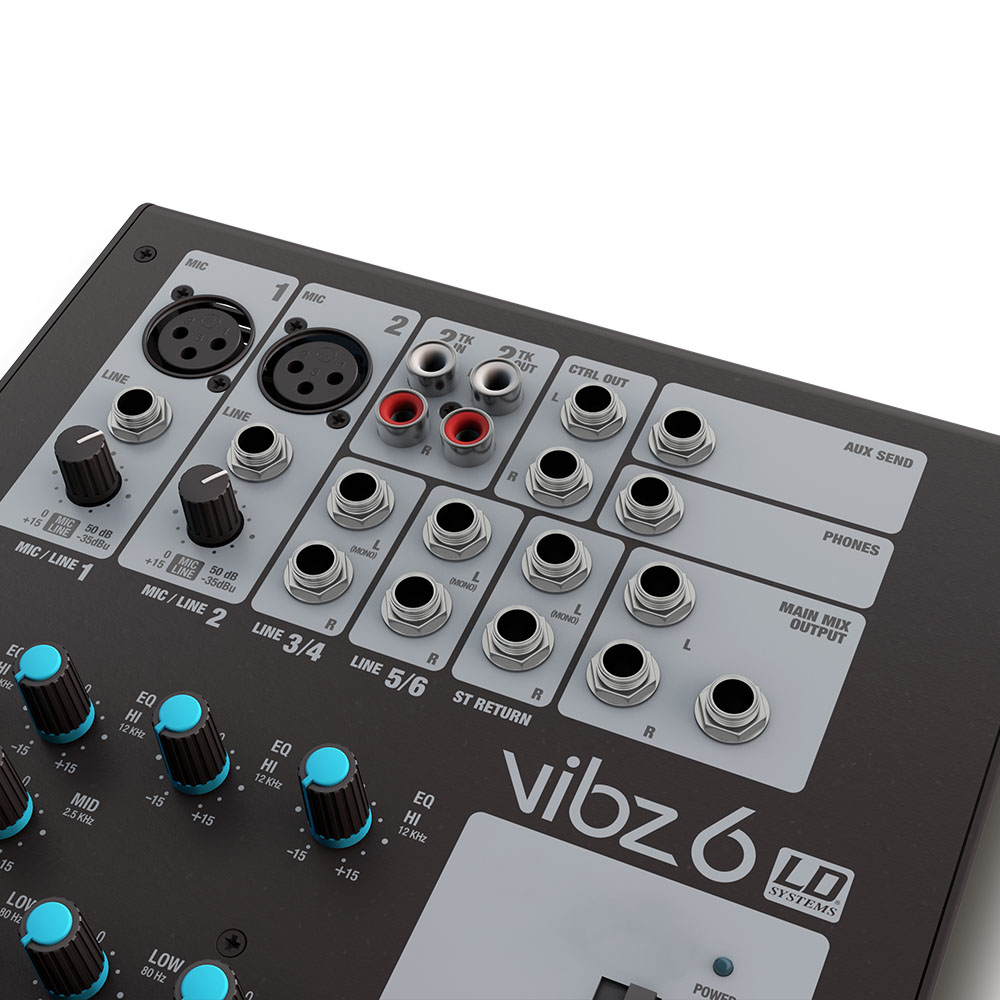

- Connectors for mono microphone input channels: 6.3 mm TRS, XLR
- Signal type for mono microphone channels: electronically balanced
- Frequency range for mono microphone channel: 10 - 45000Hz
- Gain range for mono microphone channel: 0 - 50dB
- THD-N for mono microphone channel: 0.0058%
- Input impedance for mono microphone channel: 4kOhms
- Signal-to-noise ratio for mono input channels: 113 dB
- Signal type for mono line channels: electronically balanced
- Frequency range for mono line channel: 10 - 45000Hz
- Gain range for mono line channel: 0 - 50dB
- THD-N for mono line channel: 0.0045 %
- Input impedance for mono line channel: 21kOhms
- Signal-to-noise ratio for mono line channel: 116dB
- High frequency equalisation for mono channel: +/- 15 dB at 12000 Hz
- Mid frequency equalisation for mono channel: +/- 15 dB @ 2500 Hz
- Low frequency equalisation for mono channel: +/- 15 dB at 80 Hz
- Controls for mono microphone channel and line channels: Gain, Channel Volume, pan, AUX Post, 3-band EQ (High, Mid, Low)
- Phantom power: 48 V DC selectable
- Stereo channels:
- Number of stereo line input channels: 2
- Connectors for stereo line input channels: 6.3 mm TS
- Signal type for stereo input channels: unbalanced
- Frequency range for stereo line channel: 10 - 54000Hz
- THD-N for stereo line channel: 0.0045 %
- Input impedance for stereo line channel: 3.7kOhms
- Signal-to-noise ratio for stereo line channel: 116dB
- High frequency equalisation for stereo channel: +/- 15 dB @ 12000 Hz
- Low frequency equalisation for stereo channel: +/- 15 dB @ 80 Hz
- Controls for stereo input channels: Balance, 2-band EQ (High, Low), AUX Post, Channel Volume
- Main Section:
- Number of auxiliary channels / Effects Send: 1
- Connectors for auxiliary channels / Effects Send: 6.3 mm unbalanced stereo jack
- Number of stereo AUX return channels: 1 x stereo
- Connectors for stereo AUX return channels: 2 x 6.3 mm TRS
- Stereo Tape output channel: 1 x stereo
- Connectors for Stereo Tape output channel: 2 x RCA (Cinch)
- Stereo Tape input channel: 1 x stereo
- Connectors for Stereo Tape input channel: 2 x RCA (Cinch)
- Main stereo unbalanced outputs: 1
- Connectors for main stereo unbalanced outputs: 6.3 mm TRS
- Headphone output: 1
- Connectors for headphone output: 6.3 mm TRS
- Digital effects processor: no
- Main section controls: Master Volume, Phones / Control Room Volume, 2-track Assignment (Main, Contr. Room), 2-track In Volume, Stereo Return Volume, Phantom Power
- Indicators: Channel Peak, Phantom Power, Power, 4-segment Level Meter

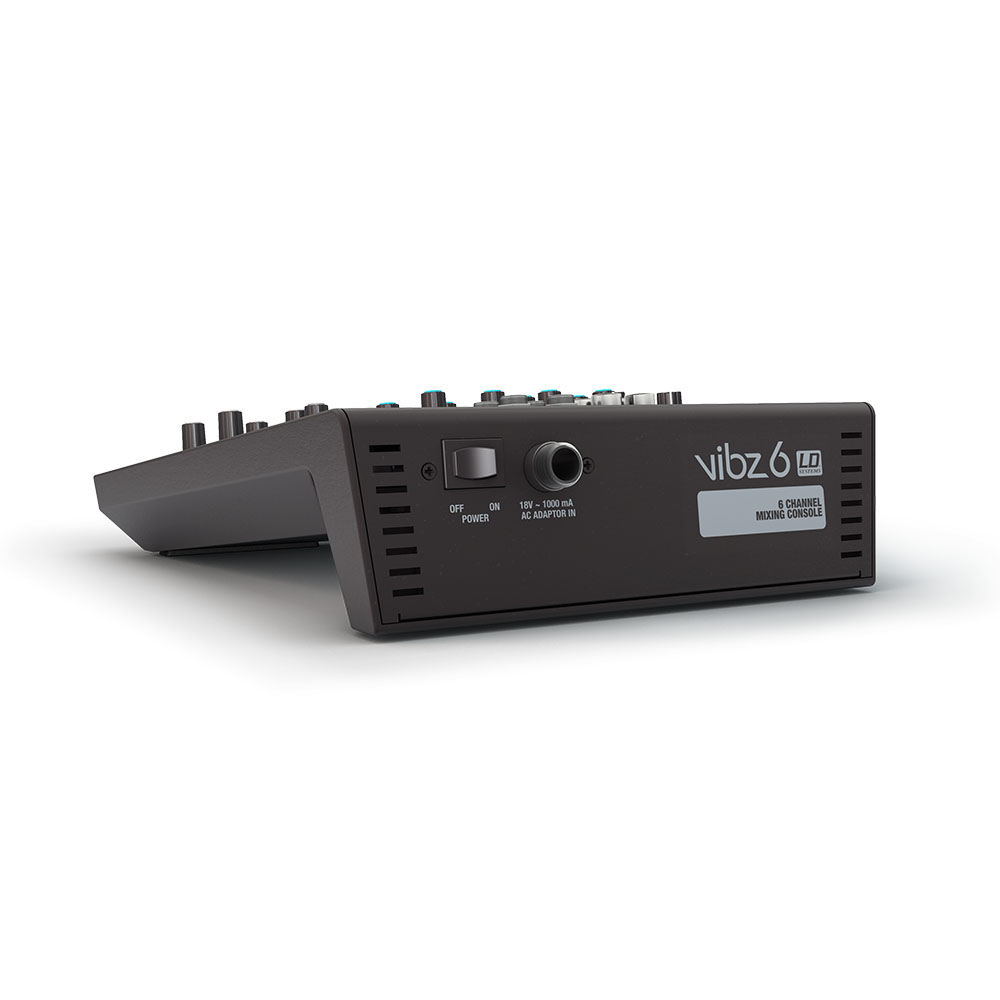

- Power supply voltage: 18 V AC - 1 A, external PSU
- Dimensions (W/H/D): 210/67/262mm
- Weight: 1.45kg
