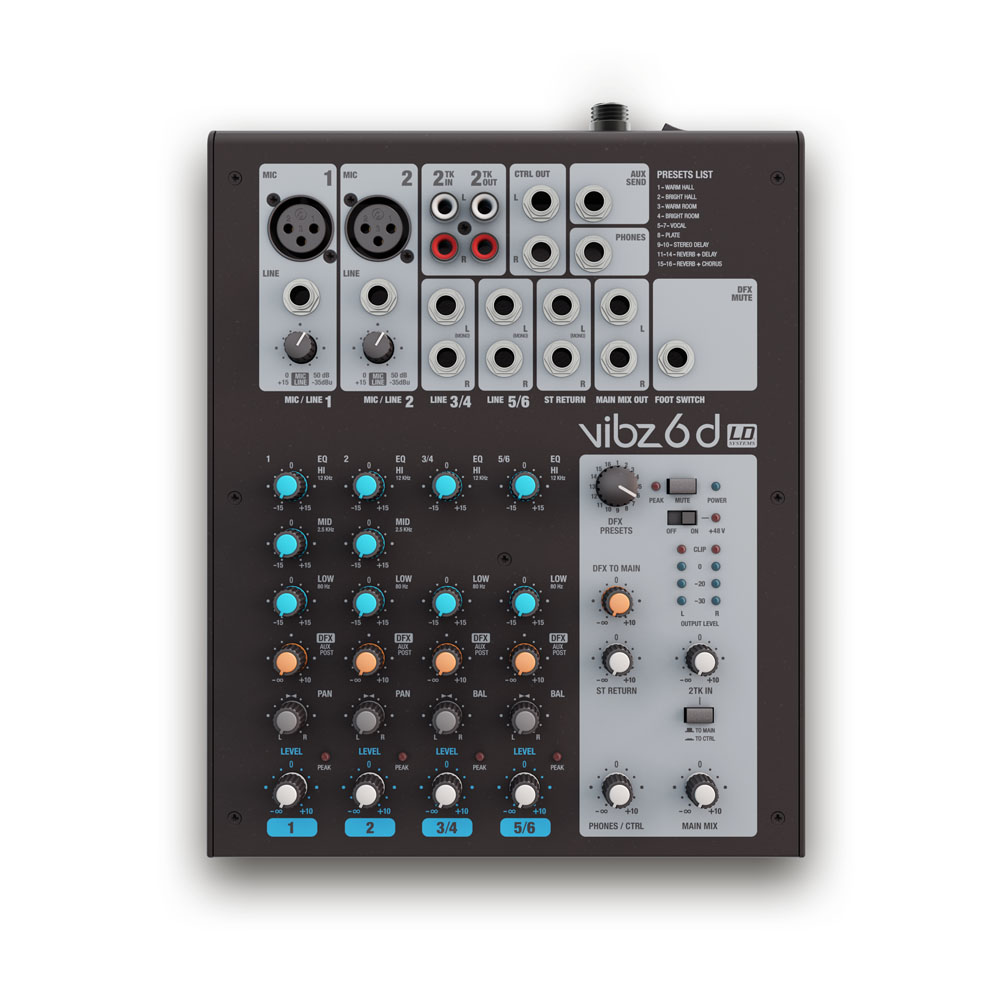

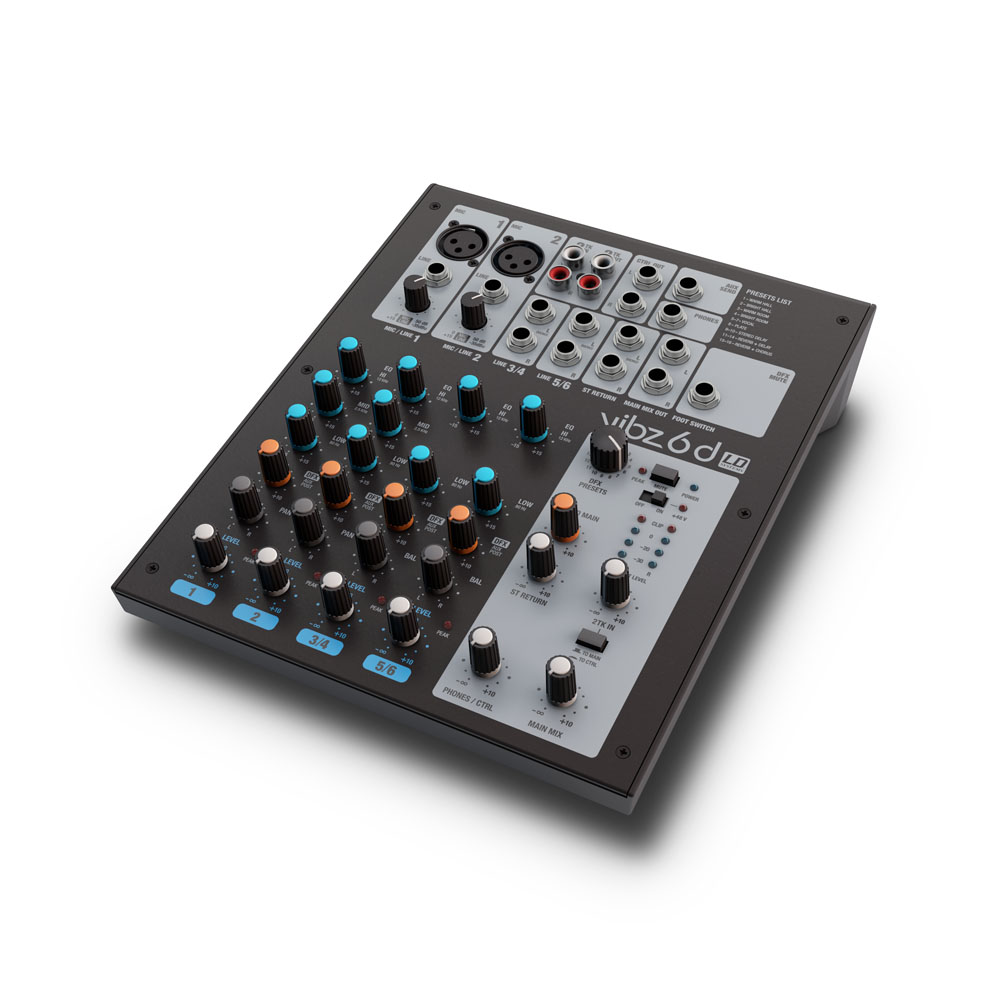

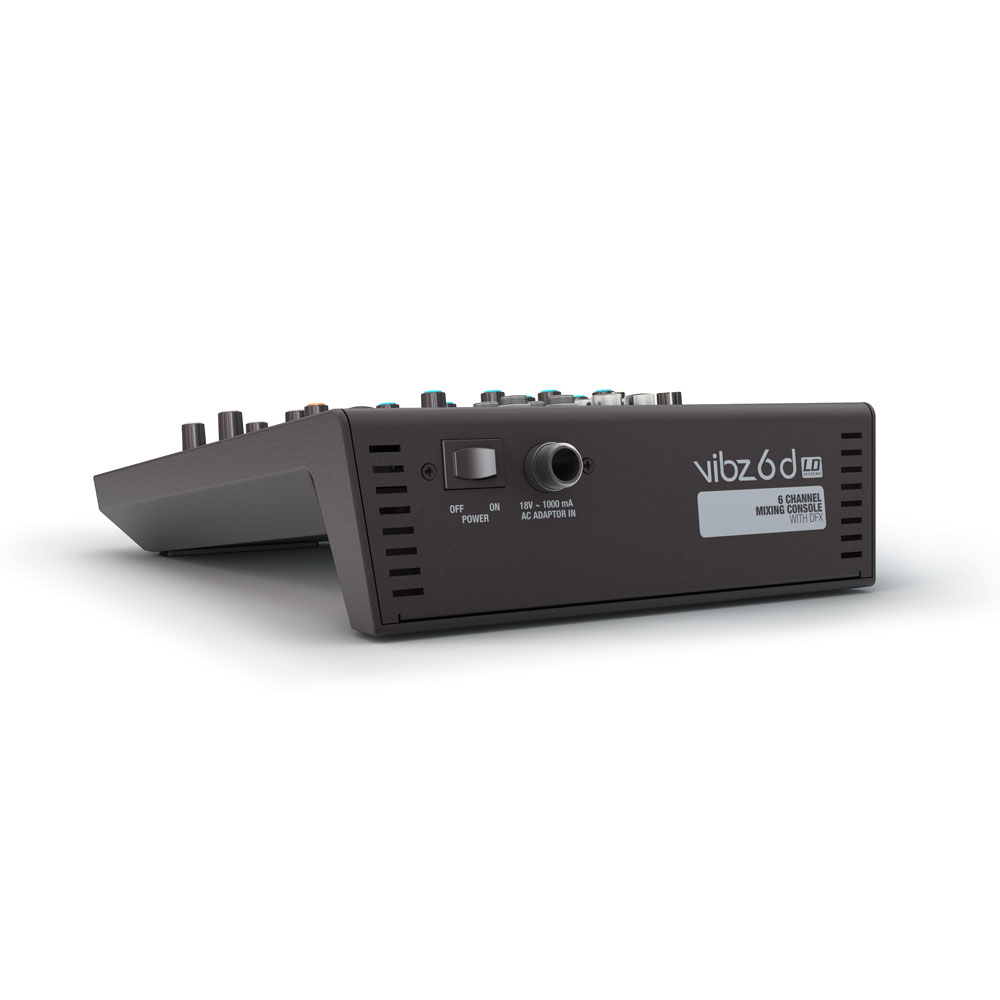

LD Systems VIBZ 6 D - analogue mixer with 6 channels and DFX, ideal for bands, home recording and installations. It offers two balanced microphone inputs, with high-quality preamplifiers, phantom power and a 3-band EQ with +/-15 dB adjustment, two stereo line inputs with 2-band EQ, which are mono compatible, and an effects loop. The master section is equipped with adjustable outputs for monitors, headphone output and 16 selectable digital effects presets, with the possibility of selection via foot-switch. The mixer is also equipped with inputs/outputs for recording and playback devices. It is powered by an external power supply with a screw connector.
Technical specifications:
Number of channels: 6
Mono channels:
Number of mono line/microphone input channels: 2
Connectors for mono microphone input channels: 6.3 mm TRS, XLR
Signal type for mono microphone channels: electronically balanced
Frequency range for mono microphone channel: 10Hz
Gain range for mono microphone channel: 0 - 50dB
THD-N for mono microphone channel: 0.0058%
Input impedance for mono microphone channel: 4kOhm
Signal type for mono line channels: electronically balanced
Frequency range for mono line channel: 10Hz
Gain range for mono line channel: 0 - 50dB
THD-N for mono line channel: 0.0045 %
Input impedance for mono line channel: 21kOhm
Signal-to-noise ratio for mono line channel: 116dB
High frequency equalization for mono channel: +/- 15 dB at 12000 Hz
Low frequency equalization for mono channel: +/- 15 dB at 80 Hz
Controls for mono microphone channel and line channels: pan, Channel Volume, AUX (DFX) Post, 3-band EQ (High, Mid, Low), Gain
Phantom power: 48 V DC selectable
Stereo channels:
Number of stereo line input channels: 2
Connectors for stereo line input channels: 6.3 mm TS
Signal type for stereo input channels: unbalanced
Frequency range for stereo line channel: 10 - 54000Hz
THD-N for stereo line channel: 0.0045 %
Input impedance for stereo line channel: 3.7kOhm
Signal-to-noise ratio for stereo line channel: 116dB
High frequency equalization for stereo channel: +/- 15 dB @ 12000 Hz
Low frequency equalization for stereo channel: +/- 15 dB @ 80 Hz
Controls for stereo input channels: AUX (DFX) Post, Balance, 2-band EQ (High, Low), Channel Volume

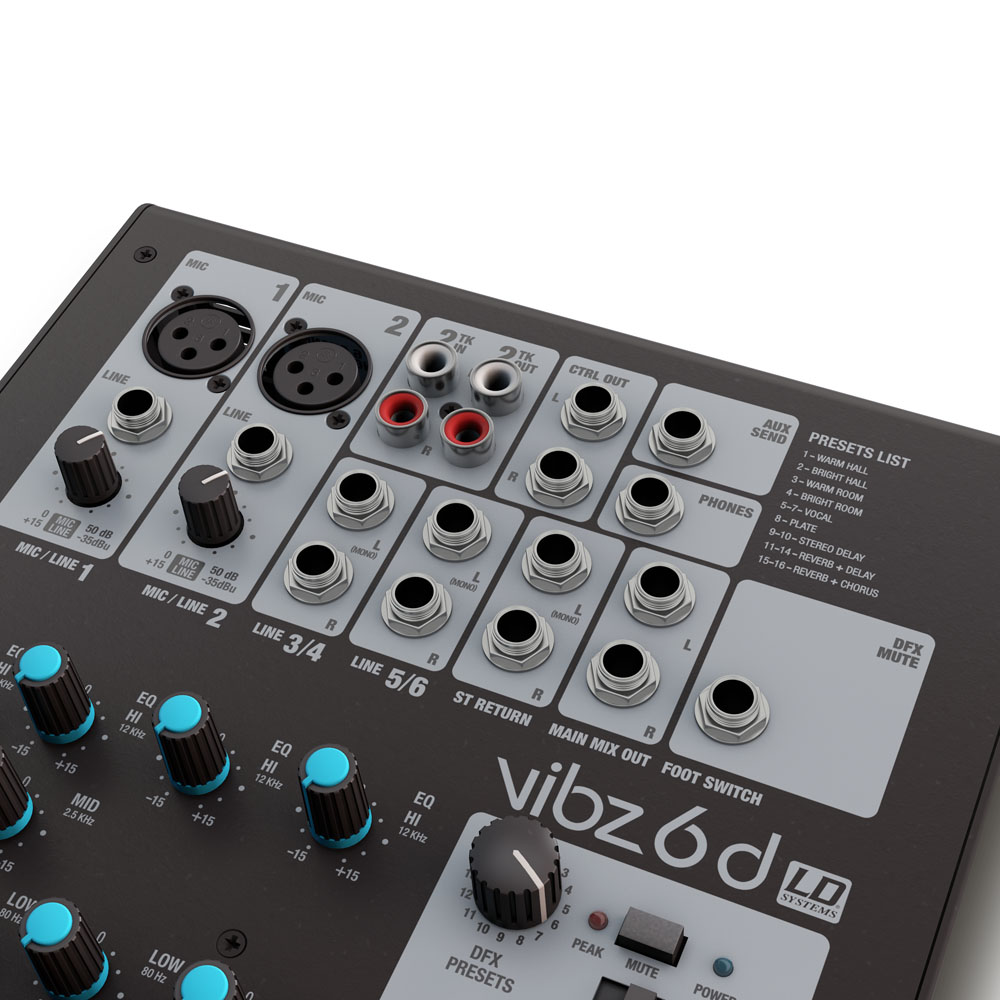

Main Section:
Number of auxiliary channels / Effects Send: 1
Connectors for auxiliary channels / Effects Send: 6.3 mm unbalanced stereo jack
Number of stereo AUX return channels: 1 x stereo
Connectors for stereo AUX return channels: 2 x 6.3 mm TRS
Stereo Tape output channel: 1 x stereo
Connectors for Stereo Tape output channel: 2 x RCA (Cinch)
Stereo Tape input channel: 1 x stereo
Connectors for Stereo Tape input channel: 2 x RCA (Cinch)
Main unbalanced stereo outputs: 1
Connectors for main unbalanced stereo outputs: 6.3 mm TRS
Impedance for main unbalanced stereo outputs: 120Ohm
Maximum level for main unbalanced stereo outputs: +20dBu
Control room stereo output: 1
Connectors for control room stereo output: 6.3 mm unbalanced stereo jack
Headphone output: 1
Connectors for headphone output: 6.3 mm TRS
Digital effects processor: 24-bit with AD/DA resolution
Number of presets: 16
Footswitch connector for DFX mute: 6.3 mm TRS
Main section controls: Phantom Power, DFX Mute Switch, DFX To Main Volume, 2-track Assignment (Main, Contr. Room), DFX Presets, Master Volume, Phones / Control Room Volume, 2-track In Volume, Stereo Return Volume
