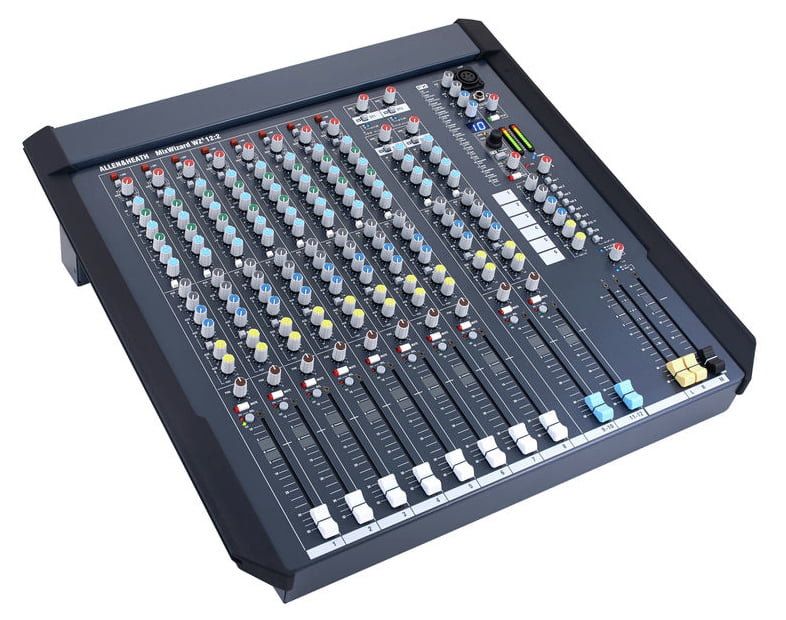

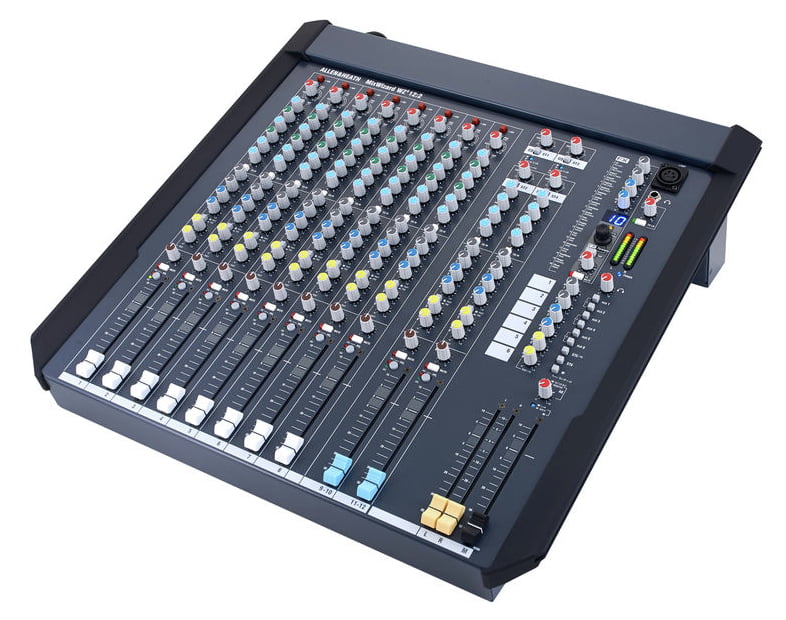

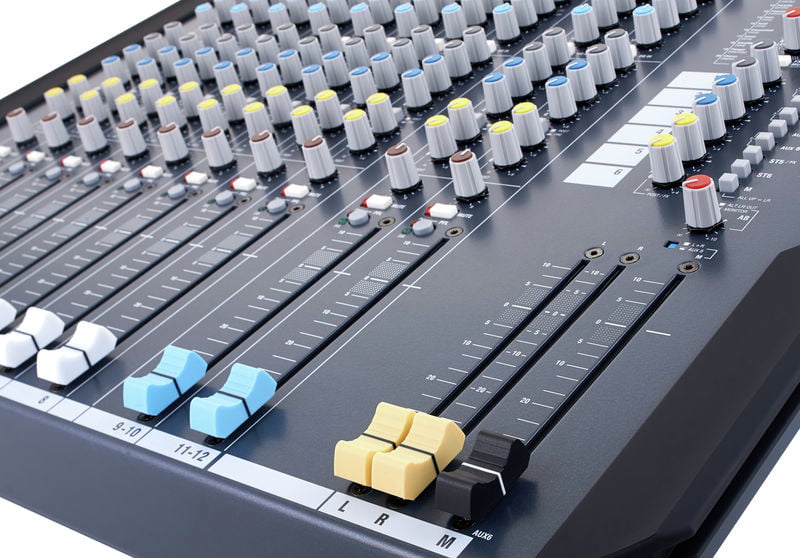

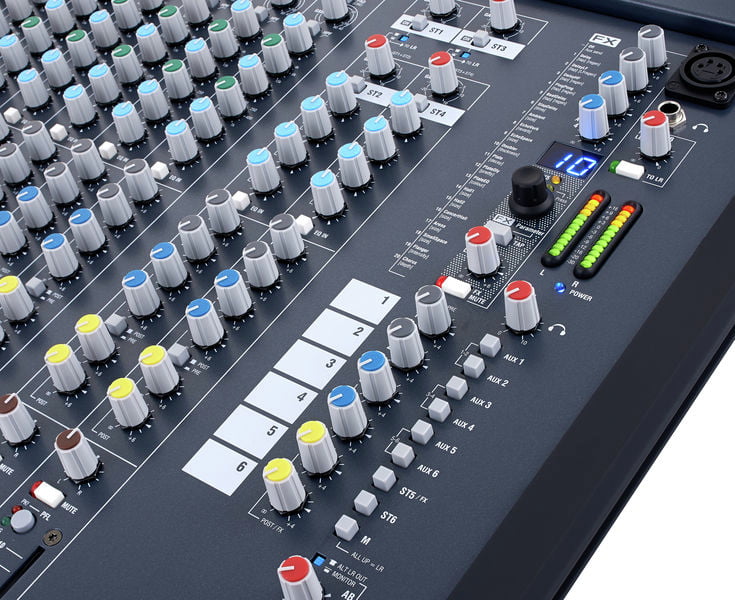

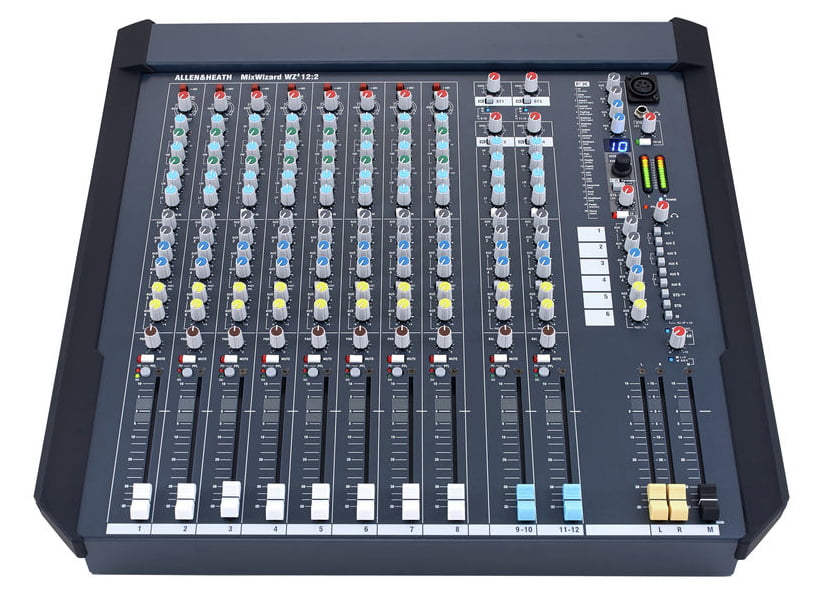

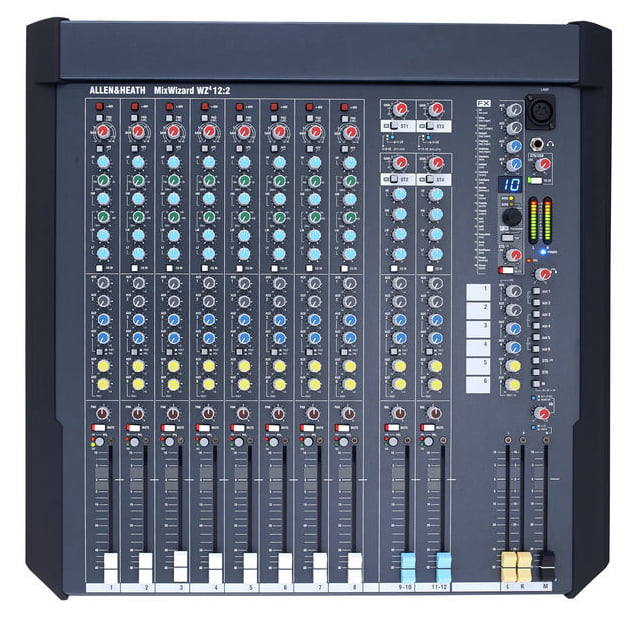

Allen&Heath MixWizard WZ4 12:2 - versatile analogue mixer equipped with 100 mm faders. It features 8 microphone/line inputs with inserts and direct outputs, 6 auxiliary outputs (1-4 selectable pre/post fader, 5+6 post fader), two dual stereo full channel inputs, two stereo returns, and two built-in digital FX processors (2x 16 presets).

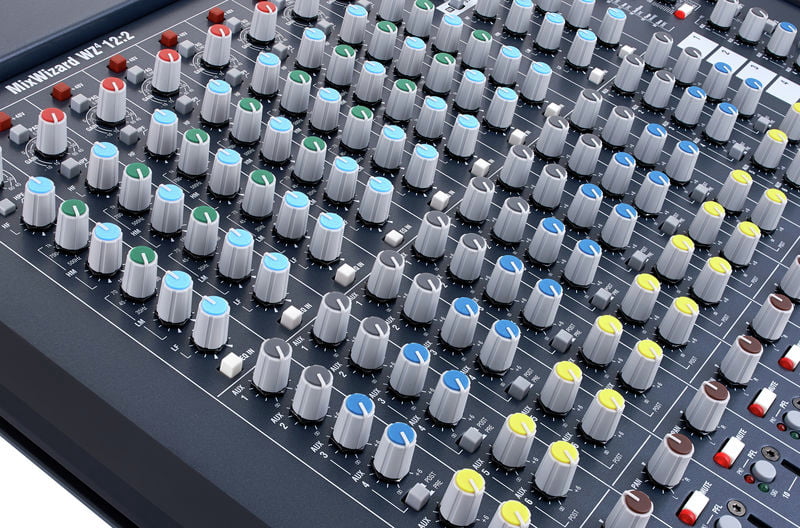

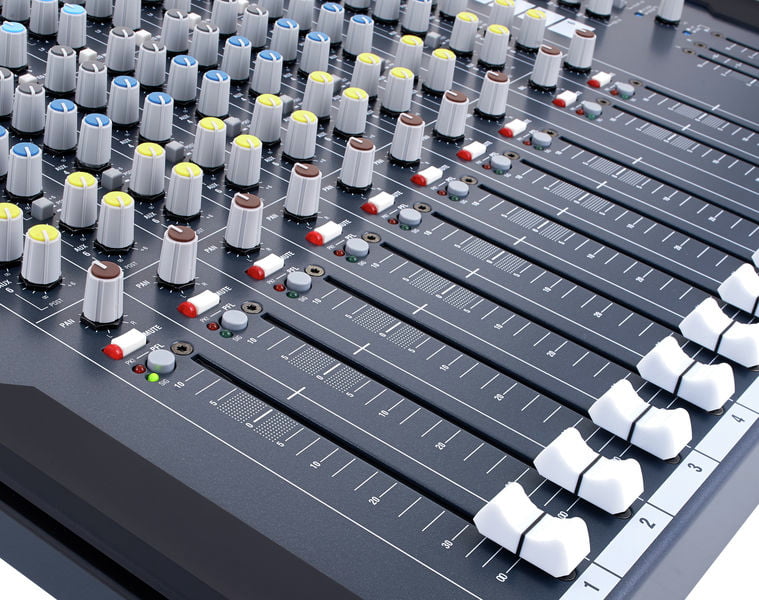

Channels 1 to 8 mic/line are equipped with balanced XLR connectors and TRS jacks and Phantom Power supply voltage for use with microphones or instruments, each channel having a 4-band EQ, peak indicator, -20 dB pad, 6 auxiliary send potentiometers, pan potentiometer, channel mute, and a high-pass filter that attenuates frequencies below 80 Hz at 12 dB per octave. The mixer also includes 2 channels with dual stereo inputs that can be used separately, mixed together, or split and routed so that one feeds into the other.

Channels 1 to 8 feature inserts that can be used to insert processing equipment into the signal chain, such as compressors, EQs, or delay units. Additionally, each channel has direct outputs that allow sending signals to external recording consoles or audio recording interfaces. The auxiliary send channels have balanced TRS jack connectors, through which audio signals can be sent to stage monitors or other external equipment. Besides all this, the mixer is equipped with two stereo return channels with TRS jack connectors with separate gain control, allowing the use of signals from external sources such as CD or MP3 players.

Technical specifications:

• Maximum output signal:
  • XLR: +26 dB/600 ohm maximum load
  • 1/4" jack: +21 dB/2k ohm maximum load
• Headroom:
  • channels: +21 dB
  • mix: +23 dB
• Frequency response: 10 Hz to 30 kHz (+/-0.5 dB)
• THD + N: from channel to mix out < 0.004% (at +10 dBu 1 kHz)
• Crosstalk:
  • Fader shutoff > 90 dB (at 1 kHz)
  • Mute shutoff > 90 dB (at 1 kHz)
  • Inter channel > 90 dB (at 1 kHz)
• Noise:
  • Mic EIN, -127 dB, (rms 22 Hz to 22 kHz)
  • Residual output noise, < -95 dBu (-99 dB S/N), (rms 22 Hz to 22 kHz)
  • Mixing noise per fader unit LR, < -83 dBu (-87 dB S/N), (rms 22 Hz to 22 kHz)
• High-Pass Filter:
  • 12 dB/octave below 80 Hz
• Equalization:
  • EQ:
    • HF shelving, +/-15 dB, 12 kHz
    • HM peak/dip, +/-15 dB, 500 Hz to 15 kHz, Q = 1.8
    • LM peak/dip, +/-15 dB, 35 Hz to 1kHz, Q = 1.8
    • LF shelving, +/-15 dB, 80 Hz
  • Stereo EQ:
    • HF Shelving ±15 dB, 12 kHz
    • HM Peak/dip ±15 dB, 2.5 kHz, Q=1.8
    • LM Peak/dip ±15 dB, 250 Hz, Q=1.8
    • LF Shelving, ±15 dB, 80 Hz
• Power:
  • 100 - 240 V, 50/60 Hz, IEC power connector
  • Power consumption: 45 W max
  • Main fuse: T630 mA L 20 mm

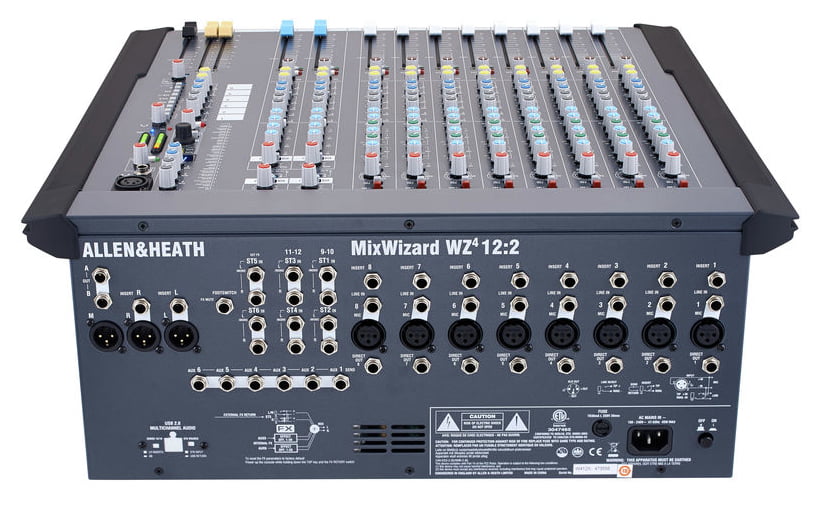

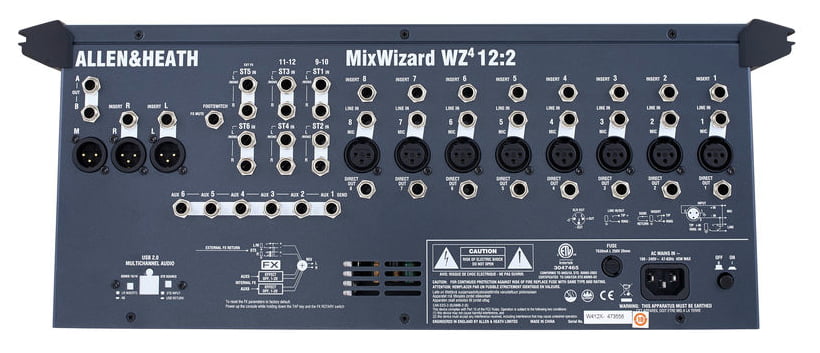

• Input/output connectors:
  • Mono channel:
    • Balanced XLR with pin 2 hot, sensitivity -60 to +10 dBu
    • Balanced TRS jack with tip hot, sensitivity -40 to +10 dBu
    • Pad out (MIC), 2 kΩ
    • Pad in (MIC or LINE), >10 kΩ, -20 dB
    • Maximum input signal, +30 dBu
    • XLR phantom power, +48 V, on/off
  • Stereo channel:
    • ST1, 3 unbalanced TRS >10 kΩ, -16 to +20 dBu
    • ST2, 4 balanced TRS >10 kΩ, -16 to +20 dBu
  • Stereo return channels:
    • ST1(5) balanced TRS >10 kΩ, -6 to +20 dBu
    • ST2(6) unbalanced TRS >2 kΩ, -2 to +20 dBu
  • Inserts:
    • TRS channel, send type, ring return, 0 dBu
    • TRS output, send type, ring return, -2 dBu
  • Outputs L, R, M:
    • Balanced XLR, pin 2 hot,
  • Auxiliary outputs 1-6:
    • TRS with balanced impedance,
    • Electronic balancing option,
  • Direct out outputs:
    • TRS with balanced impedance,
  • AB output:
    • TRS with balanced impedance,
  • Headphone output:
    • TRS, tip L, ring R, recommended headphones with impedance 30 to 600 Ω
  • Lamp:
    • XLR connector with 4 pins, lamp max 12 V 5 W
• Dimensions: 507 x 530 x 194 mm
• Installation depth: 45 cm
• Weight: 10 kg
