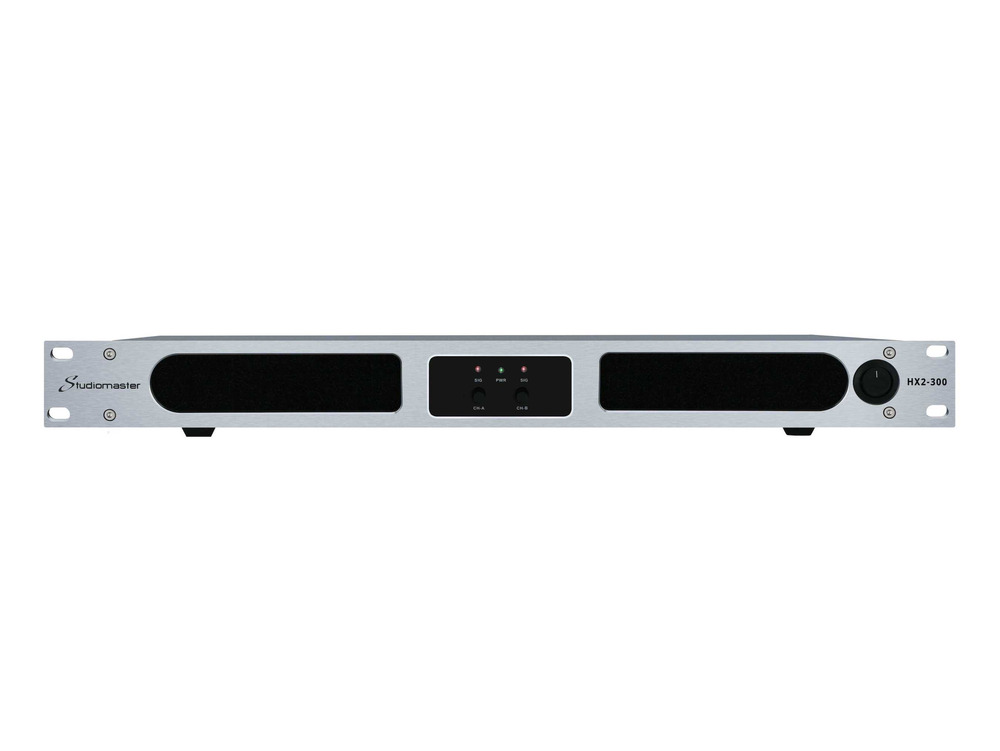

Studiomaster HX2-300

StudioMaster HX2-300 - The HX series includes ultra-lightweight, compact digital amplifiers with astonishing performance.

All models feature advanced protections and status indicators and are available in 2 and 4 channel variants, offering from 2 x 225 watts at 4 ohms up to 4 x 765 watts.

For demanding installations, conferences, entertainment, and smaller touring and rental applications, the new HX series will provide the performance, power, and reliability you need in a compact and affordable package.

• Energy-saving design with high efficiency
• Power Factor Correction (PFC)
• Universal power supply 90-250V
• Reliable and efficient operation up to 2 ohm loads
• Variable speed fan cooling
• Status indicators and protection
• Stereo/parallel/bridge modes
• Multiple Gain modes
• Output limiter
• Balanced XLR inputs
• Professional speaker connectors
• Thermal, overload, DC protection
• Thermal, fault, and limiter indicators
• Slope (1kHz, Bypass LPF): 50V/us
• Input sensitivity: 1Vrms
• Frequency response (rated output power 10%, 8 ohms, 20 Hz – 20 kHz): 0.2 dB
• Input impedance: 20k ohms (balanced), 10k ohms (unbalanced)
• Power supply: 90-260VAC, 50/60Hz
• Protections: Overload/thermal/output
• Dimensions: 483 mm x 44 mm x 323 mm
• Weight: 5 kg
• Power:
  • 8 ohm stereo:  2 x 150 W
  • 4 ohm stereo: 2 x 225 W
  • 2 ohm stereo: 2 x 435 W
  • 16 ohm bridged: 300 W
  • 8 ohm bridged: 510 W
  • 4 ohm bridged: 870 W
