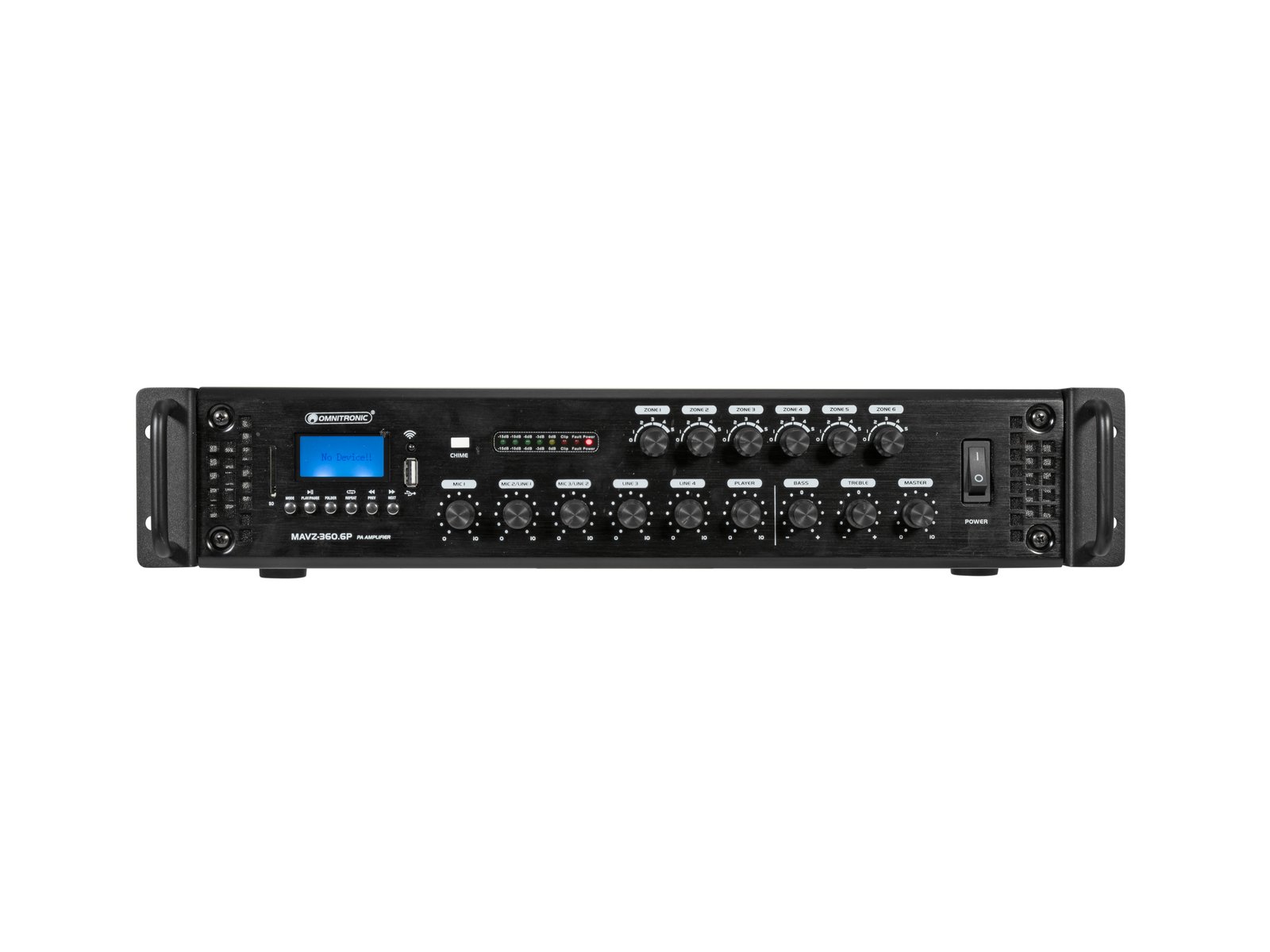

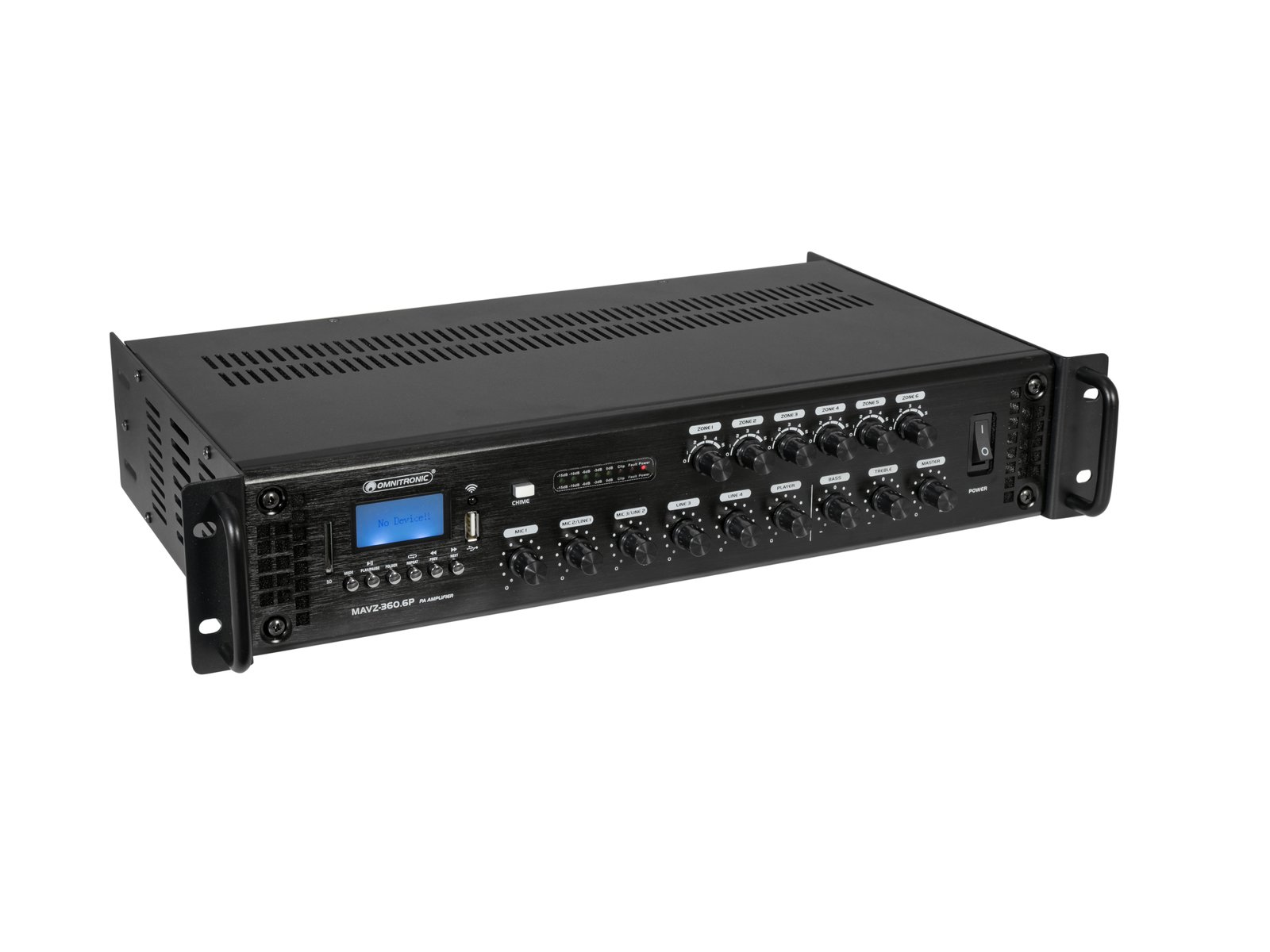

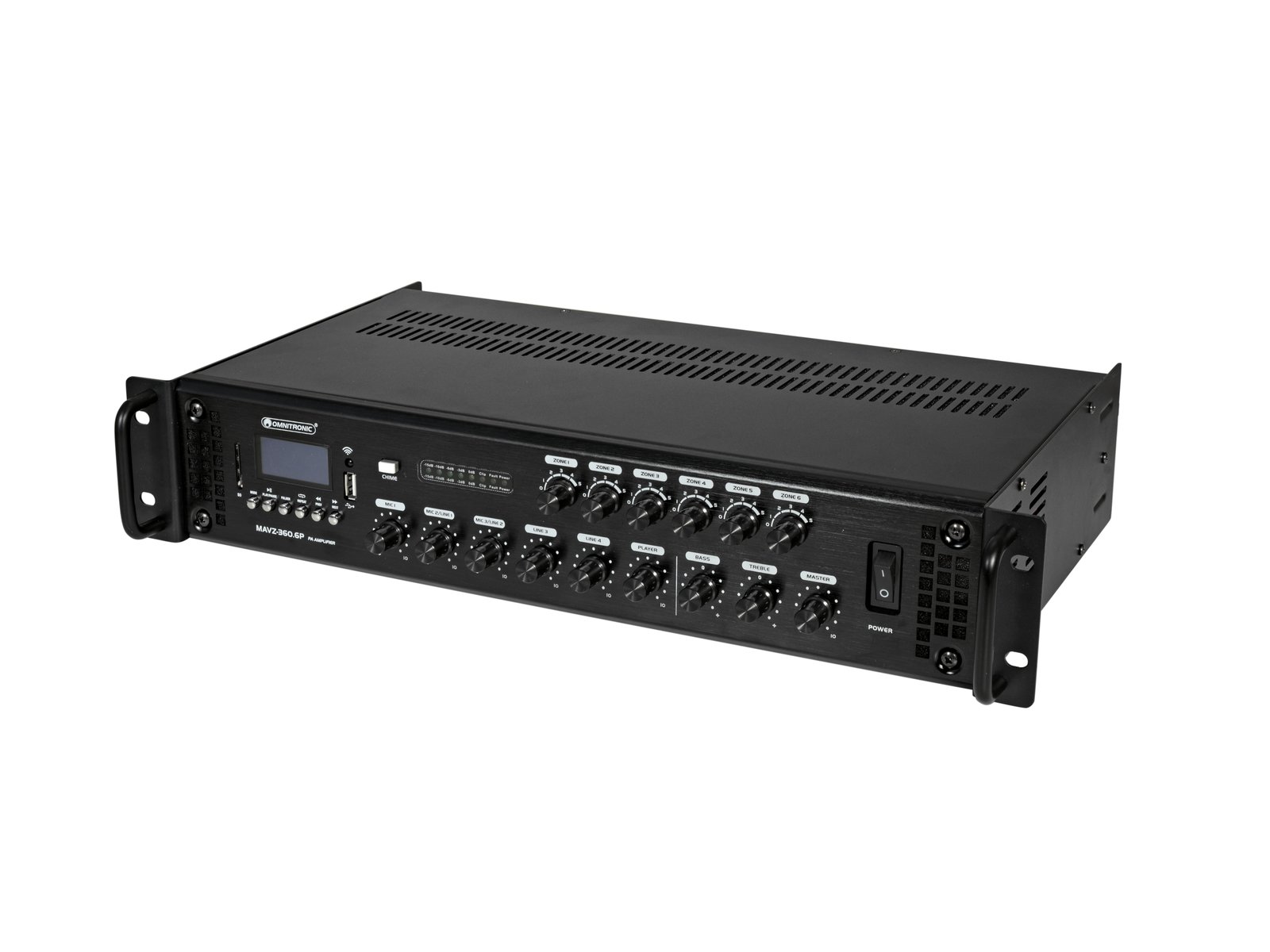

Mono PA mixing amplifier with 6 zones, MP3 player and IR remote control, adjustable zones, 360 W
Comfortable control of PA speakers through 6-zone technology
6 PA zone outputs with separate 5-step level controls
Low impedance speaker output (4-16 ohms)
Integrated Bluetooth audio streaming
SD card slot and USB port
Folder navigation, repeat functions and random playback
3 microphone inputs with separate level controls
Microphone 1 with phantom power and priority circuit
Switchable mic/line for Microphone 2 and 3
2 line inputs with separate level controls
1 line output
Treble and bass controls and master controls for output signal
5-digit LED level meter
Switchable bell
The device is cooled by a cooling fan

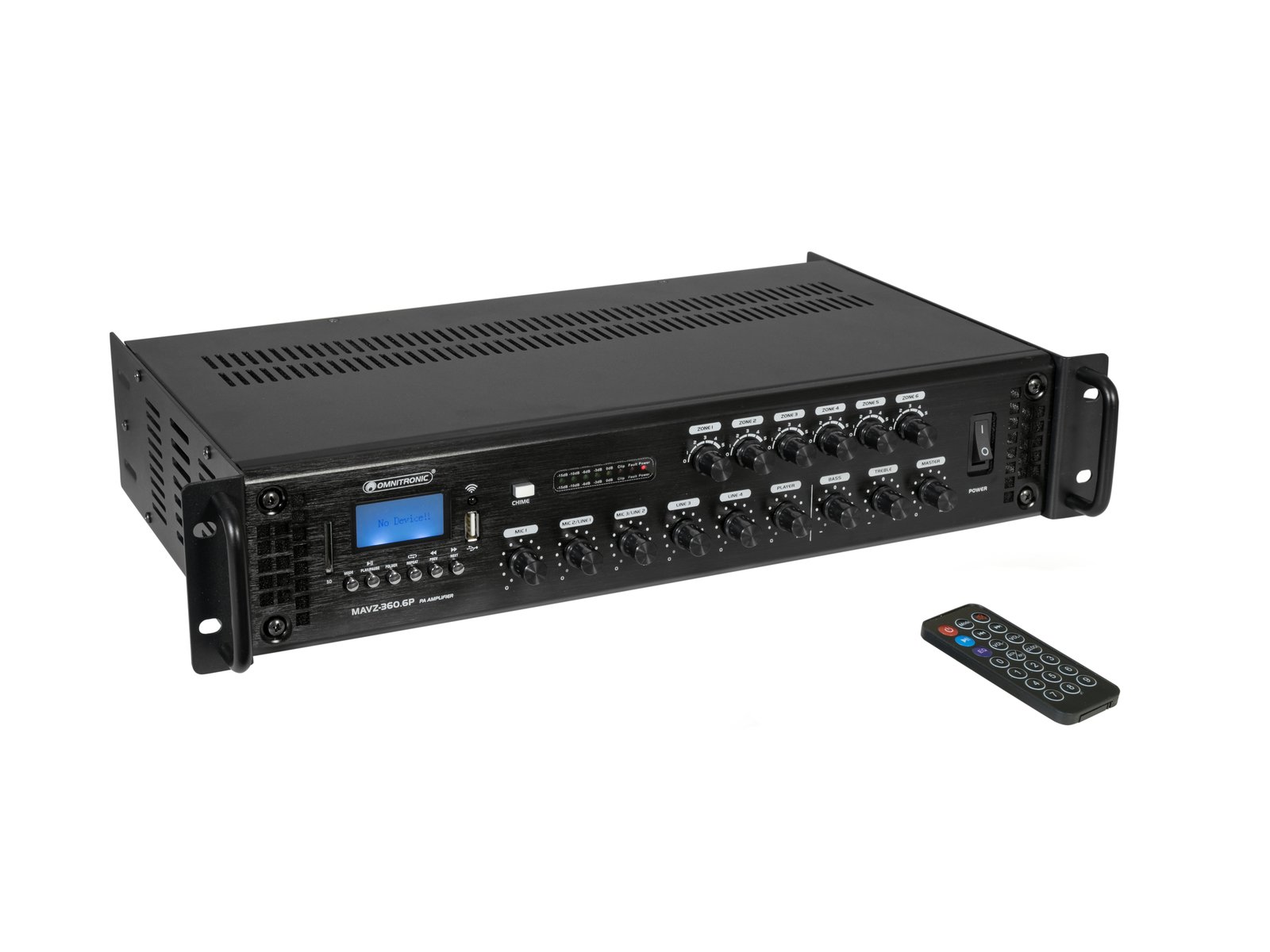

Control via IR remote; Bluetooth
(19") 48.3 cm rack installation 2 U
Package contents
1 x amplifier, 1 x user manual, 1 x remote control, 1 x battery, 2 x brackets, 4 x screws
Power supply:
230 V AC, 50 Hz
Power consumption:
720 W
Output power:
360 W RMS
Power connection:
Fixed power cable with safety plug
Frequency range:
50 - 18000 Hz
S/N ratio:
Microphone >75 dB >85 dB line
THD:
<0.5 % at 1 kHz
Cooling:
Cooling fan
Impedance:
100V sound systems; 4-16 ohms; 70V sound systems
Control:
IR remote; Bluetooth
Cassette player:
USB + SD + Bluetooth
Controls:
Transient power on/off; Overvoltage; short circuit

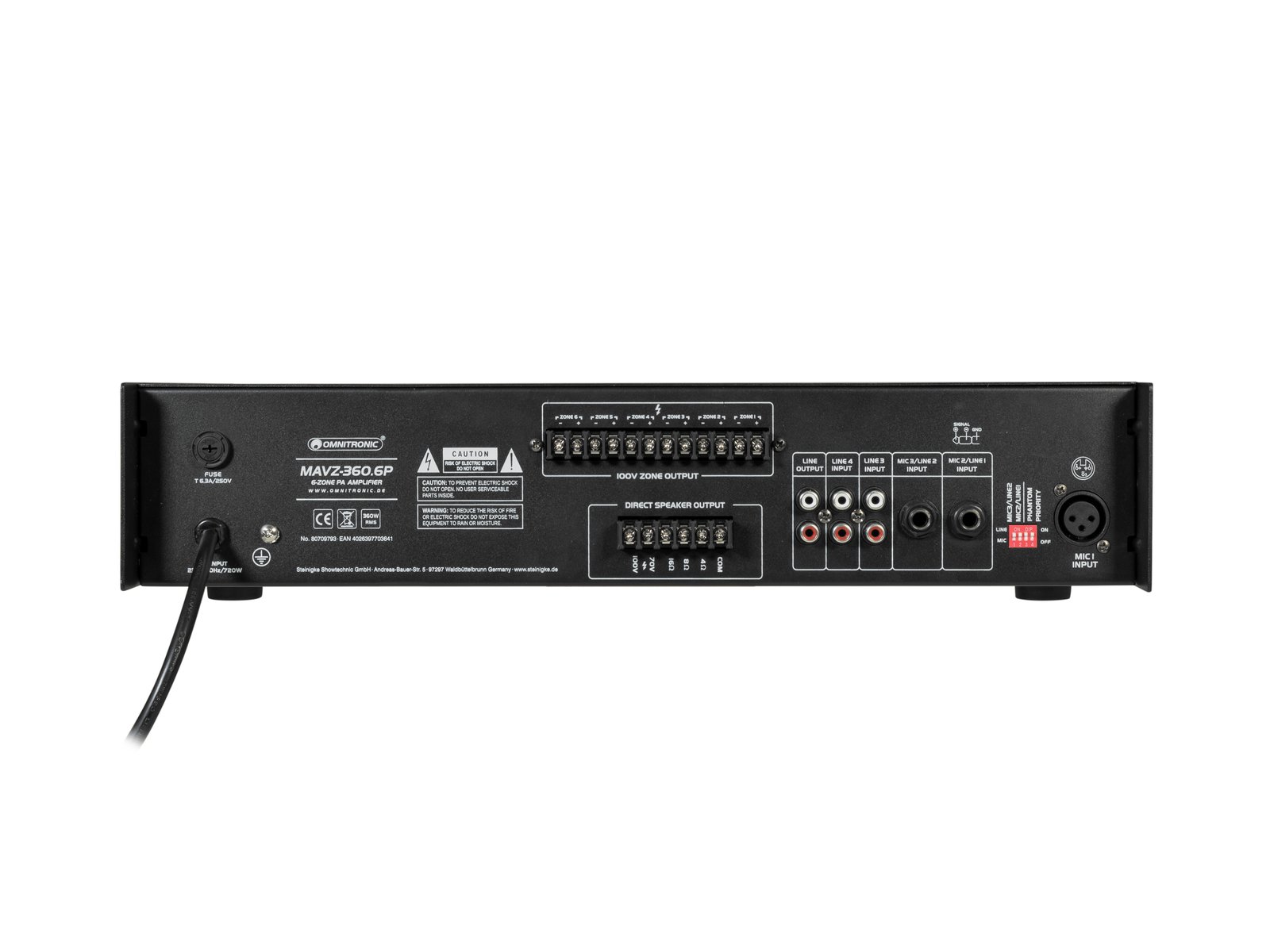

Connections:
Input: microphone via 2 x 6.3 mm jack (unbalanced) Input: microphone via 1 x 3-pin XLR Input: line via 3 x RCA stereo 0.3 V Output: line via 1 x RCA stereo 0.3 V Output: speaker via screw terminal
Equalizer:
Master: 1 x tone control with 2 mono bands
Music format:
MP3
Number of files:
Max. 999
Available storage media:
USB devices/SD cards max. 32 GB (FAT 32)
Housing design:
(19") 48.3 cm rack installation 2 U
Dimensions:
Width: 48.3 cm Depth: 27.5 cm Height: 9.6 cm
Weight:
7.15 kg
Remote control
Battery:
1 x 3.0 V CR2025 lithium manganese button cell built-in
