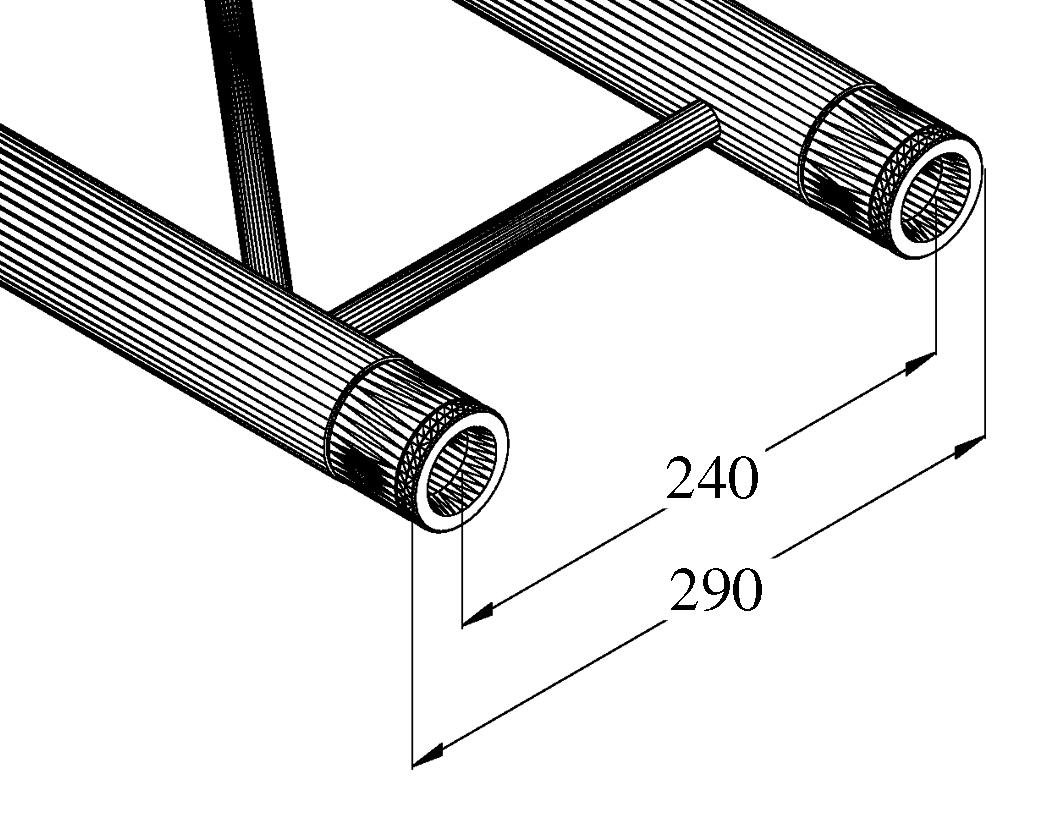

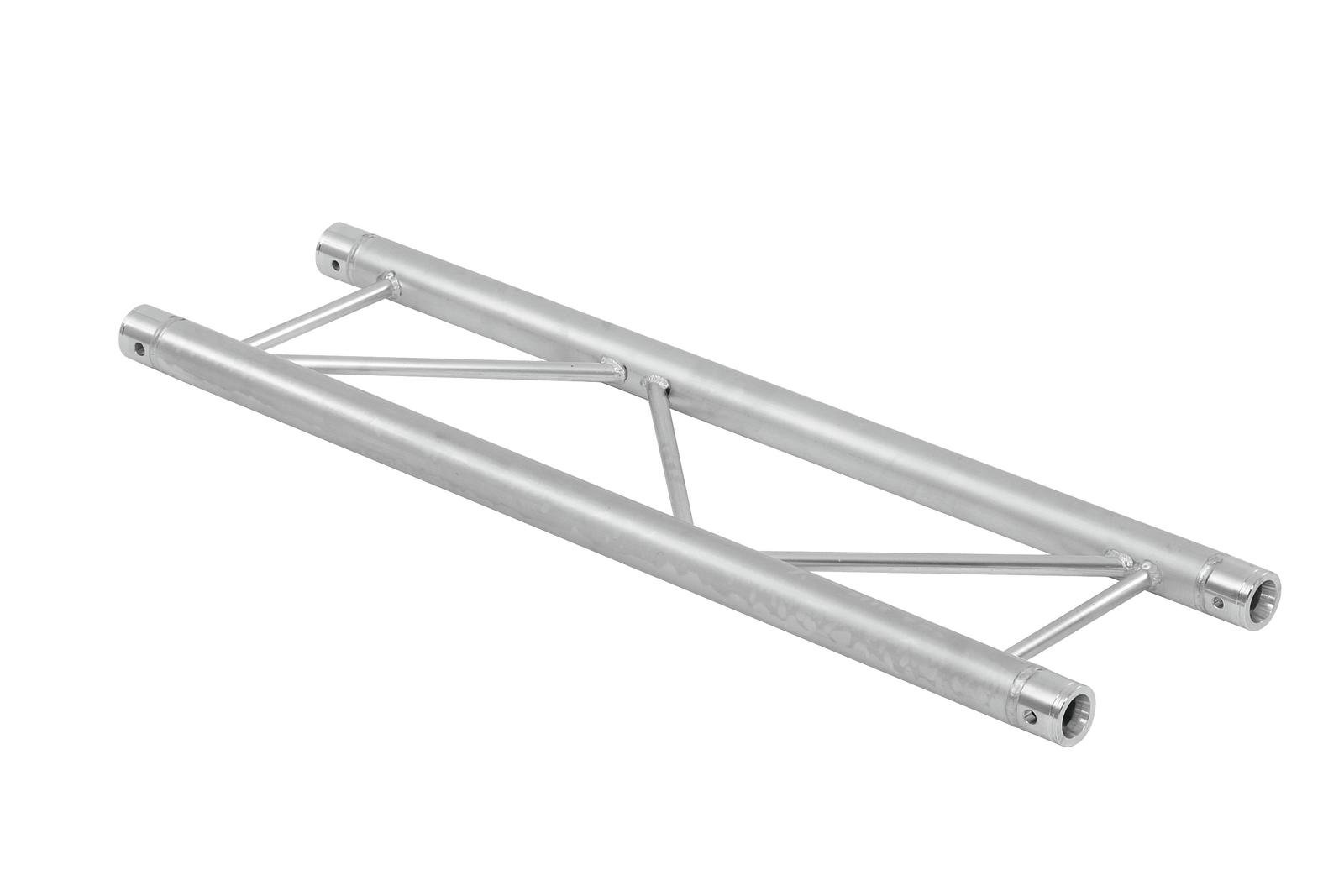

BILOCK BQ2 2-point truss systemBILOCK BQ2 is a 2-point truss system made of aluminium. The individual elements are connected by two cones, pivots, and pins. The advantage of the conical connection system is that the cones fit completely into the main chords, ensuring the highest load capacity. The Quick-Lock system allows for quick, efficient, and highly aesthetic assembly when truss constructions are frequently assembled and disassembled. The two main chords are made from 50 mm aluminium tube with a wall thickness of 2 mm, providing a good strength-to-weight ratio. The braces have a diameter of 16 mm with a wall thickness of 2 mm, leaving sufficient space for the installation of couplers, hooks, and clamps. With external dimensions of 290 mm, the BILOCK BQ2 is a stable truss system for heavier loads and extended durability. This system is primarily designed for intensive use in stage installations, trade show setups, event installations, as well as for permanent installations in nightclubs and theatres. Its polished surface makes this universal system eye-catching. Due to its wide range of standard system lengths, corners, circles, and accessories, this system is extremely versatile and offers unlimited design possibilities. The documentation for this truss system is closely linked to the SQ P1 Codes of Practice - Truss Systems published by VPLT. /PLASA. The load table as a calculation basis can be downloaded from the Internet before purchasing the product! Please note: this truss system must never be combined with other systems!
2-point truss system
- Lightweight
- Easy installation
- Trusspipe: 50 mm
- TÜV Süd certified
- For applications such as: Theatre; Trade show and shop setups; Clubs/dance schools
Package contents
| Established: | Easy installation |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG welding |
| Welding material: | AlMg 5 |
| Colour: | Coloured aluminium |
| Bar diameter x thickness: | 16 x 2 mm |
| Dimensions: | Length: 71 cm
Width: 29 cm
Height: 5 cm |
| Weight: | 1.98 kg |
