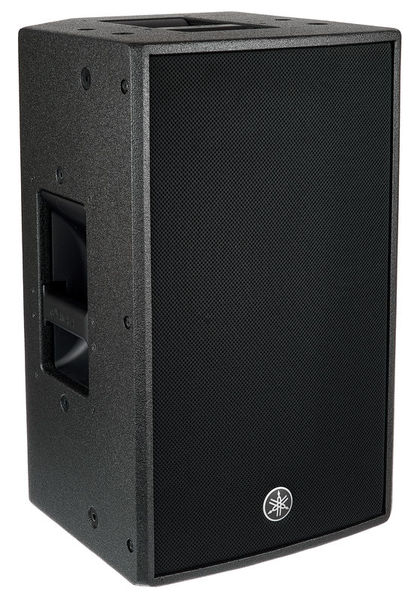

Yamaha DZR-10

Name: Yamaha DZR-10
Brand: Yamaha
SKU: ZQ53020
Price: 1204.46 EUR
Availability: OutOfStock

Active speaker

2-way bi-amplified design with a 2" driver and a 10" woofer.
high SPL of 137dB and frequency range of 44Hz-20kHz.
class D amplifier providing dynamic power of 2000W.
96 kHz DSP and FIR filter for high-resolution sound.
flexible mounting options with rotatable horn.

Variants:

1 204⁴⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 84 months

Returns 14 days

request details

Yamaha DZR-10 Add to cart: 1 204⁴⁶ €

Yamaha DZR-10 - Active speaker in 2-way bi-amplified with a 2" driver and a 10" woofer, with an SPL of 137dB, frequency range: 44 - 20000 Hz, Class D amplification mode with dynamic power of 2000 W.

Advanced FIR-X tuning features, combining FIR filtering and correct EQ for minimising phase distortion
High-intensity Class D amplification mode of 2000W
96 kHz DSP and FIR filter for true high-resolution sound with ultra-low latency
D-Contour and extremely reliable protection circuits
Rotatable horn and a variety of U-bracket options (UB-DZR) for very flexible mounting configurations
Frequency range of 44Hz-20kHz
SPL 137dB
Power:
- continuous: 950W
- dynamic: 2000W
2" driver and 10" woofer
Dispersion: H90' x V60'
Crossover: 1.8kHz (FIR-X)
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fixed), CH2: THRU or DSP OUT
Cooling with fan
Mounting points: M10 x10
Dimensions: 315 x 537 (with rubber feet) x 345 mm
Weight: 17.9kg

Extended warranty!

Product code: ZQ53020

Unit of sale: piece

Specifications:

Amplification - continuous power:	950 W
Mid-bass speaker:	10"
High speaker:	2"
Lower frequency limit (Hz):	44 Hz
Upper limit high frequencies (kHz):	20 kHz
Maximum SPL (dB):	137 dB
Enclosure:	Wood
