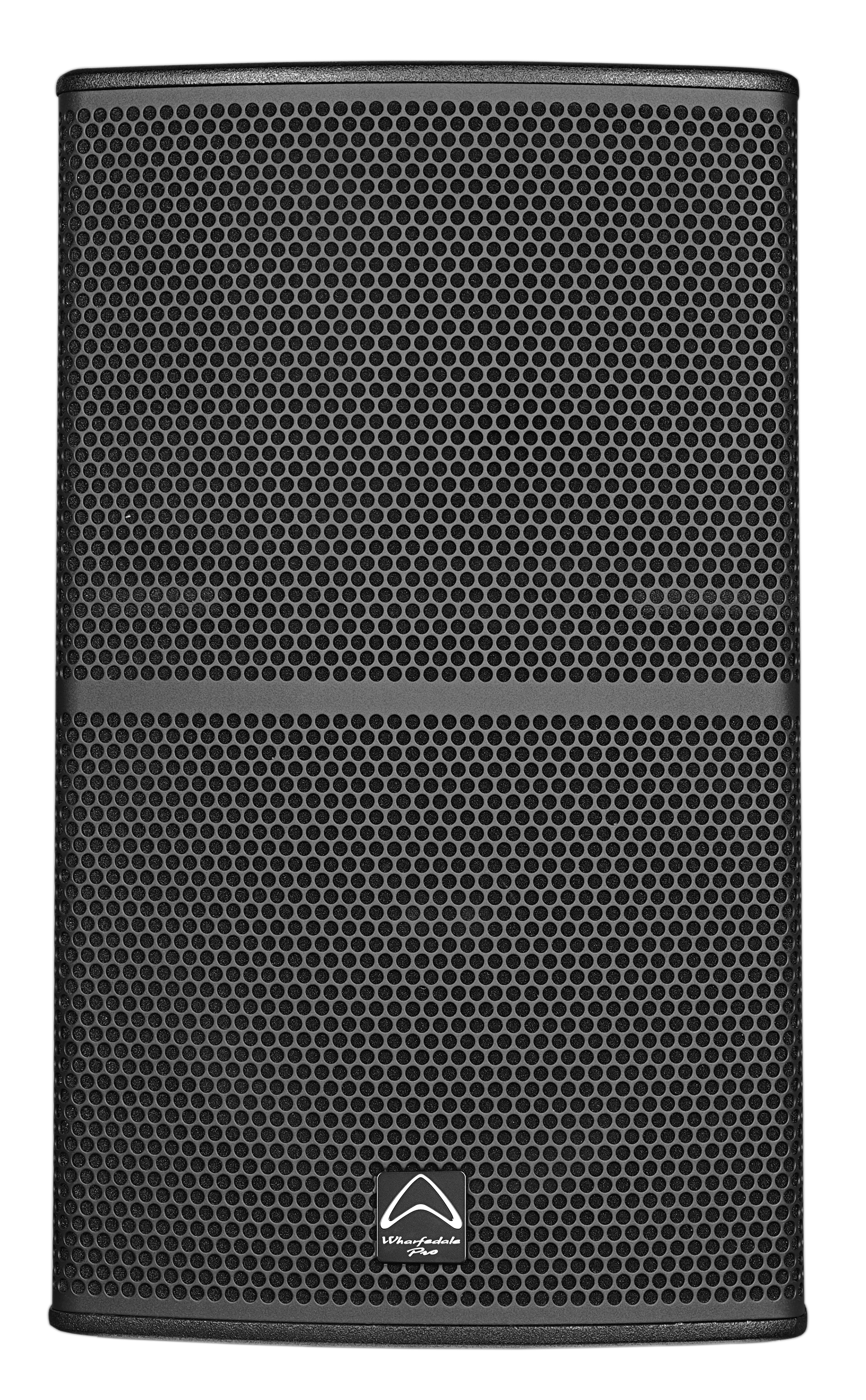

Wharfedale Pro WLA-15MA

Wharfedale Pro WLA-15MA - The quality and durability of the well-established WLA series are now available in an active series. The series consists of 5 new models that are enhanced with internal DSP using FIR presets. Ethernet control also offers remote system management tools via a single cable.

The range includes a 2 x 8-inch matrix element, two active floor monitors, a dual 15-inch subwoofer, and a continuous 2000 W dual 18-inch WLA-218BA subwoofer. A combination of products that allows for the design, installation, and visiting of comprehensive systems.

The system is also compatible with the WLA-28 Common Fly Frame and WLA-28 Dolly Frame and can also be protected using transport bags from the WLA series.

Features:

• 750 watts continuous
• 15-inch active monitor
• 35 mm pole mount
• Internal DSP with FIR presets
• Network connection using RS485 protocol
• 134 dB SPL maximum at 1 m
• 15 mm birch plywood construction
• Dispersion 90° x 60°
• 650 W LF + 100 W HF continuous
• 1300 W LF + 200 W HF peak
• 8 x DSP presets, including FIR

Technical Specifications:

• System type: 15" Active Monitor with 2-way Bi-amplified
• Frequency response (+/-3 dB): 45 Hz-20 KHz
• Frequency range (-10 dB): 40 Hz-20 KHz
• Speaker sensitivity (@ 1 W / 1 m): 99.5 dB
• Max SPL (peak) (@1 m): 134 dB
• Nominal coverage (H x V): 90° x 60°
• Signal processing: DSP-based, 8 resident FIR presets in the input module
• Preset list:

  • A) WEDGE
  • B) WEDGE HPF
  • C) COUPLED
  • D) COUPLED HPF
  • E) FOH
  • F) FOH HPF
  • G) CUSTOM
  • H) CUSTOM
• Amplifier design: Class D
• Rated power: 1500 W peak (1300 W LF + 200 W HF), 750 W continuous (650 W LF + 100 W HF)
• Startup protection: Sound on/off switch
• Thermal protection: Amplifier shut down, automatic reset
• Low line voltage: 80% Line nominal voltage shut down
• Driver protection: Independent L/H limiters and DC
• DC and short circuit protection: Yes
• Limiter indicator: Red LED
• Signal indicator: Green LED
• Power/active indicator: White LED
• Find Function indicator: Blue LED
• Input sensitivity: +4 dBu
• Maximum input level: +18 dBu
• Input impedance: Balanced: 10 KΩ
• AC power details – Power supply: High-efficiency switching module
• Input connector: XLR 1/4" Combo jack
• Link connector: Balanced XLR connector
• Update: USB type B
• NETWORK (RS485): RJ45
• AC power options: 100-120 V~ / 220-240 V~, 50/60 HZ
• AC input connector: powerCON
• AC Loop Through connector: powerCON
• Hardware – Rigging: M10 x 8
• Cabinet material and finish: 15 mm birch plywood
• Colour: Black
• Grille material and finish: 1.5 steel
• Dimensions: 723 x 432 x 433.8 mm
• Weight: 29.6 Kg
