MEC Pickups 60072 - Active BEC 2 Electronics For Active Pickups (Vol PP / Bal / T PP / B) - Warwick Vampyre SN

- active electronics for electric bass
- compatible with Warwick Vampyre SN and other models
- active preamplifier MEC BEC 2

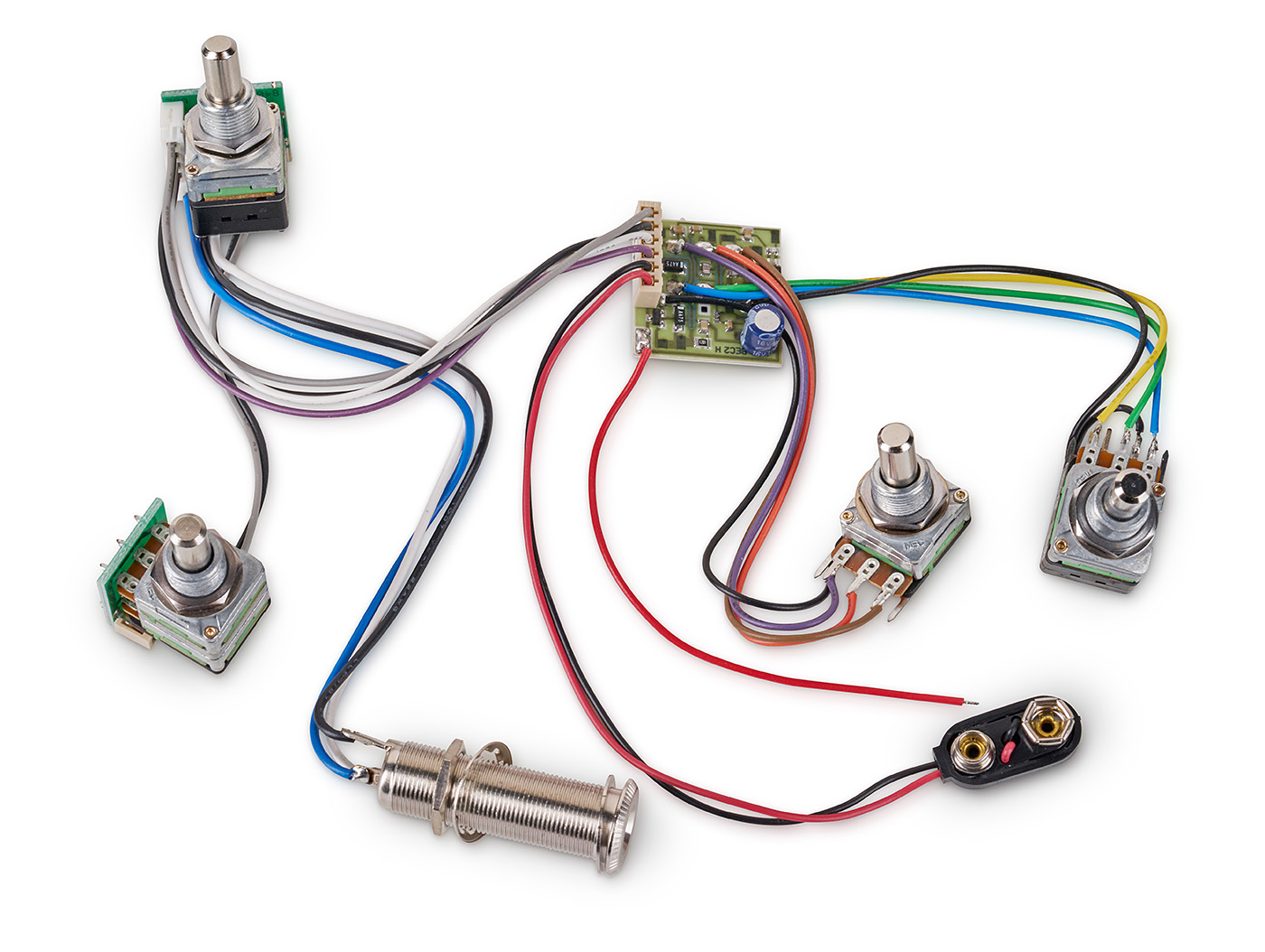

- fully assembled wiring
- 2-band EQ
- design with 4 potentiometers
- suitable for active pickups
- controls for Volume (PP) / Balance / Bass / Treble (PP)
- bass +/- 15 dB @ 100 Hz
- treble +/- 15 dB @ 2.5 kHz
- push/pull function on the volume control for switching between active EQ / EQ bypass
- push/pull function on the treble control for coil splitting (A+B / B)
- powered by a 9V battery (not included), battery clip included
- output jack included
- potentiometer caps / control knobs are not included and must be purchased separately if needed
