MEC Pickups 60065 - Active EQ2 Electronics For Active Pickups (Vol PP / Bal / T+B / M), w/ 2 Toggle Switches

- active electronics for electric bass
- compatible with Warwick Corvette NT Ltd. 2010 and other models
- active preamplifier MEC EQ2

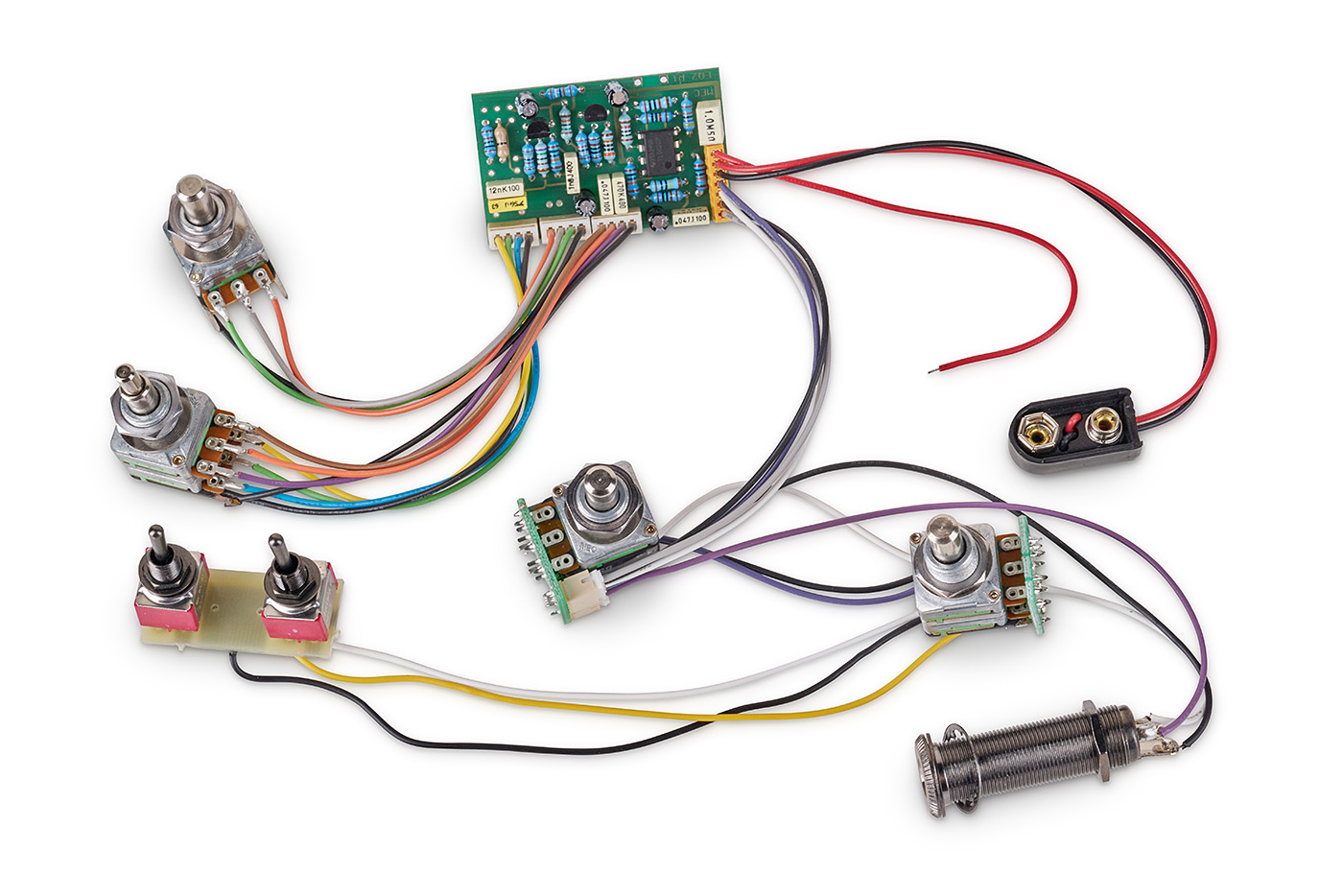

- fully assembled wiring
- 3-band EQ
- design with 4 potentiometers
- suitable for active pickups

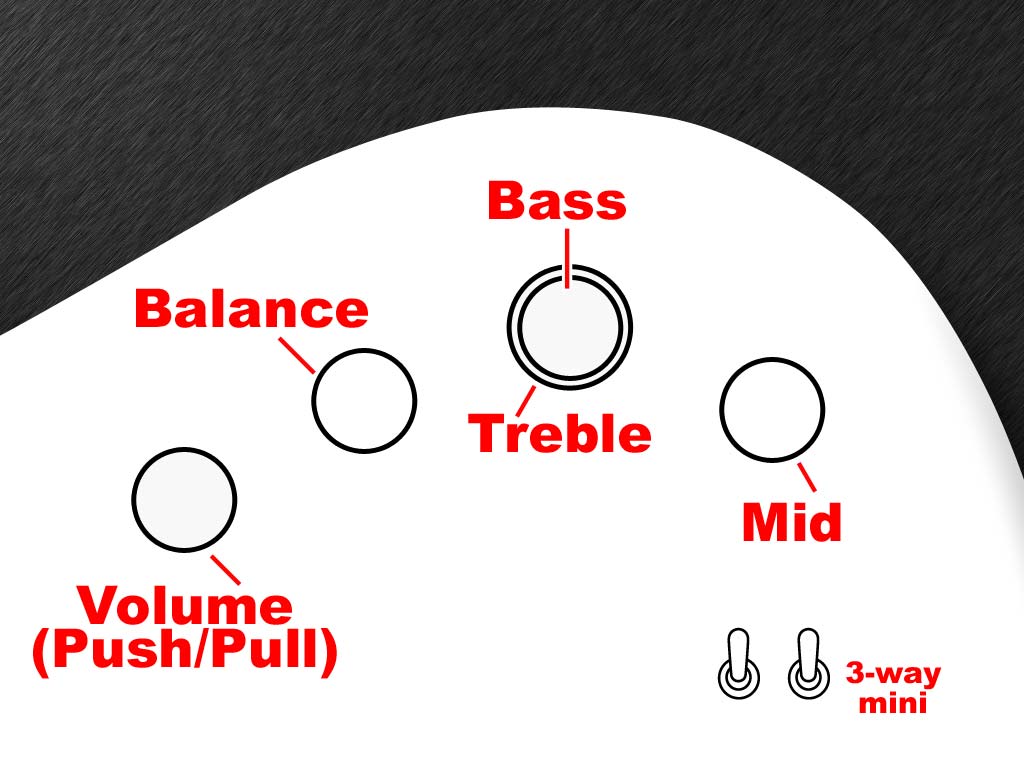

- controls for Volume (PP) / Balance / Bass & Treble (stacked) / Mid
- bass +/- 15 dB @ 100 Hz
- mid +/- 15 dB @ 800 Hz
- treble +/- 15 dB @ 8.5 kHz
- push/pull function on the volume control for switching between active EQ / EQ bypass
- 3-position switch for split coil (A / A+B / B) (2x)
- powered by a 9V battery (not included), battery clip included
- output jack included
- potentiometer caps / control knobs are not included and must be purchased separately if needed
- Note: Return and refund policy does not apply to electronic components if their cables have been cut or soldered, if they show signs of use, if they have been installed already, or if other damages affecting the condition of the goods are present.

Downloadable files:
