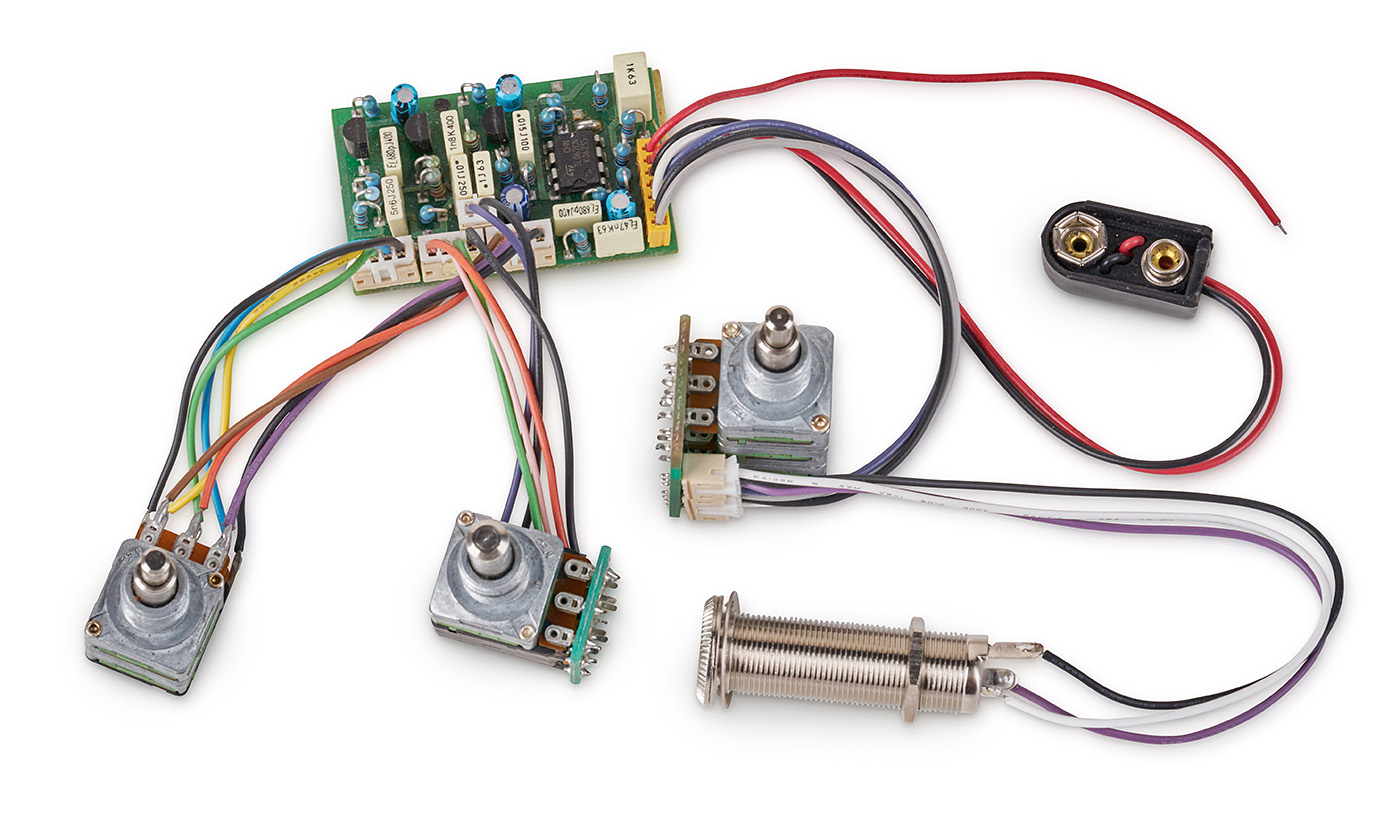

MEC Pickups 60060 - Active EQ2 Electronics For Active Pickups (Vol+Bal PP / T+B / M PP)

Active Electronics Bass

active electronics designed for electric bass guitars.
compatible with Warwick Corvette Hot Rod LTD 2005 and other models.
features a MEC EQ2 active preamp with a 3-band EQ.
includes a fully assembled cable and output jack.
9V battery powered with push/pull functions for EQ control.

Variants:

256⁶¹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

MEC Pickups 60060 - Active EQ2 Electronics For Active Pickups (Vol+Bal PP / T+B / M PP) Add to cart: 256⁶¹ €

- Active electronics for electric bass
- Suitable for Warwick Corvette Hot Rod LTD 2005 models and others
- MEC EQ2 active preamp
- Fully assembled cable
- 3-band EQ
- Design with 3 potentiometers
- Suitable for active pickups
- Control for Volume & Balance (PP - overlapping) / Bass & Treble (overlapping) / Mids (PP)
- Bass +/- 15 dB @ 100 Hz
- Mids +/- 15 dB @ 250 Hz / 800 Hz
- Treble +/- 15 dB @ 8.5 kHz
- Push/pull function on the volume control for switching between active EQ / EQ bypass
- Push/pull function on the Mids control for switching between 250 Hz / 800 Hz
- Powered by a 9V battery (not included), battery clip included
- Output jack included
- Potentiometer caps / control knobs are not included and must be purchased separately if needed

Downloadable Files:

European Declaration of Conformity MEC_active_electronics_and_pickups_EDC.pdf

Schematic Drawing M_60060_Schematic_Drawing.pdf

Product code: M 60060

Unit of sale: piece

Specifications:
