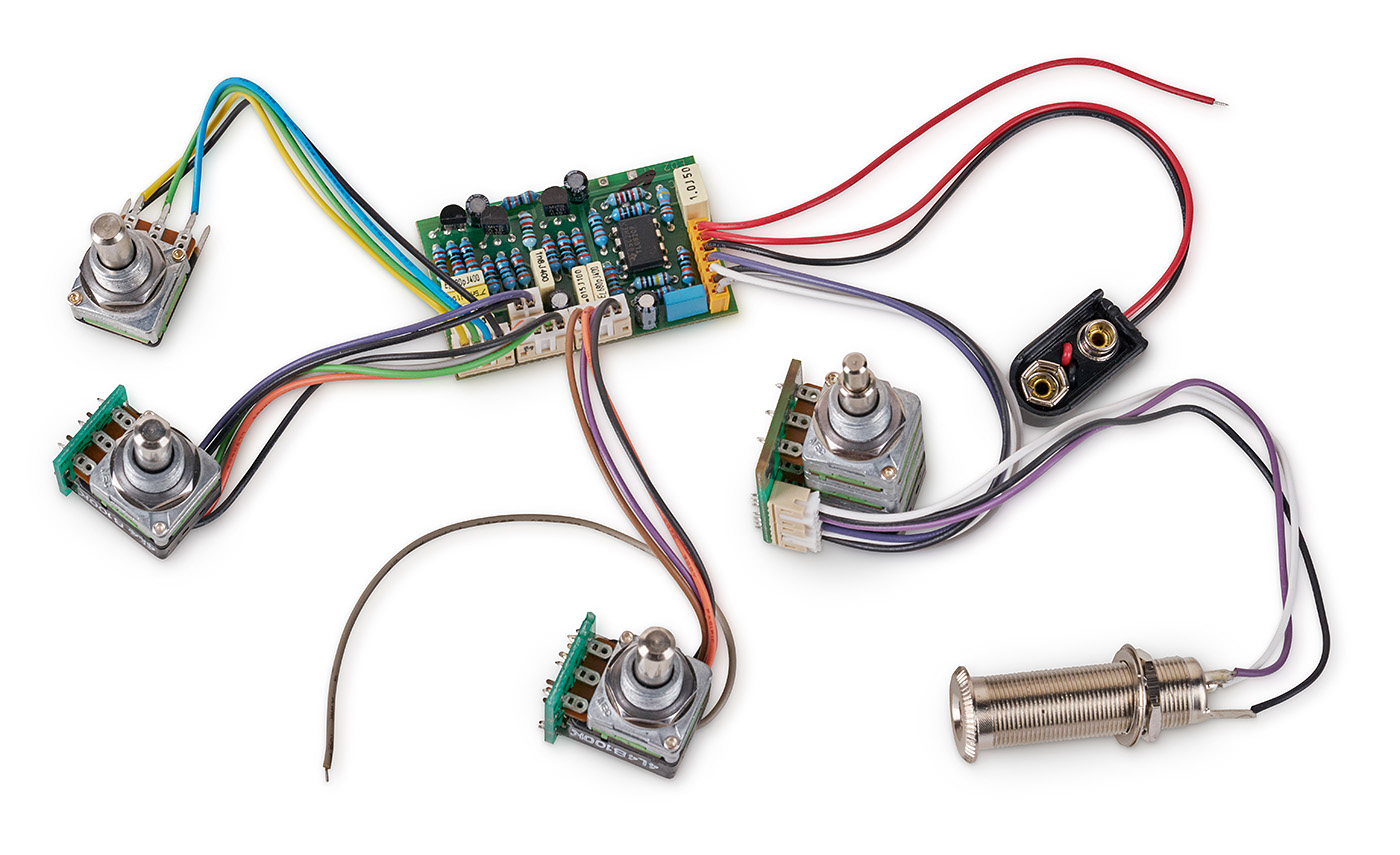

MEC Pickups 60059 - Warwick Corvette Ltd. 2004 3-Way Electronics - (Vol + Bal PP / B PP / M PP / T)

- Active electronics for electric bass
- Suitable for Warwick Corvette Ltd. 2004 and other models
- MEC EQ2 active preamp
- Fully assembled cable
- 3-band EQ
- Design with 4 potentiometers
- Suitable for passive pickups
- Control for Volume & Balance (PP - stacked) / Bass (PP), Mid (PP), Treble
- Bass +/- 15 dB @ 100 Hz
- Mids +/- 15 dB @ 800 Hz
- Treble +/- 15 dB @ 8.5 kHz
- Push/pull function on the volume control for switching between active EQ / EQ bypass
- Push/pull function on the bass control for Coil Split (A+B / B)
- Push/pull function on the mid control for 500 Hz / 250 Hz
- Powered by a 9V battery (not included), battery clip included
- Output jack included
- Potentiometer caps / control knobs are not included and must be purchased separately if needed
