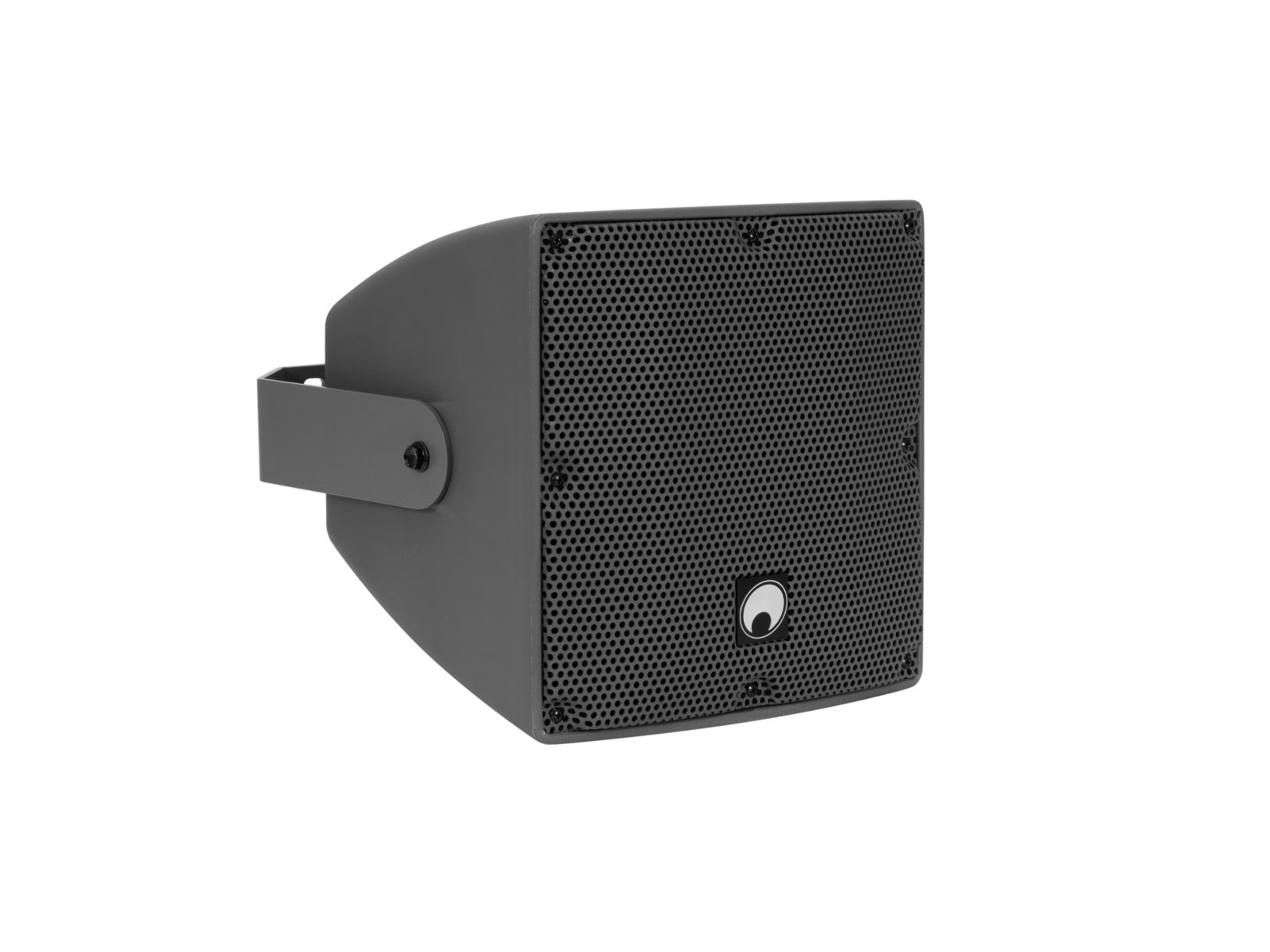

Omnitronic ODX-208TM Installation Speaker 100V dark grey

8" Wall speaker

well-balanced sound
2-way coaxial system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
power selector switch with 8 ohms operating position
screw terminals for parallel connection
with Mounting bracket

377⁶⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic ODX-208TM Installation Speaker 100V dark grey Add to cart: 377⁶⁵ €

Weather-proof 8" wall speaker with top-quality sound, incl. mount, 150 W RMS

Well-balanced sound
2-way coaxial system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
Power selector switch with 8 ohms operating position
Screw terminals for parallel connection
With Mounting bracket
Suitable for outdoor use IP56

Package contents

1 x top, 1 x mounting bracket, 1 x user manual, 6 x screw, 1 x safety eyelet, 1 x lid, 2 x washer

IP classification:	IP56
Power:	Program: 300W Rated: 150W RMS
Frequency range:	80 - 18000 Hz
Sensitivity:	96 dB (1W/1m)
Max. SPL:	118 dB
Dispersion angle:	90° x 90°
Impedance:	8 ohms; Public address systems 100V
Attachment system:	Mounting bracket
Power tapping:	37,5W; 75W; 150W RMS via Selector switch switchable
Connections:	Input: speaker via screw terminal
Crossover frequency:	2300 Hz
Speaker:	1 x woofer (8") approx. 20 cm Voice coil lows (2") approx. 5 cm 1 x compression tweeter highs (1") approx. 2.5 cm Voice coil compression tweeter highs (1.4") approx. 3.6 cm
Type of speaker:	On-ceiling/on-wall speaker
Color:	Grey
Dimensions:	Width: 30 cm Depth: 28 cm Height: 30 cm
Weight:	10,90 kg
