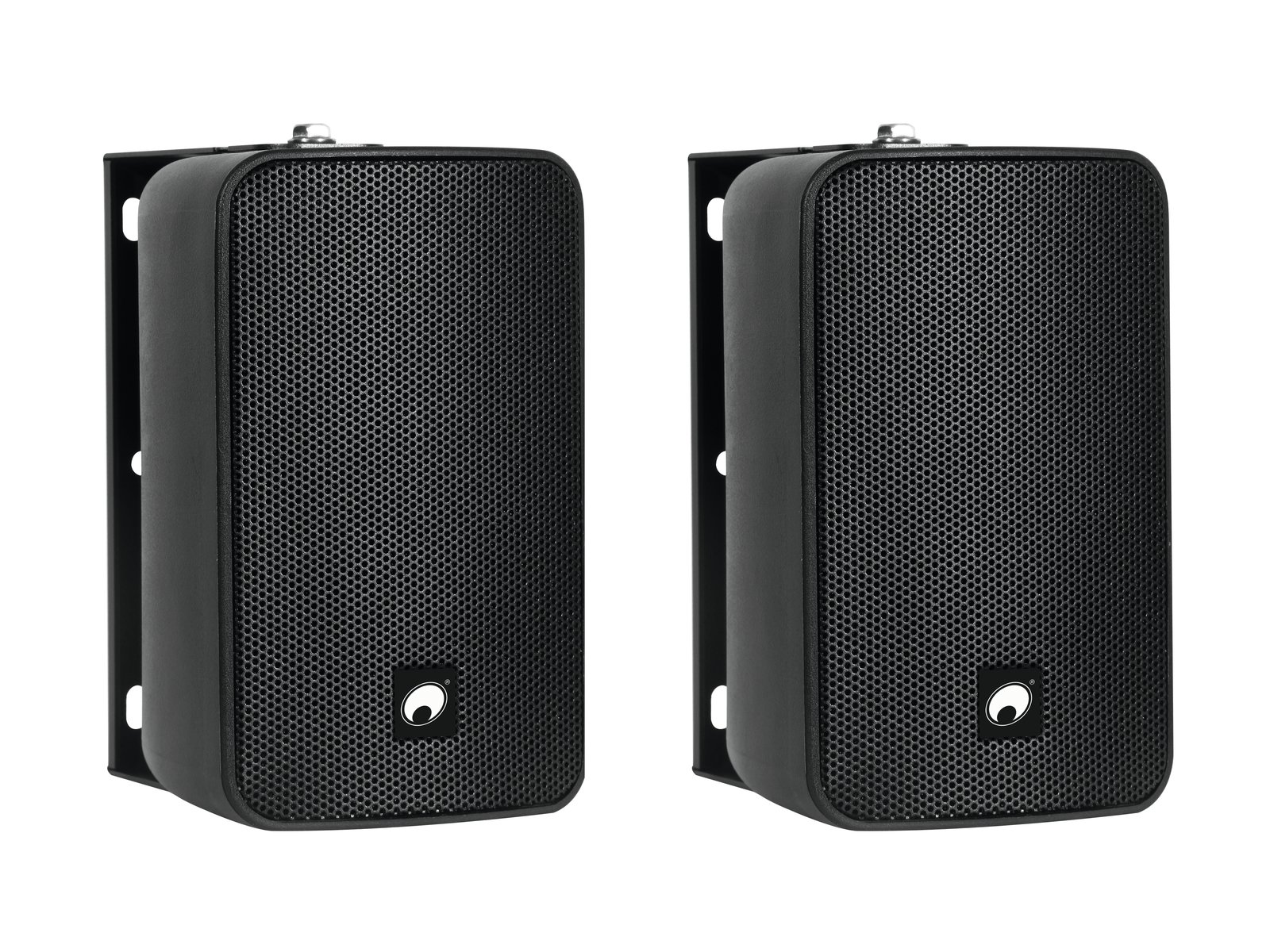

Omnitronic ODP-204T Black

Omnitronic ODP-204T Weatherproof Pair - The speakers have a bright sound pattern and are available in a low ohm version (16 ohms) and in a 100 V version. These two cover both small and large installations. A rotating mounting bracket is included in the delivery. An optional matching wall mount is available.

With their weatherproof plastic housing (IP65), the ODP speakers are well prepared for outdoor use; of course, indoor use is also possible.

Black finish version.

Features:

• 2-way system with 10 cm (4") woofer and 2 cm (0.8") dome tweeter
• Durable plastic cabinet with metal grille
• Power selector switch with 16 ohm operating position
• Terminal with screw for easy handling
• With mounting bracket
• Suitable for outdoor use IP65
• 2 pieces per set
• For applications such as: market and shop installations; restaurants, bars and hotels; product presentations and lectures
• Package contents:

  • 1 x user manual
  • 2 x top
  • 2 x mounting bracket
  • 12 x screws
  • 2 x safety eyes
  • 2 x cap
  • 4 x washers
  • 2 x screwing
  • 2 x terminal connection screw

Technical Specifications:

• Power: Program: 80W
• Rated: 40 W RMS (100 V PA)
• Rated: 40 W RMS (16 ohms)
• IP Rating: IP65
• Frequency range: 75 - 20,000 Hz
• Sensitivity: 88 dB (1W/1m)
• Max. SPL: 103 dB
• Dispersion angle: 120° x 90°
• Crossover frequency: 3500 Hz
• Impedance: Public address systems 100V; 16 ohms
• Mounting system: Mounting bracket
• Power tapping: 10W; 20W; 40 W RMS via switchable tap
• Connections: Input: speaker via terminal with screw
• Speaker: 1 x woofer (4") approx. 10 cm
• Voice coil (1") approx. 2.5 cm
• 1 x high dome (0.8") approx. 2 cm
• Tweeter with voice coil (0.8") approx. 2 cm
• Speaker type: Compact; Ceiling/wall speaker
• Dimensions:

  • Width: 14.1 cm
  • Depth: 17 cm
  • Height: 23 cm
• Weight: 6.35 kg
