Omnitronic OD-22T

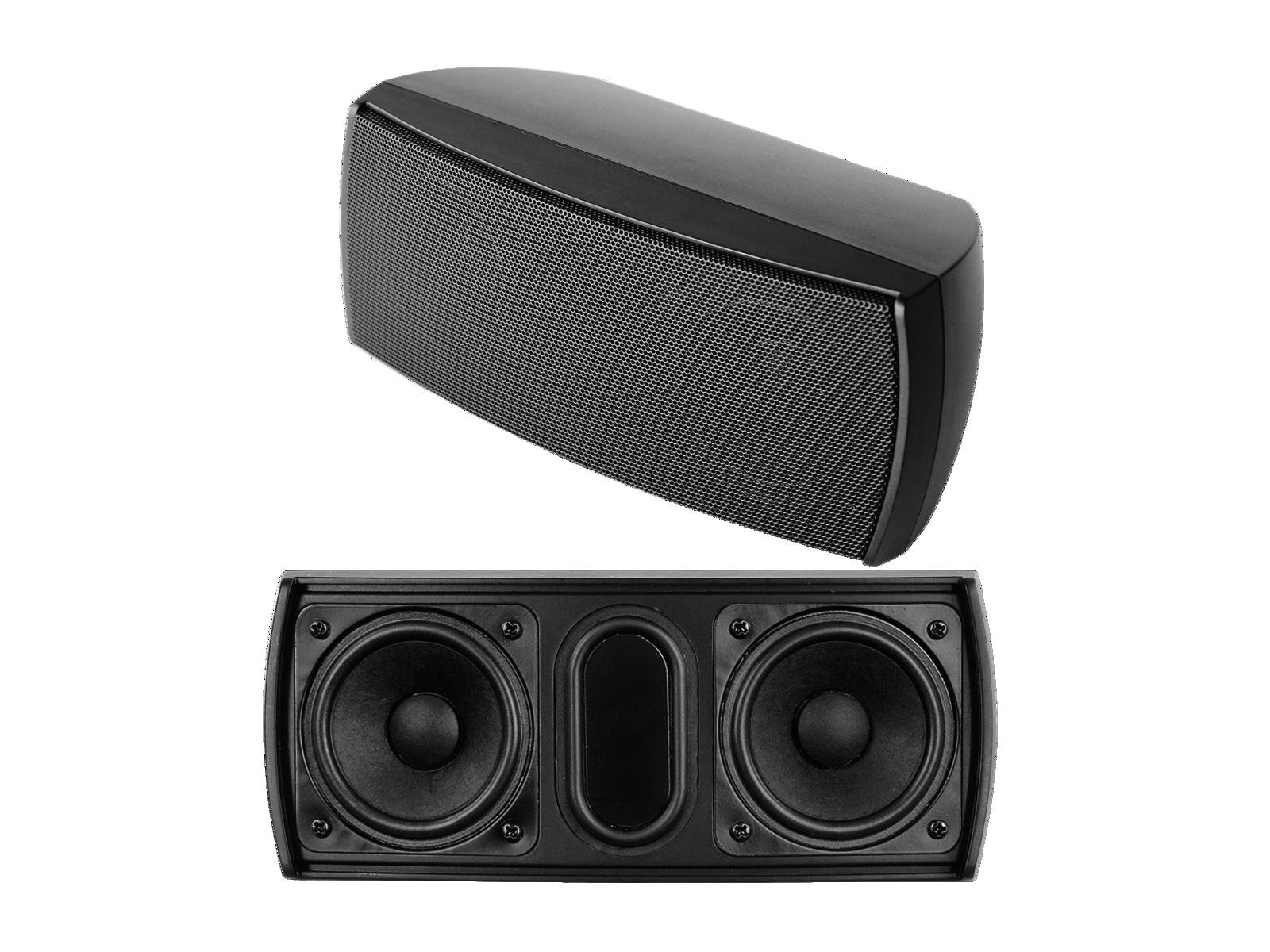

Omnitronic OD-22T, speaker with 2 x 2.5" full-range drivers and a passive membrane of 3.5 x 6 cm and a 100 V transformer. The attractive housing made of impact-resistant ABS plastic is equipped with a metal grille. The stable mounting plate is equipped with a pivoting and tilting joint, allowing for installation on walls and ceilings at any angle.

• Full-range speaker 2 x 6 cm (2 x 2.5")
• Passive membrane of 3.5 x 6 cm

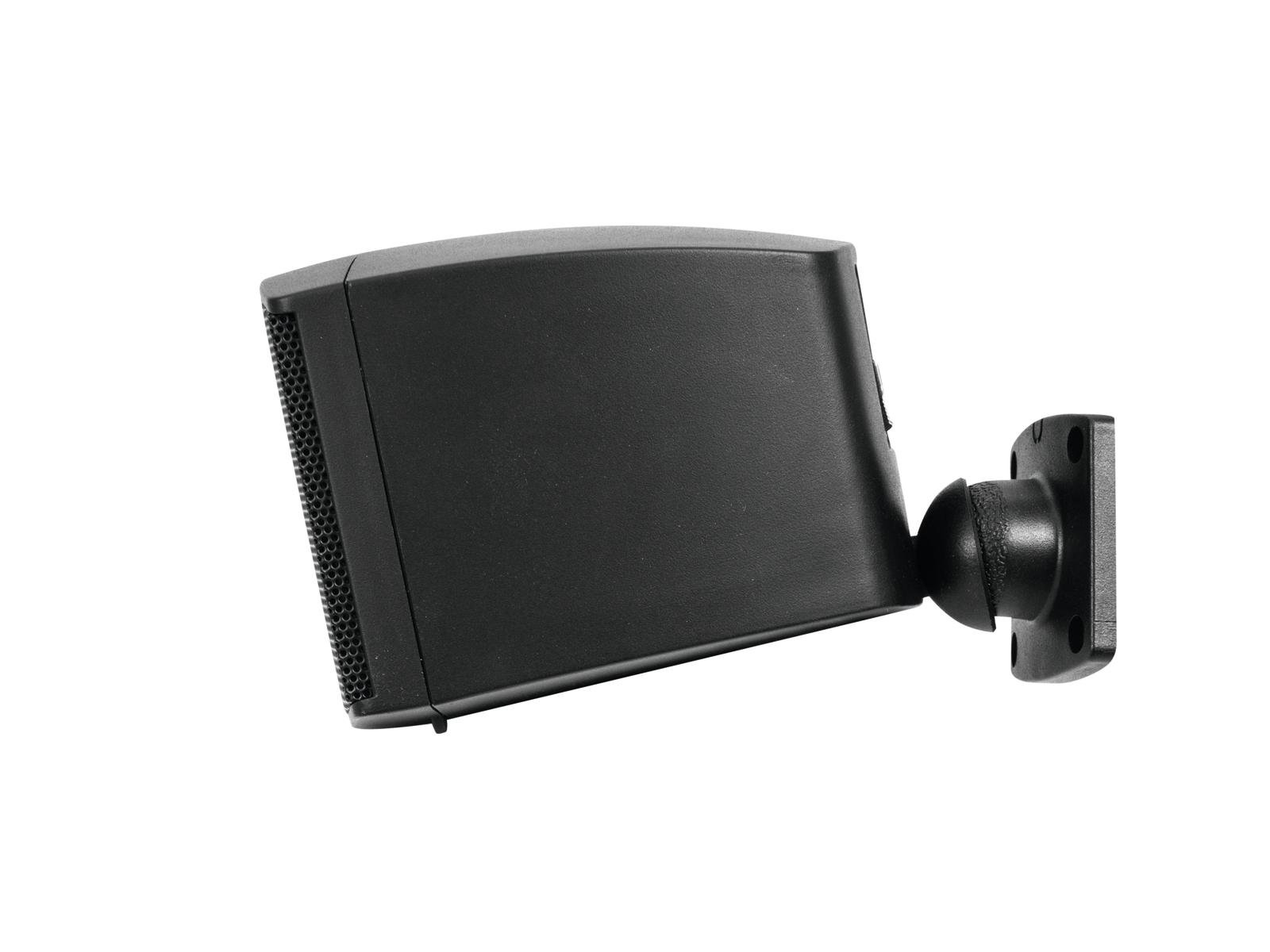

• Durable mounting plate with combination and tilt allows for installation on ceilings or walls at various angles
• Suitable for outdoor use
• For applications such as: Trade fair and shop installations; restaurants, bars and hotels; product presentations and lectures
• Package contents:

  • 1 x compact speaker
  • 1 x user manual
  • 1 x mounting material
  • 8 x screws

Technical Specifications:

• Nominal power: 15 W RMS (8 ohms); 6 W RMS (100 V PA)
• Program power: 30 W
• Frequency range: 120 - 22,000 Hz
• Sensitivity: 88 dB
• Max. SPL: 95 dB
• Dispersion angle: 60° x 60°
• Impedance: Public address systems 100V; 8 ohms

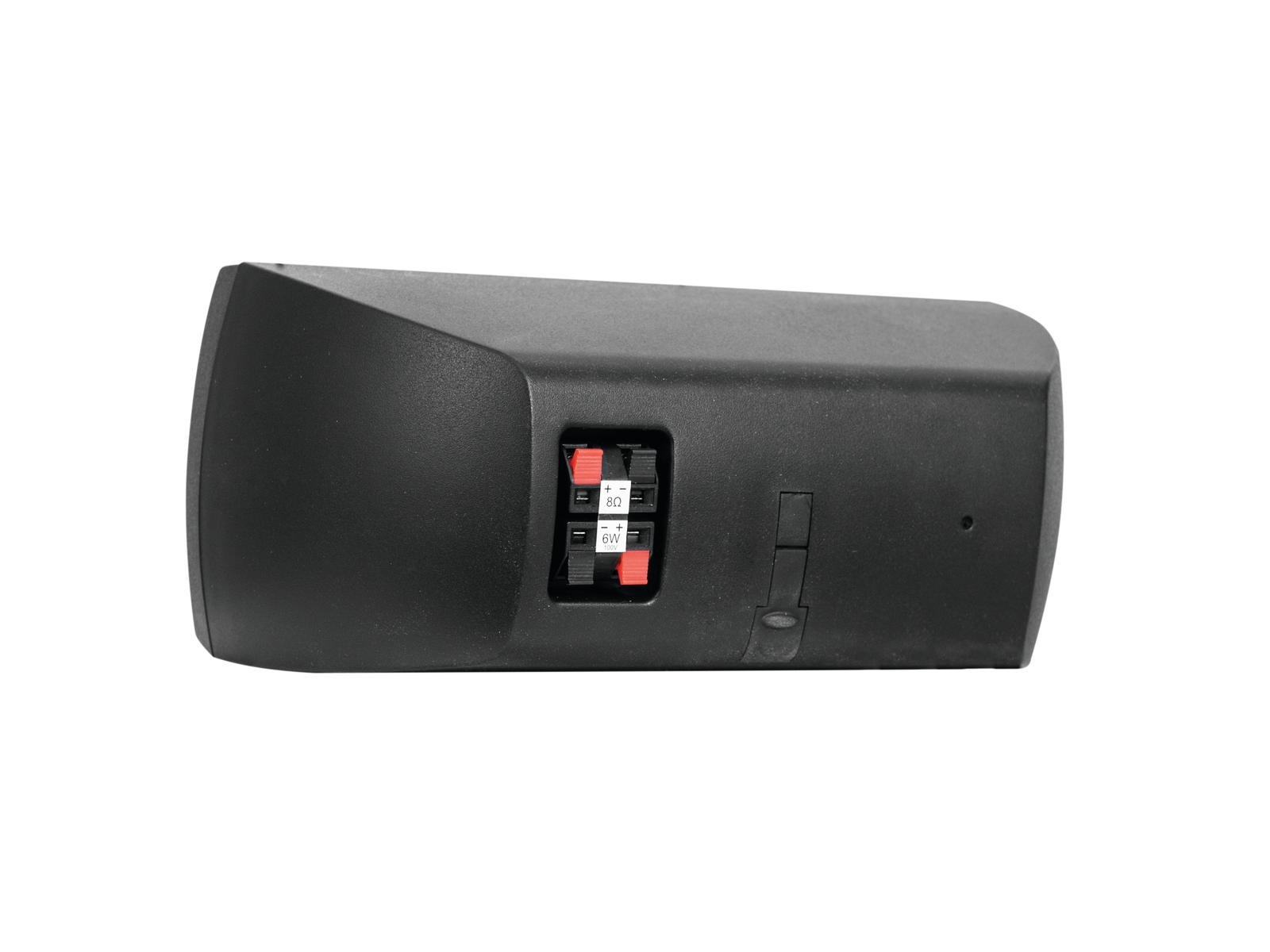

• Connections: Input via Spring terminal
• Driver: 1 x woofer (2.5") approximately 6.35 cm
• Driver type: Compact cabinet speaker
• Material: Acrylonitrile butadiene styrene (ABS)
• Colour: Black, scratch-resistant and shockproof
• Dimensions:
  • Width: 20.9 cm
  • Depth: 10.9 cm
  • Height: 11 cm
• Weight: 1.10 kg
