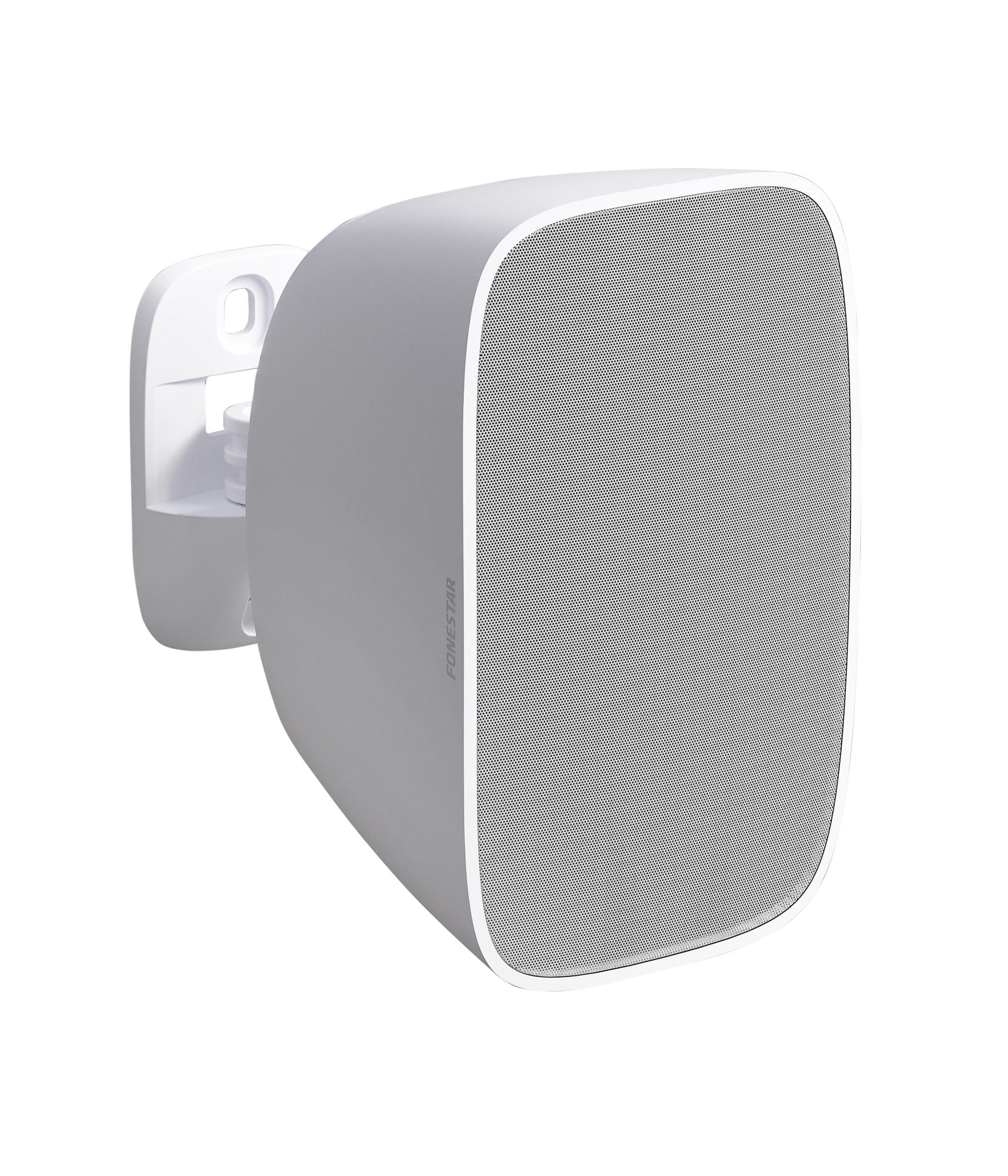

Fonestar SONORA-6TB

Fonestar SONORA-6TB - Professional installation speaker, equipped both with a 100 V line transformer and a low impedance option, designed for public address applications, ambient music, and background sound. Part of the SONORA series developed by FONESTAR based on extensive experience in the audio field, this speaker combines high-quality acoustic performance with an elegant design and an extremely durable construction.

Thanks to the aluminium front grille and IP-66 protection, the SONORA-6TB is fully prepared for outdoor use, including in marine environments or difficult weather conditions.

Installation is quick and secure, thanks to the included accessories: adjustable mounting bracket with weatherproof treatment, stainless steel screws, and a safety cable made of steel. The SONORA-6TB perfectly combines aesthetics, reliability, and sound performance, being the complete solution for fixed sound reinforcement applications, indoors or outdoors.

FEATURES:

• Speaker with low impedance and 100 V line transformer
• Suitable for outdoor use, water and corrosion-resistant materials

POWER:

• 100 W maximum
• 60 W RMS

DRIVERS:

• 1 x 6" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 75 – 20,000 Hz

IMPEDANCE:

• 60 W RMS @ 100 V (165 Ω)
• 30 W RMS @ 100 V / 70 V (330 Ω / 163 Ω)
• 15 W RMS @ 100 V / 70 V (660 Ω / 326 Ω)
• 7.5 W RMS @ 100 V (1320 Ω / 653 Ω)
• 3.75 W RMS @ 70 V (1306 Ω)
• Low impedance: 8 Ω

SENSITIVITY:

• 4 dB @ 1 W / 1 m

MAXIMUM SOUND PRESSURE:

• 8 dB @ maximum power / 1 m

COVERAGE ANGLE:

• 150° horizontal x 120° vertical @ 1 kHz (-6 dB)

PROTECTION:

• IP-66 protection rating according to EN 60529
• Environmental test IEC 60068-2-11 (salt mist)

MATERIAL:

• ABS housing with UV resistance
• Aluminium front grille with electrostatic paint finish
• Weather-resistant mounting bracket
• Stainless steel screws

SELECTOR:

• Switch for selecting power in high impedance mode (100 V/70 V) and low (Low Z)

CONNECTORS:

• Euroblock IN and OUT for cables with a cross-section between 0.25 – 2.5 mm²

OPERATING TEMPERATURE:

• From -10°C to +60°C

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: 199 x 322 x 181 mm depth
• Wall mounting plate: 102 x 165 mm
• Speaker with mounted bracket: 284 mm depth

WEIGHT:

• 3 kg

INCLUDED ACCESSORIES:

• Adjustable mounting bracket ± 60° in all directions
• Steel safety cable
