Fonestar SONORA-5TB

Fonestar SONORA-5TB - A mounting speaker with a 100 V line transformer and reduced impedance option, part of the SONORA series created by FONESTAR – a name with a tradition in high-quality audio solutions. Specifically designed for public address (PA) applications, ambient music, and voice announcements, the SONORA-5TB offers clear, balanced sound free of distortion, ideal for commercial spaces such as restaurants, cafes, supermarkets, shopping centres, and more.

Due to its elegant design and robust construction, the speaker integrates perfectly into any environment – indoors or outdoors. The durable ABS housing with UV resistance and the aluminium grille with IP-66 protection make it perfectly suited for use in harsh conditions, including marine or high humidity environments.

FEATURES:

• Passive speaker with reduced impedance and transformer for 100 V line
• Suitable for outdoor use – waterproof and corrosion-resistant materials

POWER:

• 80 W max.
• 40 W RMS

SPEAKERS:

• 1 x 5 ¼" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 80 - 20,000 Hz

IMPEDANCE / POWER AT 100 V / 70 V:

• 40 W RMS @ 100 V (250 Ω)
• 20 W RMS @ 100 V / 70 V (500 Ω / 245 Ω)
• 10 W RMS @ 100 V / 70 V (1,000 Ω / 490 Ω)
• 5 W RMS @ 100 V / 70 V (2,000 Ω / 980 Ω)
• 2.5 W RMS @ 70 V (1,960 Ω)
• Low impedance (Low Z): 8 Ω

SENSITIVITY:

• 3 dB @ 1 W / 1 m

MAXIMUM ACOUSTIC PRESSURE:

• 2 dB @ maximum power / 1 m

COVERAGE ANGLES:

• 135° horizontal x 135° vertical @ 1 kHz (-6 dB)

PROTECTIONS:

• IP-66 protection rating according to EN 60529
• Environmental test IEC 60068-2-11 (salt mist)

MATERIAL:

• ABS housing with UV protection
• Aluminium grille with electrostatic paint finish
• Weather-resistant support
• Stainless steel screws

SELECTOR:

• Switch for selecting between low impedance and 100 V line

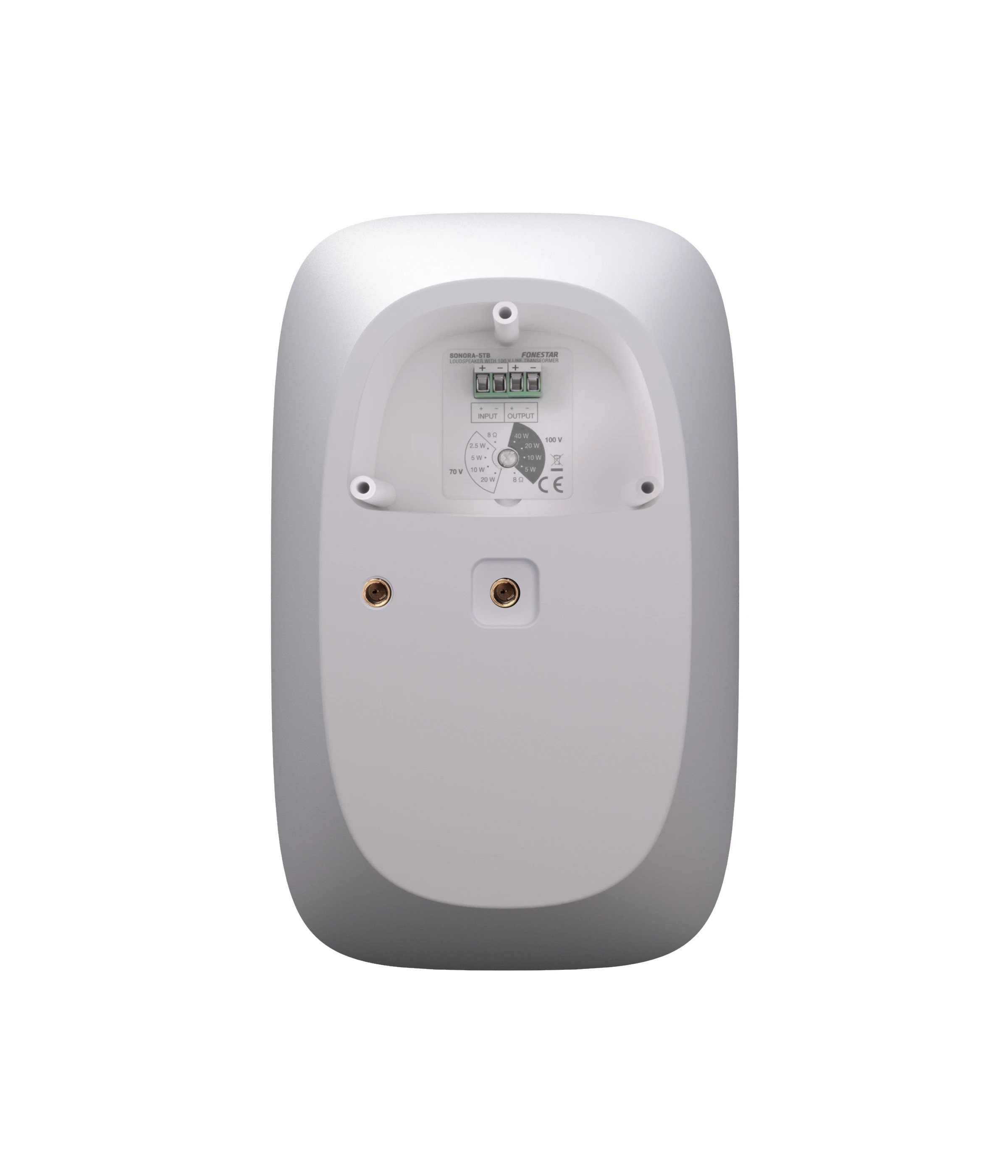

CONNECTORS:

• Euroblock (input/output) for cables with a cross-section of 0.25 – 2.5 mm²

OPERATING TEMPERATURE:

• From -10°C to +60°C

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: 162 x 263 x 147 mm depth
• Mounting plate: 68 x 110 mm
• Speaker with bracket: 216 mm depth

WEIGHT:

• 2 kg

ACCESSORIES:

• Adjustable mounting bracket ± 60° in all directions
• Safety cable made of steel
