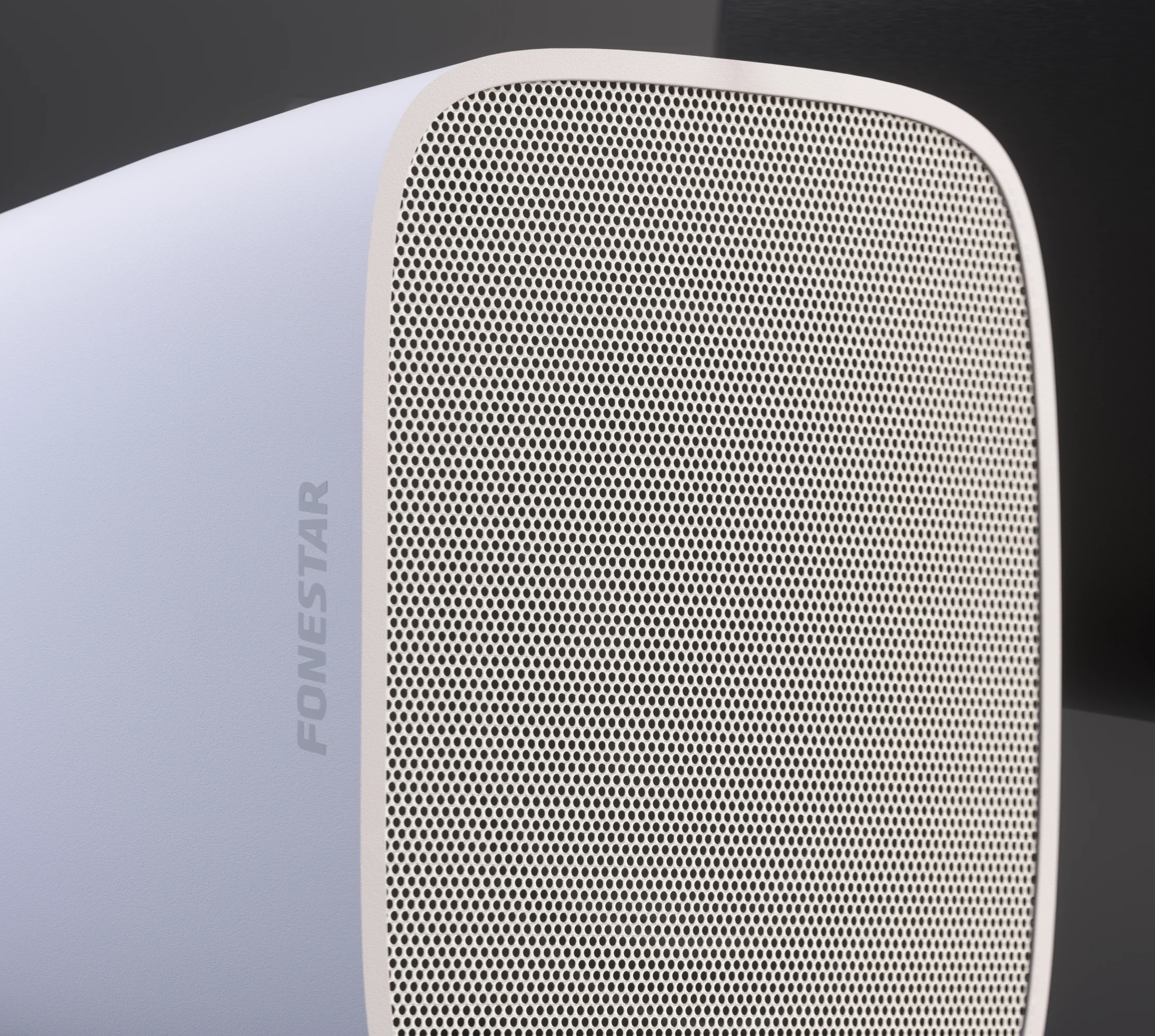

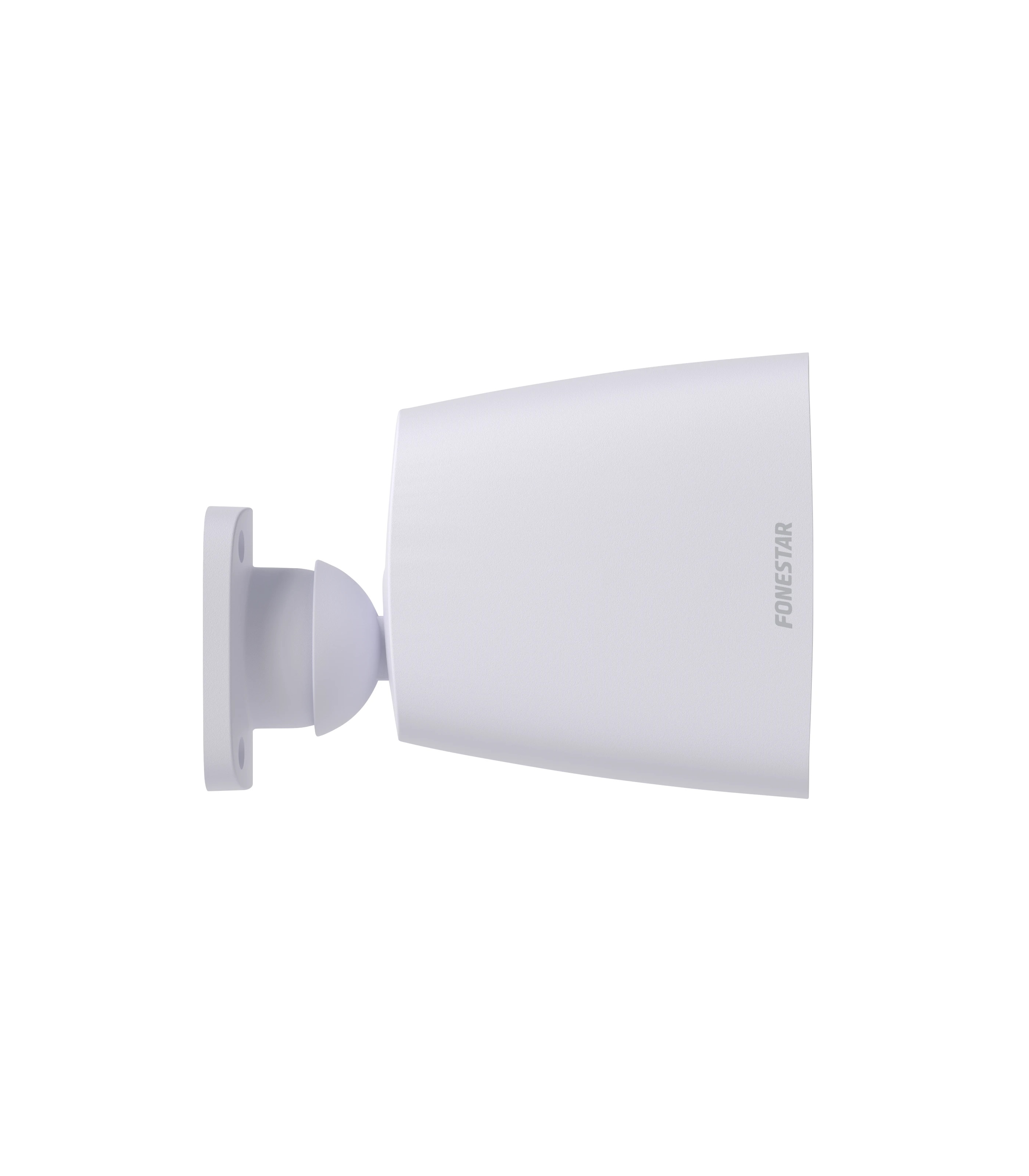

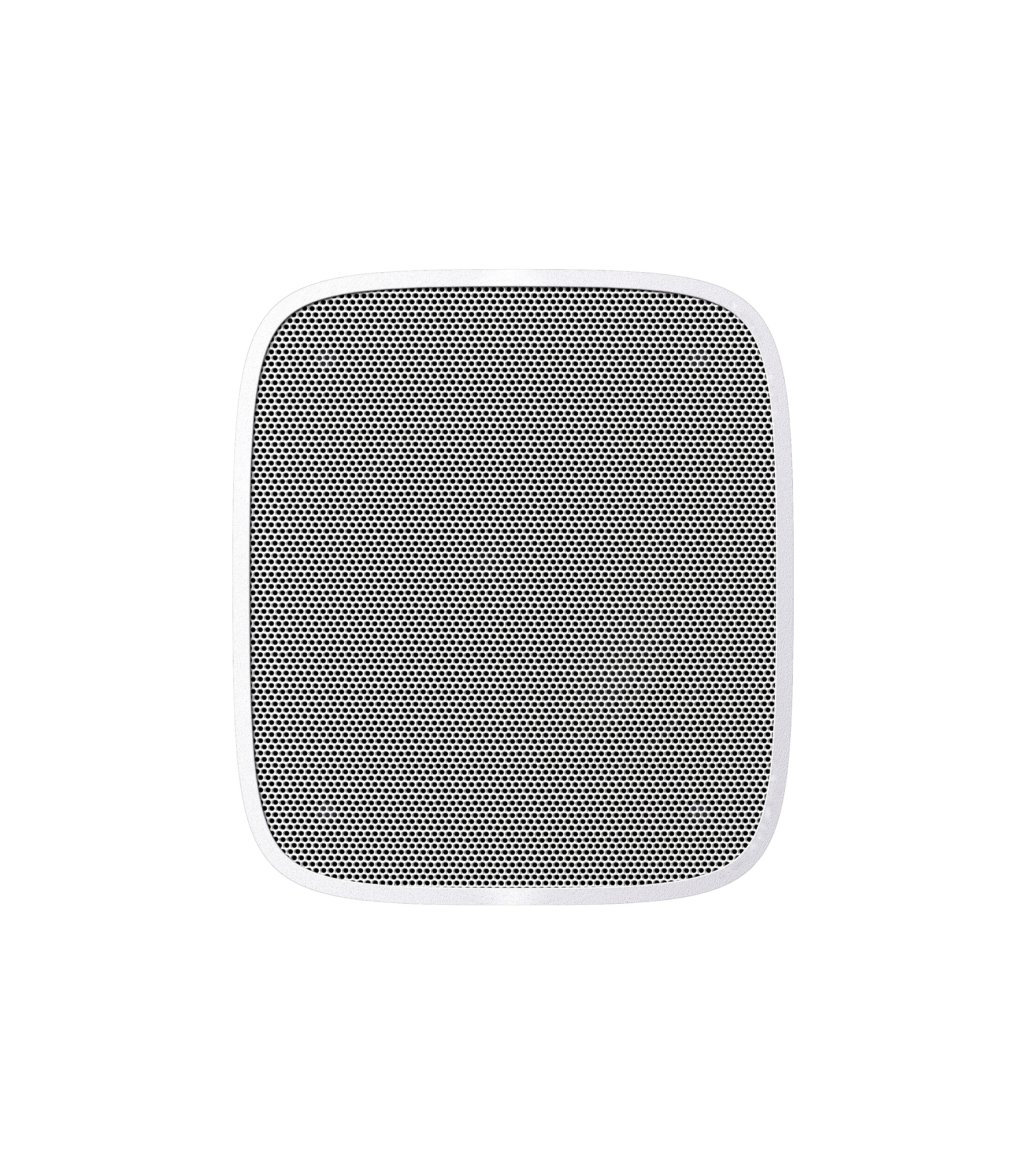

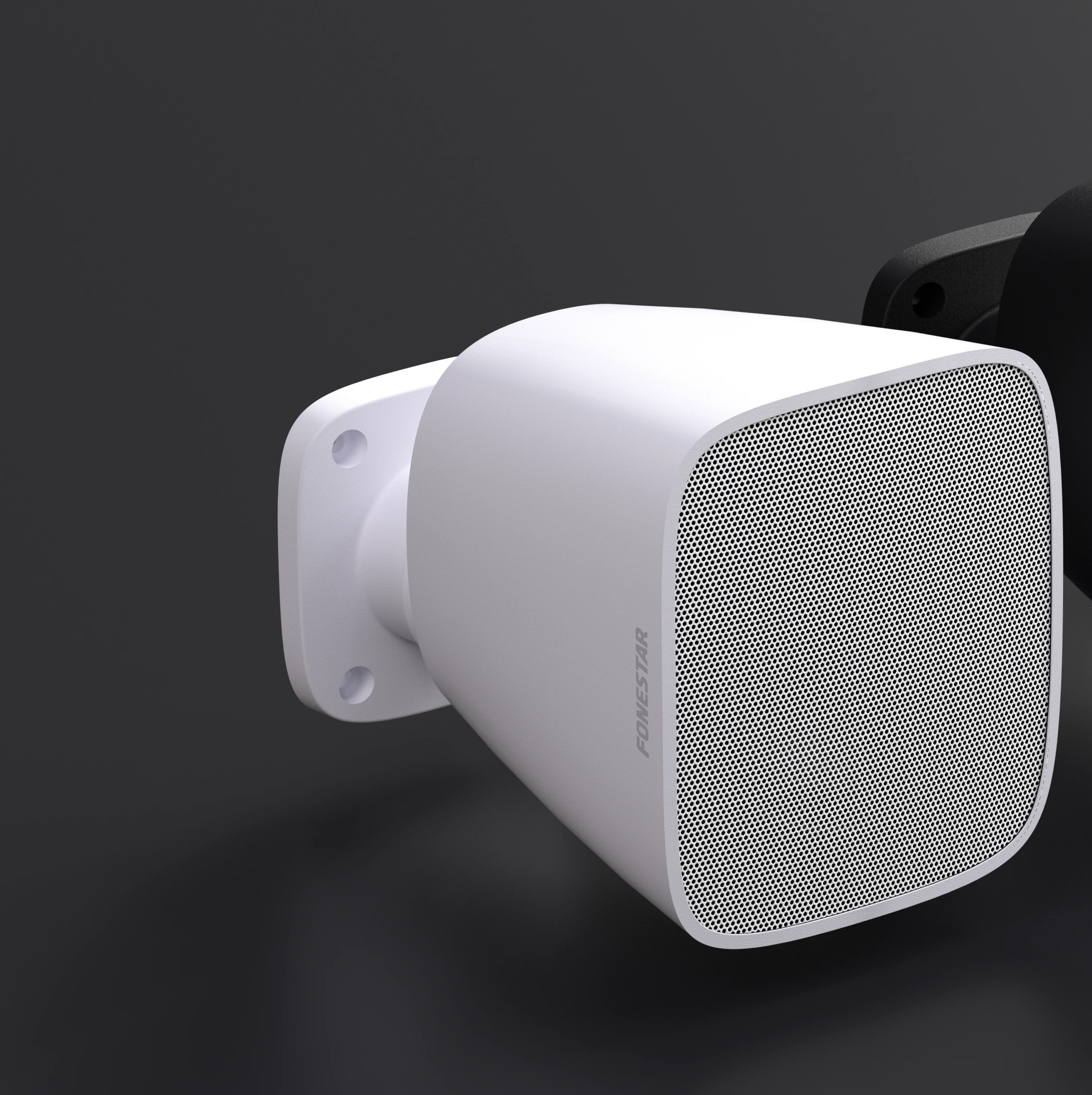

Fonestar SONORA-3B

Fonestar SONORA-3B – A mounting speaker designed for PA applications and ambient sound, offering excellent performance thanks to the 100 V line transformer and low impedance. Based on FONESTAR's extensive experience in the sound field, the SONORA model combines an elegant design and impeccable finish, ensuring perfect integration into any space, whether it is restaurants, cafes, supermarkets, or shopping centres.

This speaker delivers clear and distortion-free sound, guaranteeing superior sound quality for all types of public environments. The SONORA is equipped with all the necessary accessories for quick and easy installation, including a swivel bracket and screws, facilitating the mounting and optimal adjustment of the sound direction.

FEATURES:

• Speaker for sound amplification, with 100 V line transformer and low impedance.

POWER:

• 20 W maximum
• 12 W RMS

Speaker:

• 1 x 3” woofer

FREQUENCY RESPONSE:

• 130-20,000 Hz

IMPEDANCE:

• 12 W RMS @ 100 V (833 Ω)
• Low impedance: 8 Ω

SENSITIVITY:

• 84 dB @ 1 W/1 m

MAX SPL:

• 94 dB @ maximum power / 1 m

COVERAGE ANGLES:

• H/V: 270°/270° @ 500 Hz
• 180°/180° @ 1 kHz
• 120°/120° @ 2 kHz
• 100°/100° @ 4 kHz (-6 dB)

MATERIAL:

• ABS housing with UV resistance
• Aluminium grille with powder-coated finish
• Weather-resistant mounting
• Stainless steel screws

SWITCH:

• High and low impedance selector

CONNECTORS:

• Euroblock for cable with section 0.25 - 2.5 mm², input and output

OPERATING TEMPERATURE:

• -10°C to 60°C

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Speaker: 97 x 110 x 107 mm (depth)
• Wall mounting plate: 67 x 71 mm
• Speaker with mounting: 150 mm depth

WEIGHT:

• 7 kg

ACCESSORIES:

• Adjustable mounting fixture:
  • Height: ±30°
  • Vertical: +15° / -45°
