Audac ALTI6M/B

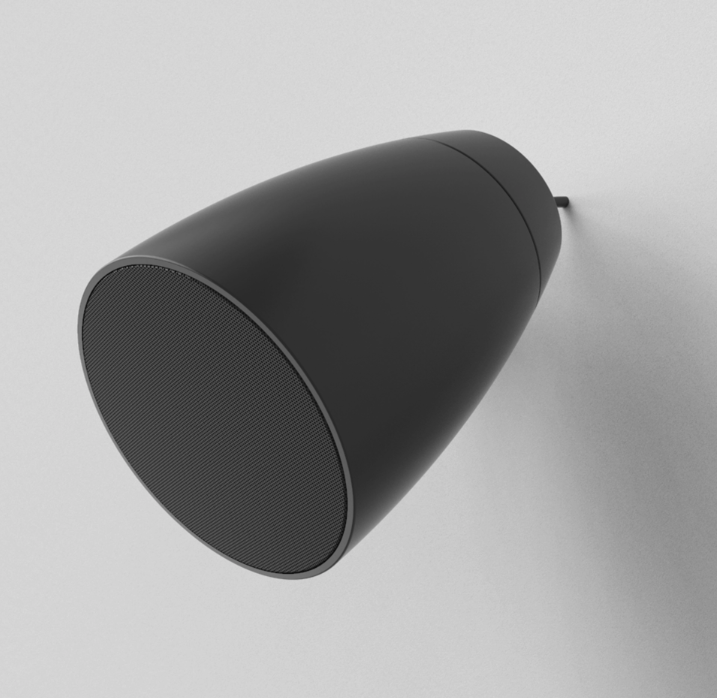

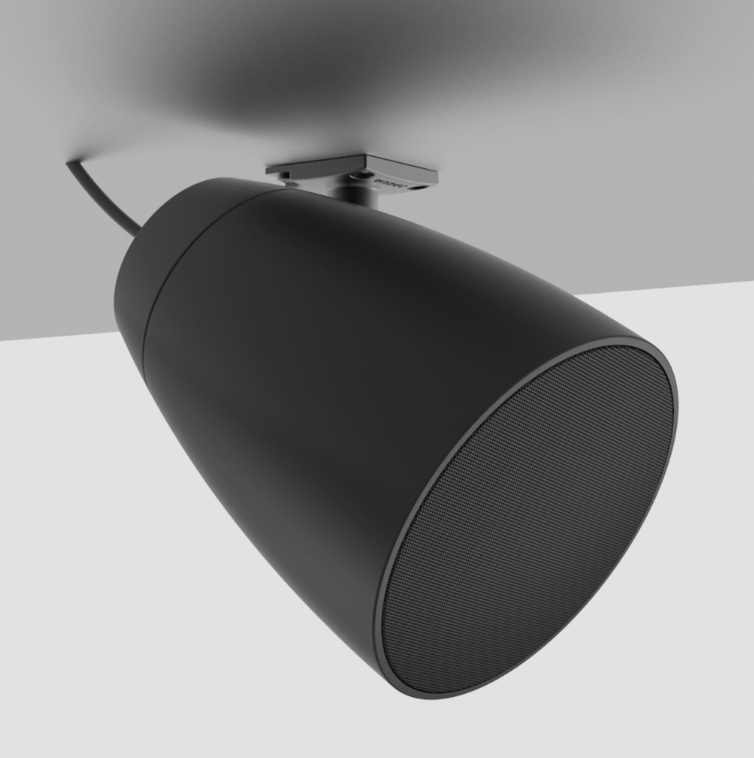

Audac ALTI6M Black – Speaker with a mounting bracket for wall installation, designed for wall and ceiling mounting. This allows for maintaining the same design and identity of the audio system throughout the installation, in cases where some areas do not permit the use of suspended solutions due to ceiling height or structures. The acoustics and construction are identical, while connections are made via weather-resistant AWX5™ connectors, this construction having an IP65 rating.

ALTI6M features a 2-way configuration: a 6.5" driver with a 1" coaxial mounted tweeter and is equipped with a phase connector for excellent off-axis performance. The combination of 2-way + a high-quality polypropylene enclosure and high-level acoustic engineering guarantees premium performance for demanding applications. It achieves a continuous power of 60 Watts (RMS) and a maximum power of 120 Watts.

Specifications:

• Coaxial 2-way speaker type
• Power 120 W
• RMS Power 60 W
• Impedance 16 Ω
• Line transformer connections
• Conical dispersion 115° (average from 500 Hz to 5 kHz @ -6 dB)

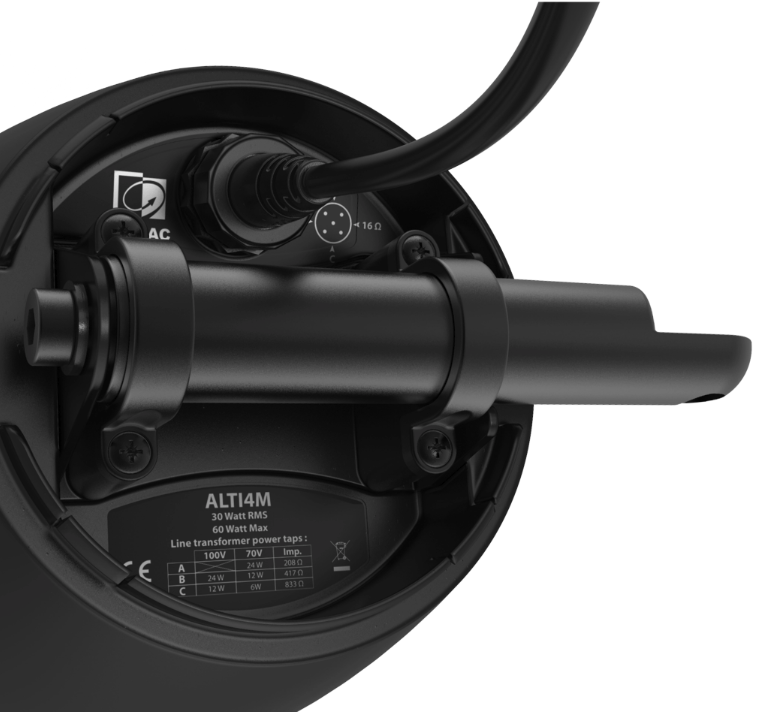

• Connectors AWX-5 weather-resistant connector
• Sensitivity (1 W/1 m) 83 dB
• Sound pressure (max. W/1m) @ 16 Ω 101 dB
• Frequency range (-10 dB) 61.5 Hz - 20 kHz
• Response (± 3 dB) 75 Hz - 17 kHz
• Protection rating IP65

• 1 - 83 Ω - 100 V / Not used - 70 V / 60 W
• 2 - 167 Ω - 100 V / 60 W - 70 V / 30 W
• 3 - 333 Ω - 100 V / 30 W - 70 V / 15 W
• 4 - 667 Ω - 100 V / 15 W - 70 V / 7.5 W

 Product Features:

• Dimensions 230 x 302 mm
• Connection cable length 0.7 m
• Construction Polypropylene
• Front finish Aluminium grille

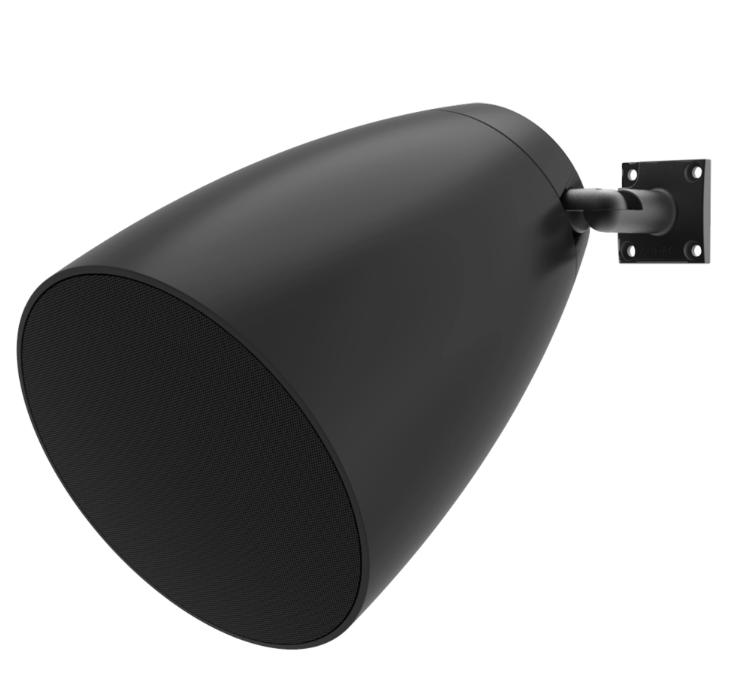

• Mounting and handling Rotating mounting bracket with 2 ways
• Included accessories 5-pin connection cable (70 cm)
• Rotating mounting support with 2 directions
