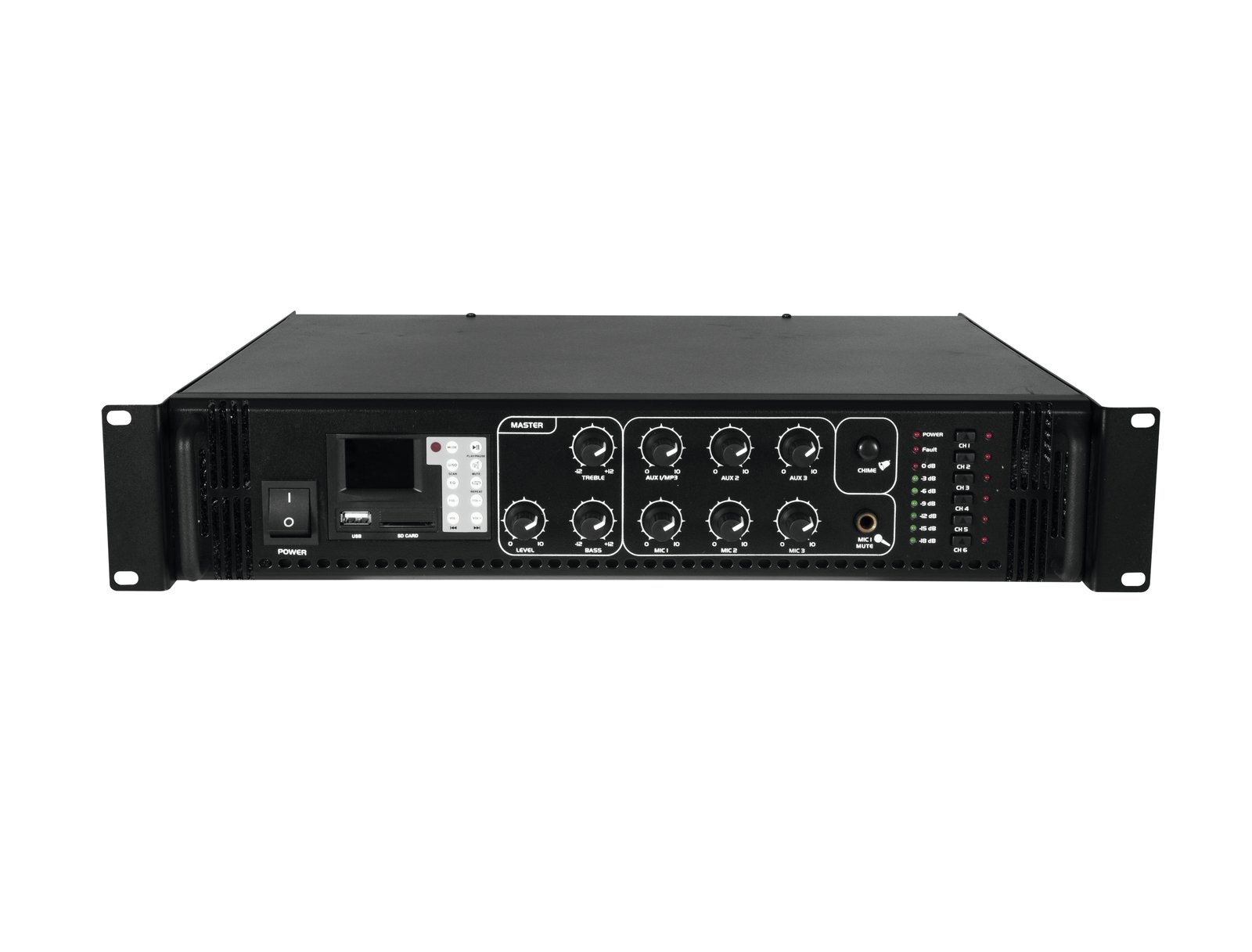

Omnitronic MPZ-650.6P - The Omnitronic MPZ-650.6P mixer amplifier is your reliable partner for ELA sound systems. Due to its 19-inch format, it is ideal for both mobile and permanent installations.
The ELA speaker outputs with 70 V and 100 V audio transformers or 4-16 ohm speakers leave nothing to be desired. Additionally, you can connect a line-level device (for example, the mixing console) to the line output. With 6 mixable inputs, you are always flexible. Connect up to 3 microphones and 3 line-level devices.
Conveniently control your ELA speakers through the 6 zone outputs of the MPZ-650.6P. These can be switched separately on the front panel. For you, this means the highest possible adaptability when implementing your sound concept.
The MPZ-650.6P also offers you an MP3 player with infrared remote control and a blue backlit LCD display. It has both an SD card slot and a USB port. Thus, you can spontaneously and flexibly play music titles from a storage medium of your choice.
The front microphone input has an adjustable priority switch. This allows you to make important announcements with automatic reduction, continuously adjustable, of the level of all signals. You can also use the gong to draw attention to your announcement.
A fan protects the interior of the MPZ-650.6P from overheating. In addition to a delay at startup, it has protection circuits against overvoltage and short circuits. In these cases, your speakers are electrically isolated from the amplifier. This protects both the MPZ-650.6P and your speakers from damage.
Features:
Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs, independently switchable on the front panel
Speaker output with low impedance (4-16 ohms)
SD card slot and USB port
Folder navigation and repeat functions (1, All)
2 rear microphone inputs (6.3 mm jack, unbalanced)
1 front microphone input (XLR/6.3 mm jack combo, unbalanced) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Buzzer, switchable
Treble and bass control for output signal
7-segment LED level meter
Main control for output signal
Very efficient airflow from front to back
The device is cooled by a temperature-controlled fan
(19") 48.3 cm rack mount 2 U
Audio Player:
Control via IR remote
LCD display
Package contents: 1 x amplifier, 1 x remote control, 1 x battery, 1 x user manual
Technical Specifications:
Power supply: 230 V AC, 50 Hz
Power consumption: 1300.00 W
Output power: 650 W RMS
Power connection: fixed power cable with safety plug
Frequency range: 80 - 16000 Hz
S/N ratio:
>75 dB Microphone
>85 dB line
THD:
Cooling: temperature-controlled fan, airflow from front to back
Impedance: Public address systems 100V; 4-16 ohms; Sound systems 70V
Zone output: 6 switchable zones
Circuit: Class AB
Controls: Current limiting; short circuit; transient on/off; transient on/off; Overvoltage; short circuit
Status LED: power, error, level meter
Connections:
Input: Microphone via 2 x 6.3 mm jacks (unbalanced)
Input: microphone via 1 x XLR/6.35 mm combo jack (F) with 3 pins (mounting version)
Input: line via 3 x stereo RCA 0.3 V
Output: speaker via screw terminal
Output: rec. via 1 x stereo RCA
Equalizer: Master: 1 x tone control with 2 mono bands
Number of files: Max. 999
Material: Metal
Colour: Black
Body design: (19") 48.3 cm rack mount 2 U
Dimensions:
Width: 48.3 cm
Depth: 38.5 cm
Height: 8.9 cm
Weight: 16.25 kg
Audio Player:
Control: IR remote
Audio player: USB + SD,
Display type: LCD Display
Music format: MP3
Available storage media: USB devices/SD cards max. 32 GB (FAT 32)
Remote control:
Battery: 1 x 3.0 V CR2025 lithium manganese button cell included
