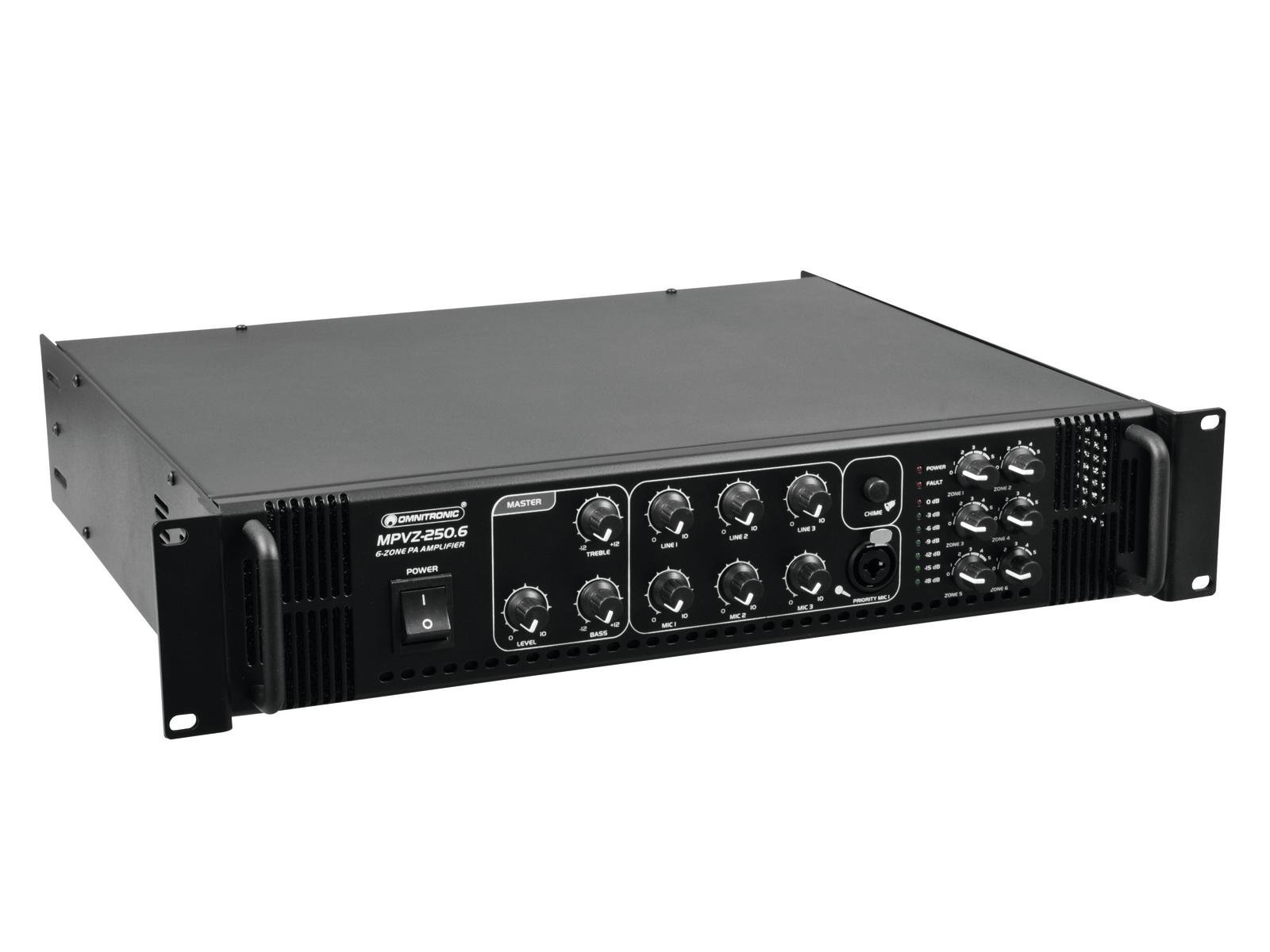

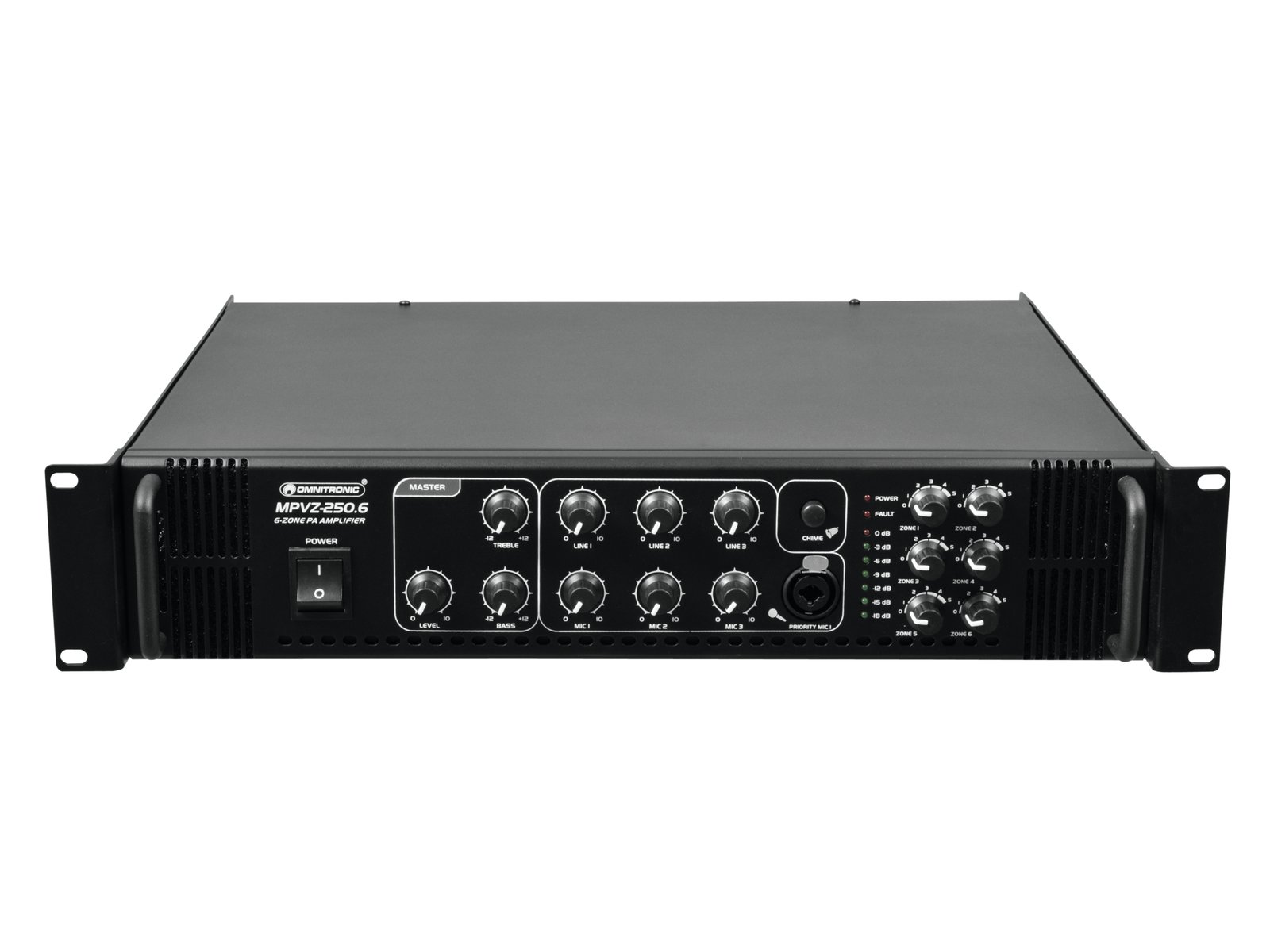

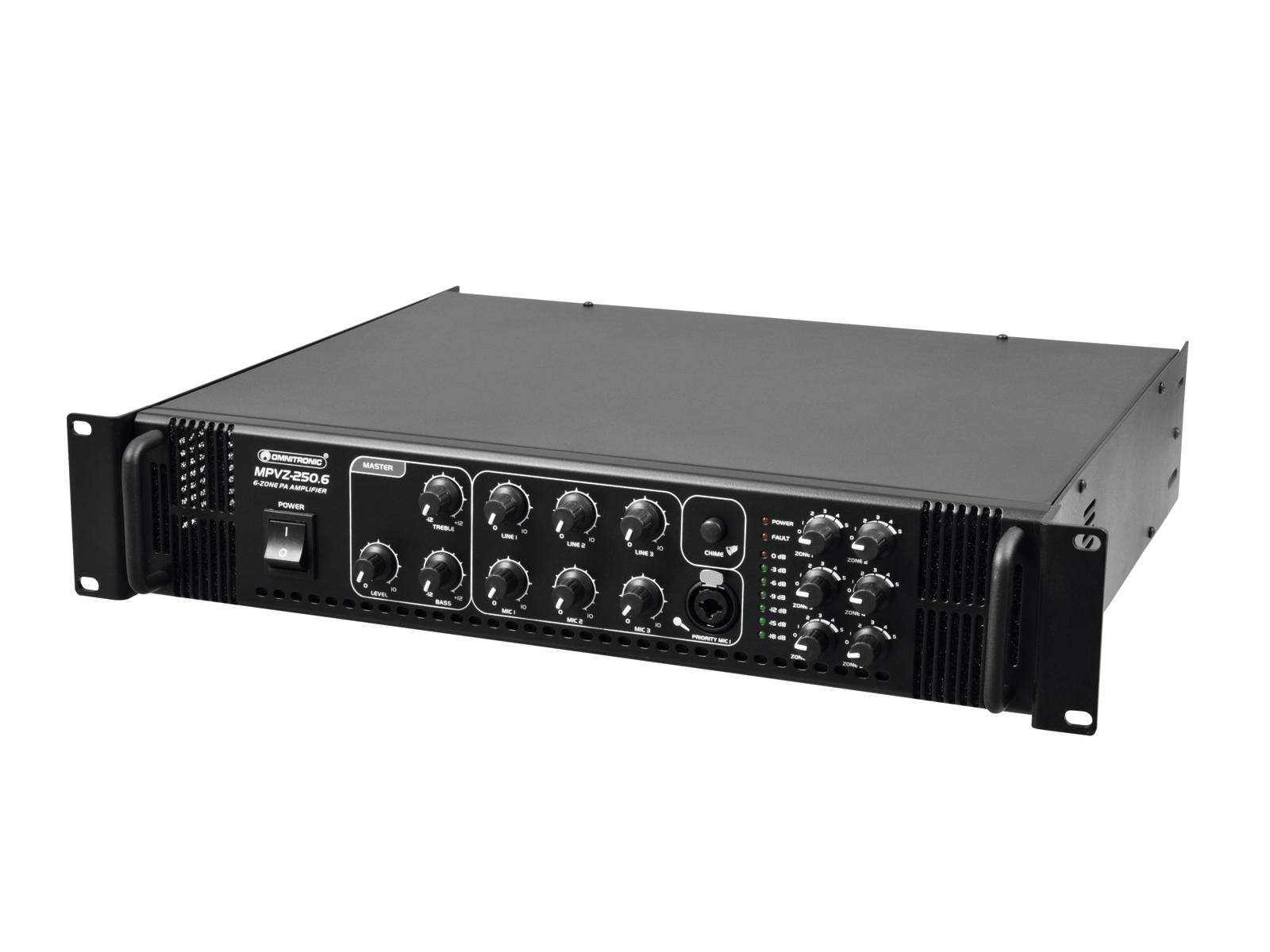

Omnitronic MPVZ-250.6 PA Mixing Amplifier

Mono PA Amplifier with 6 Zones and Mixer

control confortabil al difuzoarelor PA prin tehnologia cu 6 zone
6 ieșiri de zonă PA cu comenzi separate de nivel în 5 trepte
ieșire pentru difuzoare cu impedanță scăzută (4-16 ohmi)
2 intrări microfon din spate (mufă de 6,3 mm, dezechilibrată)
1 intrare microfon frontală (combinație XLR/jack de 6,3 mm, dezechilibrat) cu circuit prioritar reglabil

528²⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2713 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic MPVZ-250.6 PA Mixing Amplifier Add to cart: 528²⁹ €

Mono PA mixing amplifier with 6 zones, 250 W, adjustable zones

Comfortable control of PA speakers through 6-zone technology
6 PA zone outputs with separate 5-step level controls
Low-impedance speaker output (4-16 ohms)
2 rear microphone inputs (6.3 mm jack, unbalanced)
1 front microphone input (XLR/6.3 mm jack combination, unbalanced) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Bell, switchable
Treble and bass control for output signal
7-segment LED level meter
Main control for output signal
The device is cooled by a cooling fan
(19") 48.3 cm rack installation 2 U

Package contents

Power supply:	230 V AC, 50 Hz
Power consumption:	500.00 W
Output power:	250 W RMS
Output current:	Max. 2.5 A
Power connection:	Fixed power cable with safety plug
Frequency range:	80 - 16000 Hz
S/N ratio:	Microphone >75 dB >85 dB line
THD:	<0.5 % at 1 kHz
Cooling:	Cooling fan
Impedance:	4 ohms; 8 ohms; 16 ohms; 100V sound systems; 70V sound systems
Zone output:	6 adjustable zones
Circuits:	Class AB
Controls:	Current limiting; short circuit; transient power on/off; transient power off/on; Overvoltage; short circuit
Status LED:	Power, fault, level meter

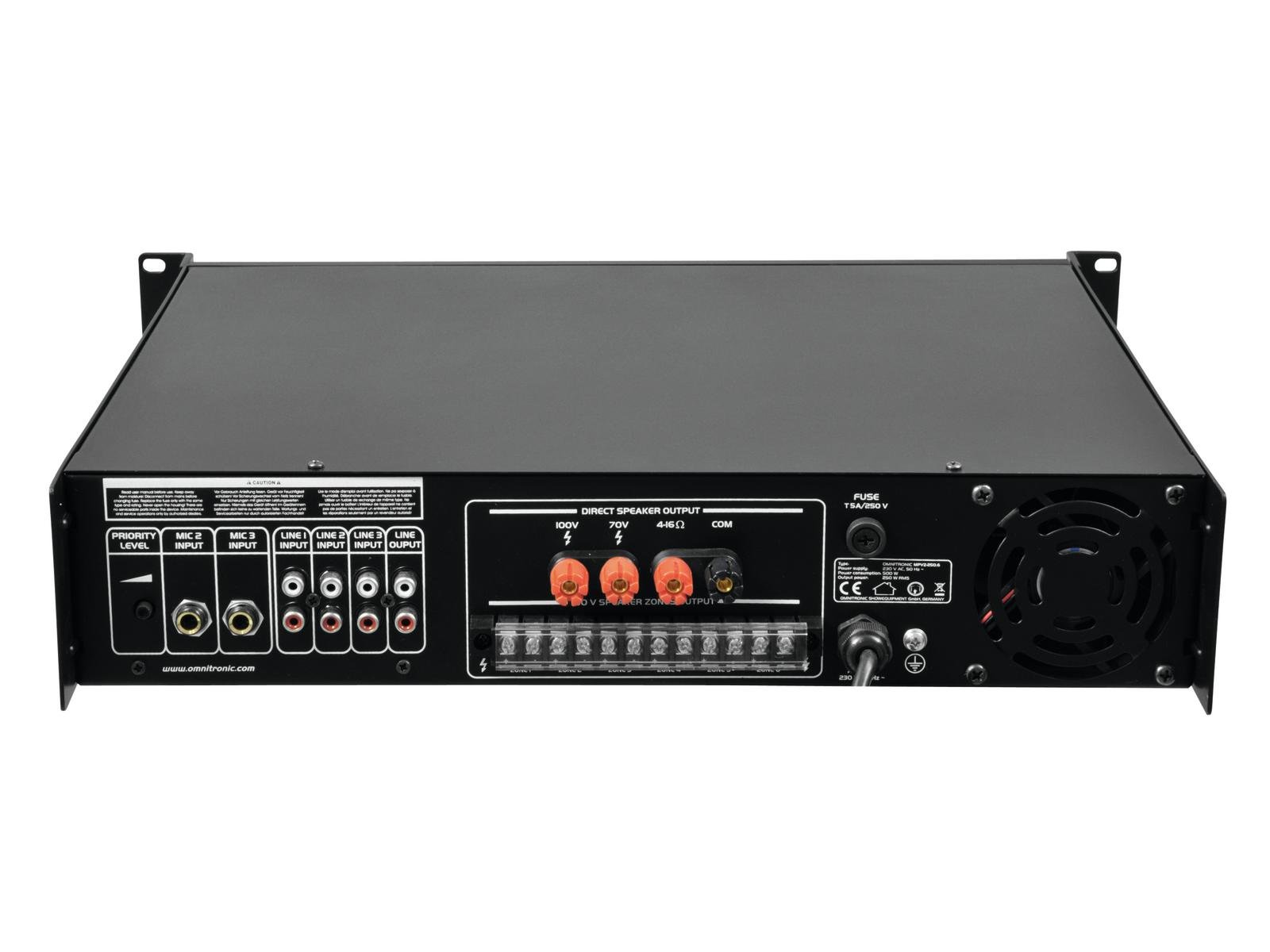

Connections:	Input: microphone via 1 x combined XLR/6.35 mm (F) 3-pin jack (mounting version) Input: microphone via 2 x 6.3 mm jack (unbalanced) Input: line via 3 x stereo RCA 0.3 V Output: line via 1 x stereo RCA Output: speaker via screw terminal
Equalizer:	Master: 1 x tone control with 2 mono bands
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm
Weight:	11.15 kg
