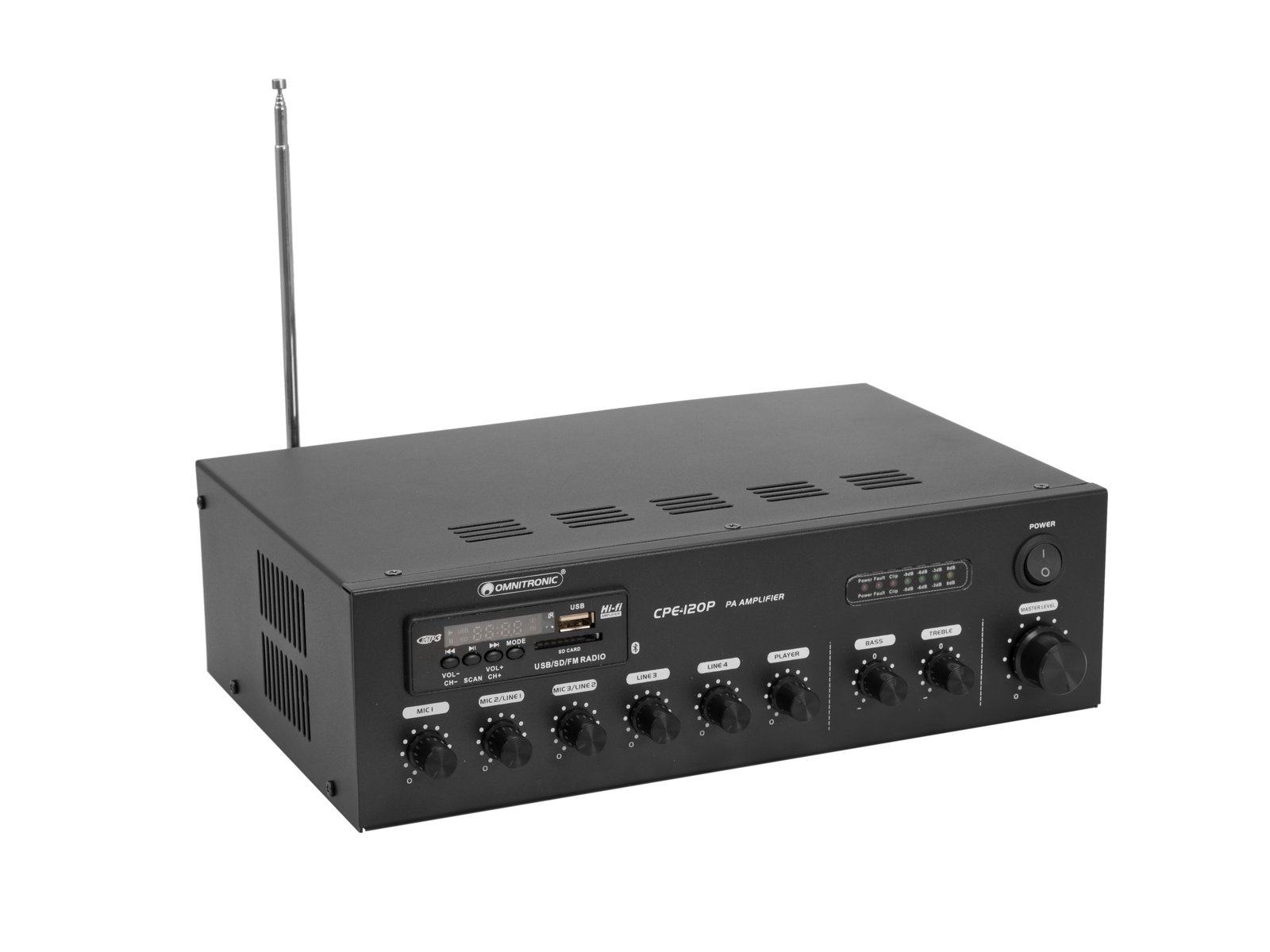

Omnitronic CPE-120P PA

Omnitronic CPE-120P PA - Mono PA mixing amplifier with MP3 player and IR remote control, Bluetooth, 120 watts.

Features:

• Integrated Bluetooth audio streaming
• SD card slot and USB port
• FM tuner with automatic scanning
• 3 microphone inputs with separate level controls
• Microphone 1 with Phantom Power and priority circuit
• Microphone 2 and 3 switchable mic/line
• 2 line inputs with separate level controls
• 1 line output
• Treble and bass + master controls for output signal
• 4-digit LED level meter
• Operation on mains and emergency power 24 V
• The device is cooled by a cooling fan
• Bluetooth control; IR remote control
• 2 U
• Desktop console housing
• Package contents: 1 x amplifier, 1 x user manual, 1 x declaration of conformity, 1 x power cable, 1 x antenna, 1 x remote control, 1 x battery

Technical Specifications:

• Power supply: 230 V AC, 50 Hz or 24 V
• Power consumption: 240 W
• Output power: 120 W RMS
• Power connection: Mains input via IEC (M) connector with safety plug (supplied)
• Cooling: Cooling fan
• Impedance: 4-16 ohms; 100V sound systems; 70V sound systems
• Control: Bluetooth; IR remote control
• Audio player: USB + SD + Bluetooth + FM Radio
• Circuit: Class D
• Controls: Overload; short circuit; limiter; overheating
• Connections:

  • Input: Microphone via 1 x 3-pin XLR
  • Input: Microphone/line via 2 x 6.3 mm jack connectors (stereo)
  • Input: Line via 2 x RCA stereo
  • Output: Line via 1 x RCA stereo 0.774 V
  • Output: Speaker via screw terminal
• Equalizer: Master: 1 tone control with 2 bands
• Music format: MP3
• Housing design:
  • 2 U
  • Desktop console housing
• Dimensions: 30.3 x 22 x 9.1 cm
• Weight: 3.70 kg
• Remote control: Battery: 1 x 3.0 V CR2025 lithium manganese built-in
