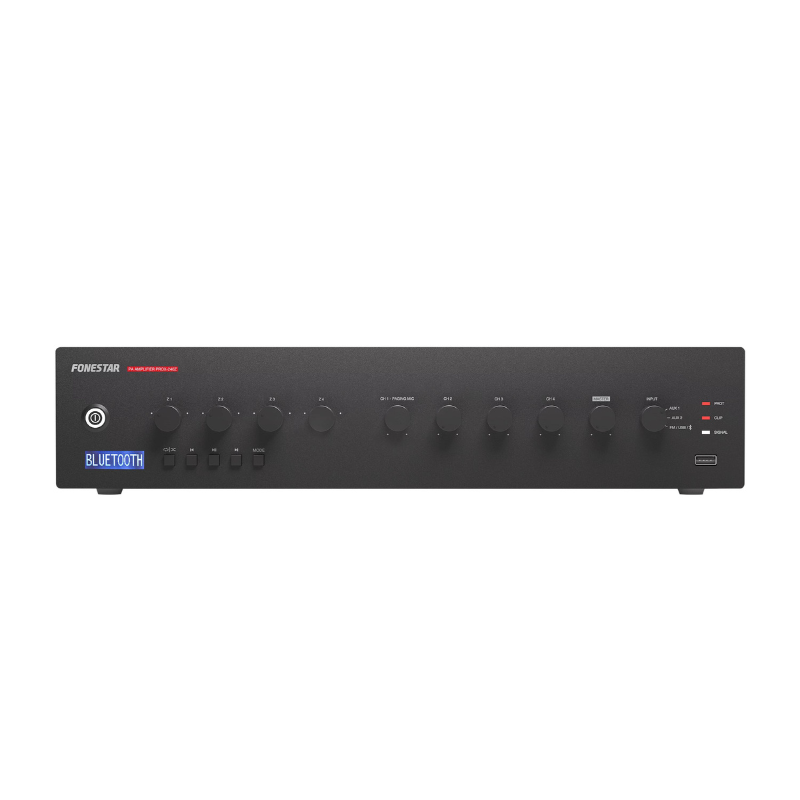

Fonestar PROX-120Z Bluetooth/USB/FM

Fonestar PROX-120Z Bluetooth/USB/FM – Multi-zone PA amplifier (3 zones) equipped with Bluetooth/USB/FM player. A professional solution for multi-zone sound systems, ideal for applications in offices, shops, restaurants, conference rooms, or places of worship. It offers a power of 120 W RMS and includes an integrated Bluetooth®, USB, and FM player, allowing ambient music playback from various sources.

FEATURES:

• Public address amplifier
• Bluetooth / USB / FM player
• Microphone input with mix control, gain, and priority level
• Prioritisation between inputs based on signal level
• Tone control (bass and treble)
• 100 V and 4 Ω outputs
• 3 output zones with volume control and OFF position

POWER:

• 120 W RMS

FREQUENCY RESPONSE:

• 40–20,000 Hz (-10 dB)

DISTORTION:

• THD+N: < 1% at 1 kHz

SIGNAL/NOISE RATIO:

• 77 dB

PROTECTIONS:

• Overcurrent, DC, and short circuit protection at output

INPUTS:

• CH 1: balanced microphone/line with Phantom +48V, Combo (XLR + 6.3 mm jack) and euroblock connector
• CH 2 and CH 3: balanced microphone/line with Phantom +48V, euroblock connector
• Microphone signal level: 6 mV RMS (-44 dBV) / 600 Ω
• Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
• 2 AUX inputs: 2 x RCA and euroblock, signal 300 mV RMS (-10 dBV) / 47,000 Ω
• 1 emergency input: euroblock, speaker line signal 100 V
• 1 Mute input (emergency priority): normally closed contact, euroblock

OUTPUTS:

• 1 line output: 2 x RCA, signal 1.25 V RMS (+2 dBV)
• Speaker output: 100 V or 4 Ω
• 3 speaker zones 100 V with 5-step volume selector + OFF
• Terminal type connectors with screw

IMPEDANCE:

• 4 Ω and 100 V line (83 Ω)

FUNCTIONS:

• Input priority (VOX):
  • The 100 V emergency input has the highest priority – attenuates all others
  • Mute via normally closed contact – attenuates all inputs except for the emergency one
  • Channel 1 has priority over all – selectable level
  • Channels 2 and 3 have priority over AUX and player – selectable level
• Other functions:
  • LEDs for: power, protection, signal peak, and output signal
  • Forced ventilation controlled thermally

PLAYER:

• Bluetooth / USB / FM player for ambient music playback
• Supports MP3 and WAV files
• Maximum USB capacity: 64 GB
• Automatic playback on startup
• Memory for last mode and playback mode (random, repeat)

CONTROLS:

• Microphone volume
• Mic/line/phantom selector
• Master volume
• AUX or player input selector
• Zone volume
• Tone: bass and treble (+/- 10 dB at 100 Hz and 10 kHz)
• Microphone gain
• Signal level for priority activation (VOX)

OPERATING TEMPERATURE:

• 0ºC ~ 40ºC

MAXIMUM HUMIDITY:

• 95%

POWER SUPPLY:

• 230/115 V AC 50–60 Hz, consumption 320 W
• Fuse: 230 V – 3.15 A / 115 V – 6 A

DIMENSIONS:

• 433 x 89 x 360 mm (depth), 2U rack format 19”

WEIGHT:

• 9.6 kg

INCLUDED ACCESSORIES:

• FM antenna
• Bluetooth antenna
• Power cable
• Rack mounting brackets
