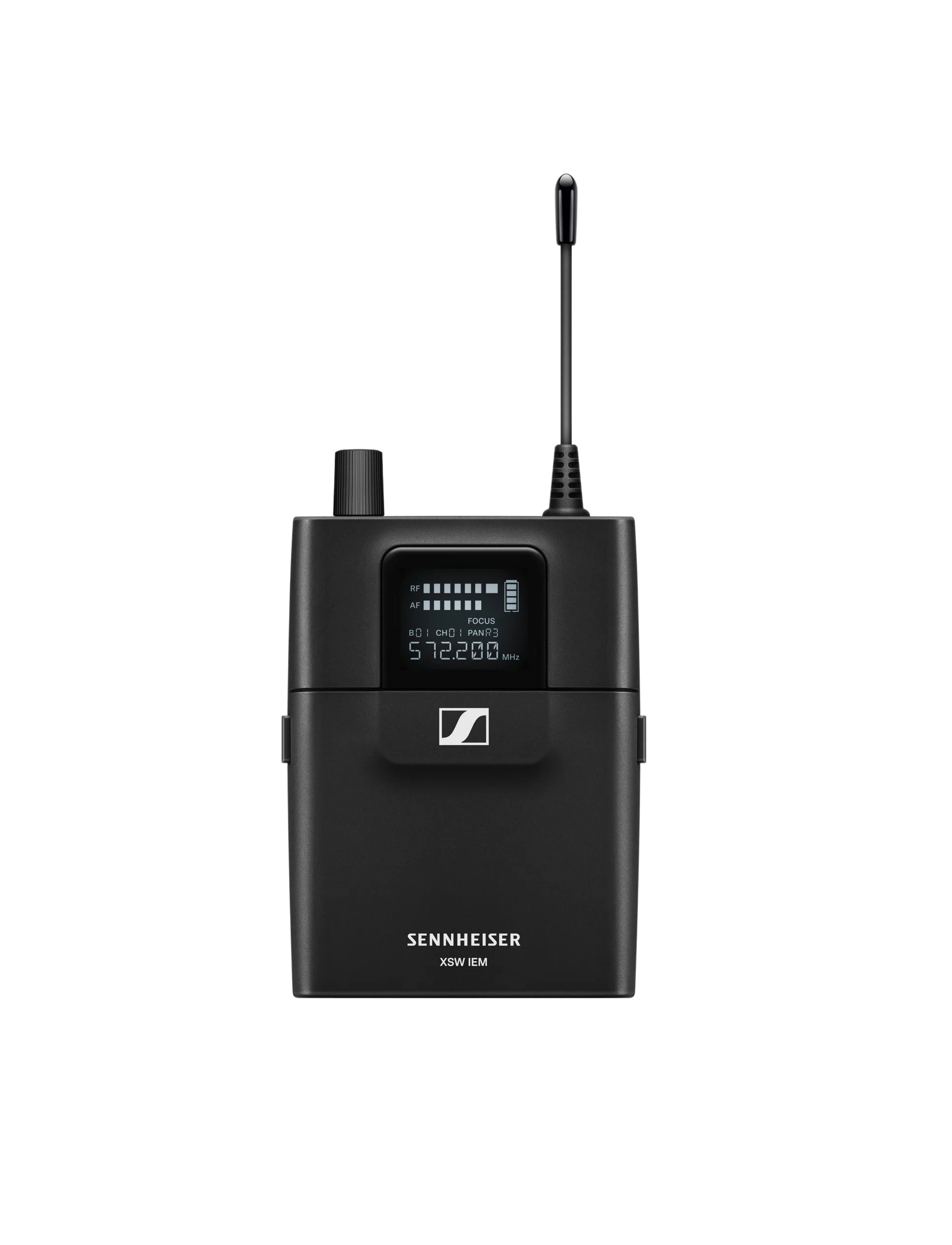

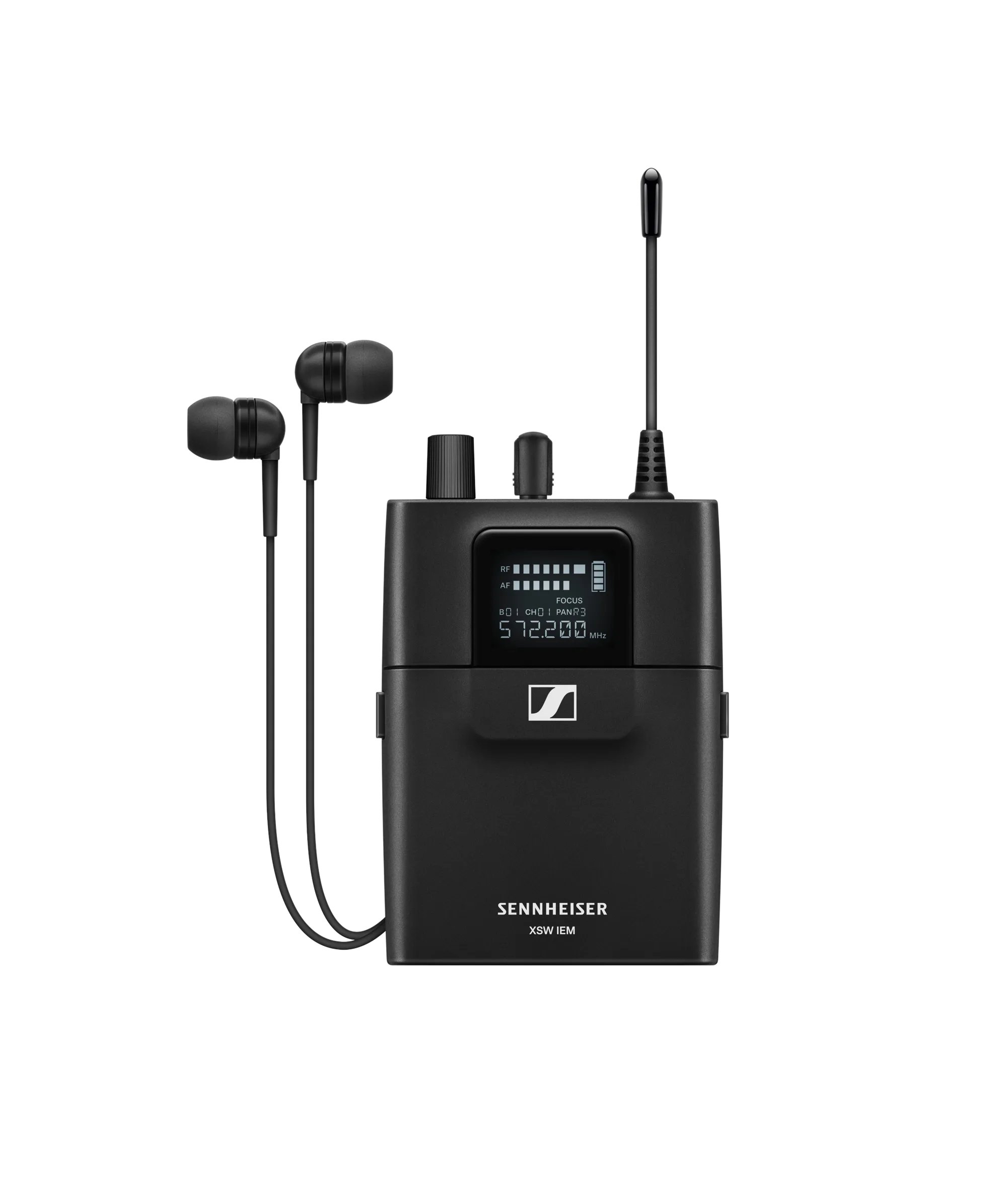

With the XS Wireless IEM, you can easily connect additional receivers to a single transmitter – thus, more band members reach a new level of sound detail. The lightweight bodypack becomes practically imperceptible once attached to clothing or a belt. You can connect the included IE 4 in-ear headphones or upgrade to the IE PRO series via the 3.5 mm output. The status LED shows you at a glance the battery level and connection status, while the high-contrast front panel allows for fine individual adjustments – from balance to focus modes, from equaliser to limiter – so you can build your own mix.
UHF bodypack receiver for expanding existing XS Wireless IEM configurations
Compatible with the XSW IEM SR stereo transmitter
UHF frequency range: B (572 - 596 MHz)

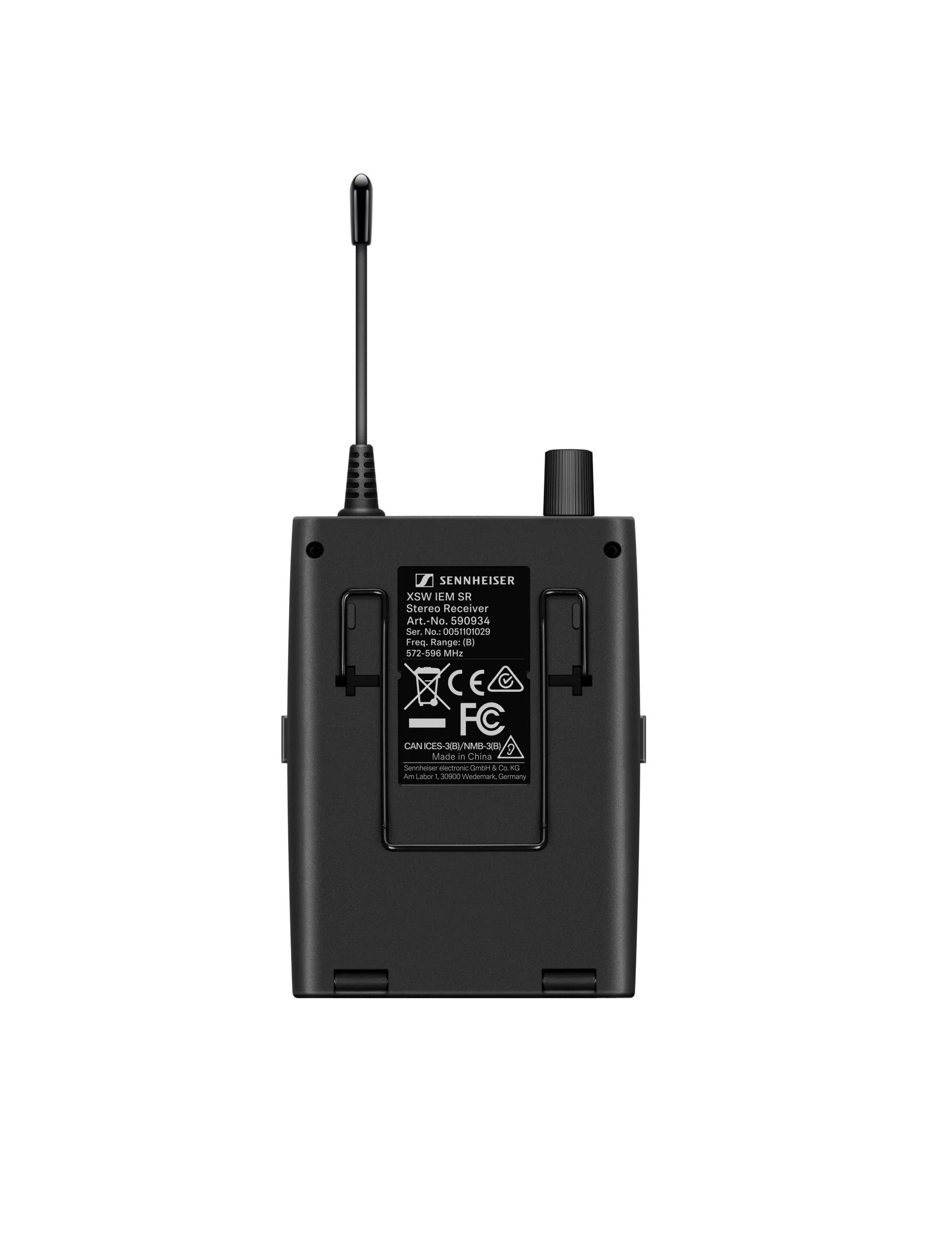

Lightweight bodypack with back clip and control panel resistant to stage conditions
Standard 3.5 mm jack connector for the included IE 4 in-ear headphones or optional in-ear sets
Illuminated front panel and status LED for battery and connection
Menu access to the receiver's sound settings: focus modes, volume control, limiter, and equaliser
Pan control for individual channel balancing
Specifications:
Wireless technology: Analogue, UHF
Modulation: Wideband FM stereo
Maximum operating range: 100 m (line of sight)
Synchronization method: IR
Signal-to-noise ratio: ≥88 dB, 1 mV, maximum deviation
Total harmonic distortion (THD): ≤ 1%
Output level: 2 x 1.25 Veff at 16 Ohm
Equalisation: High boost: +10 dB at 13 kHz
Limiter: -10 dB
Frequency response: 45 Hz - 15 kHz
Crosstalk: Typical 45 dB (50 Hz - 10 kHz)
Power supply: 2 AA batteries, 1.5 V
Nominal voltage: 3 V
Housing: Plastic
Operating time: Approximately 6 hours, depending on volume
