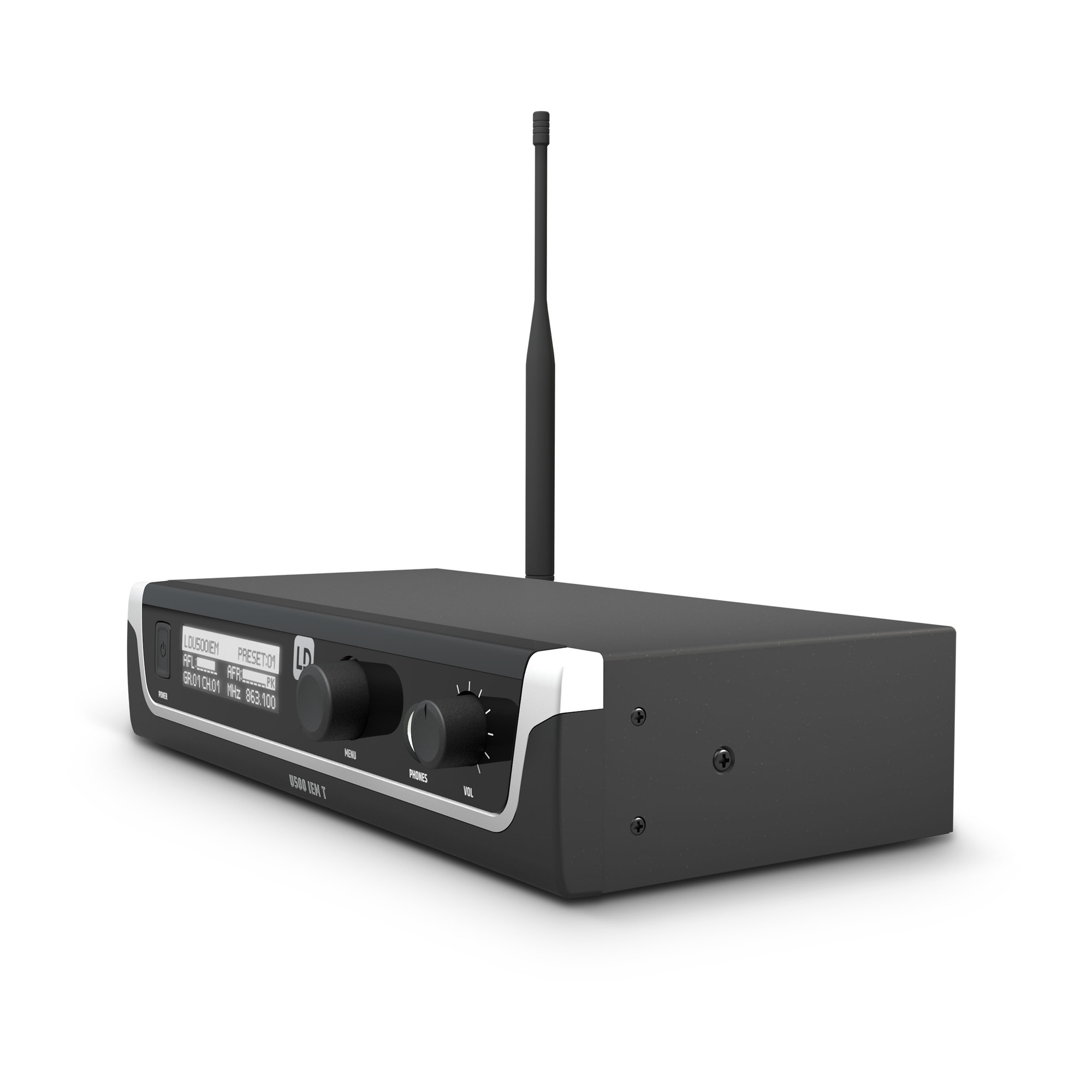

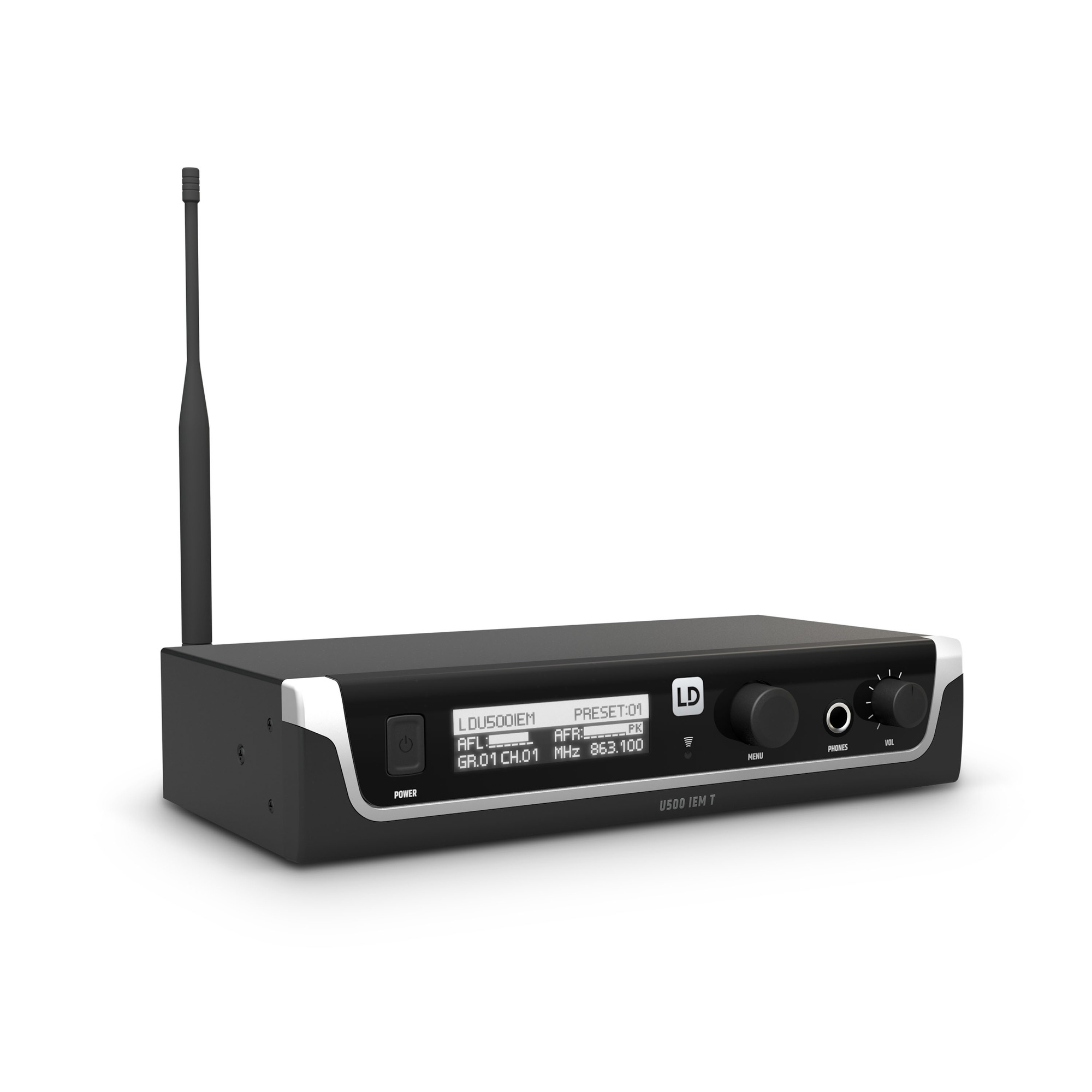

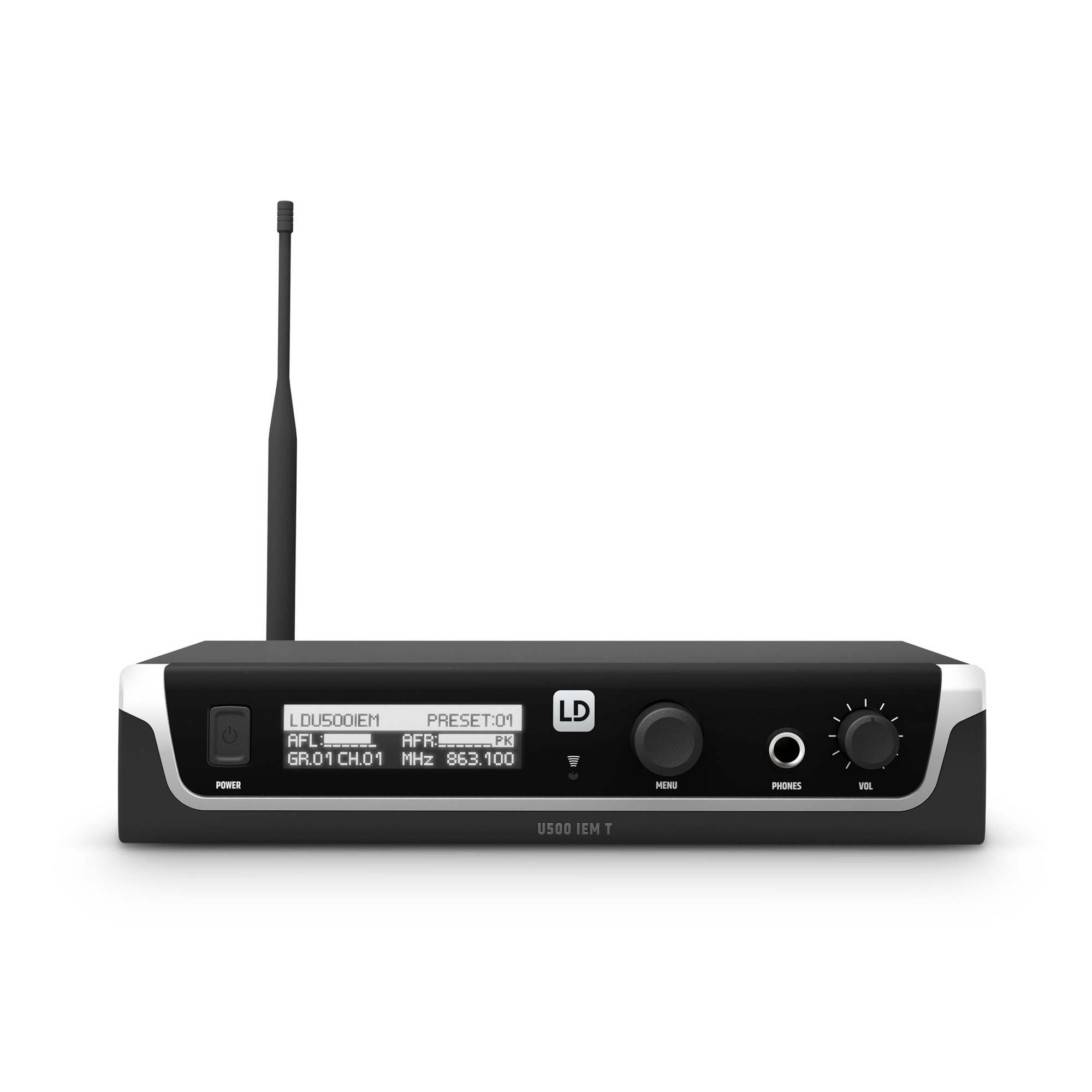

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems noise floor is exceptionally low.
To deliver pristine, precise audio U500® IEM Transmitters include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and provide a convenient direct monitoring headphone output.
Specifications:
Product type: In-ear Monitoring Accessories
Type: Transmitters
Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Modes of operation: focus/mono/stereo
Transmission method: FM, mono/stereo
Rated HF output power: 10 mW, 2 mW, 30 mW
Frequency response: 40 - 16000
Total Harmonic Distortion (THD): 0.3 %
Dynamic range: 88 dB
Inputs: 2

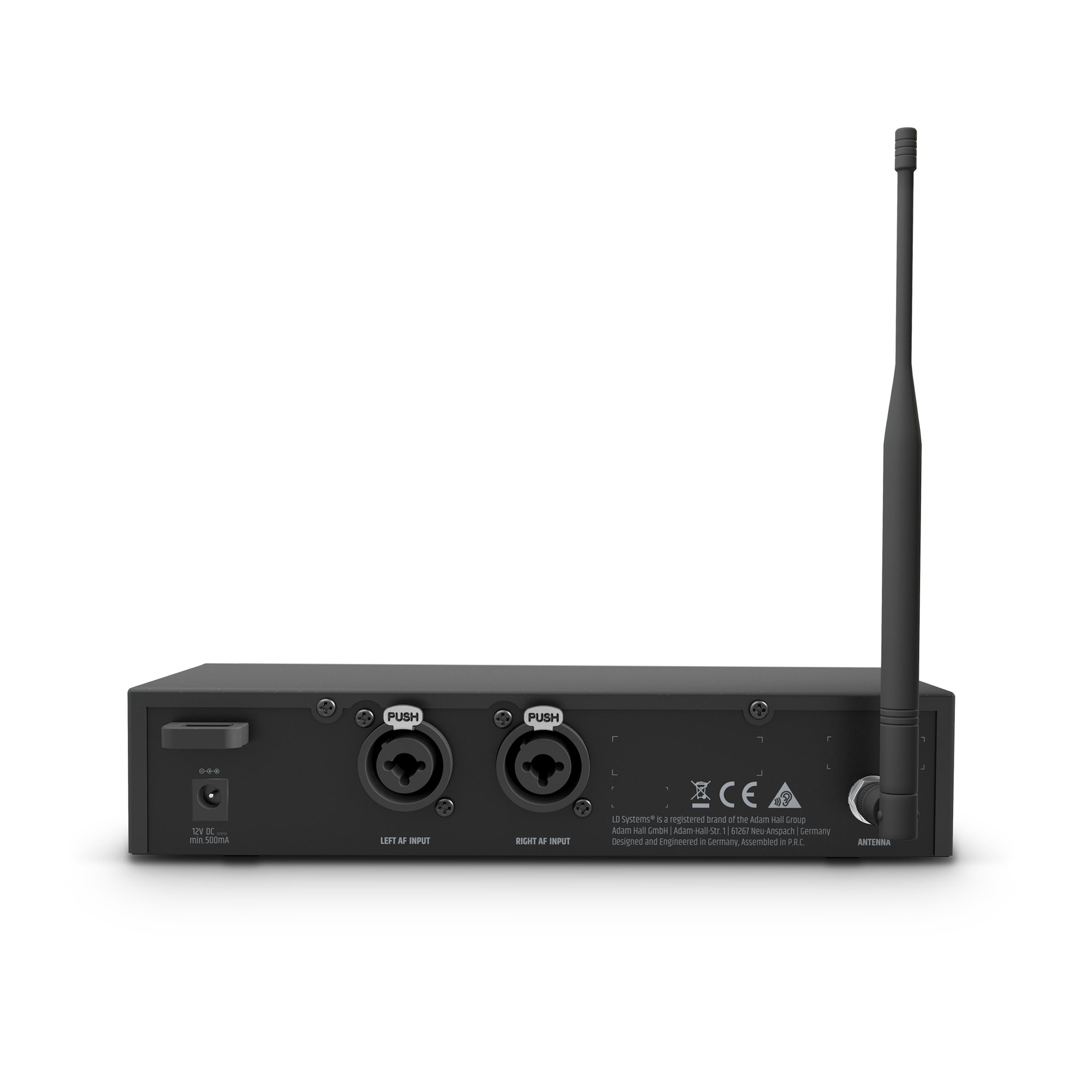

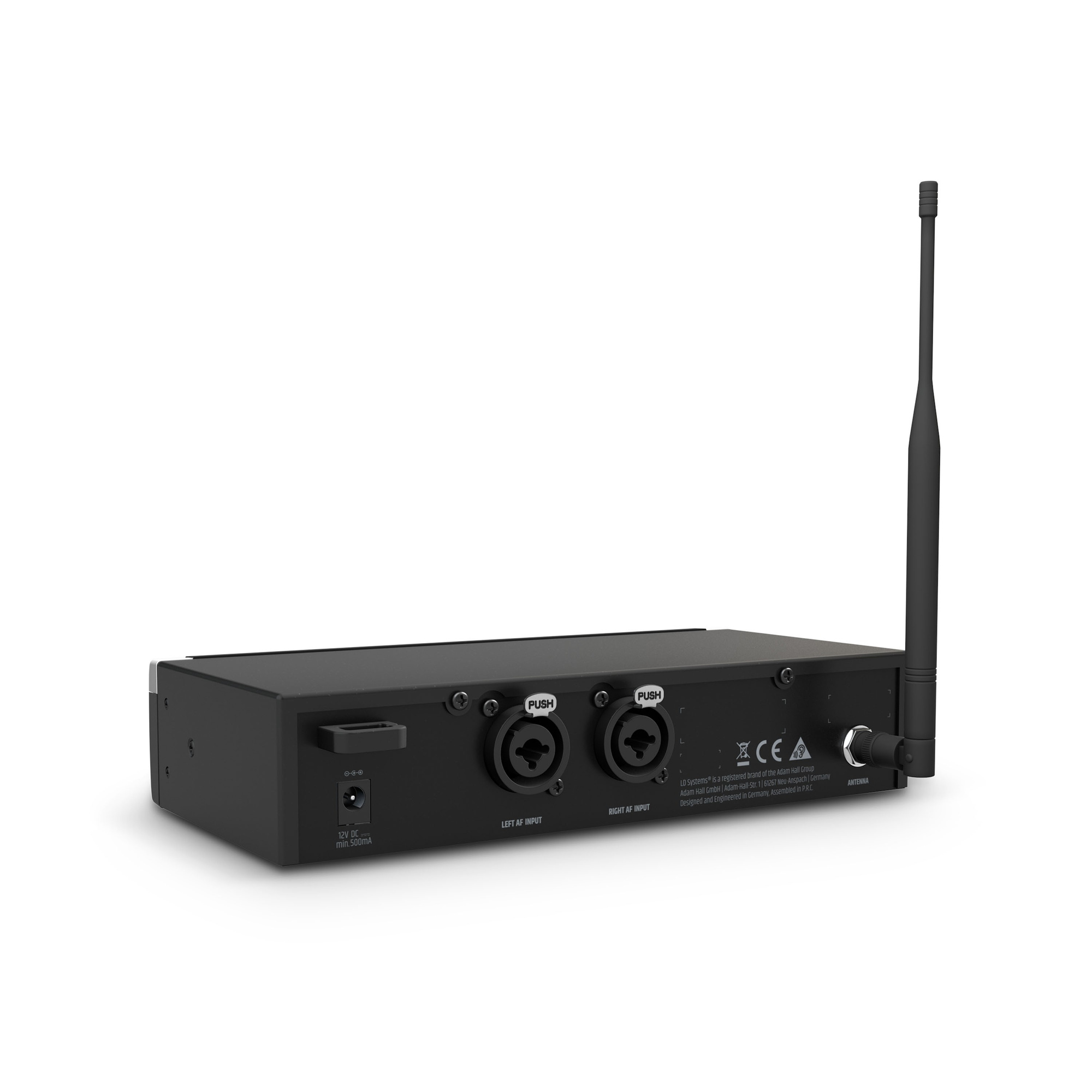

Input connectors: Combo TRS 6.3 mm, XLR (balanced)
Input impedance (kOhms): 12 kOhm
Antenna connector: BNC
Controls: Menu selector Button, Power On/Off, volume headphones
Indicators: Multifunctional OLED-Display
Power supply: 12 - 18 V DC
Width: 212 mm
Height: 43 mm
Depth: 123 mm
Weight: 0,641 kg
Accessories (included): 19" Rack mount kit, BNC-Antenna, power adapter
