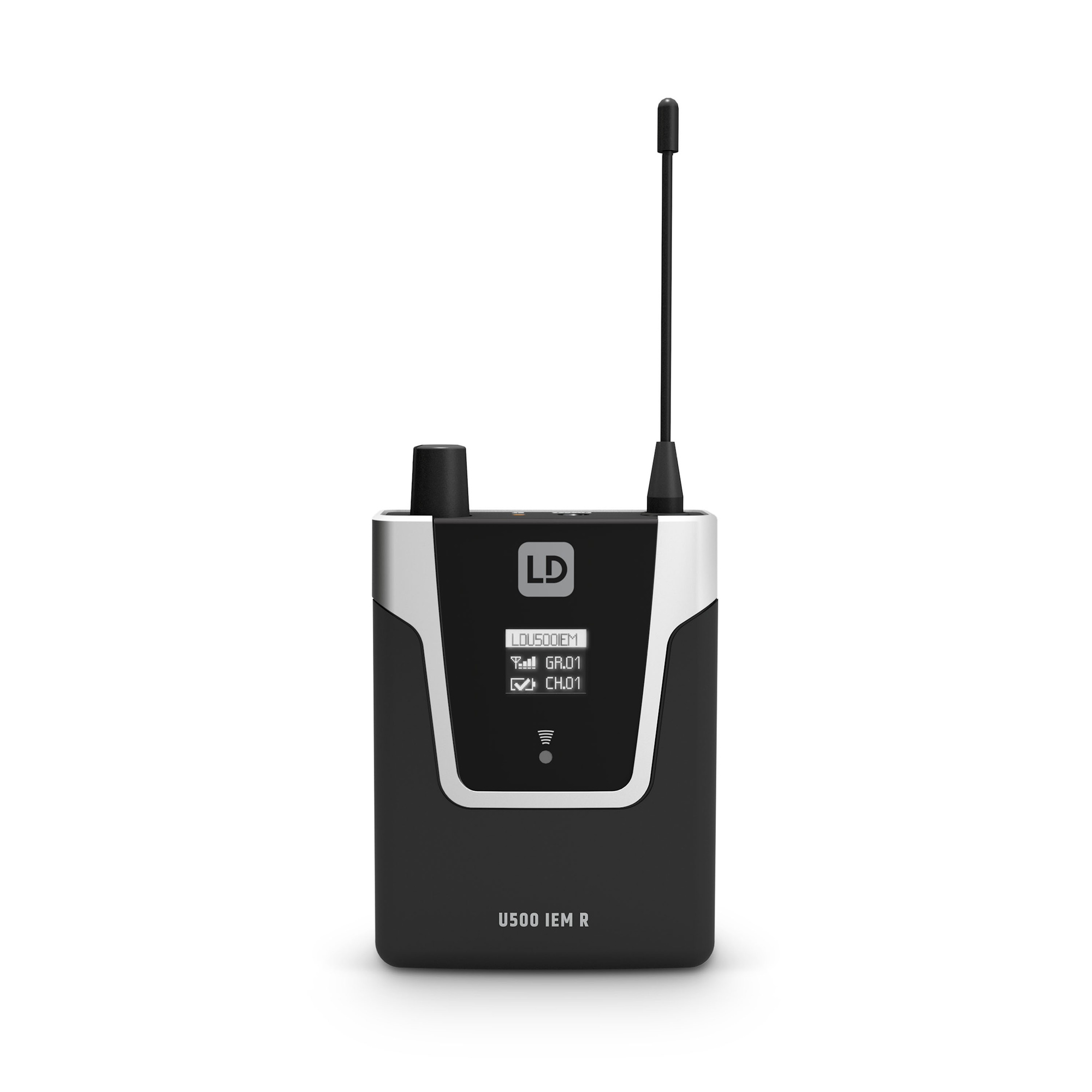

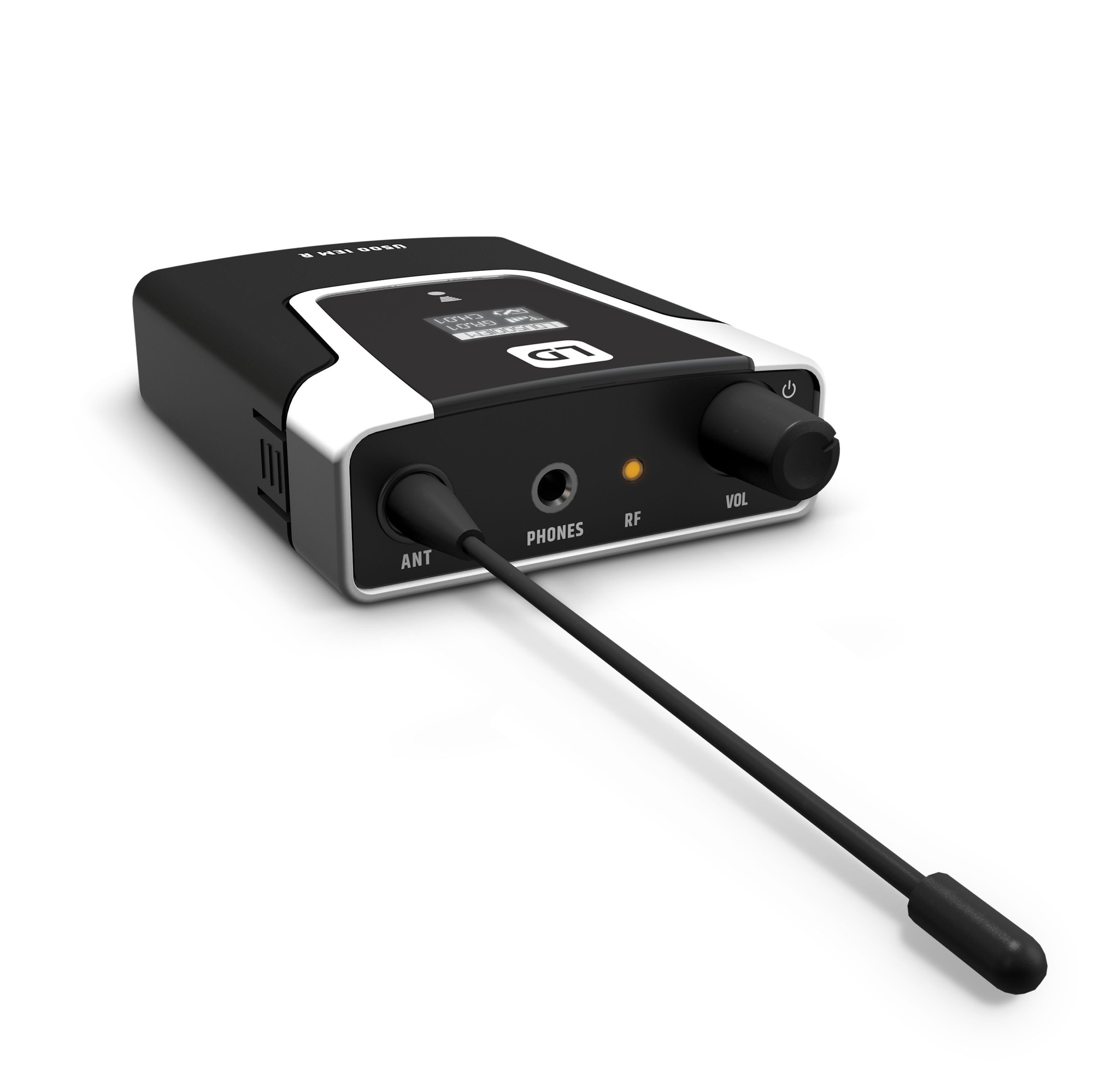

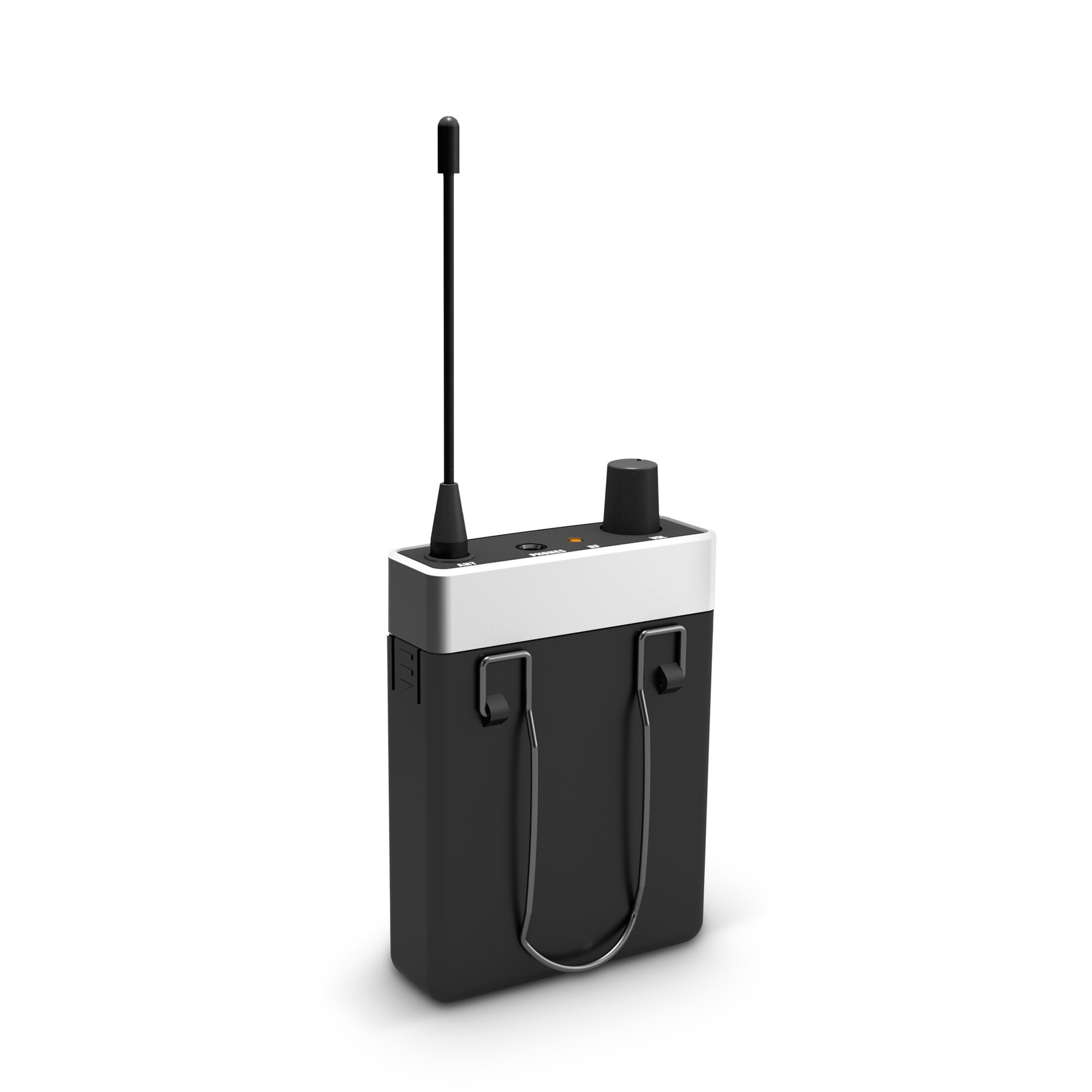

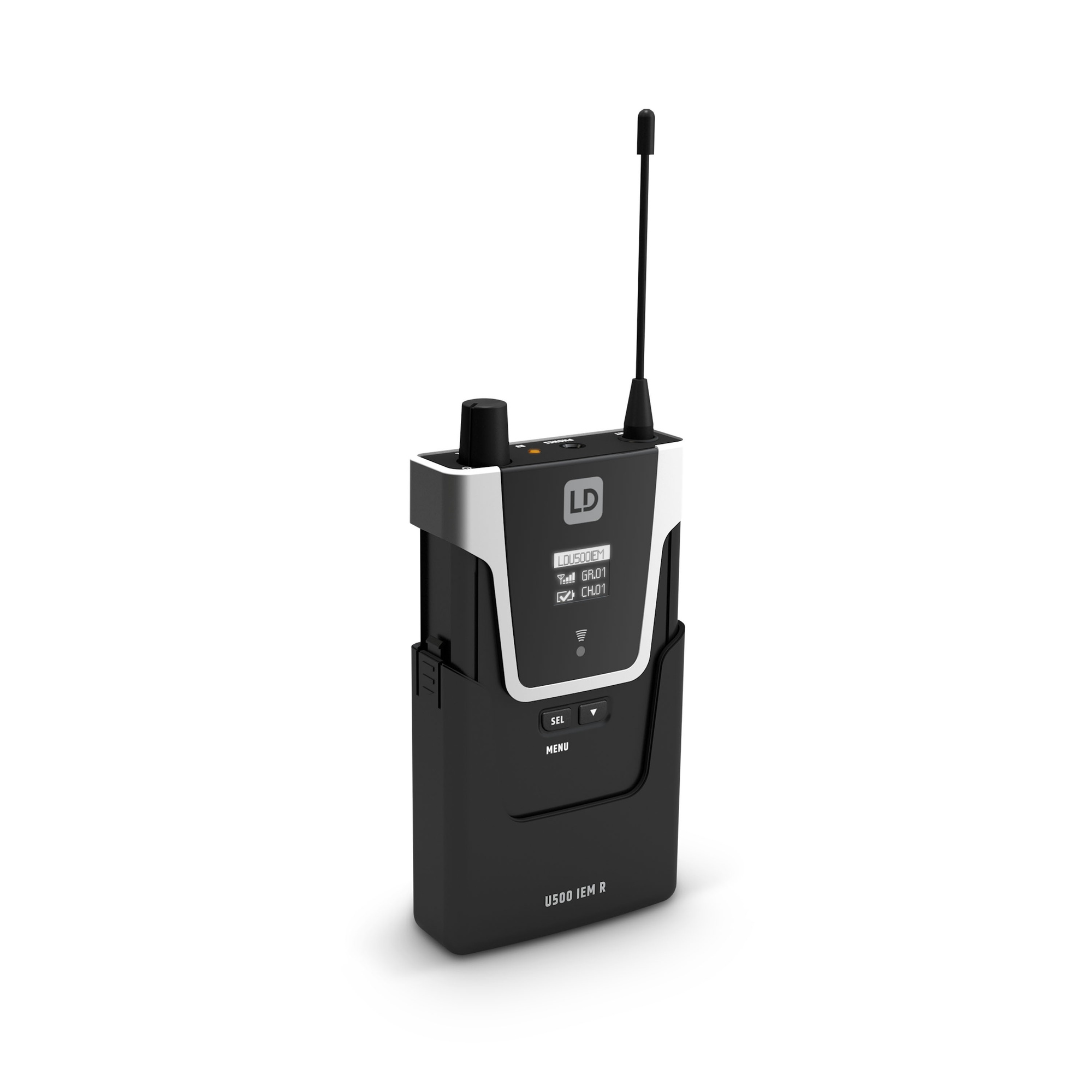

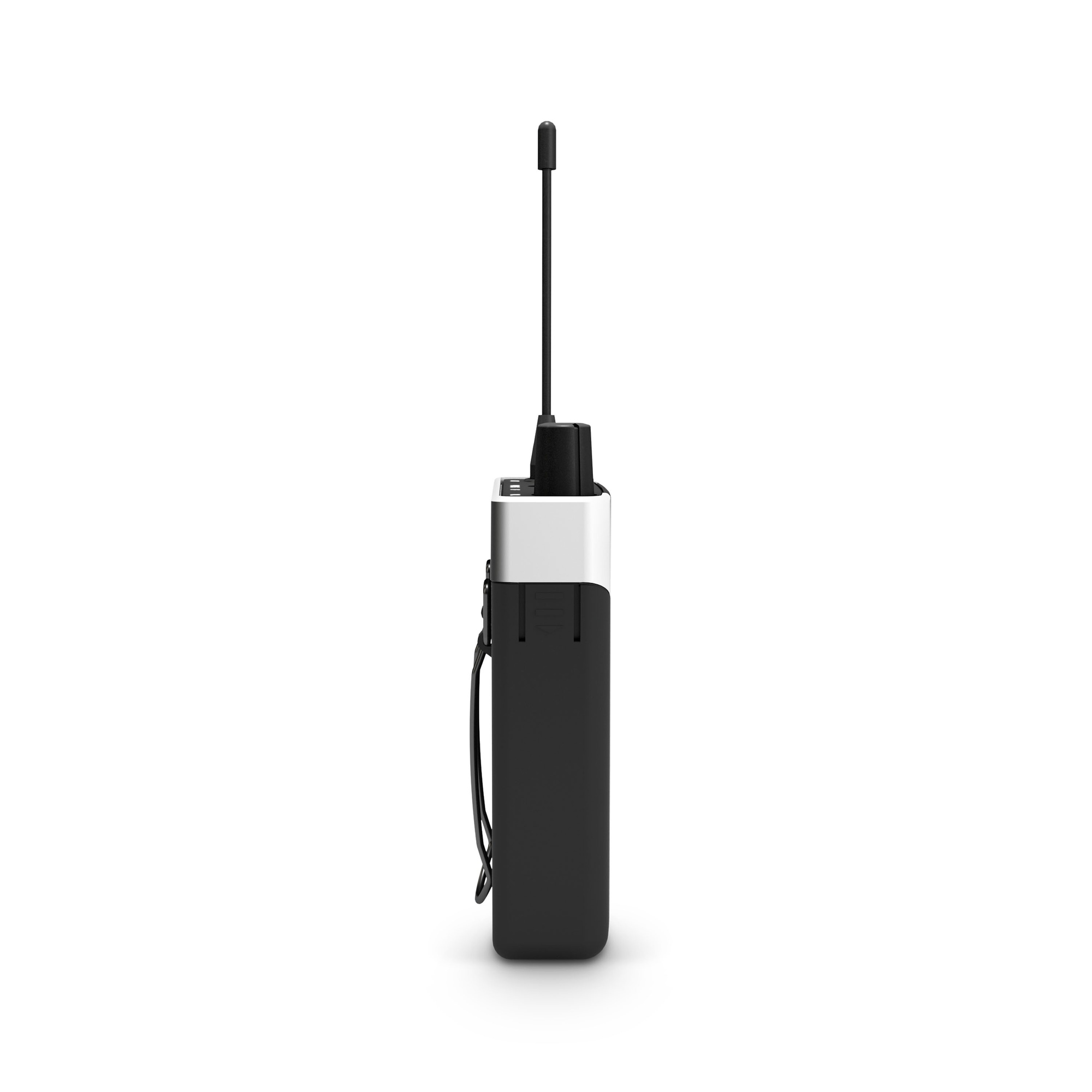

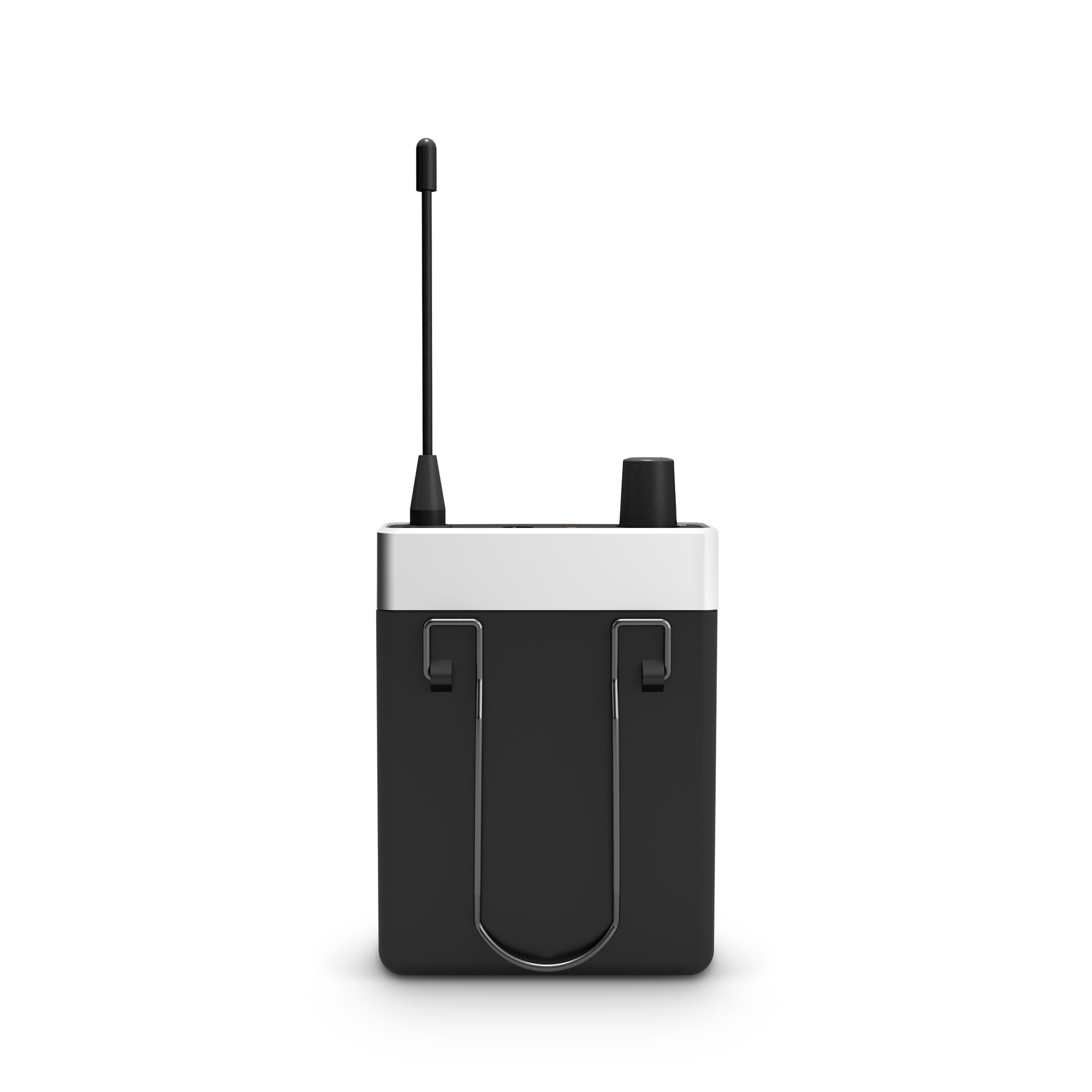

LD Systems U505 IEM R


Receiver - 584 - 608 MHz

  • reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • convenient infrared frequency syncing
  • individual user name assignment and memory for 10 custom presets
LD Systems
21106
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
1095 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.

Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.

Specifications:

Product type: In-ear Monitoring Accessories
Type: Receivers
Transmission frequency range: 584 - 608 MHz
Channels: 12
Headphones ouput: 3.5 mm TRS
Transmission method: FM, mono/stereo
Frequency response: 40 - 16000
Audio output: 3.5 mm TRS
Minimum connected impedance: 16 Ohm(s)
Max. audio output level: 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
Antenna connector: Fixed to housing
Controls: Down, On / Off, Up, volume
Indicators: Multifunctional OLED-Display, RF (LED)
Power supply: 2 x 1.5 V AA
Operating time: < 10 hours
Width: 64 mm
Height: 100 mm
Depth: 24 mm
Weight: 0,095 kg
Accessories (included): 2 x AA batteries, Antenna
Features: battery status LED

Product code: LDU505IEMR

Unit of sale: piece

Documentation, manuals:
