LD Systems U308 BPG

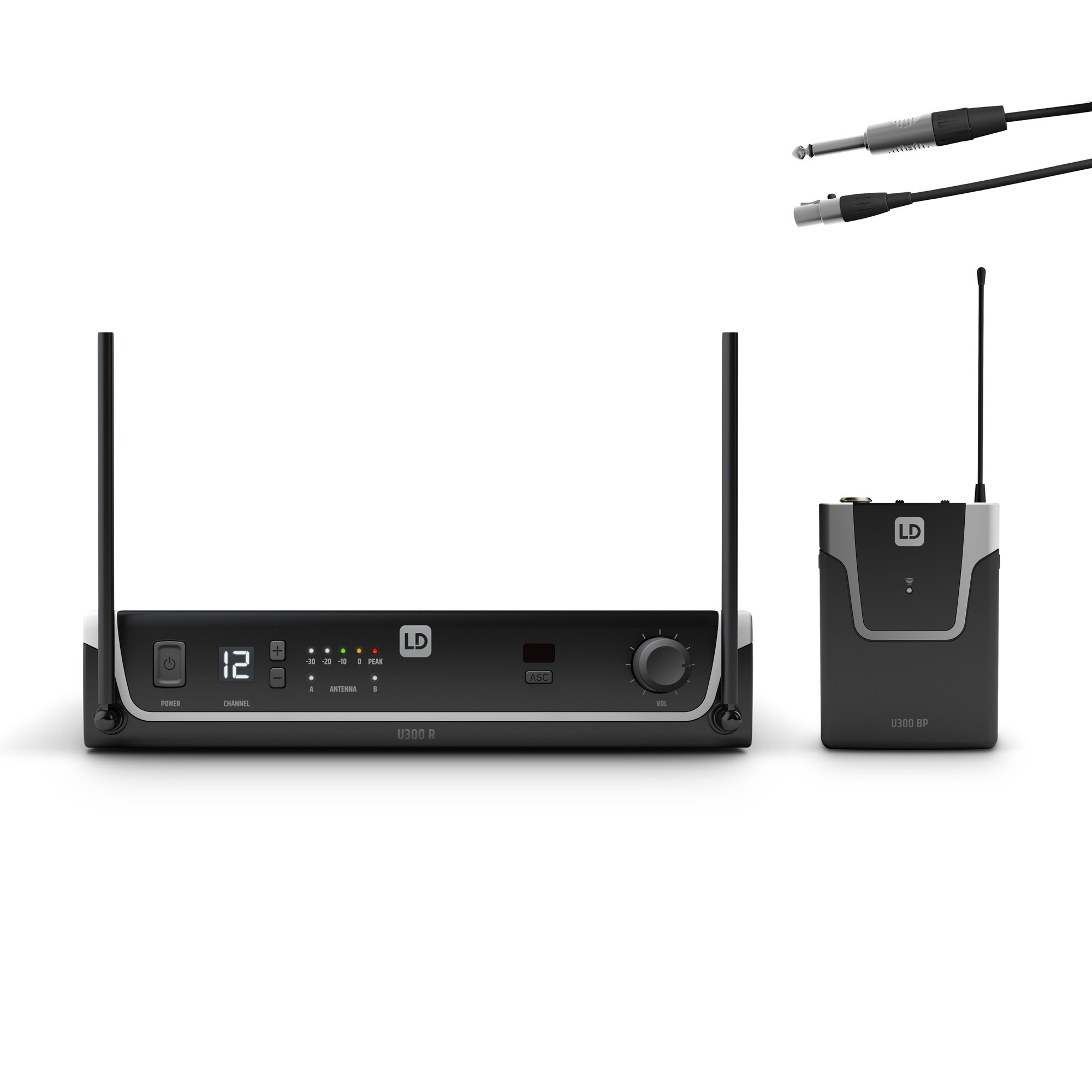

LD Systems U308 BPG - Whether you play guitar, bass, or a wind instrument, the U300® wireless systems have been developed in Germany to provide you with professional technology and sound quality at affordable prices. The instrument sets offer impressive performance and high reliability that will certainly exceed your expectations. The selectable transmission power of up to 10 mW provides the U300® instrument set with a range of over 100 meters. They are available in three frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz, where six systems can operate simultaneously. The frequency response of the handheld microphone ranges from 55 Hz to 16 kHz. With a low cut-off frequency of less than 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars. The input level of the bodypack can be adjusted for both active and passive guitars and basses at three levels. The U300® receiver is equipped with a bright LCD channel display, an LED bar for displaying the audio signal strength, and both a balanced XLR audio output and an unbalanced 6.35 mm audio output.

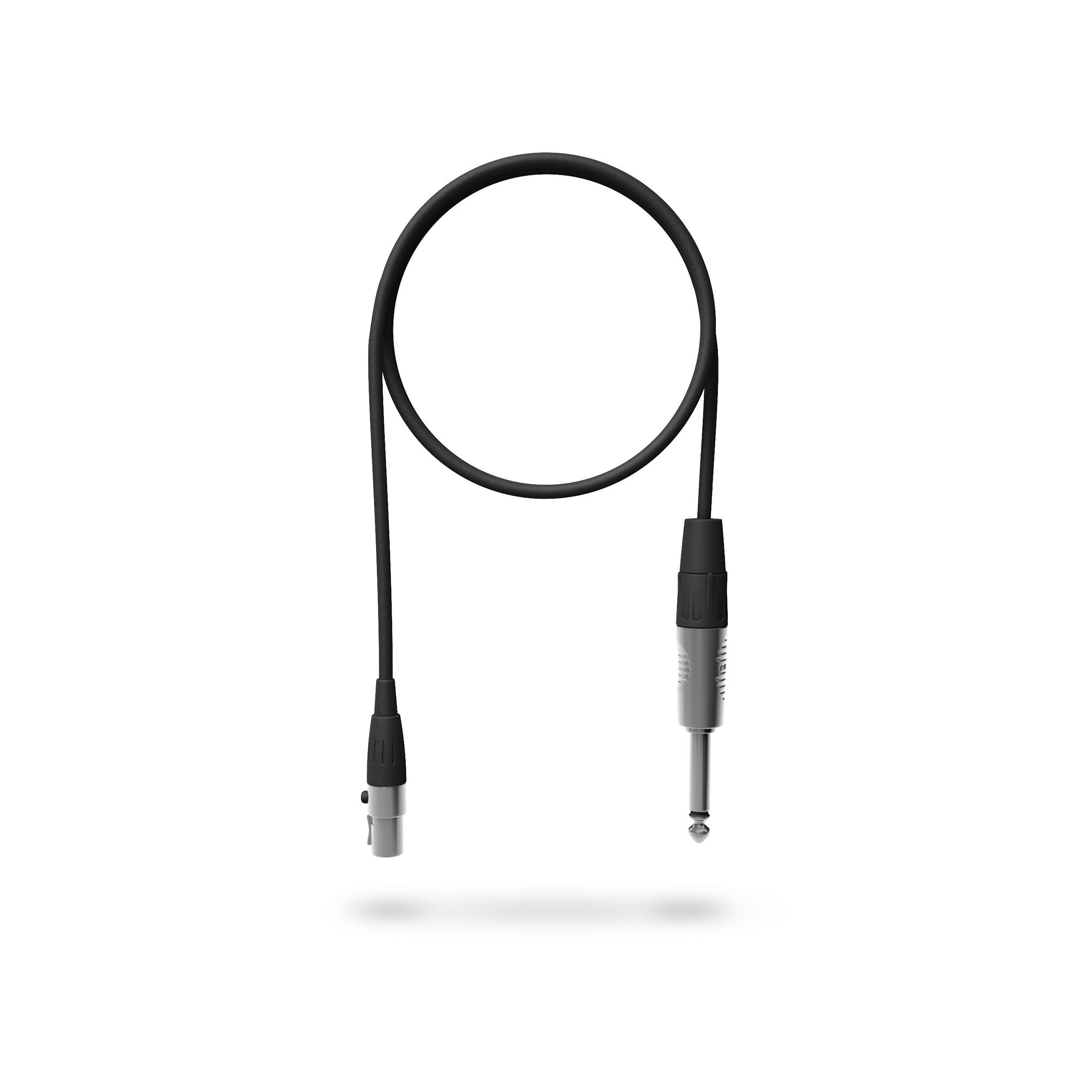

LD Systems U500 GC Instrument Cable:

• Type: Guitar Cables
• Connector 1: Mini-XLR (3 pins, female)
• Connector 2: 6.3 mm jack
• Cable length: 0.8 m
• Weight: 0.045 kg

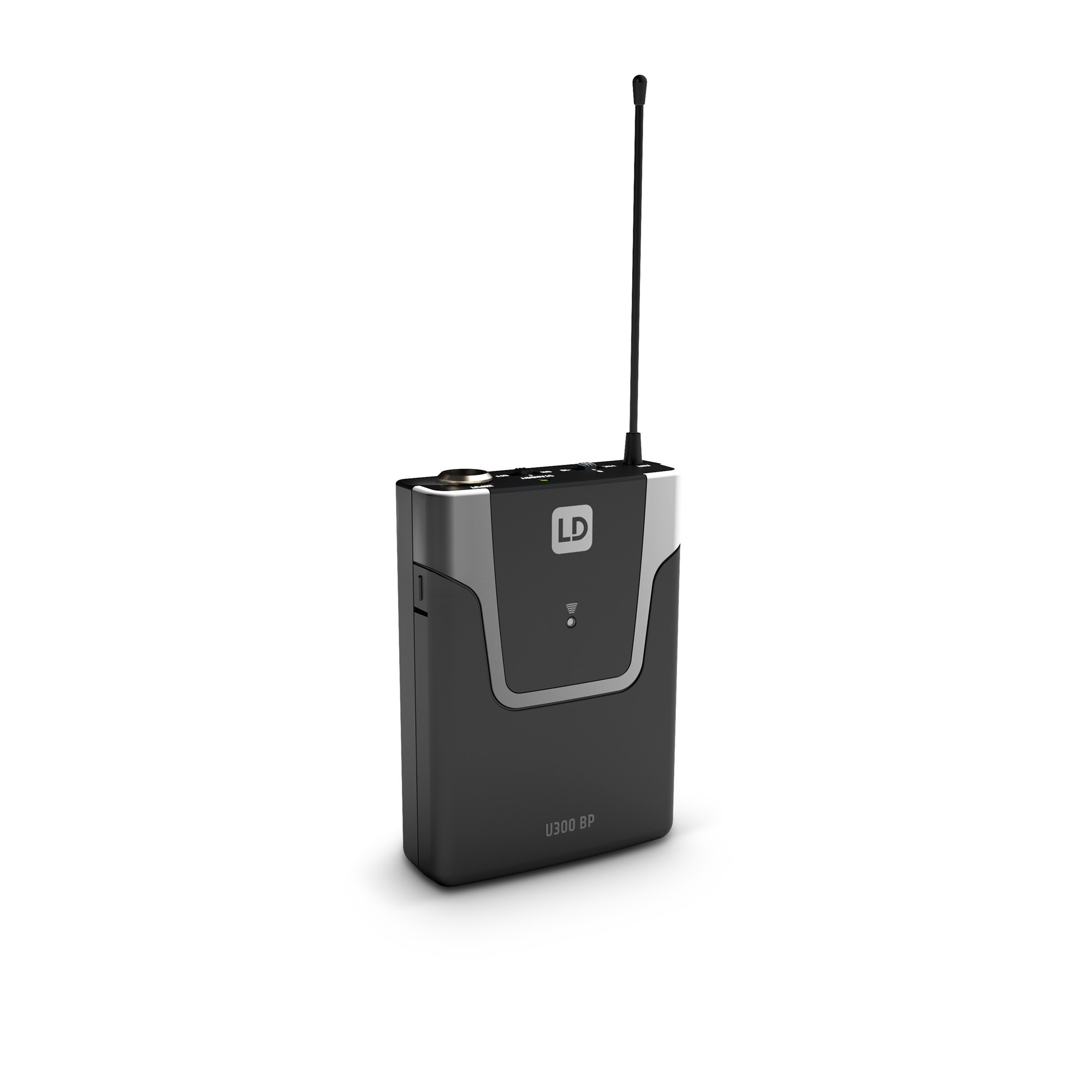

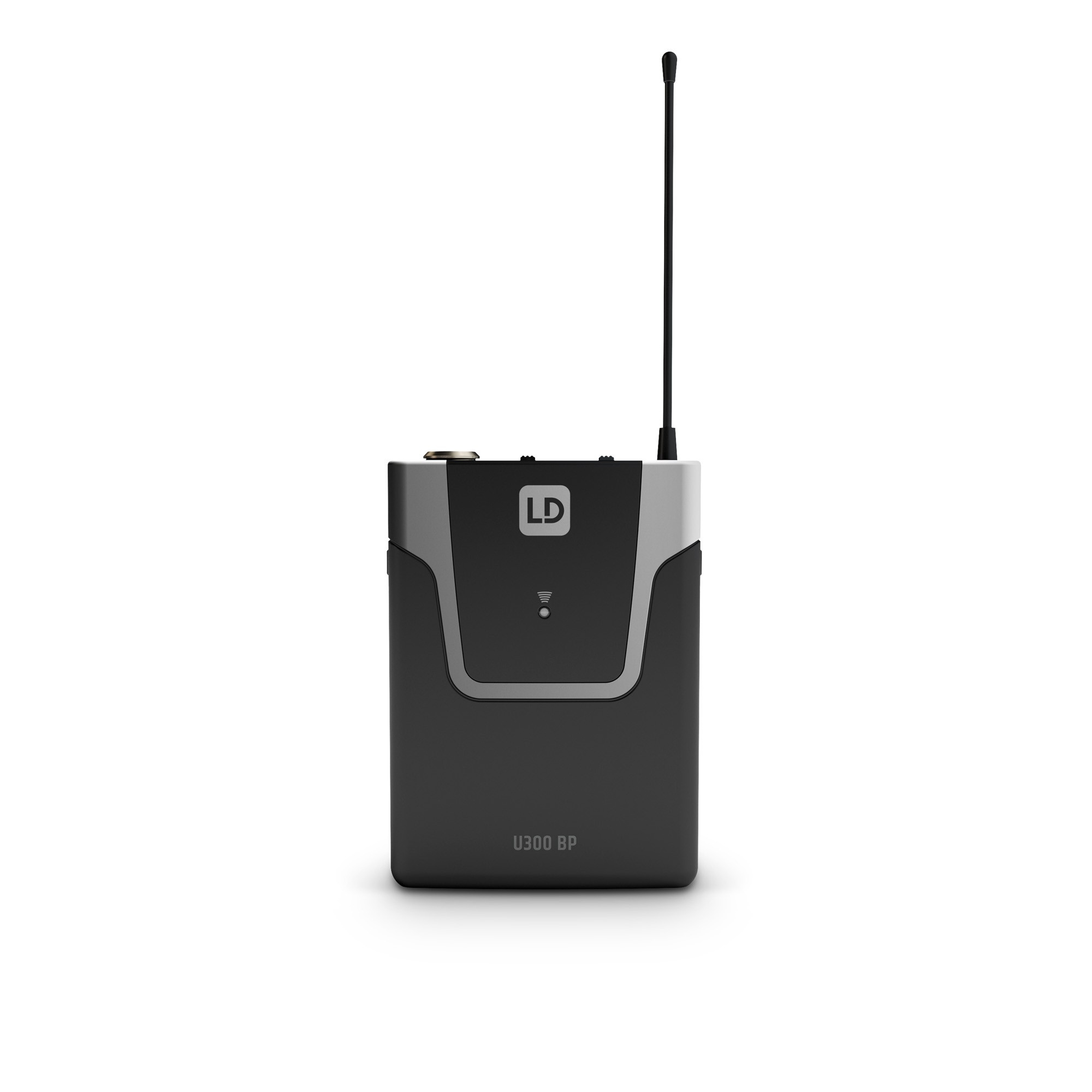

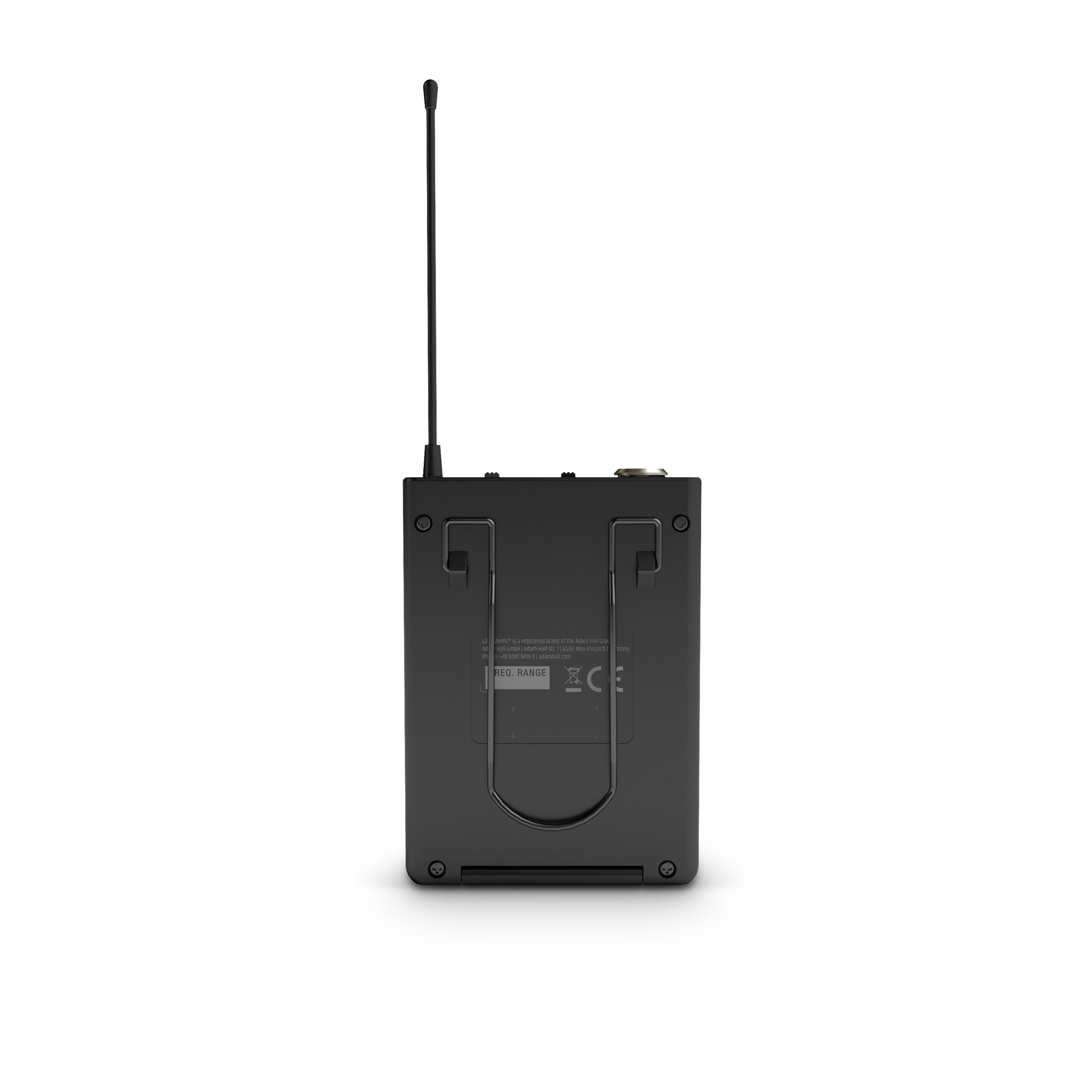

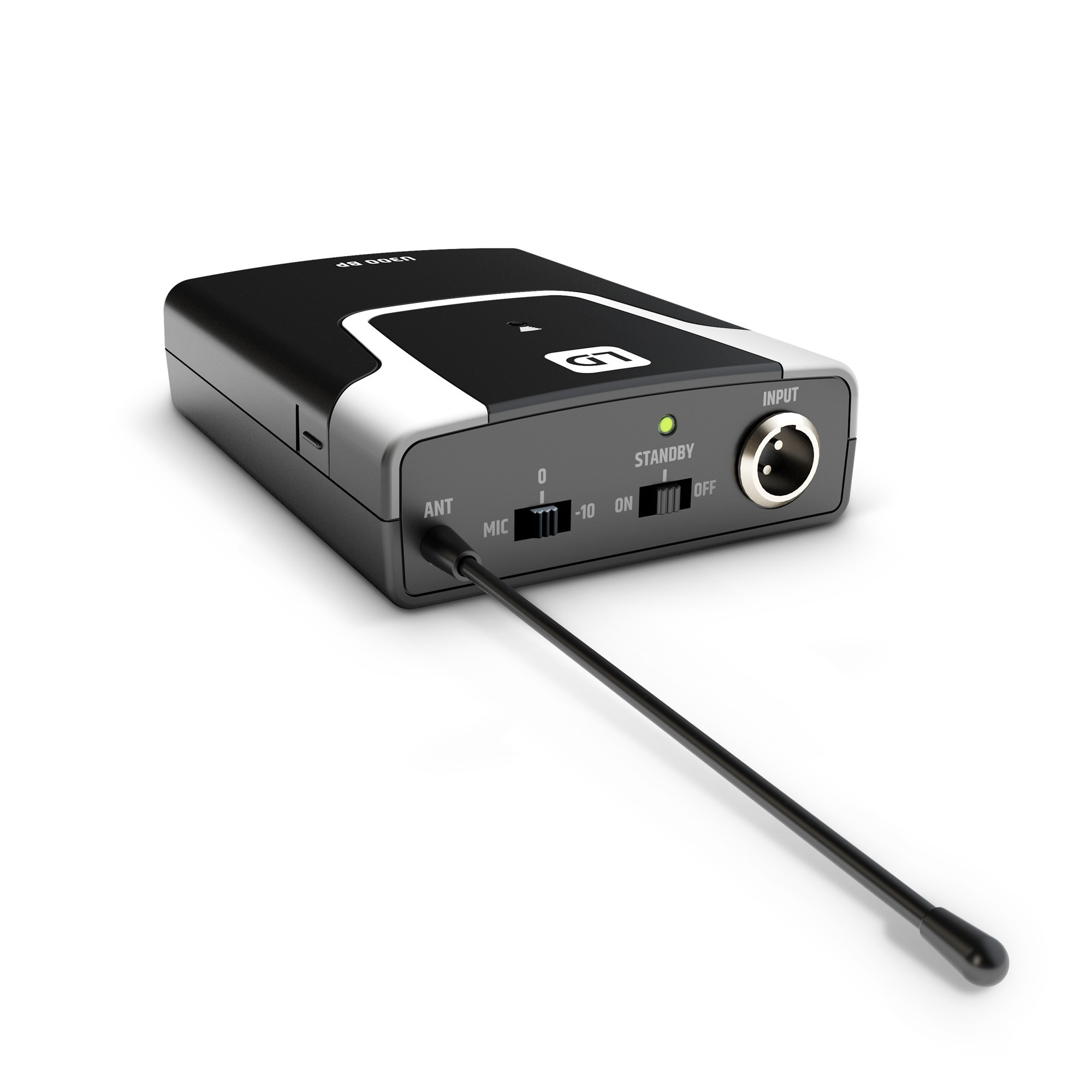

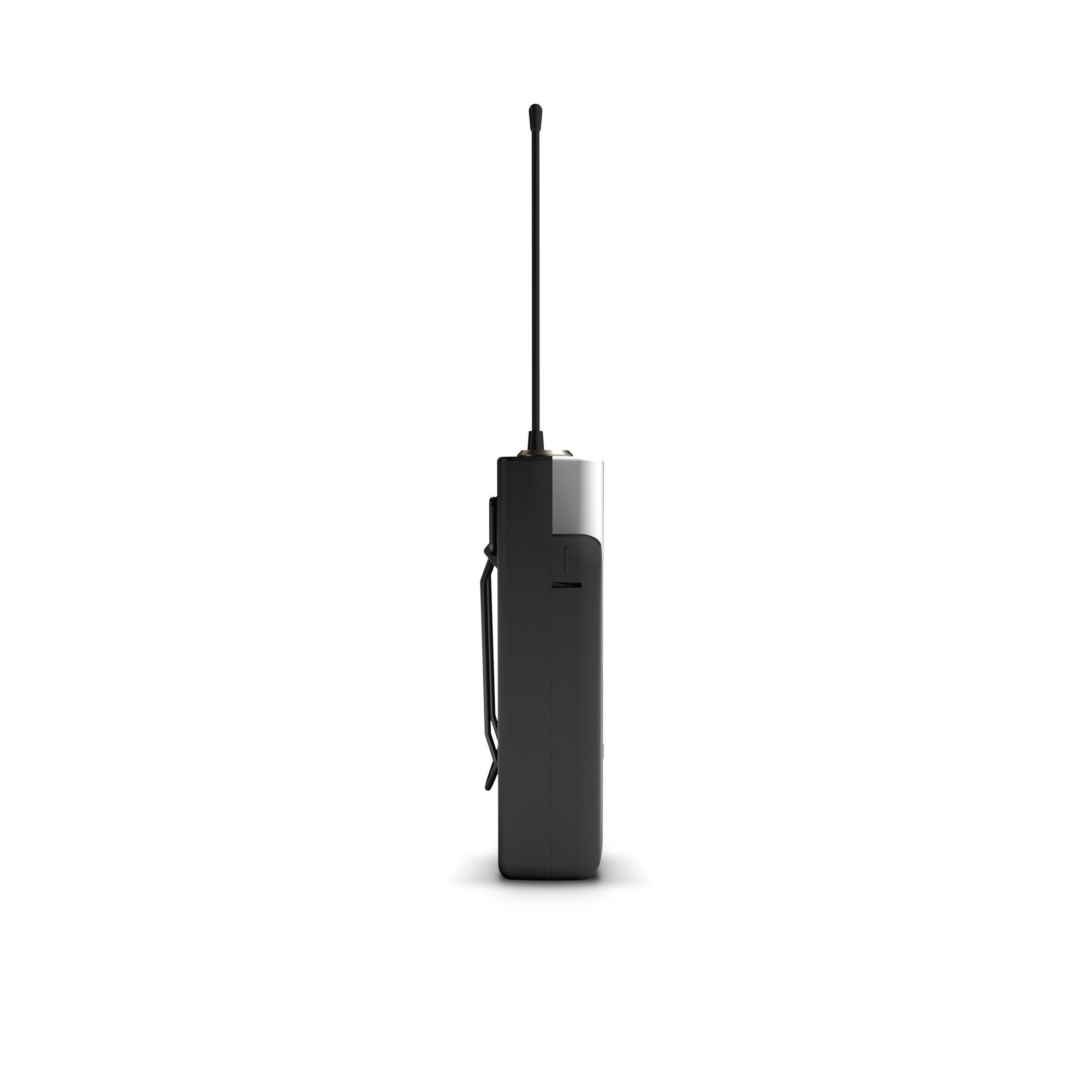

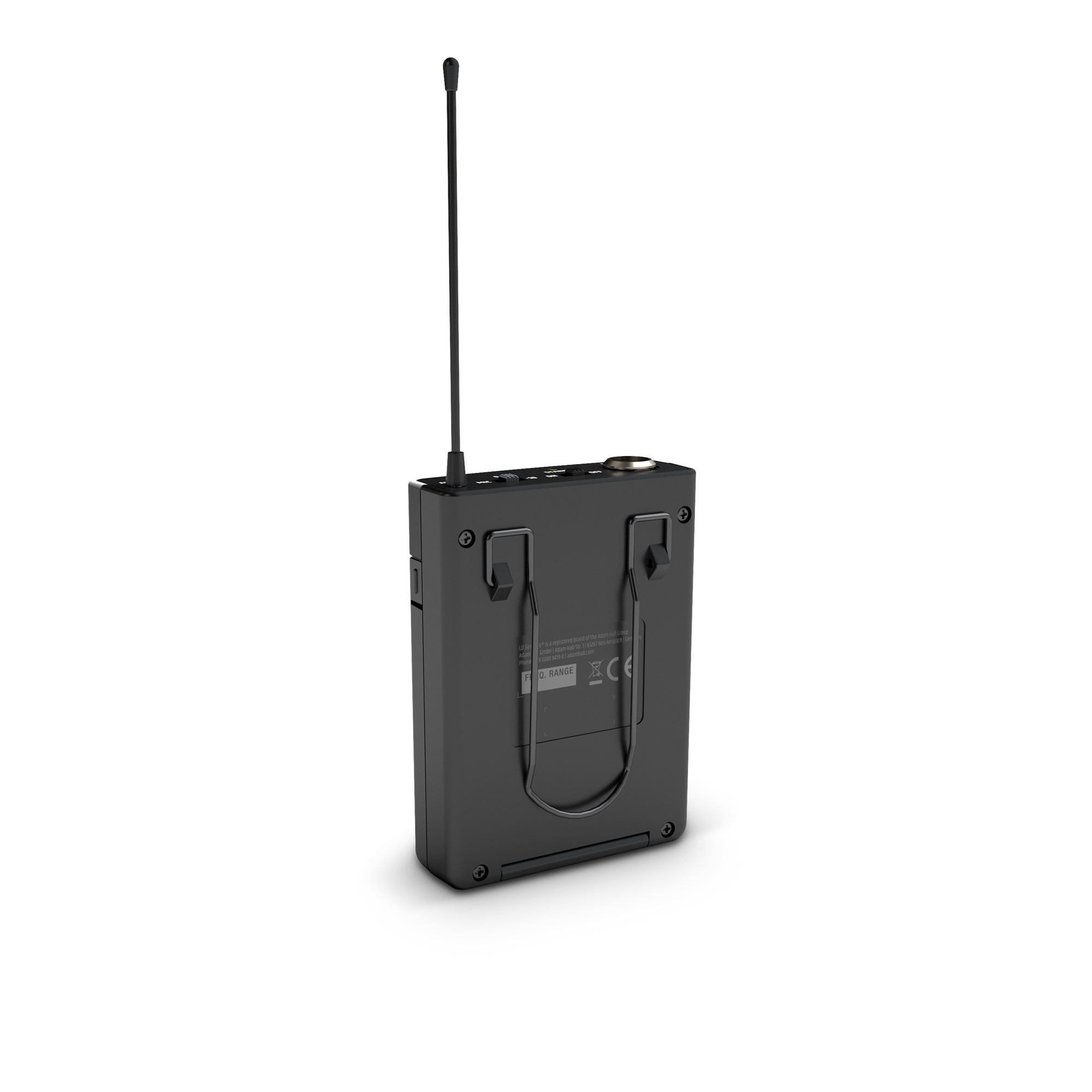

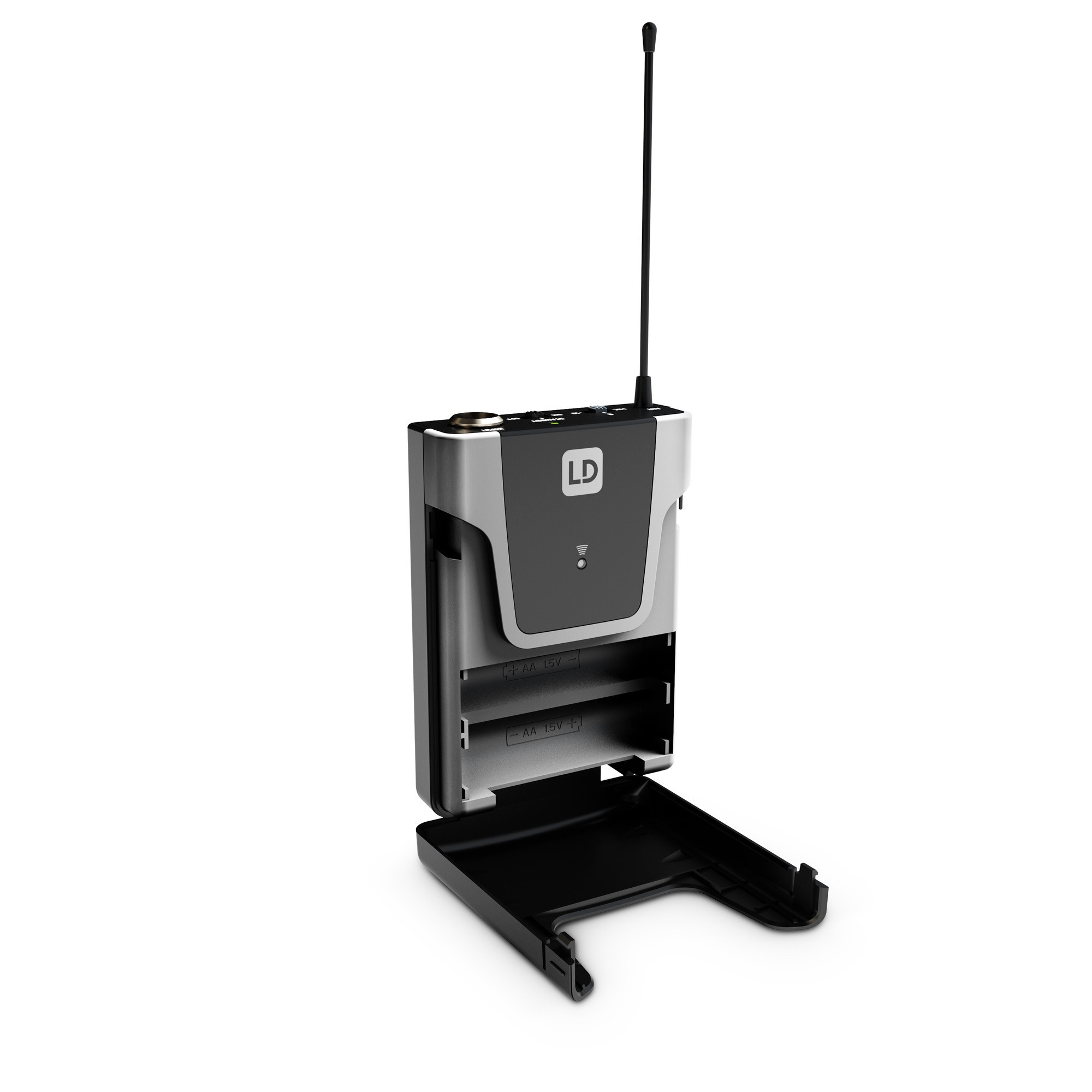

LD Systems U308 BP Bodypack Transmitter:

• Type: Bodypack
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Channels: 12
• Groups: 1
• Weight: 0.09 kg
• Inputs: Mini-XLR (3 pins)
• Frequency response: 25 - 16,000 Hz
• Signal-to-noise ratio: >104 dB
• Nominal HF output power: 10mW
• Controls: Gain, On/Off
• Indicators: IR Sync ASC (green/amber flashing LED), battery (low battery: red), Power LED (On: green)
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Dimensions: 65 x 91 x 25 mm
• Other features: Belt clip, IR frequency sync, Pilot tone

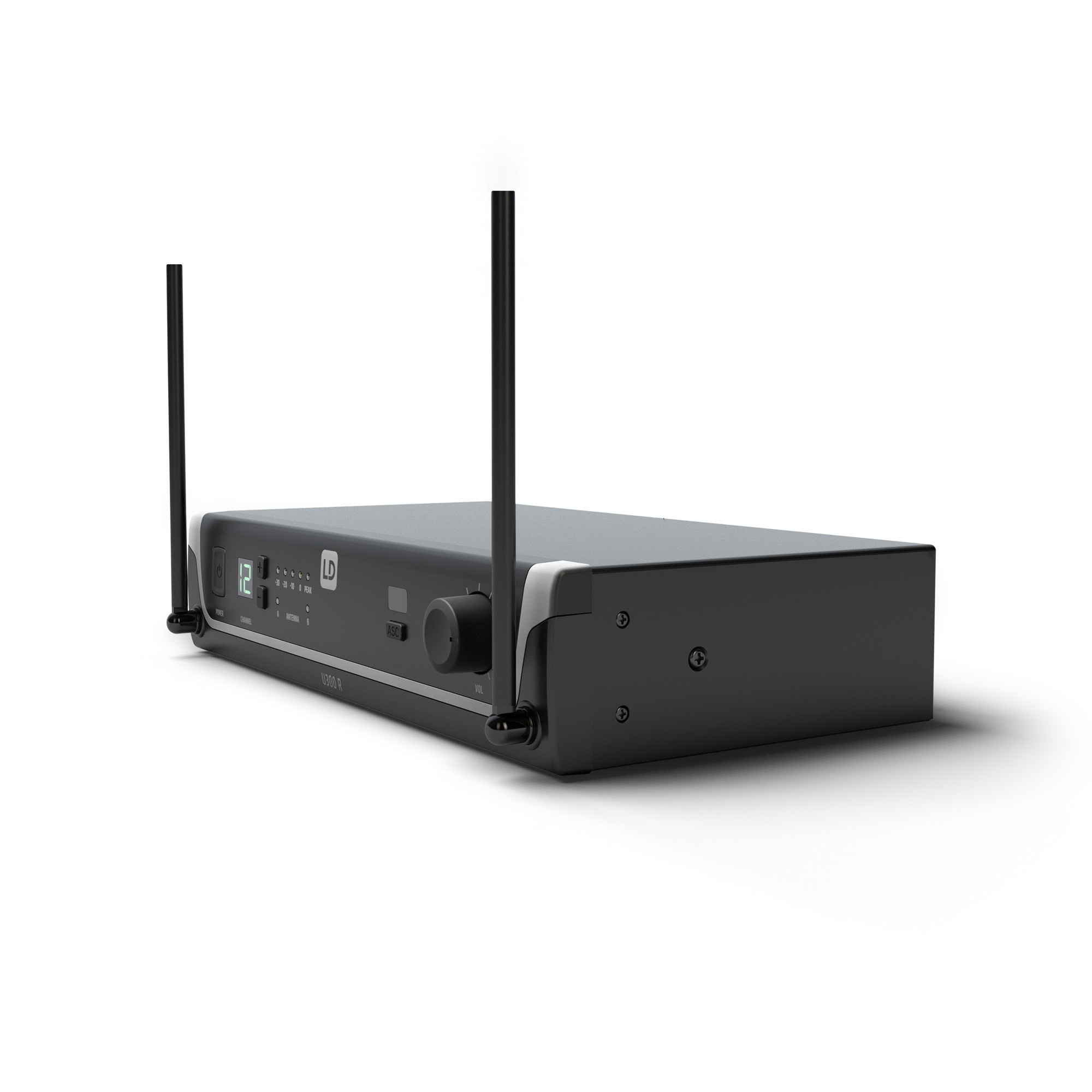

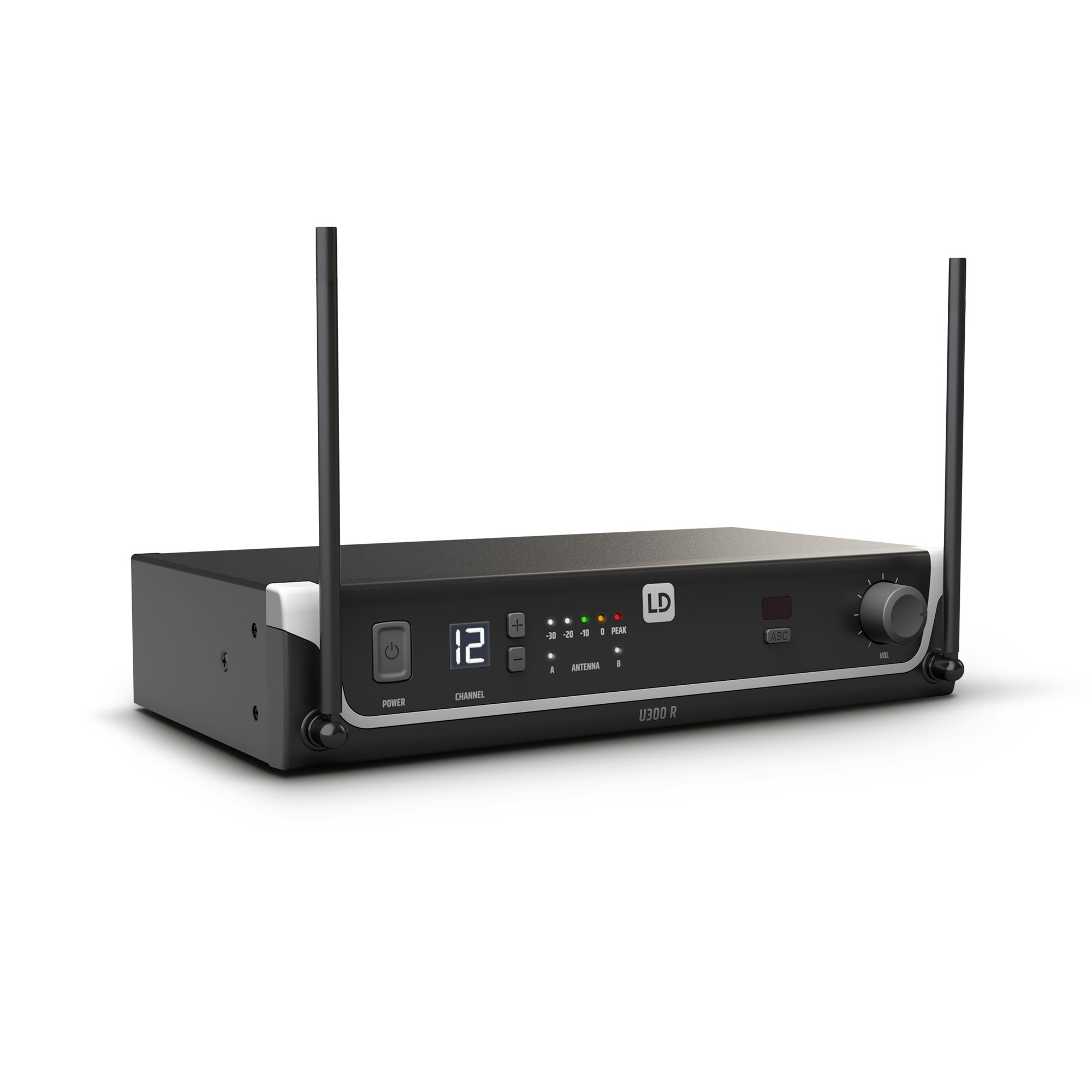

LD Systems U308 R Receiver:

• Type: Receiver
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Modulation type: FM
• Channels: 12
• Groups: 1
• Weight: 0.7 kg
• Antenna inputs: 2
• Frequency response: 25 - 16,000 Hz
• Signal-to-noise ratio: > 104 dB
• Noise reduction: Squelch
• Total harmonic distortion (THD): < 0.3 %

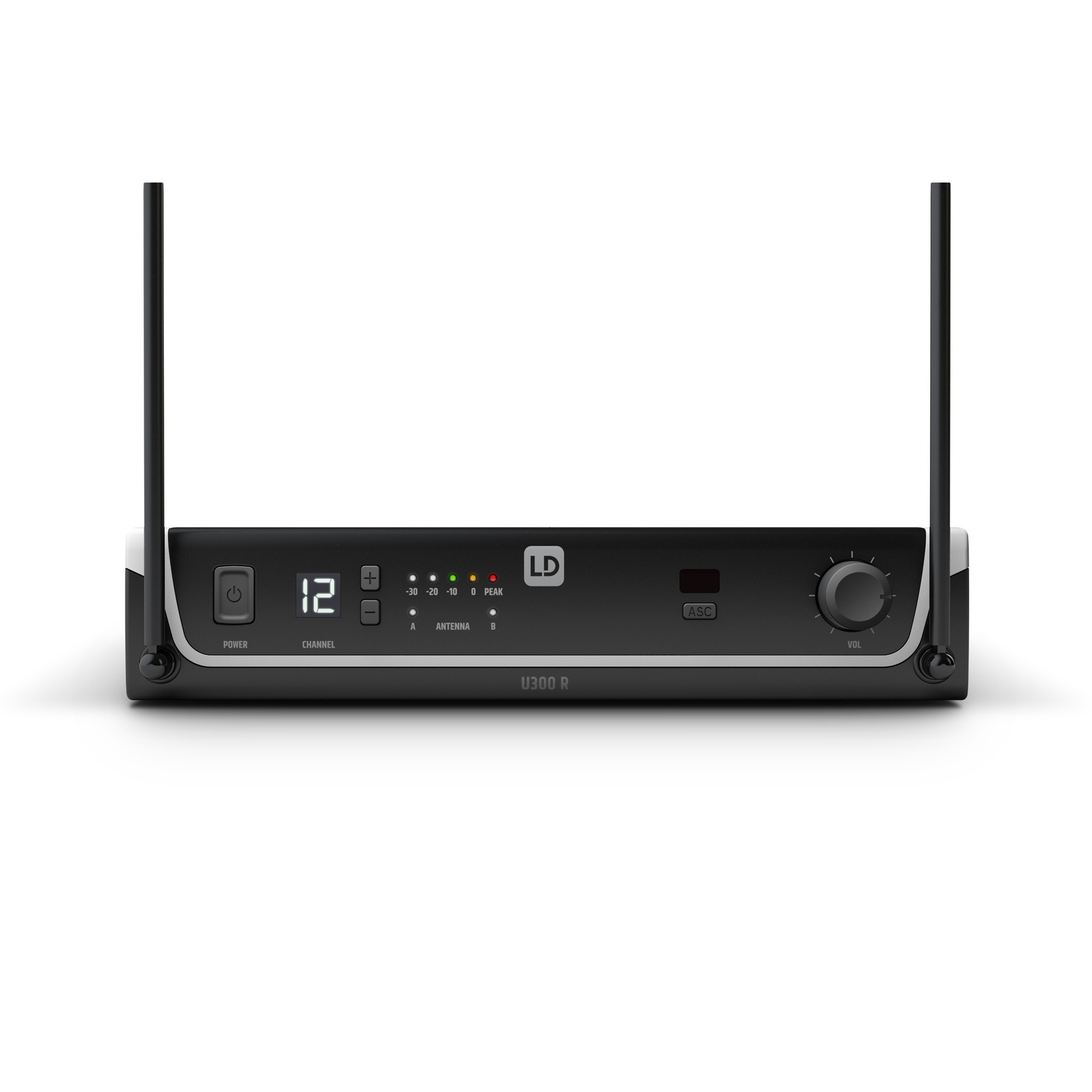

• Controls: ASC Sync, Channel down, Channel up, Line/instrument level, Power, volume
  Indicators: 5 LED VU-meters, antenna A/B, LC display

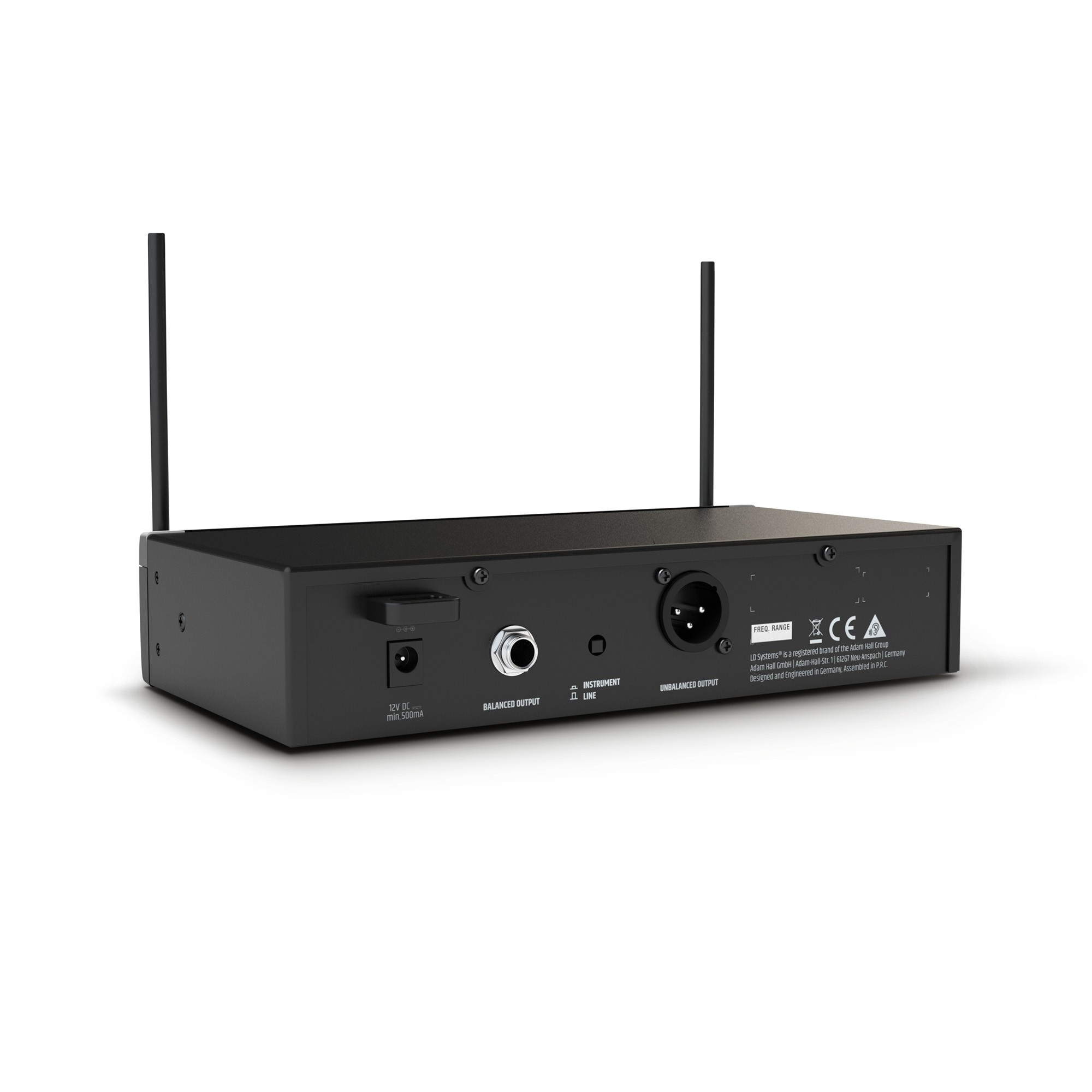

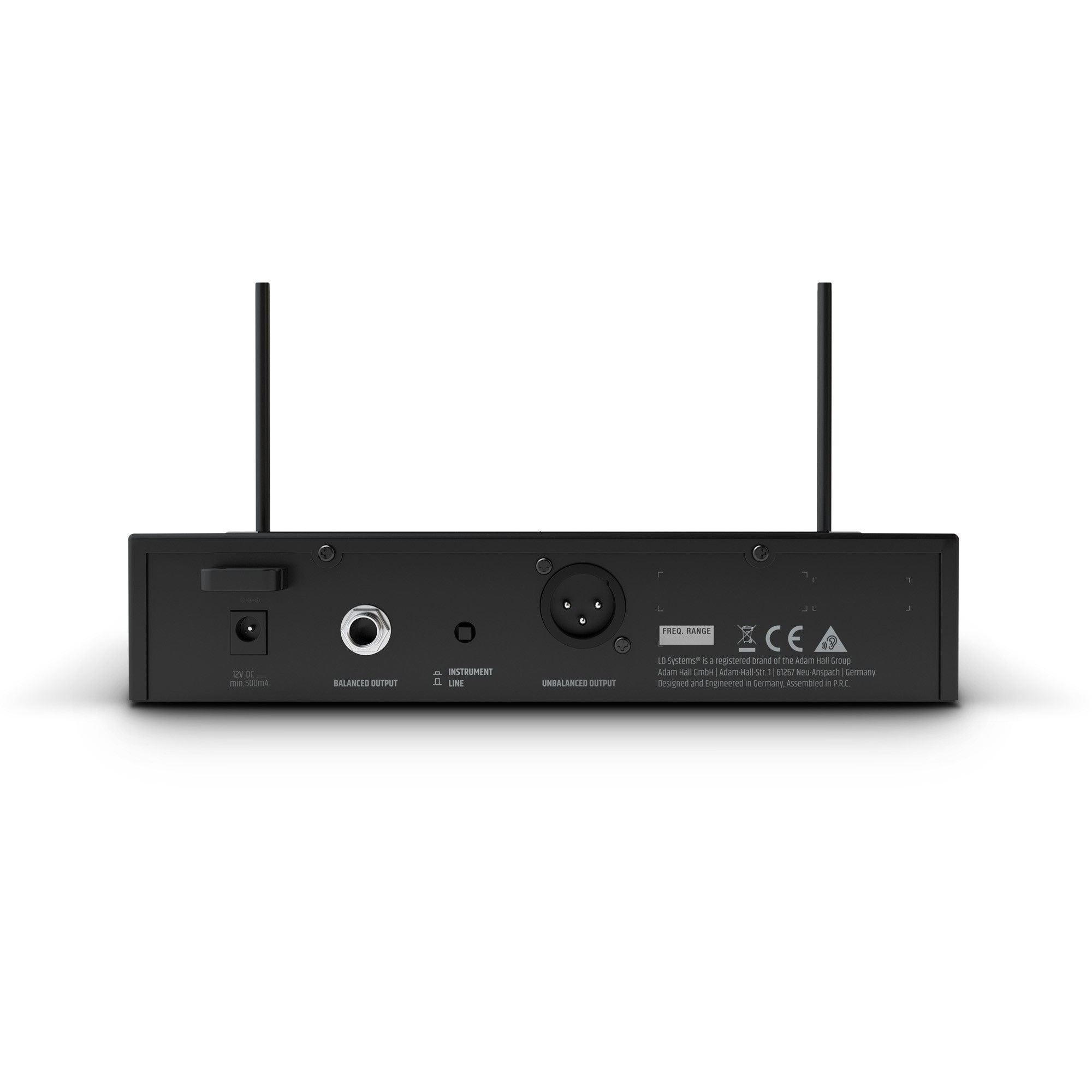

• Balanced audio output: XLR
• Operating voltage: 12 - 18 V DC
• Unbalanced audio output: 6.3 mm jack
• Dimensions: 211 x 43 x 120 mm
• Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2.5 dBV (Unbal, Instr) dBu
• Other features: IR frequency sync
• Accessories (included): 2 x batteries, audio cable, power adapter
