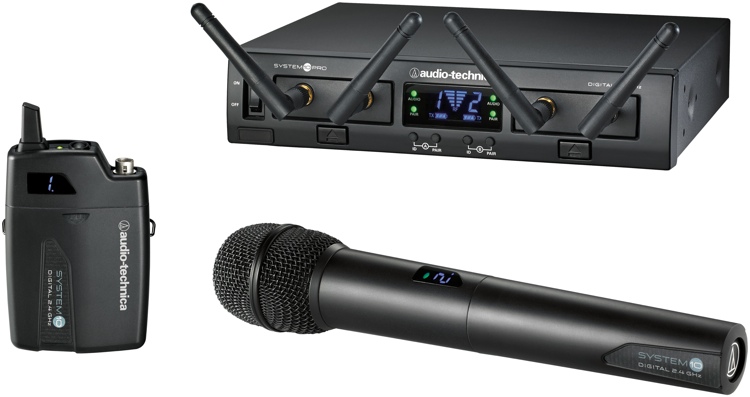

Audio-Technica ATW-1312 System 10 Pro - dual digital wireless system with a pocket transmitter and handheld transmitter with dynamic microphone, providing interference-free operation with other existing wireless systems in the 2.4 GHz band (outside TV transmission bands). The receiver contains two reception units, which can be operated locally or up to 100m away via Ethernet cable.
Up to 10 receiver units can be used simultaneously, using the included RJ12 cable in each system. Operates at 24-bit/48 kHz, easy installation, natural quality sound, ensures diversity across 3 levels: frequency, time, and space.
- Operating frequency: 2.4 GHz ISM
- Rejection: >109 dB
- Total harmonic distortion: <0.05%
- Operating range: 60 m in open operating environment without signal interference
- Operating temperature: 0 to +40 degrees Celsius (battery usage time may be reduced at low temperatures)
- Frequency response: 20Hz to 20 kHz depending on the microphone type.
- Sampling rate: 24 bit / 48 kHz
- Latency: 3.8 ms

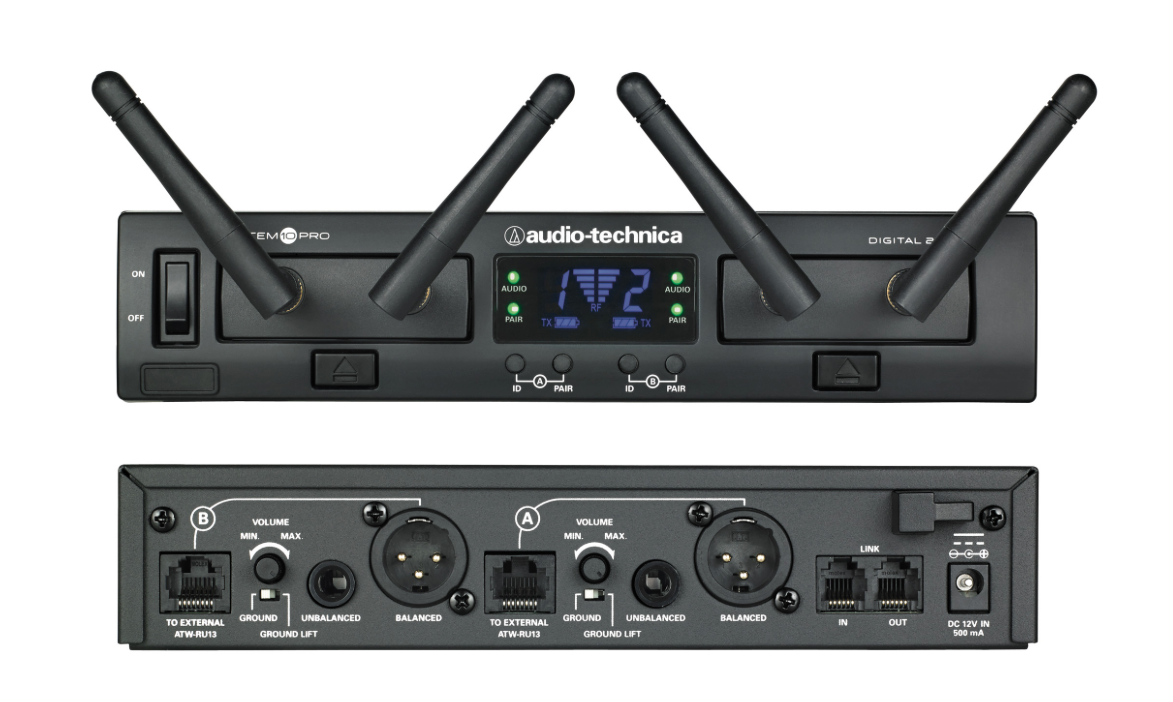

Specifications of the ATW-RC13 receiver with 2 ATW-R1100 reception units
- Reception type: Diversity (frequency/time/space)
- Output connectors (microphone): remote receiver connector - RJ45 / link connector RJ12
- Maximum output level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
- Power supply: 100-240V AC (50/60 Hz), 12V DC 0.5A via power supply.
- Dimensions: 209.8 mm W / 44 mm H / 169.3 mm D.
- Weight 940 g
- Included accessories: AC adapter, link cable, rack mount adapters, rubber feet.
Specifications of the ATW-T1001 pocket transmitter
- RF output power: 10 mW
- Input connector: 4-pin locking connector (Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V)
- Batteries (not included): 2x 1.5V AA
- Battery life: >7 hours (alkaline)
- Dimensions: 70.2 mm W / 107.0 mm H / 24.09 mm D
- Weight: 100 g
Specifications of the handheld microphone transmitter ATW-T1002
- Dynamic microphone capsule
- RF output power: 10 mW
- Batteries (not included): 2x 1.5V AA
- Battery life: >7 hours (alkaline)
- Dimensions: 254.8 mm length / 50.00 mm diameter
- Weight: 280 g
- Included accessories: AT8456a Quiet-Flex stand clamp
