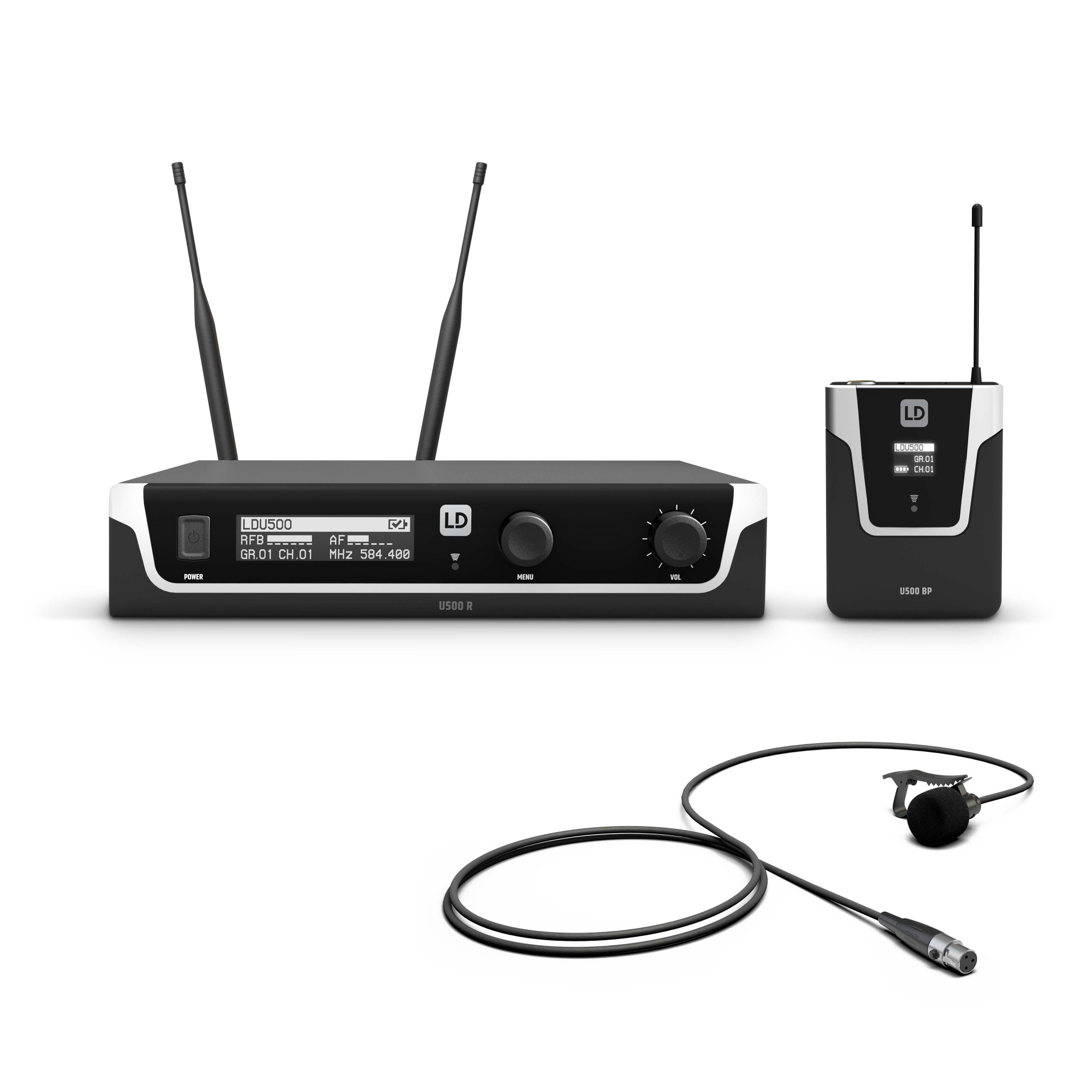

LD Systems U508 BPL

LD Systems U508 BPL - This U500® set has been developed in Germany to provide you with accessible professional technology and audio quality. The systems for voice/instrument deliver impressive performance that will certainly exceed your expectations.

The selectable transmission power of up to 30 mW provides the U500® vocal sets with a free range of over 100 meters. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can operate simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where 6 systems can operate simultaneously. The UHF True Diversity wireless systems are equipped with an automatic scanning feature to find the best available frequency and with one-touch infrared synchronization of the transmitter and receiver for easy setup.

The high-contrast OLED screens provide an excellent view of the functions, with indicators for group, channel, radio frequency, signal strength, and battery status. You can even enter individual user names. The efficient technology and high-quality components of the U500® ensure clear transmission, free of distortion and delay. Low power consumption means that the transmitter can operate for up to 10 hours with 2 AA batteries.

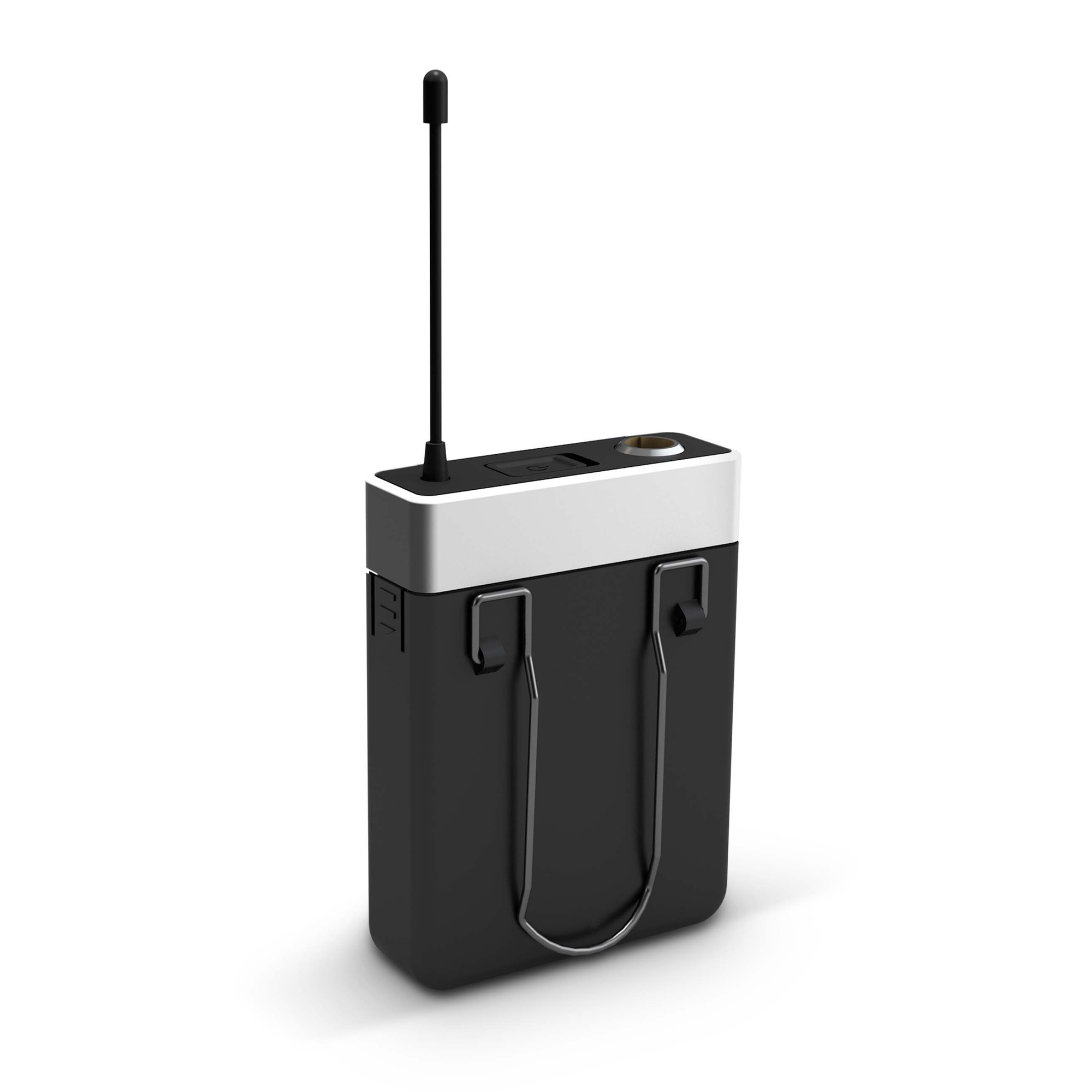

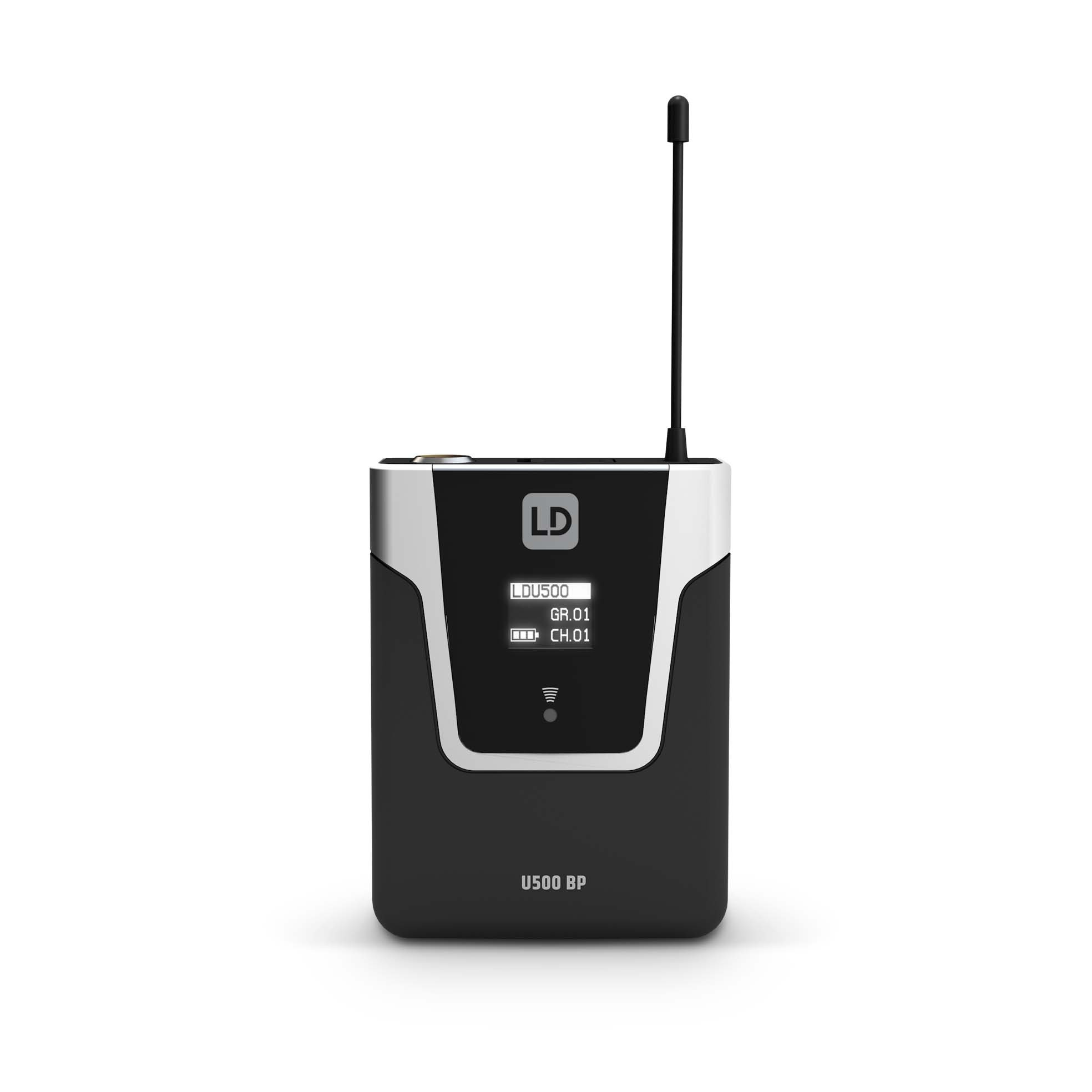

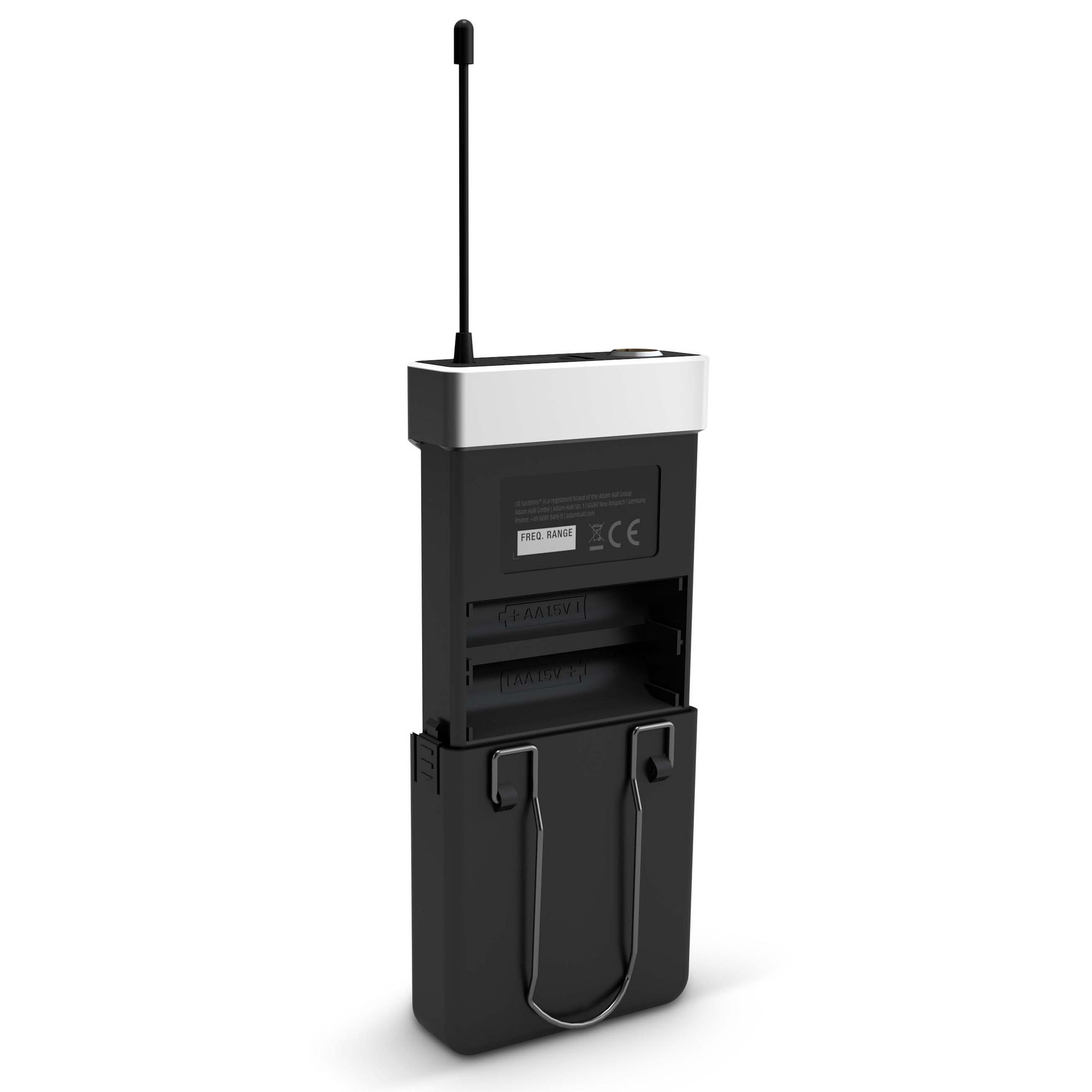

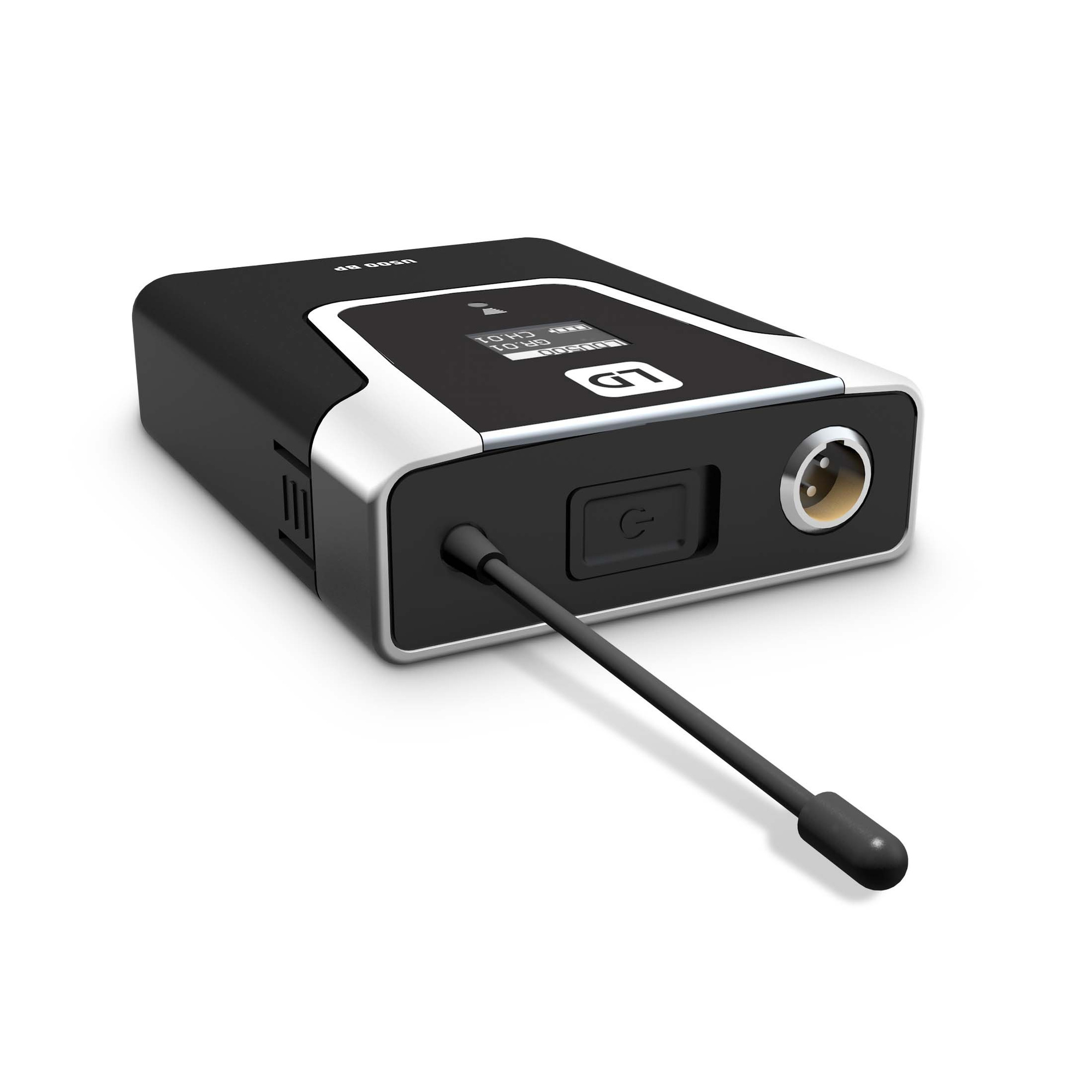

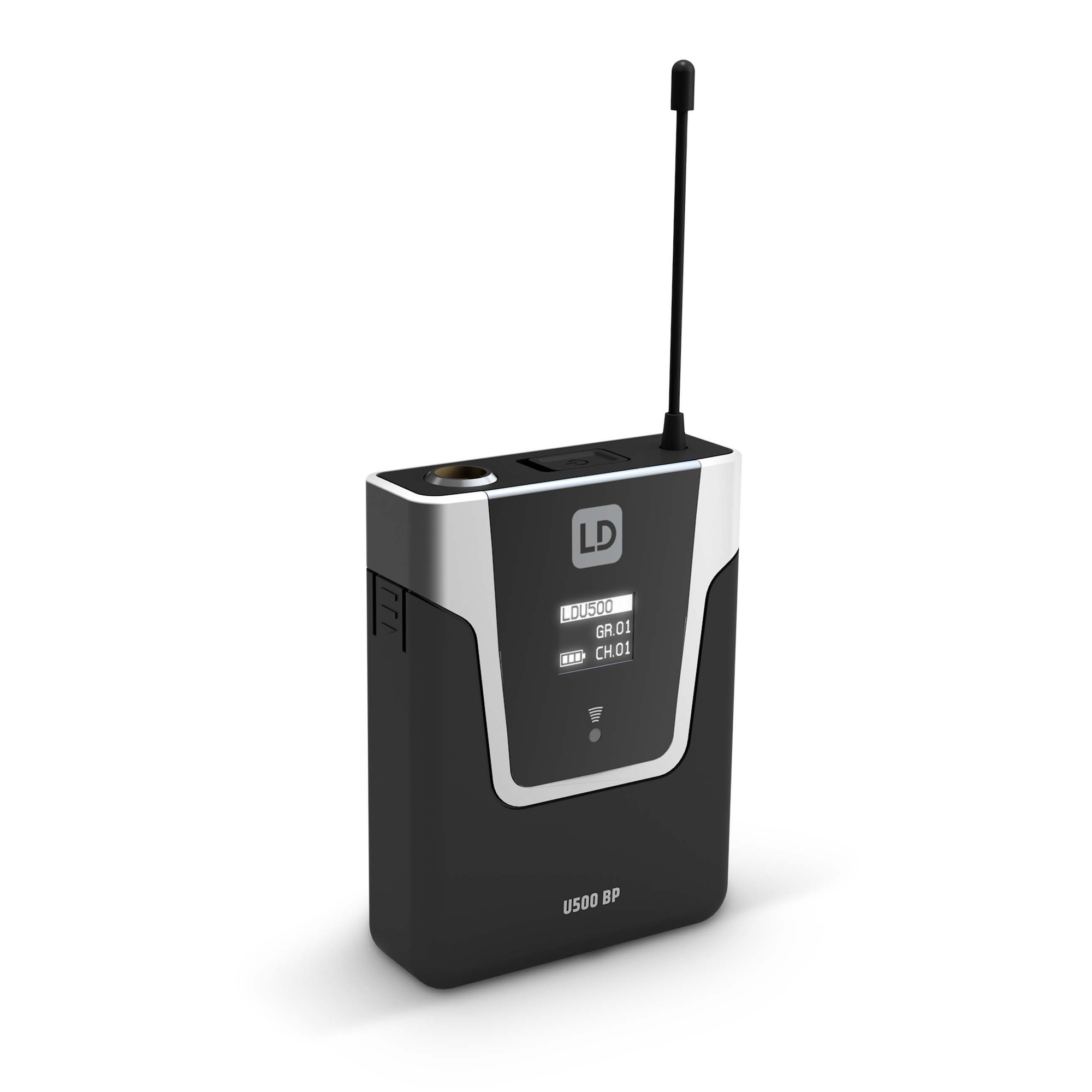

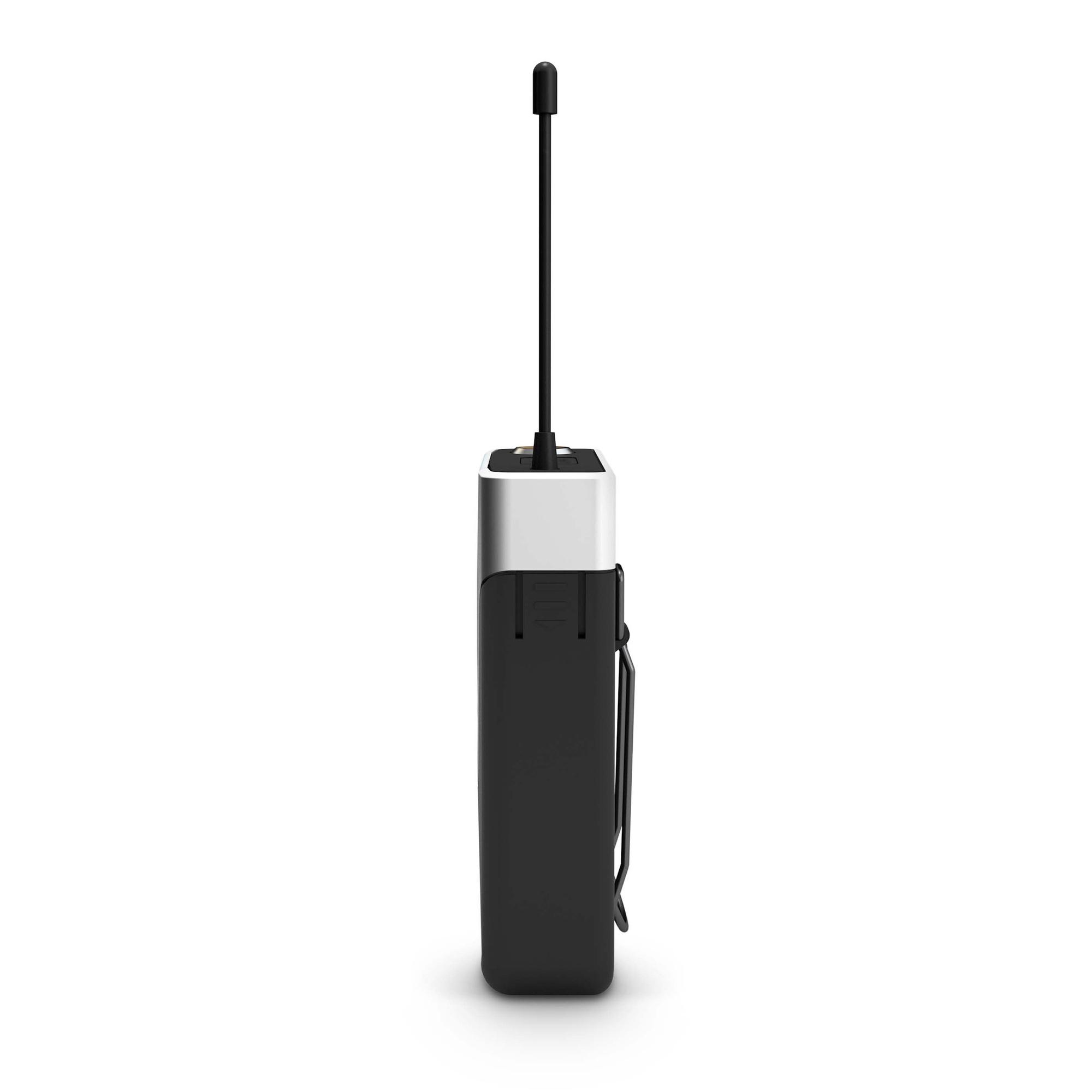

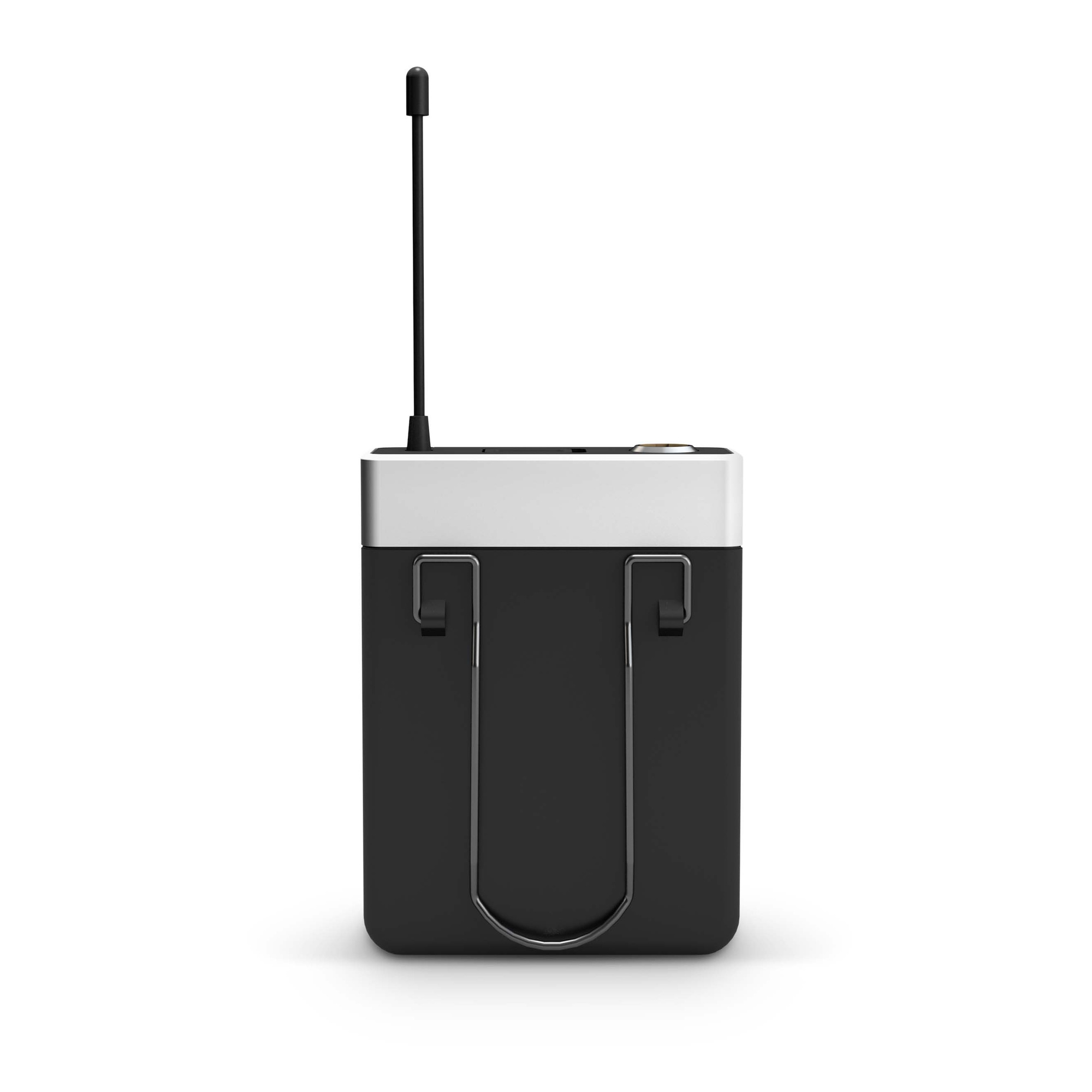

LD Systems U508 BP Bodypack Transmitter:

• Type: Bodypack
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Frequency response: 30 - 16,000 Hz
• Channels: 96 (8 groups of 12 channels)
• Groups: 8
• Inputs: Mini-XLR (3-pin)
• Signal-to-noise ratio: >90 dB
• Nominal HF power: Variable (2 mW, 10 mW, 30 mW)
• Controls: Arrow buttons (input value up/down), On/Off, selection
• Indicators: OLED display
• Operating voltage: 2 x AA battery
• Operating time: >10 hours (with alkaline batteries)
• Width: 65 mm
• Height: 86 mm
• Depth: 23 mm
• Weight: 0.09 kg
• Other features: detachable antenna, IR frequency synchronization, pilot tone squelch, switchable gain, switchable RF power

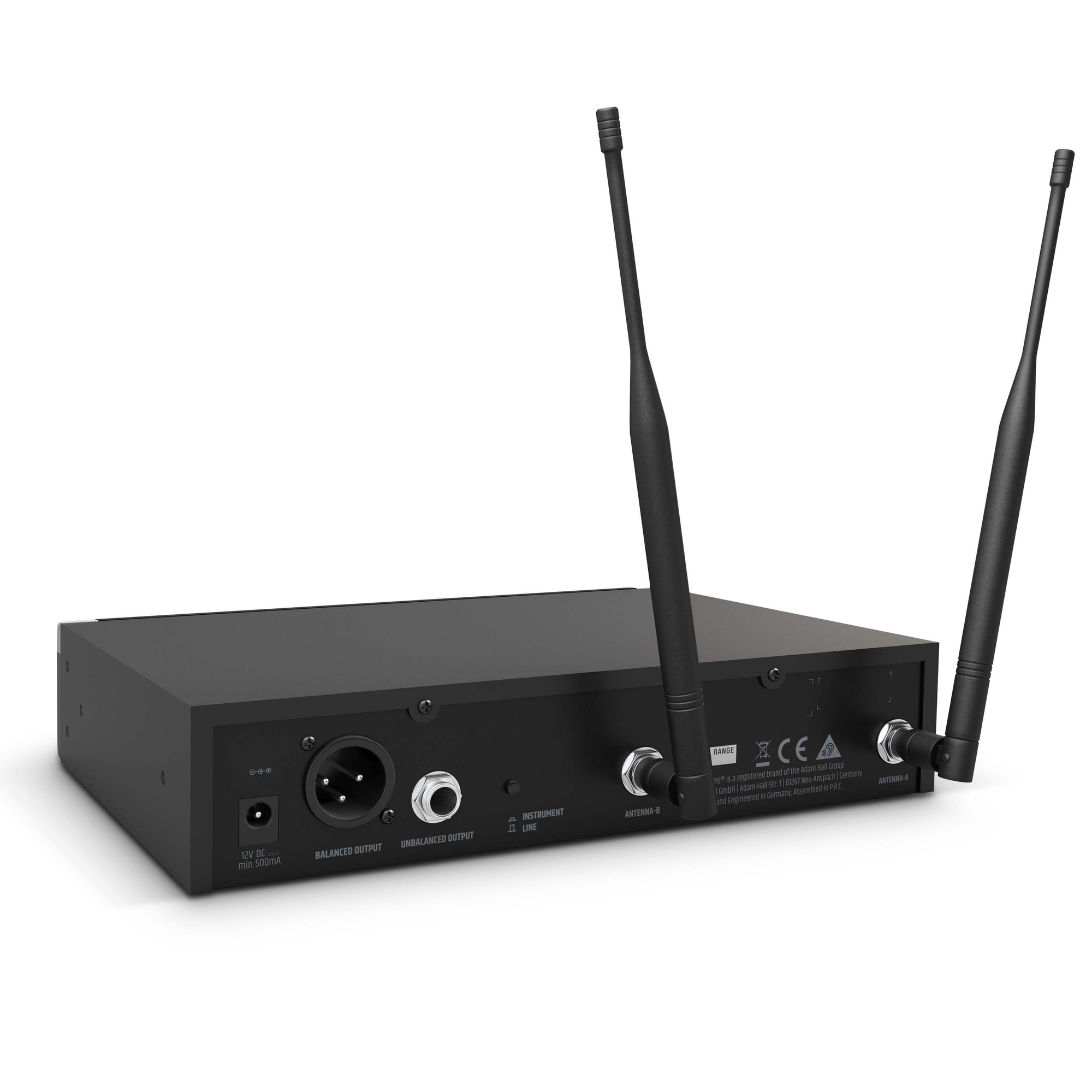

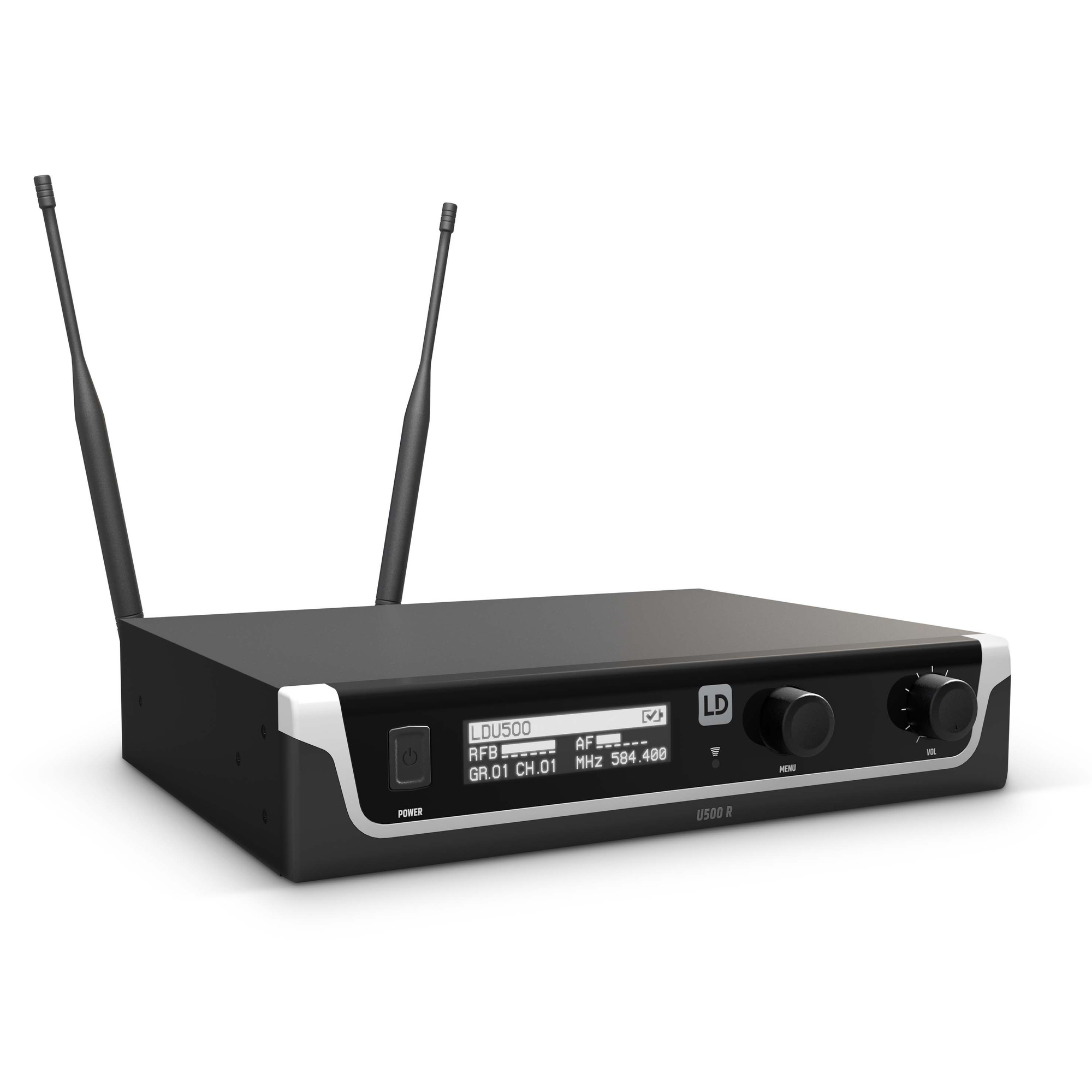

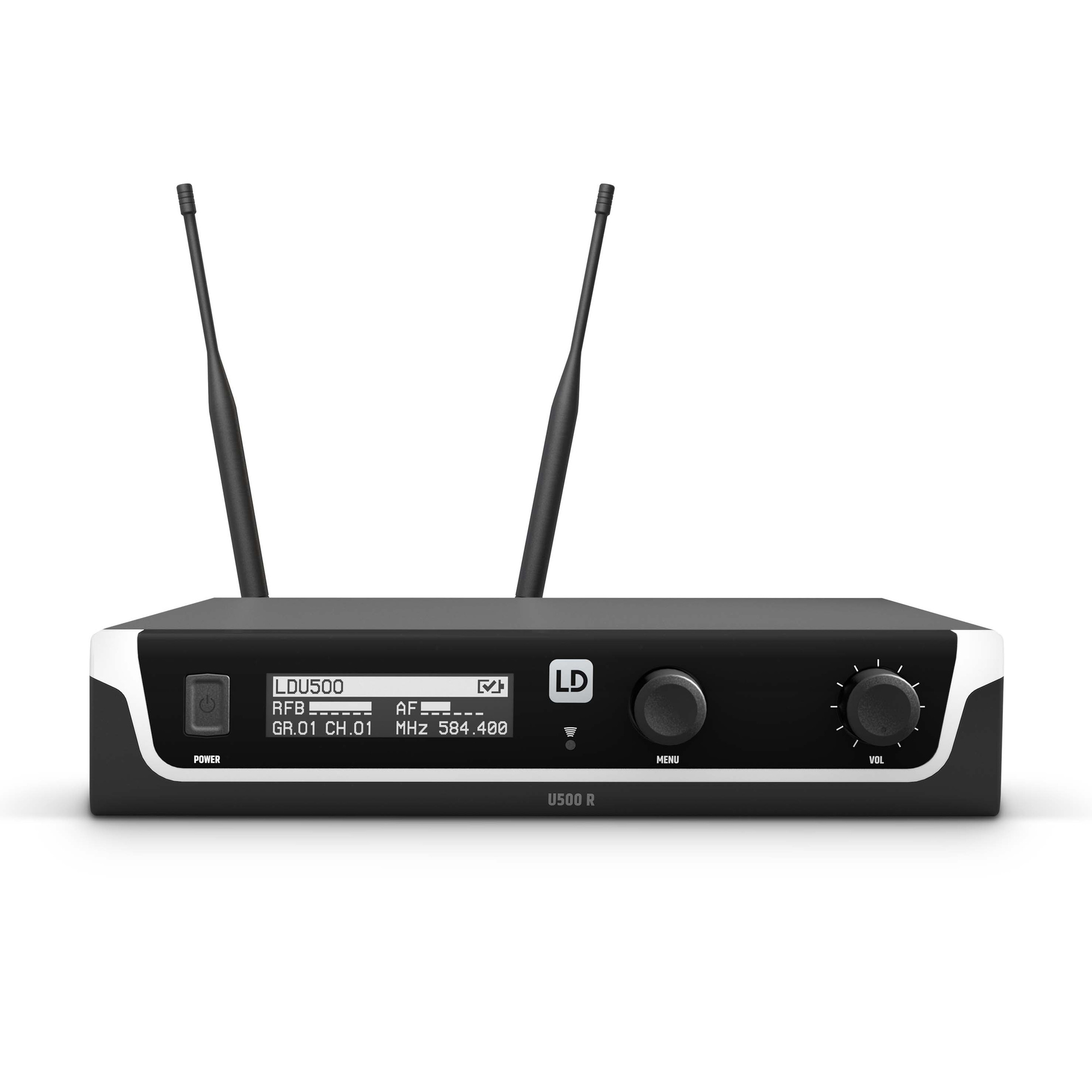

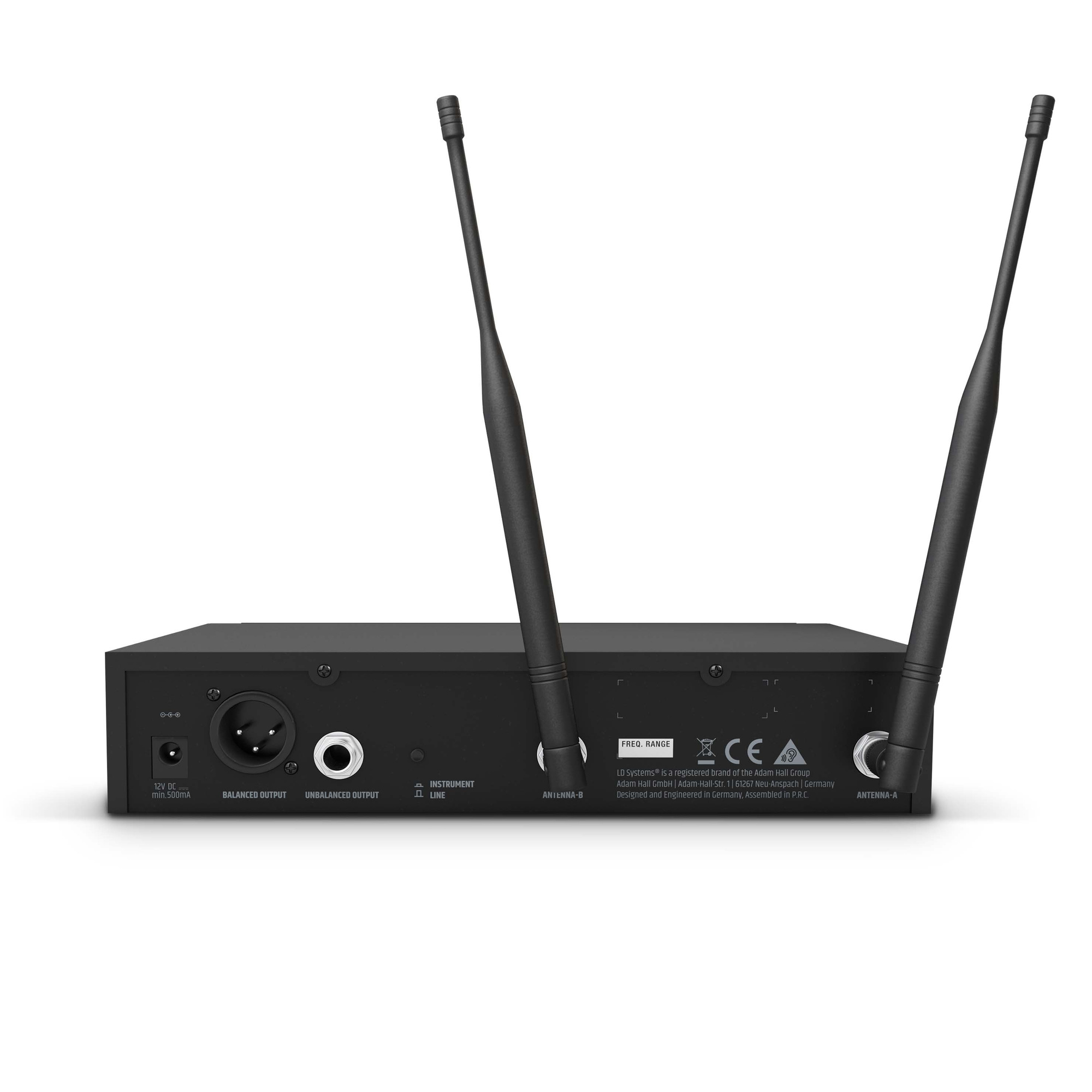

LD Systems U508 R Receiver:

• Type: Receiver
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Modulation type: FM
• Frequency response: 30 - 16,000 Hz
• Channels: 96 (8 groups of 12 channels)
• Groups: 8
• Antenna inputs: 2
• Antenna connector: BNC
• Signal-to-noise ratio: >100 dB
• Noise reduction: Squelch
• Total harmonic distortion (THD): < 0.3%
• Controls: digital encoder, On/Off, volume
• Indicators: OLED display
• Audio output, balanced: XLR
• Operating voltage: 12 - 18 V DC
• Audio output, unbalanced: 6.3 mm jack plug
• Accessories (included): 2 x antenna, audio cable, power adapter
• Width: 212 mm
• Height: 44 mm
• Depth: 159 mm
• Maximum output level: +10 dBu
• Weight: 0.85 kg
• Other features: channel search function, IR frequency synchronization, pilot tone

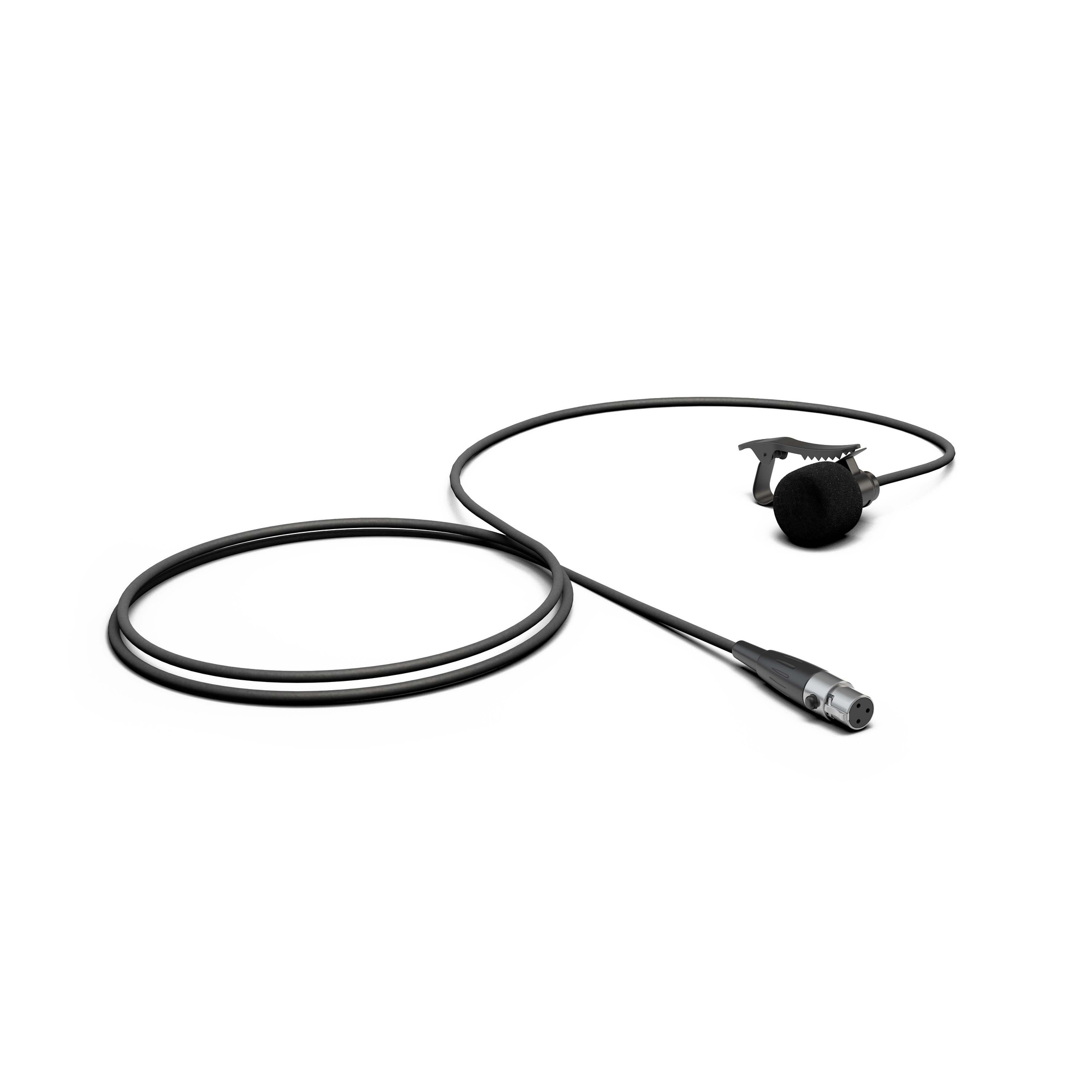

LD Systems WS 100 ML Lavalier Microphone:

• Type: Microphone
• Frequency response: 20 - 20,000 Hz
• Directivity: Cardioid
• Nominal impedance: 680 Ohms
• Phantom power requirements: 5 V
• Microphone input: Mini-XLR (3-pin, female)
• Accessories (included): mounting clip, foam windscreen
• Weight: 0.026 kg
