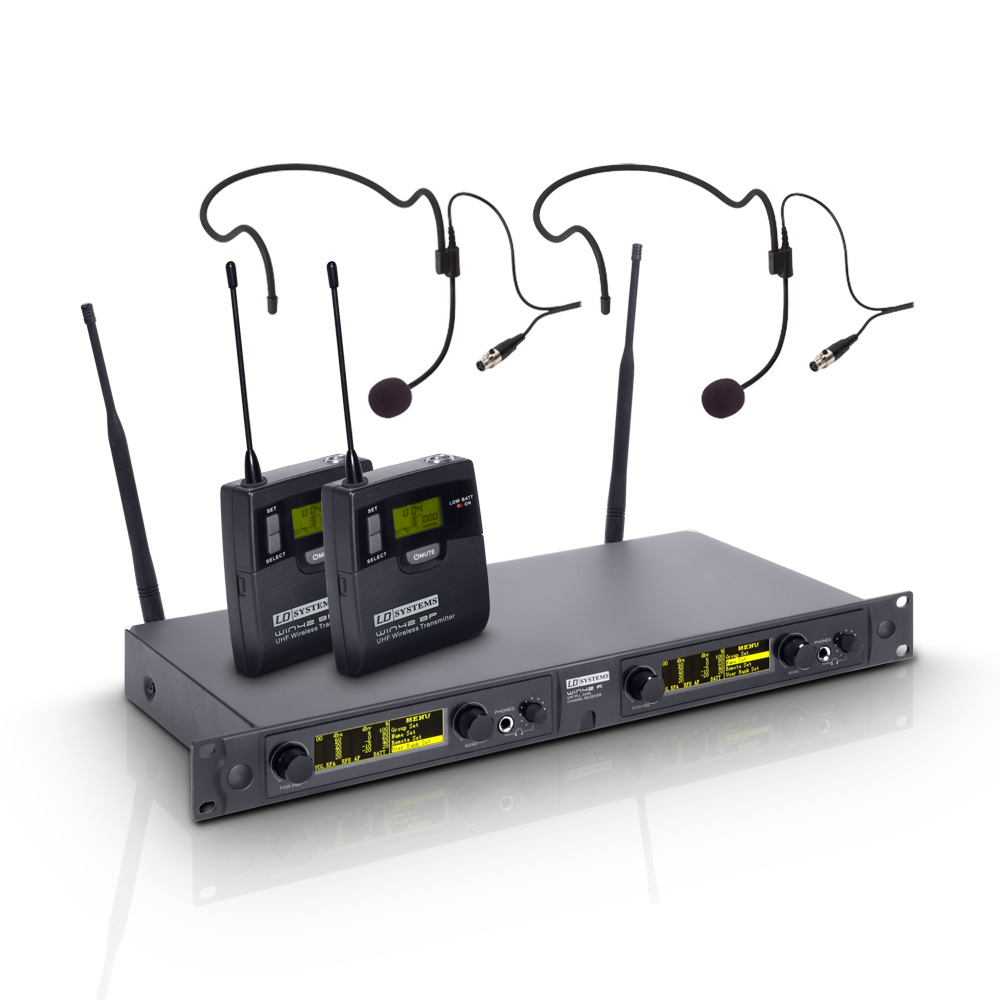

LD Systems WIN 42 BPH2, professional dual wireless system with 2 x headset microphones and belt transmitters. The WIN 42 wireless systems operate in the UHF frequency range of 734 - 776 MHz, featuring 1680 selectable frequencies that allow simultaneous operation of up to 20 systems. The transmitter allows adjustment of transmission power between 10/30/50 mW to adapt to any environment.
true diversity wireless system
1680 selectable frequencies in 25 kHz steps
20 groups with 577 fixed frequencies
automatic frequency scanning
infrared receiver-transmitter synchronization
EQ settings, squelch
the system includes the WIN42R wireless receiver, 2 x WIN42BP belt transmitters, 2 x WS100MH1 headset microphones (unidirectional, condenser)

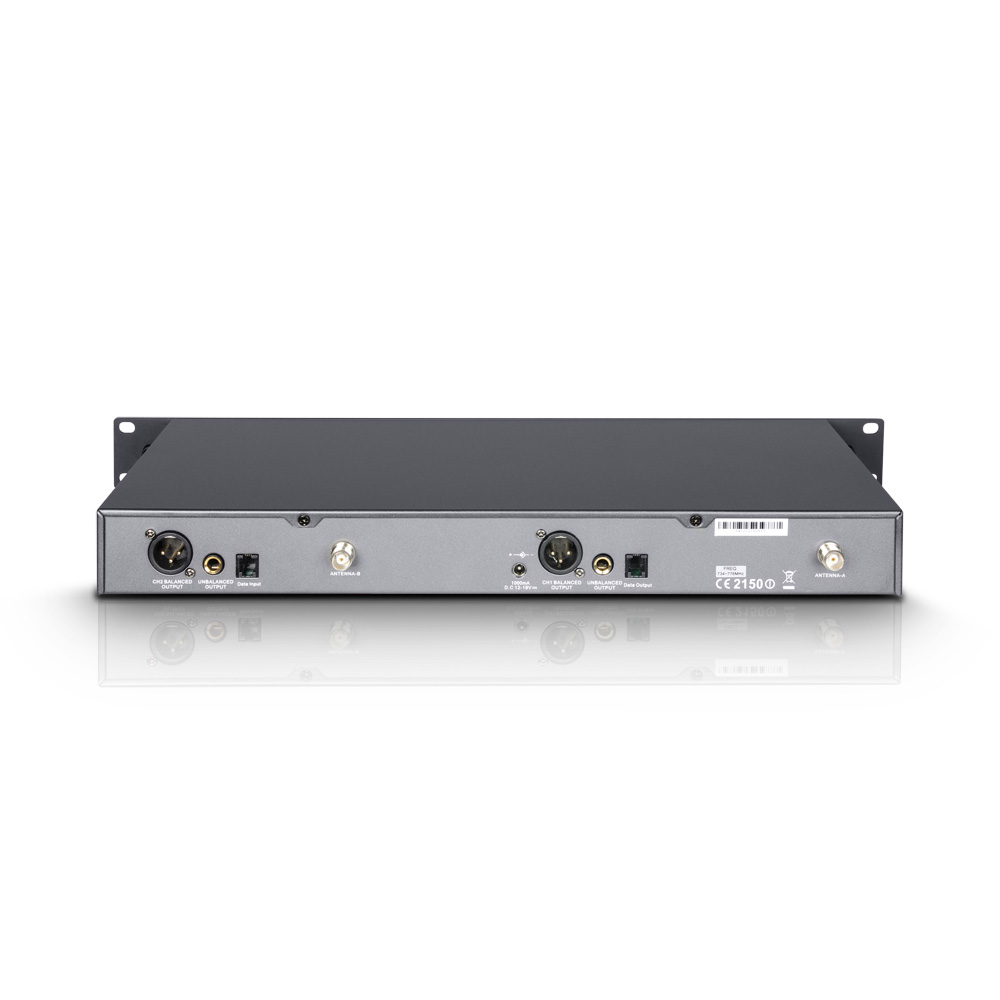

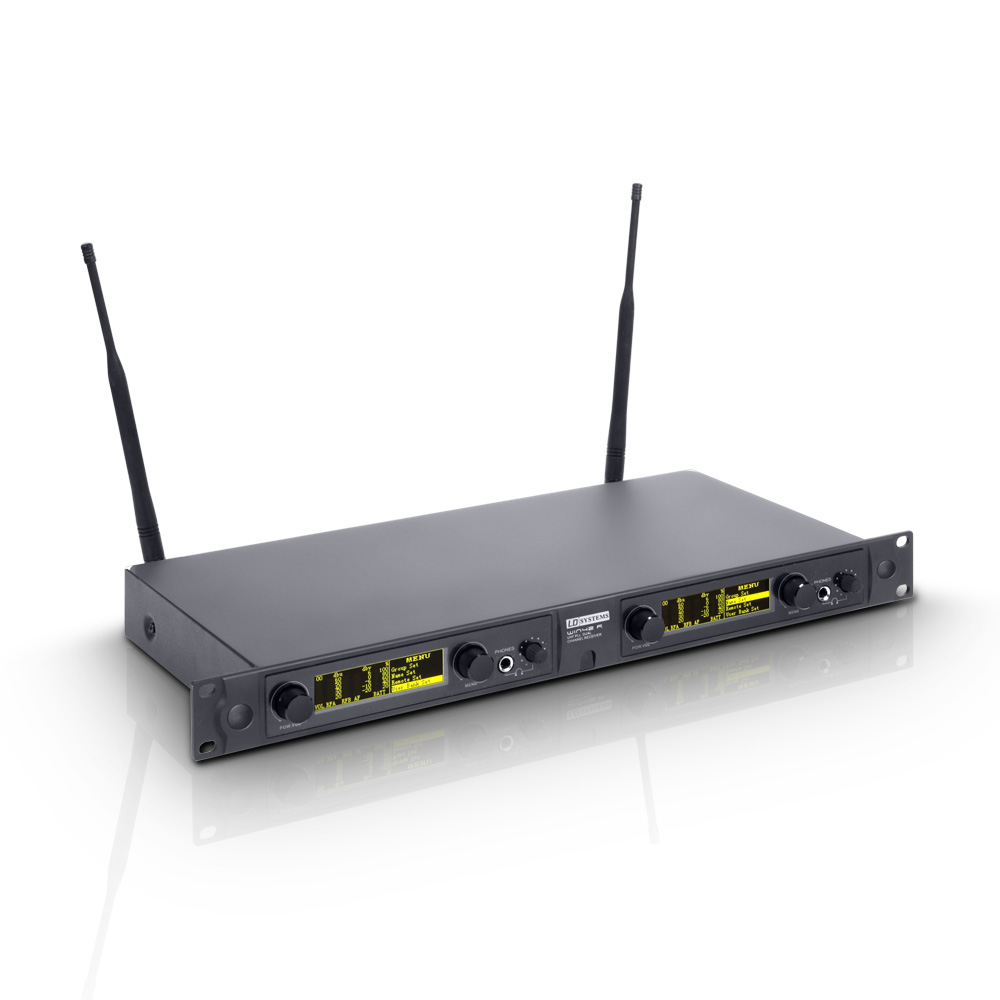

WIN42R Receiver:
RF channels: 1680 (20 groups with fixed frequencies + one user group)
audio frequency range: 60 Hz - 16 kHz
THD: less than 1%
signal-to-noise ratio: greater than 100 dB
audio outputs: balanced XLR, unbalanced 6.3 mm Jack
dimensions: 212 x 44 x 184 mm, half rack
4 EQ presets
headphone output with dedicated level control
display: audio level, radio frequency level A/B, transmitter battery status

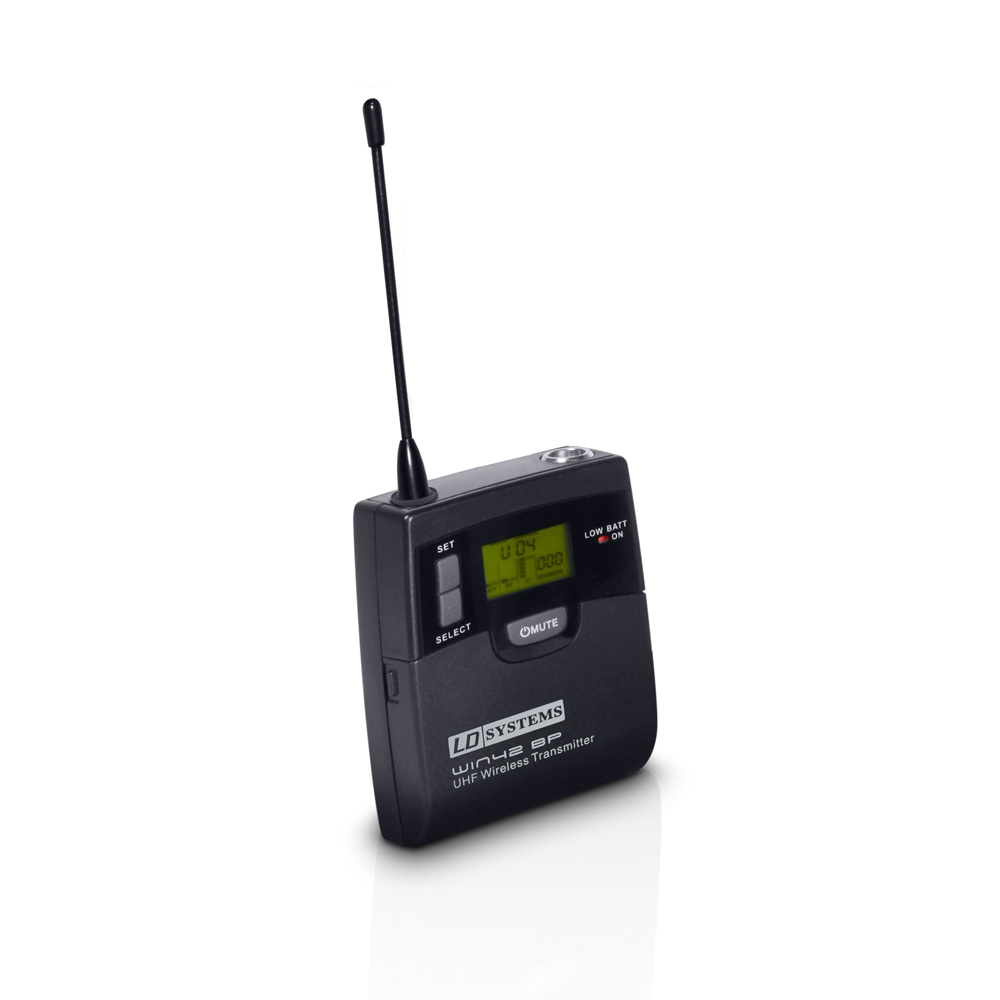

WIN42BP Belt Transmitter:
1680 selectable frequencies
audio frequency range: 60 Hz - 16 kHz
adjustable RF power: 10 / 30 / 50 mW
powered by batteries: 2 x AA
mini XLR connector
dimensions: 87 x 25 x 63 mm
display: battery status, RF power, AF power, system information
