LD Systems U505 BPHH 2 - The U500® series of vocal sets has been developed in Germany to bring you professional technology and affordable sound quality. The radio systems for voice and speech offer impressive performance and high reliability, which will certainly exceed your expectations. We designed this range specifically for professional users, ensuring that your performance is an impressive and emotional experience.
The selectable transmission power of up to 30 mW provides the U500® vocal sets with a coverage range in open field of over 100 meters. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be used simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be used simultaneously. The UHF True Diversity wireless systems are equipped with an automatic scanning facility to find the best available frequency and convenient infrared synchronisation between transmitter and receiver for easy installation.
The high-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength, and battery status. You can even enter individual user names. In addition to the noise reduction function, the silent pilot tone of the transmitter ensures safe operation. It protects against interference and interrupts the receiver in case there are signals without this tone. The efficient technology and high-quality components of the U500® series provide clear transmission, without distortion, delay, or artefacts. The low power consumption means that the transmitter can operate for up to 10 hours with 2 AA batteries.
The vocal sets from the U500® series are available with handheld transmitters, bodypacks, lavalier microphones, and with single or dual receivers. The handheld transmitters have interchangeable microphone capsules to suit singing or speaking.
Overview of the frequency range of the vocal sets:
- U505 // 584 - 608 MHz // 12 systems can be used simultaneously
- U506 // 655 - 679 MHz // 12 systems can be used simultaneously
- U508 // 823 - 832 MHz + 863 - 865 MHz // 6 systems can be used simultaneously
- U506 UK (Channel 38) // 606 – 614 MHz // 6 systems can be used simultaneously
- U518 // 1785 – 1800 MHz // 4 systems can be used simultaneously
Specifications:
- General:
- Product type: Wireless microphone systems
- Type: Headsets
- Transmission frequency range: 584 - 608 MHz
- Weight: 5.102 kg

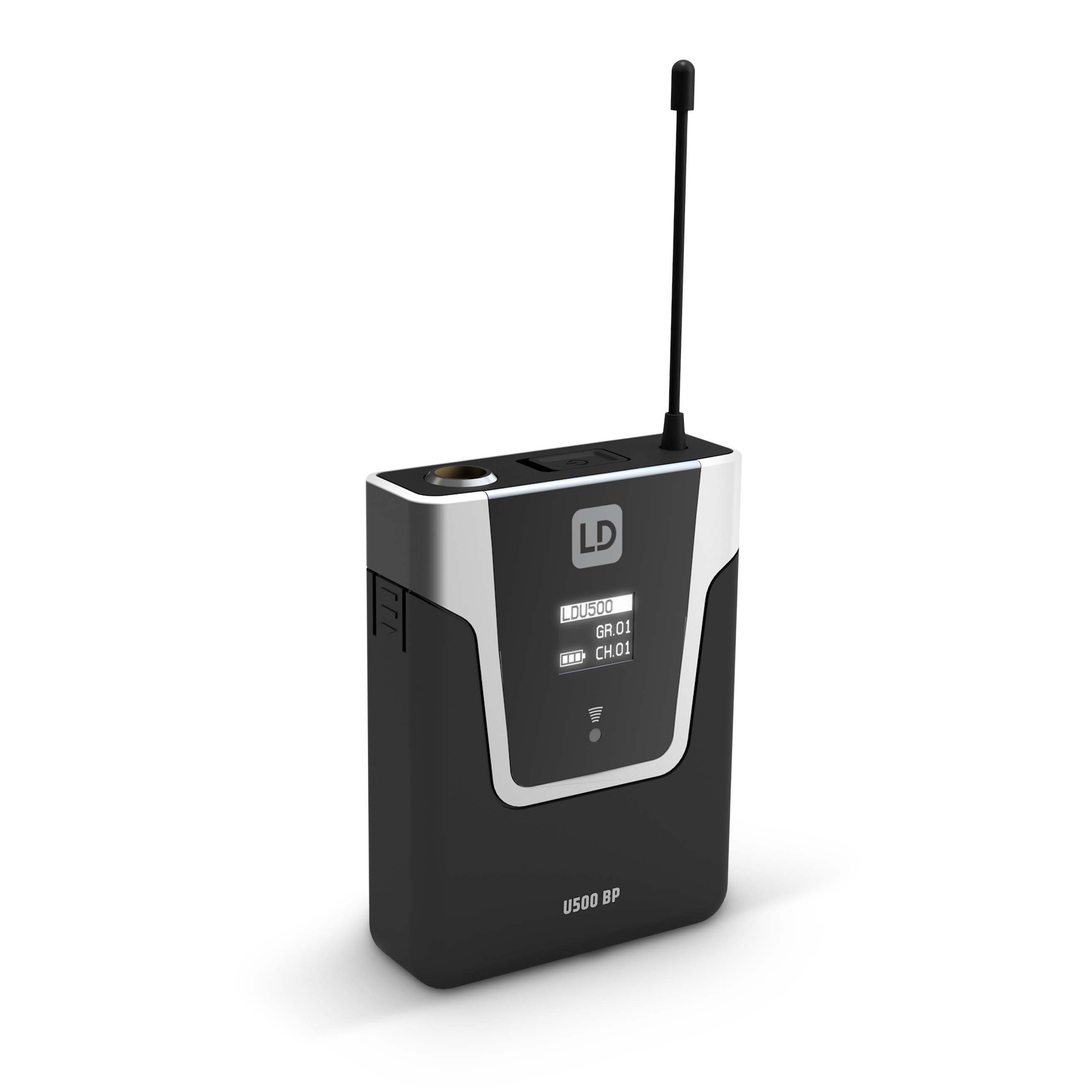

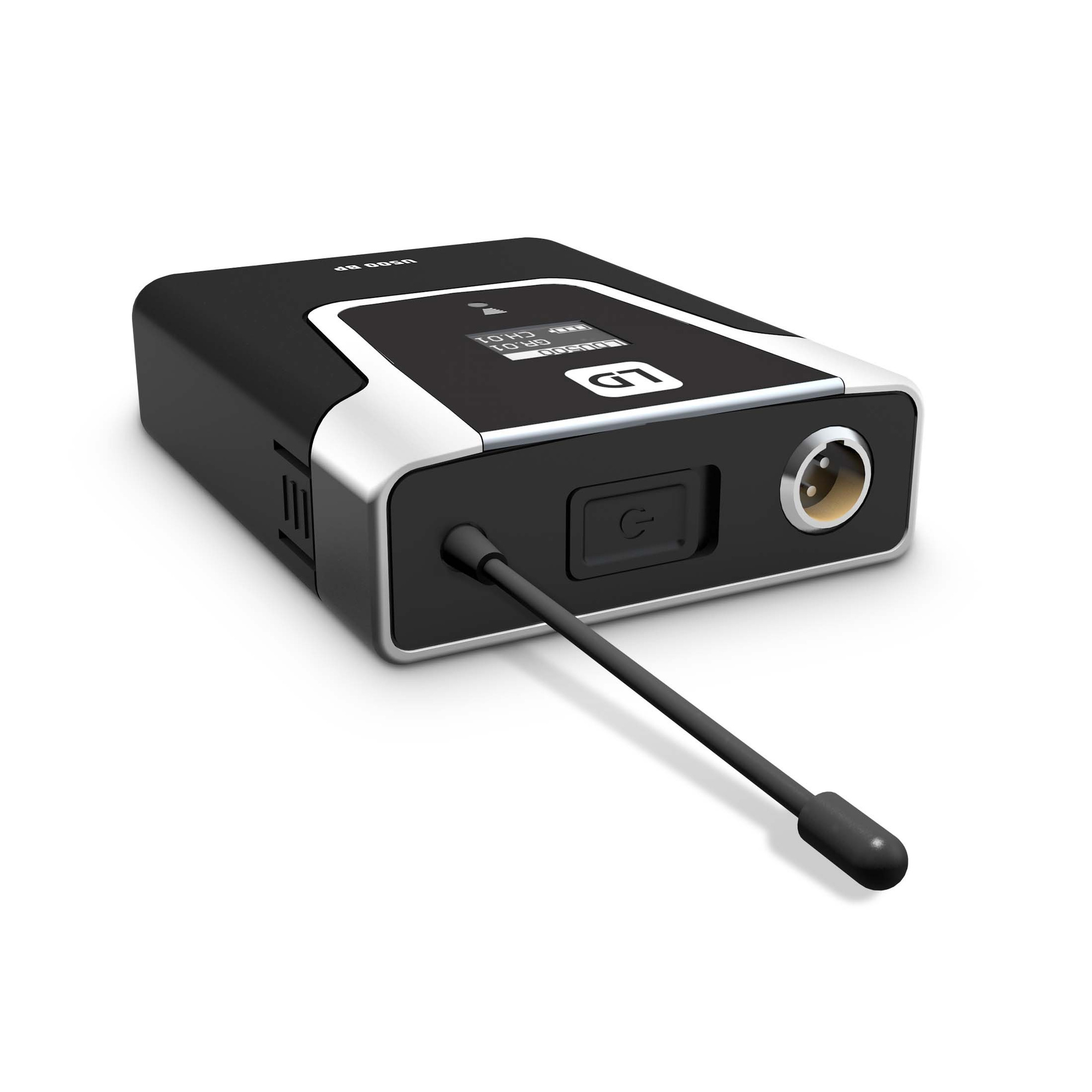

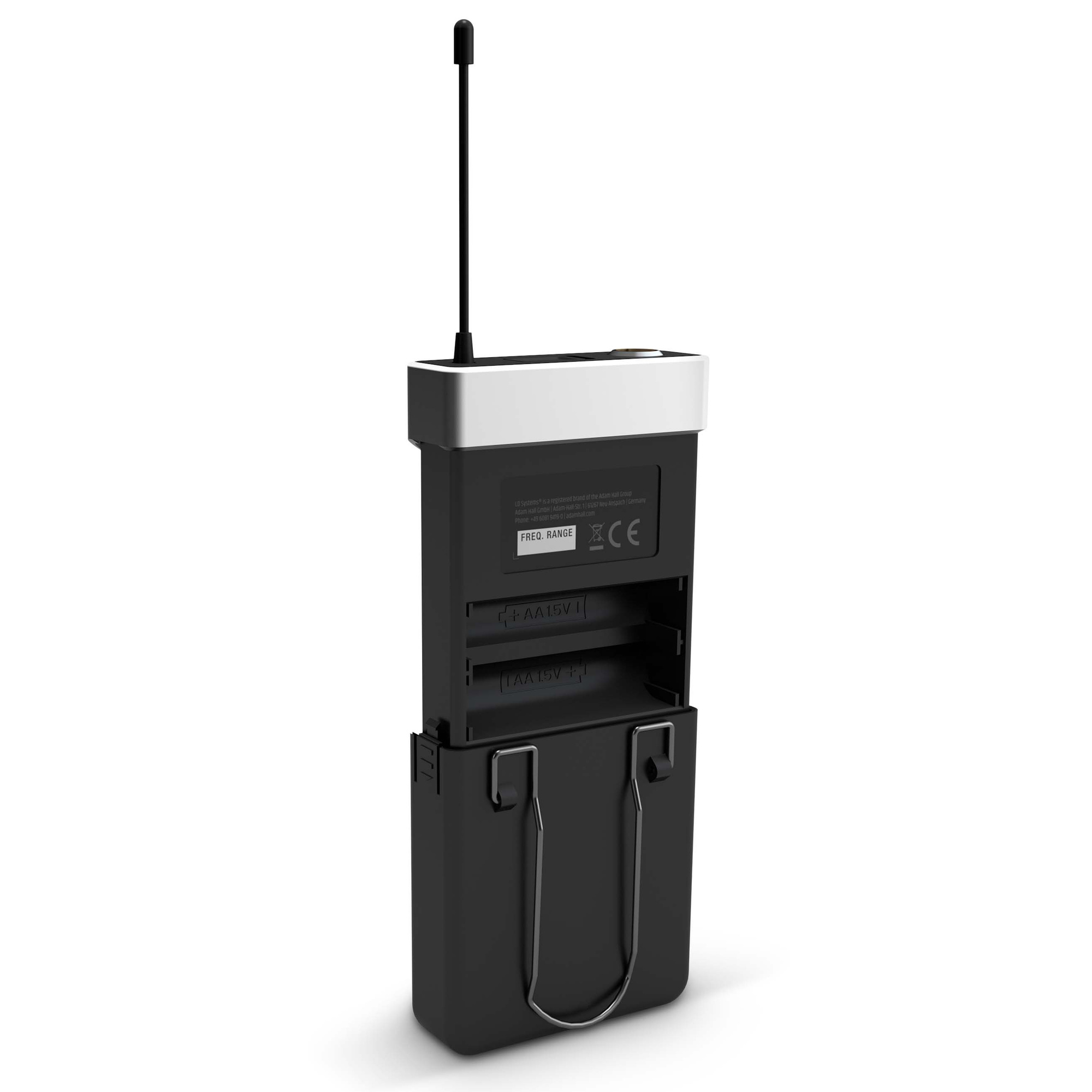

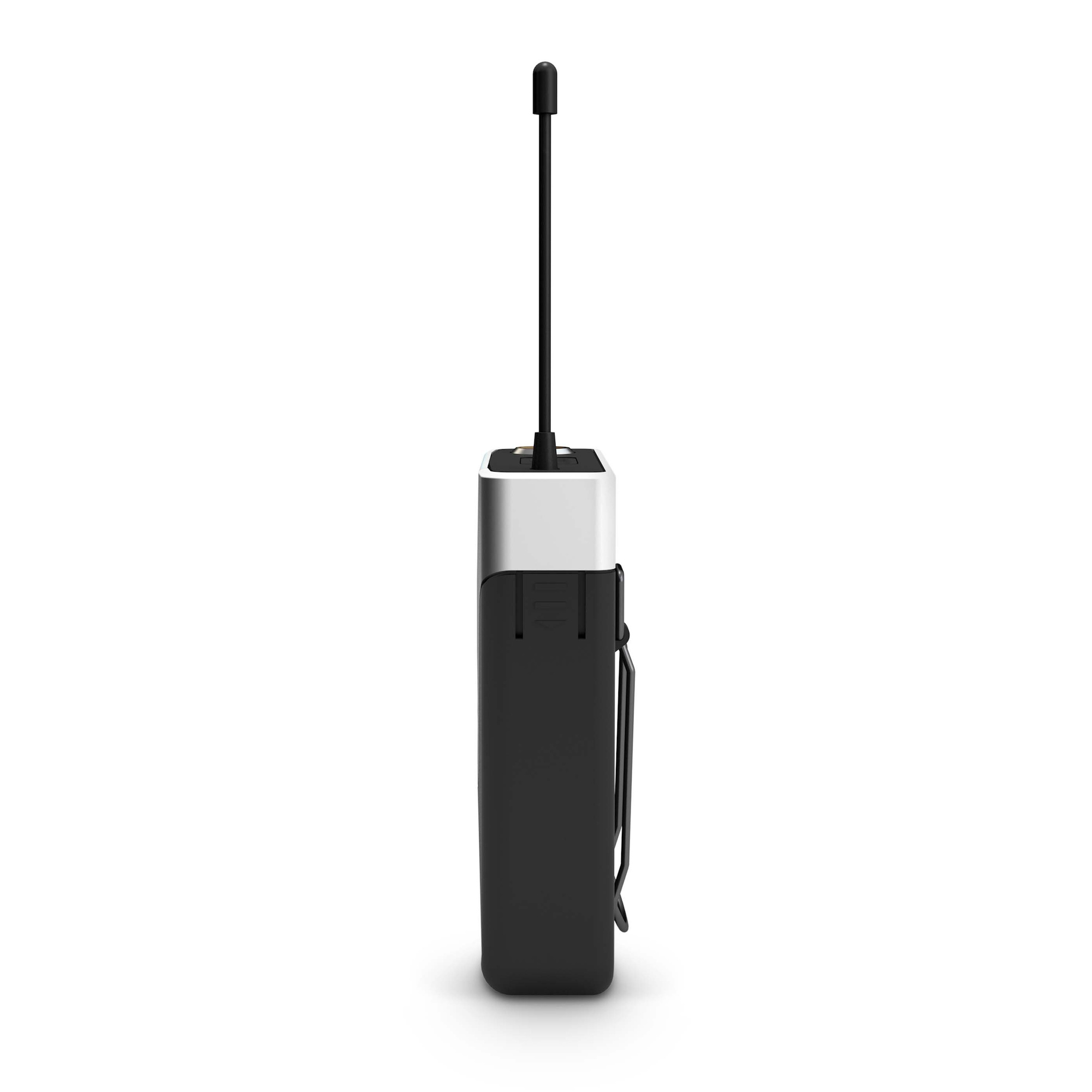

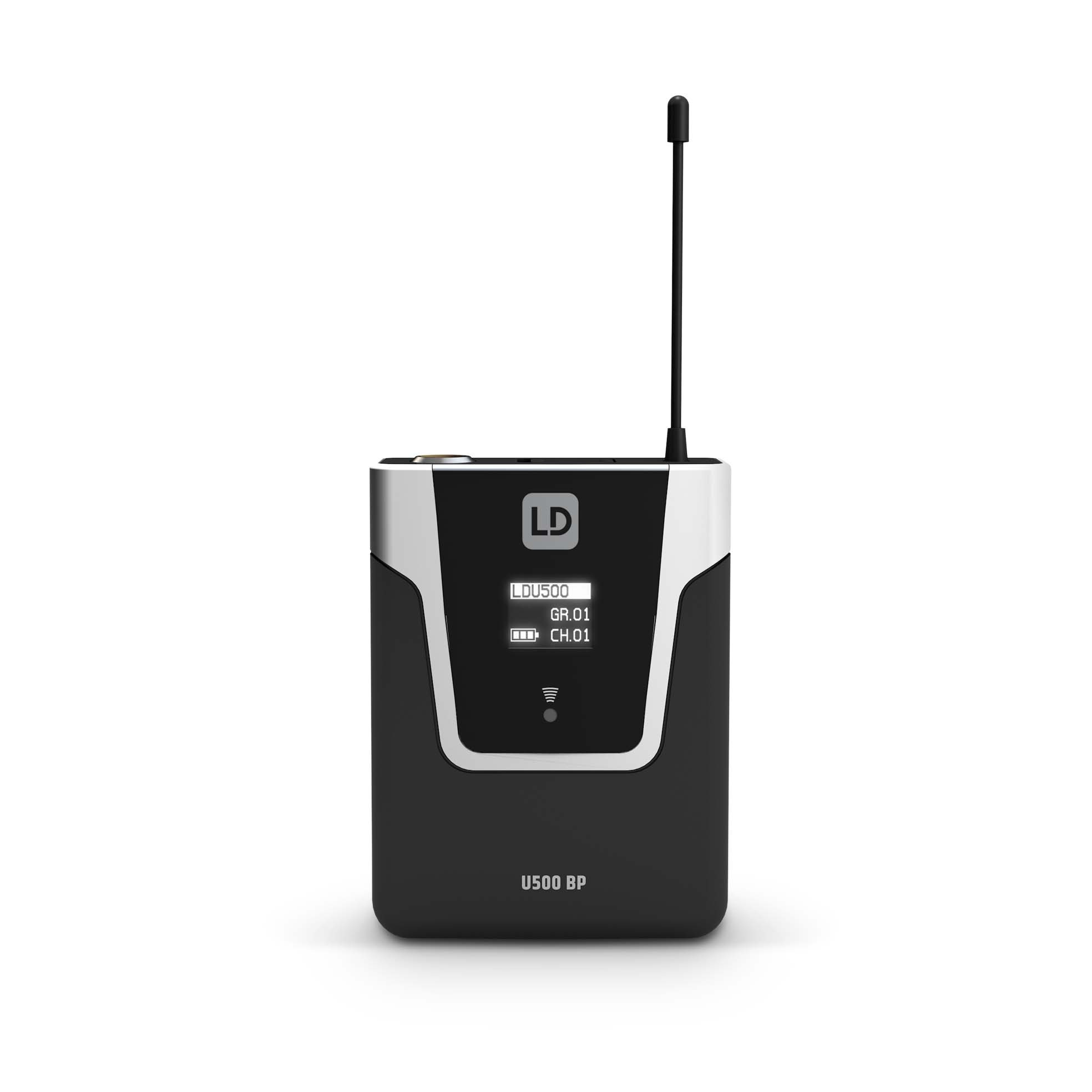

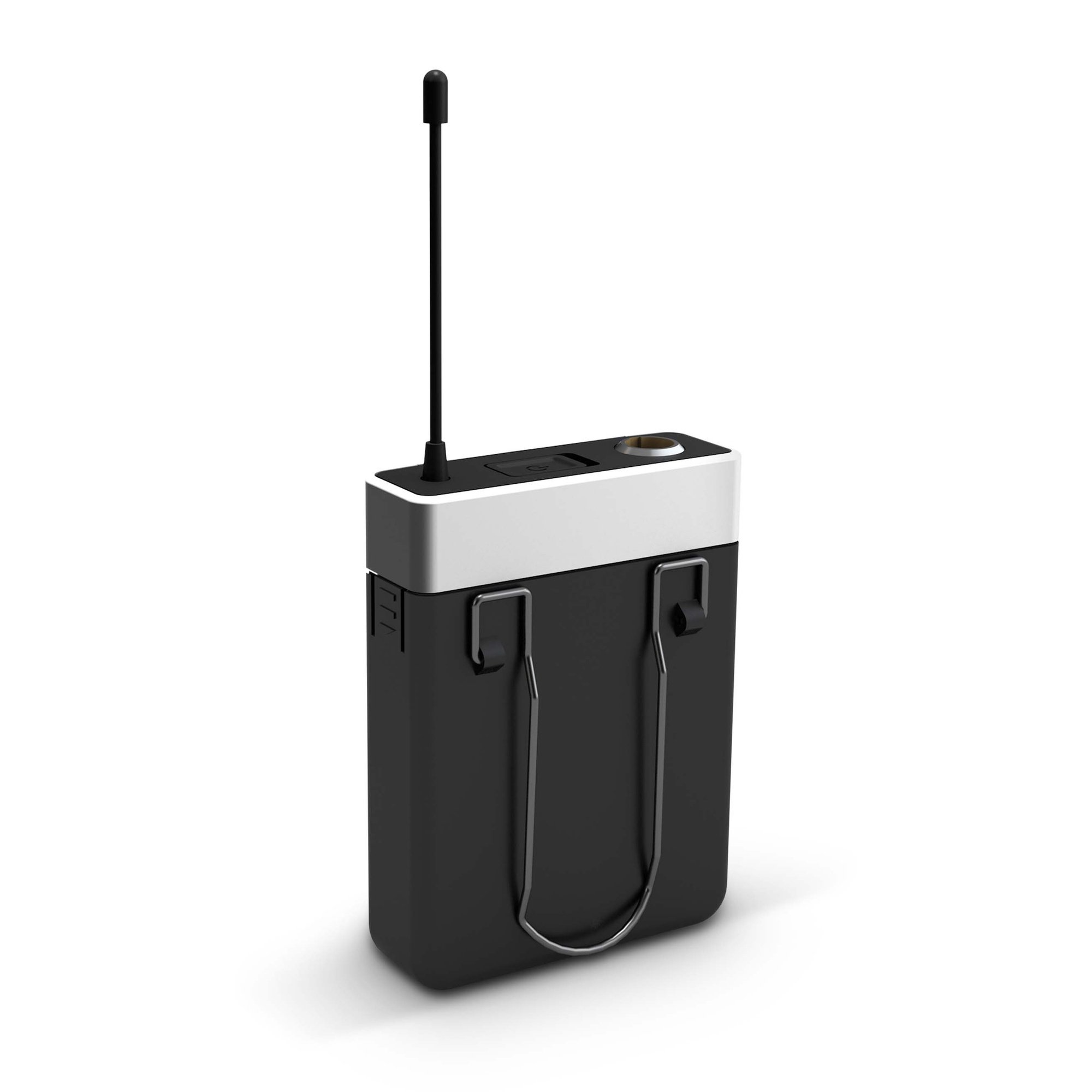

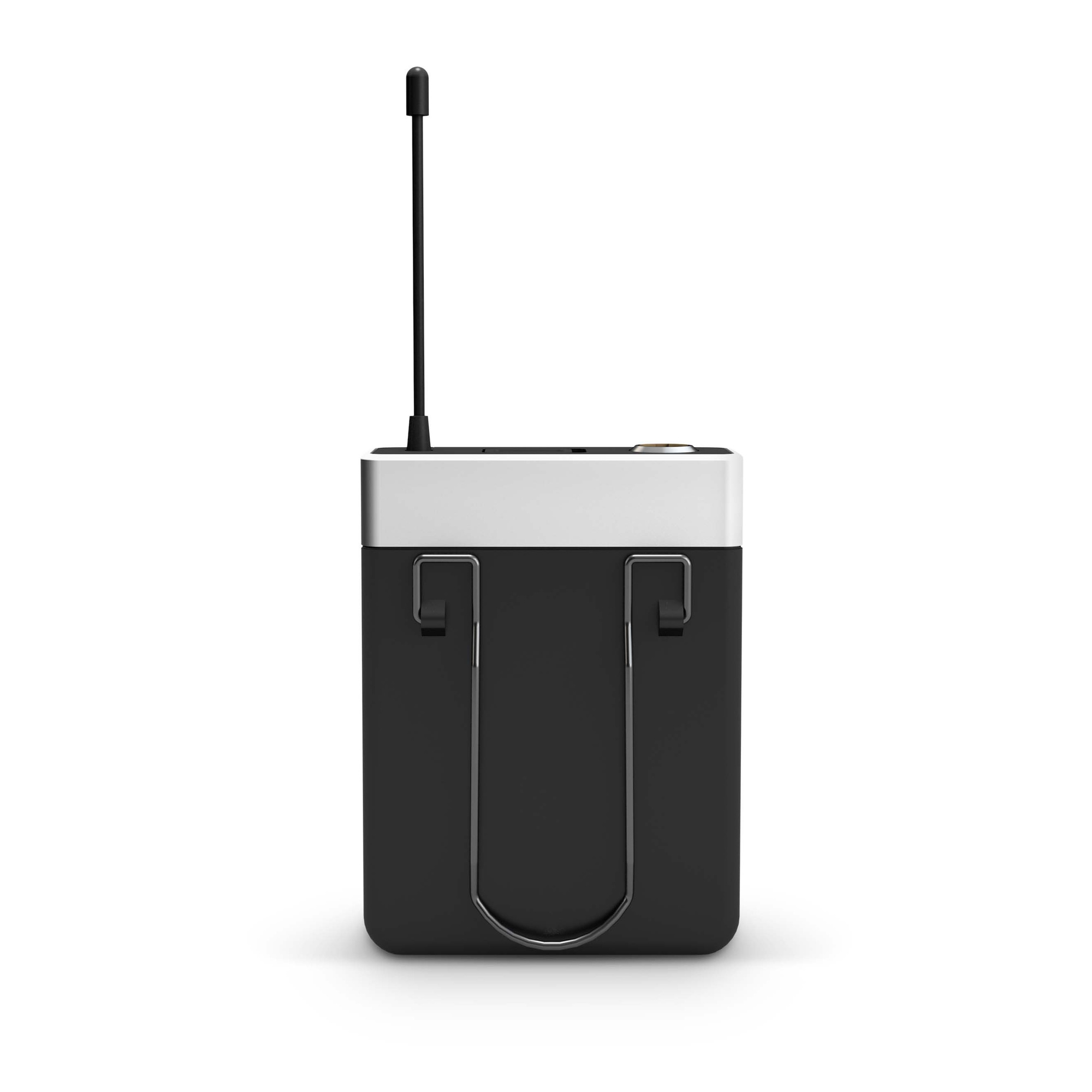

- LDU505BP - LD Systems U505 BPHH 2 Bodypack transmitter:
- Product type: Accessories for wireless microphone systems
- Type: Bodypack
- Transmission frequency range: 584 - 608 MHz
- Channels: 96 (8 groups of 12 channels)
- Frequency response: 30 - 16000 Hz
- Groups: 8
- Inputs: Mini-XLR (3 pins)
- Signal-to-noise ratio: >90 dB
- Nominal RF output power: Variable (2mW, 10mW, 30mW)
- Control: selection
- Indicators: OLED display
- Operating voltage: 2 x AA battery
- Operating time: >10 h (with alkaline batteries)
- Width: 65 mm
- Height: 86 mm
- Depth: 23 mm
- Weight: 0.09 kg
- Other features: RF power switching

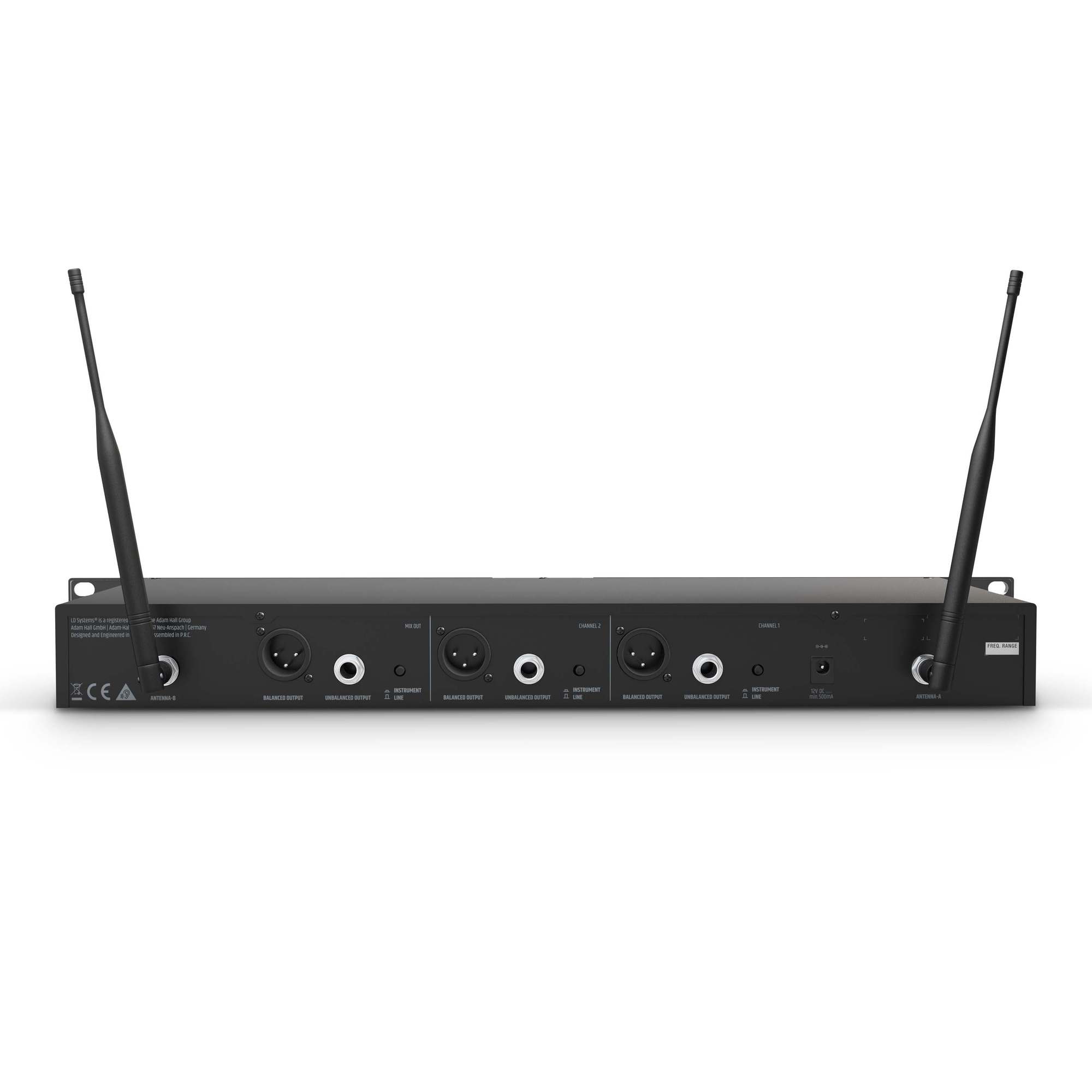

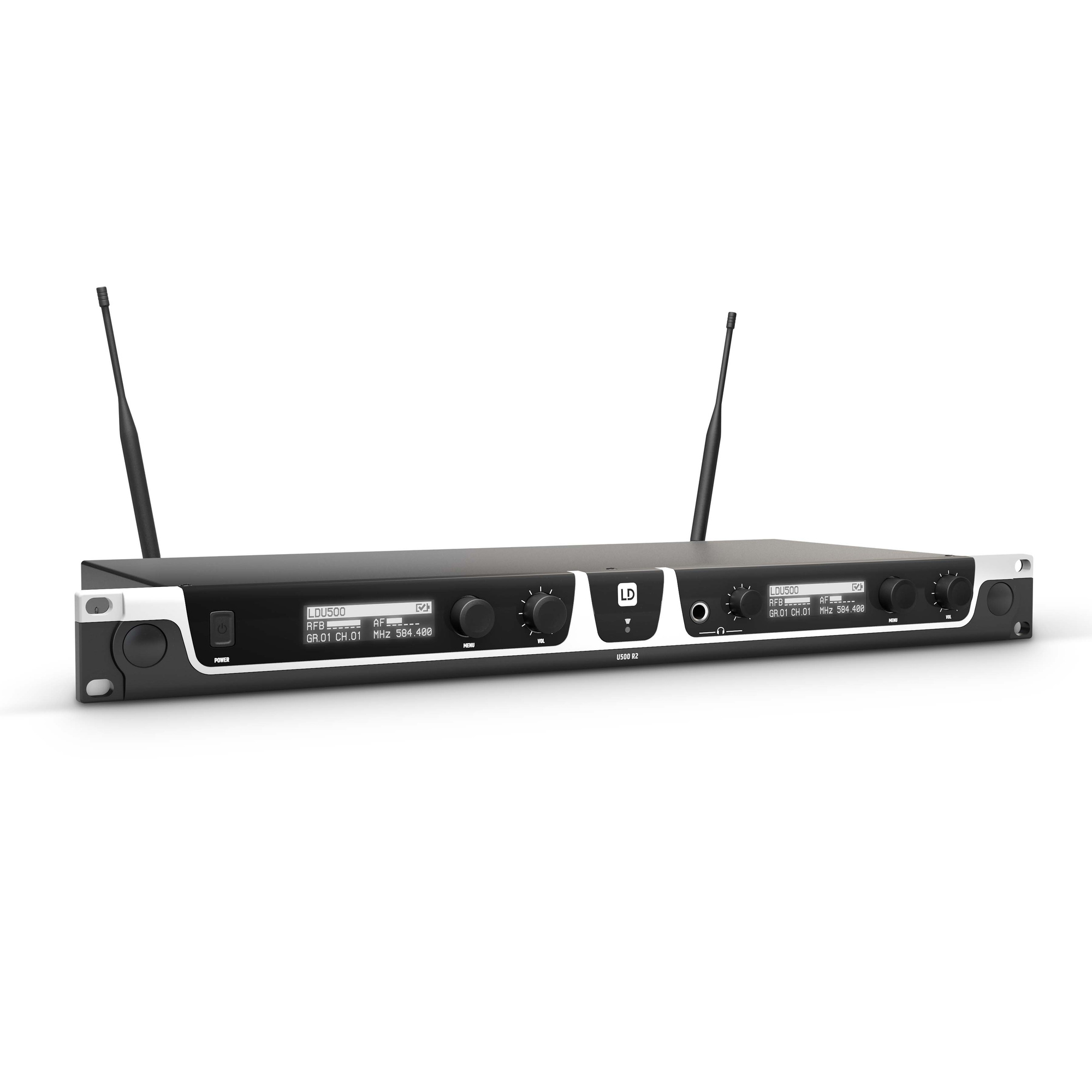

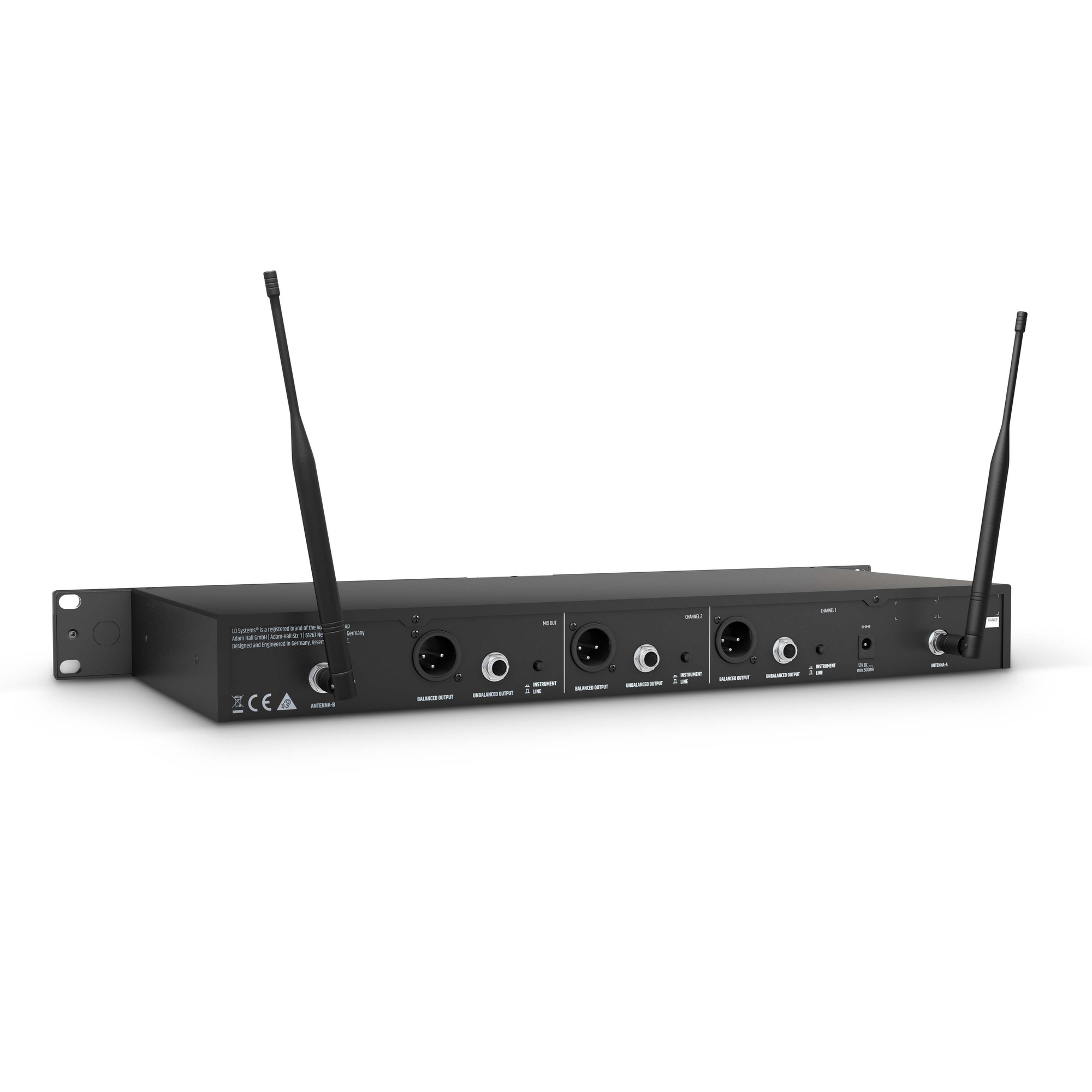

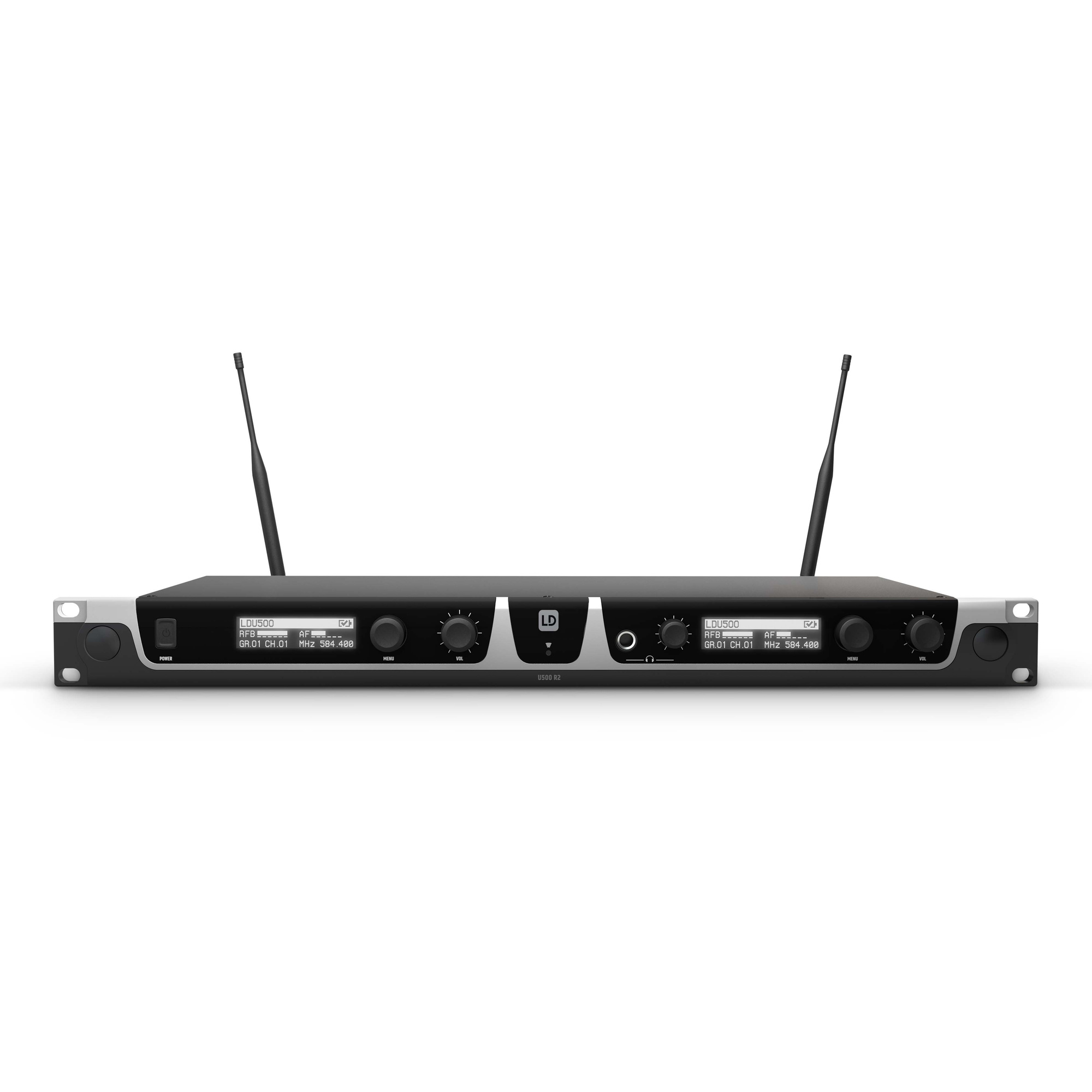

- LDU505R2 - LD Systems U505 BPHH 2 Dual receiver:
- Product type: Accessories for wireless microphone systems
- Type: Receivers
- Transmission frequency range: 584 - 608 MHz
- Modulation type: FM
- Channels: 2 x 96 (8 groups of 12 channels)
- Frequency response: 30 - 16000 Hz
- Groups: 8
- Antenna inputs: 2
- Antenna connector: BNC
- Signal-to-noise ratio: > 100 dB
- Noise reduction: Squelch
- Total harmonic distortion (THD): < 0.1 %
- Control: volume
- Audio output, balanced: 2 x XLR
- Indicators: 2 x OLED display
- Audio output, unbalanced: 2 x 6.3 mm TS
- Mixed audio output, balanced: XLR
- Accessories (included): Adapter
- Mixed audio output, unbalanced: 2 x 6.3 mm TS
- Width: 484 mm
- Height: 44 mm
- Depth: 200 mm
- Maximum output level: +10 dBu
- Weight: 2.05 kg
- Headphone output: 1
- Headphone outputs: 6.3 mm TRS
- Other features: Pilot tone
- Operating voltage: 12 V DC, 1000 mA

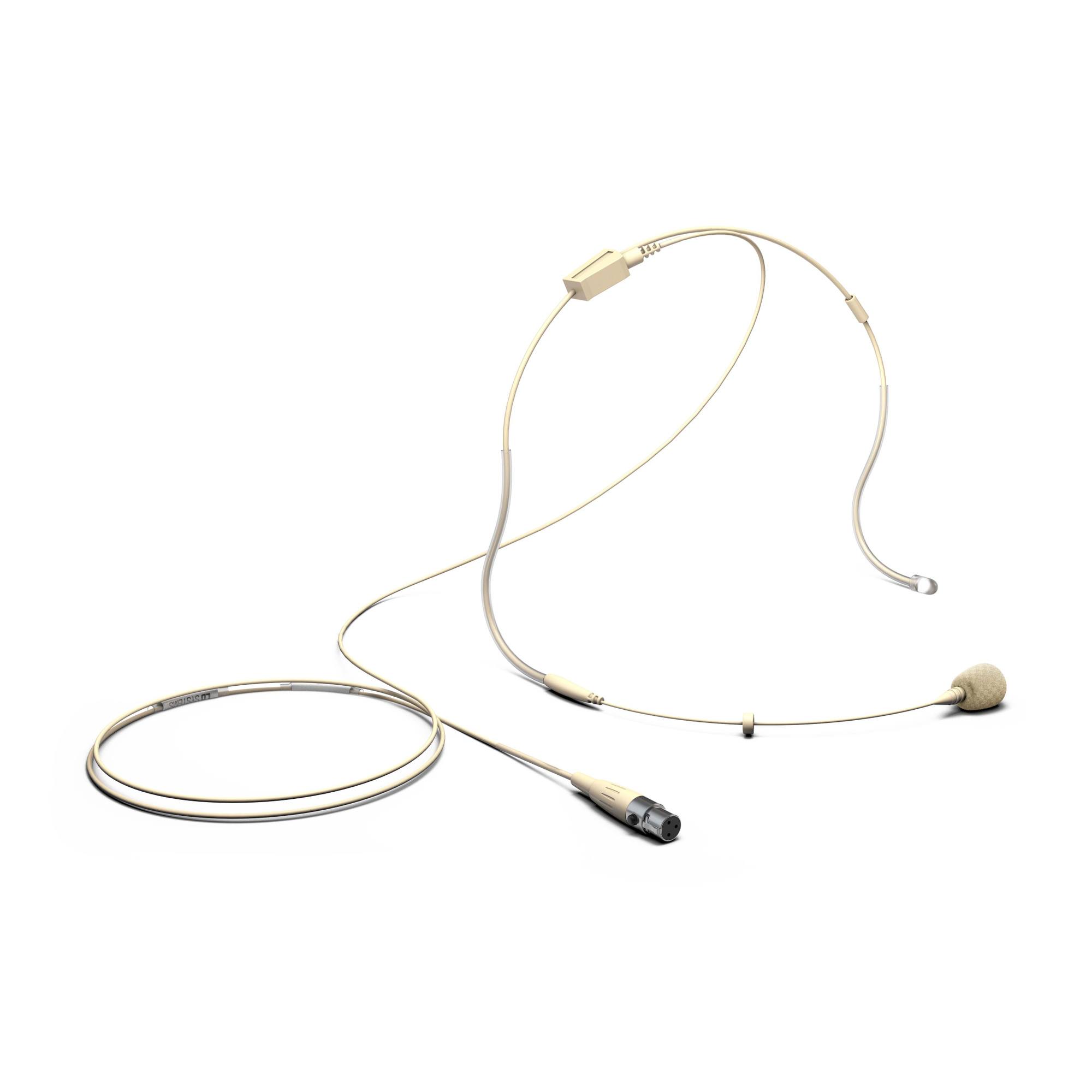

- LDWS100MH3 - LD Systems U505 BPHH 2 Headset beige colour:
- Product type: Accessories for wireless microphone systems
- Type: Headsets
- Colour: beige
- Frequency response: 70 - 16,000 Hz
- Directivity: Cardioid
- Nominal impedance: 1400 Ohms
- Max. SPL: 125 dB
- Phantom power requirements: 5 V
- Microphone input: Mini-XLR (3 pins, female)
- Accessories (included): Foam pop filter
- Weight: 0.2 kg
