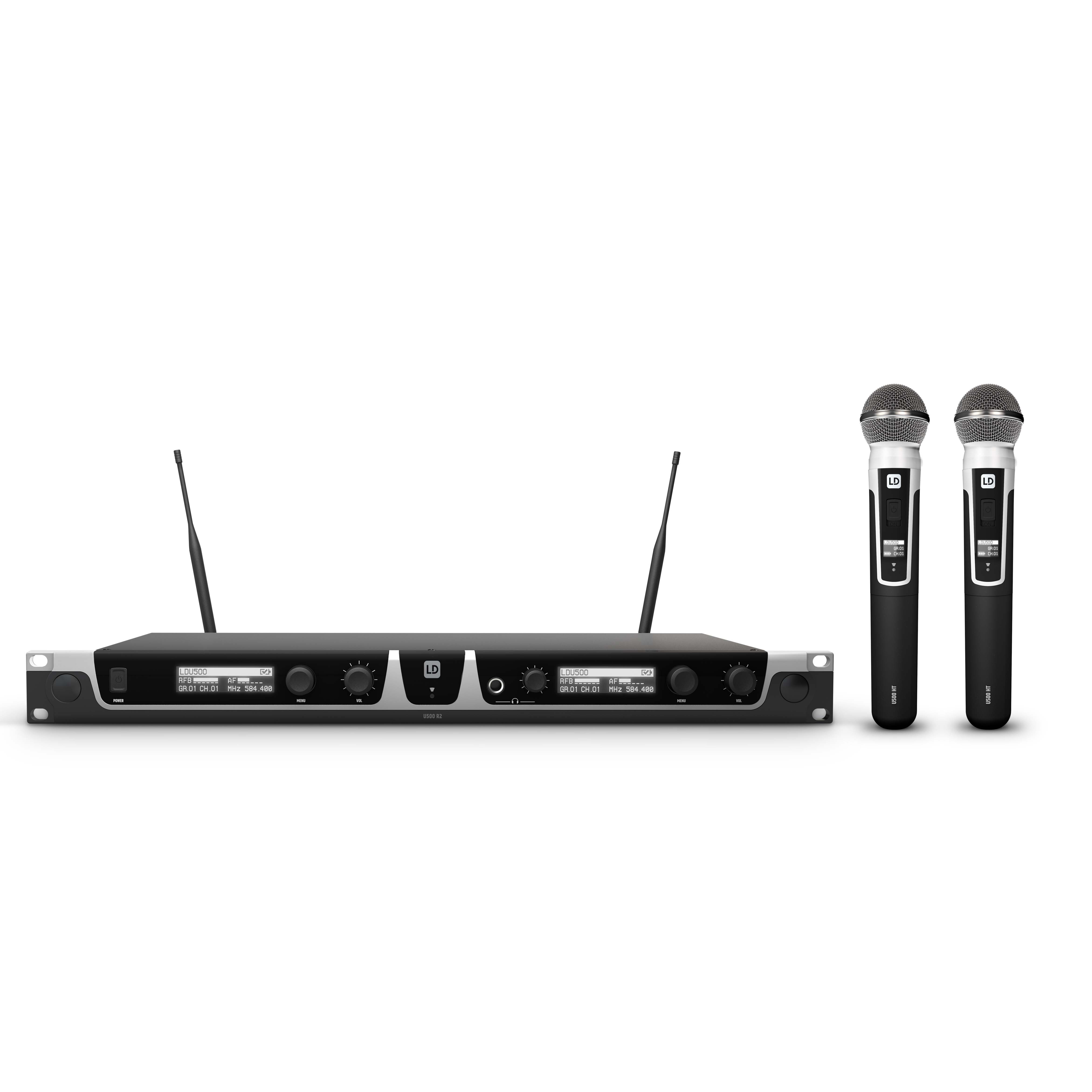

LD Systems U508 Dual Handheld


Dual wireless set

  • dual wireless system with two dynamic handheld microphones.
  • true diversity system with 2 x 160 channels across 2 x 10 groups.
  • uHF frequency range: 823 - 832 MHz + 863 - 865 MHz.
  • high-contrast OLED screens for easy monitoring of functions.
  • up to 10 hours of operation with 2 AA batteries.
LD Systems
67983
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
3526 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

LD Systems U506 HHD2 - a wireless system composed of a dual wireless receiver and two dynamic handheld microphones. The transmission power is selectable up to 30 mW and allows a transmission distance in free field of over 100 m. The system features automatic scanning to find the best available frequency and convenient infrared synchronization between the receiver and transmitter. High-contrast OLED screens provide an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength, and battery status. You can even enter individual user names.

In addition to the squelch function, the silent pilot tone of the transmitter ensures safe operation, and interference protection interrupts the receiver if signals without this tone are present. The efficient U500 technology and high-quality components provide clear transmission without distortion and without latency. The low power consumption allows the transmitter to operate for up to 10 hours powered by 2 AA batteries.

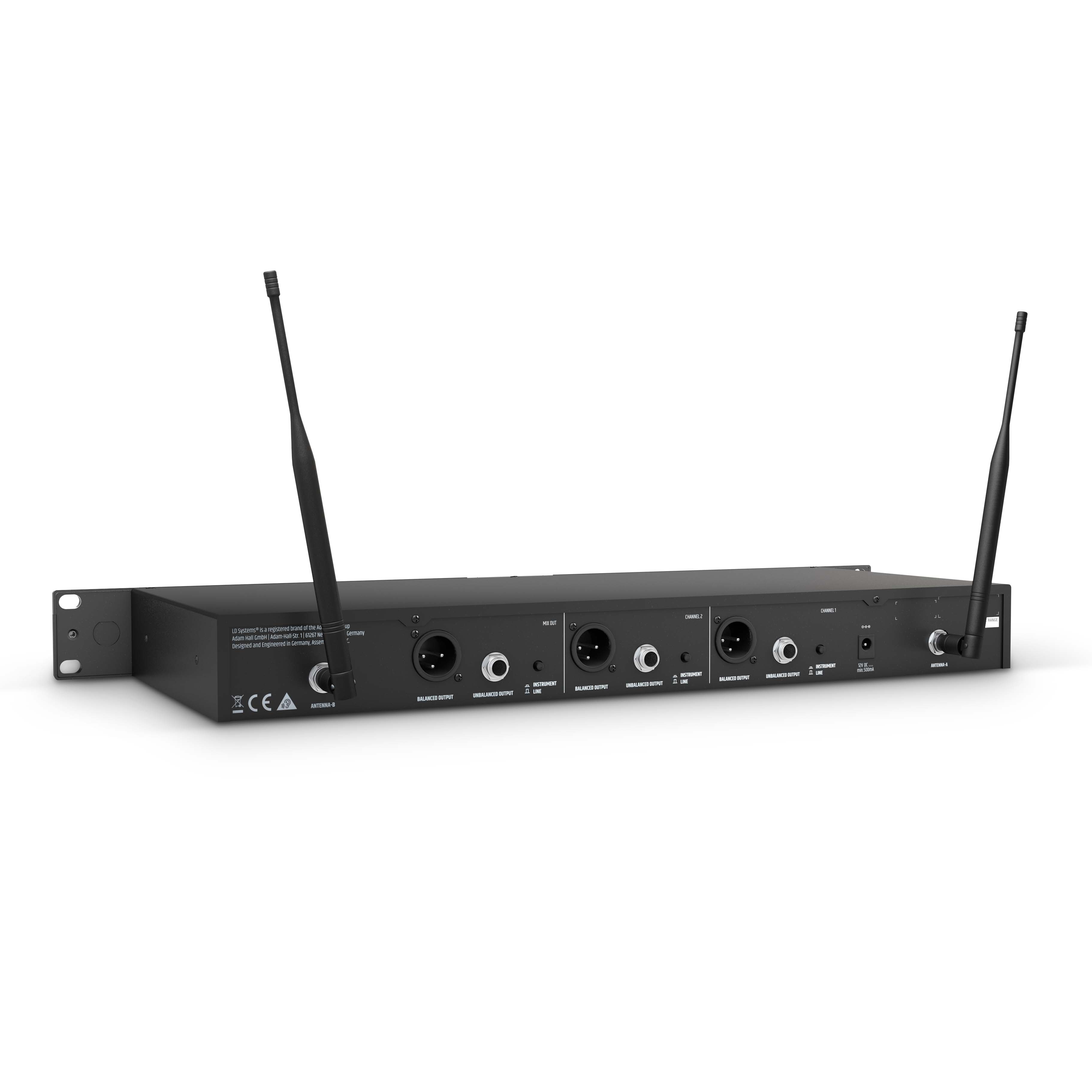

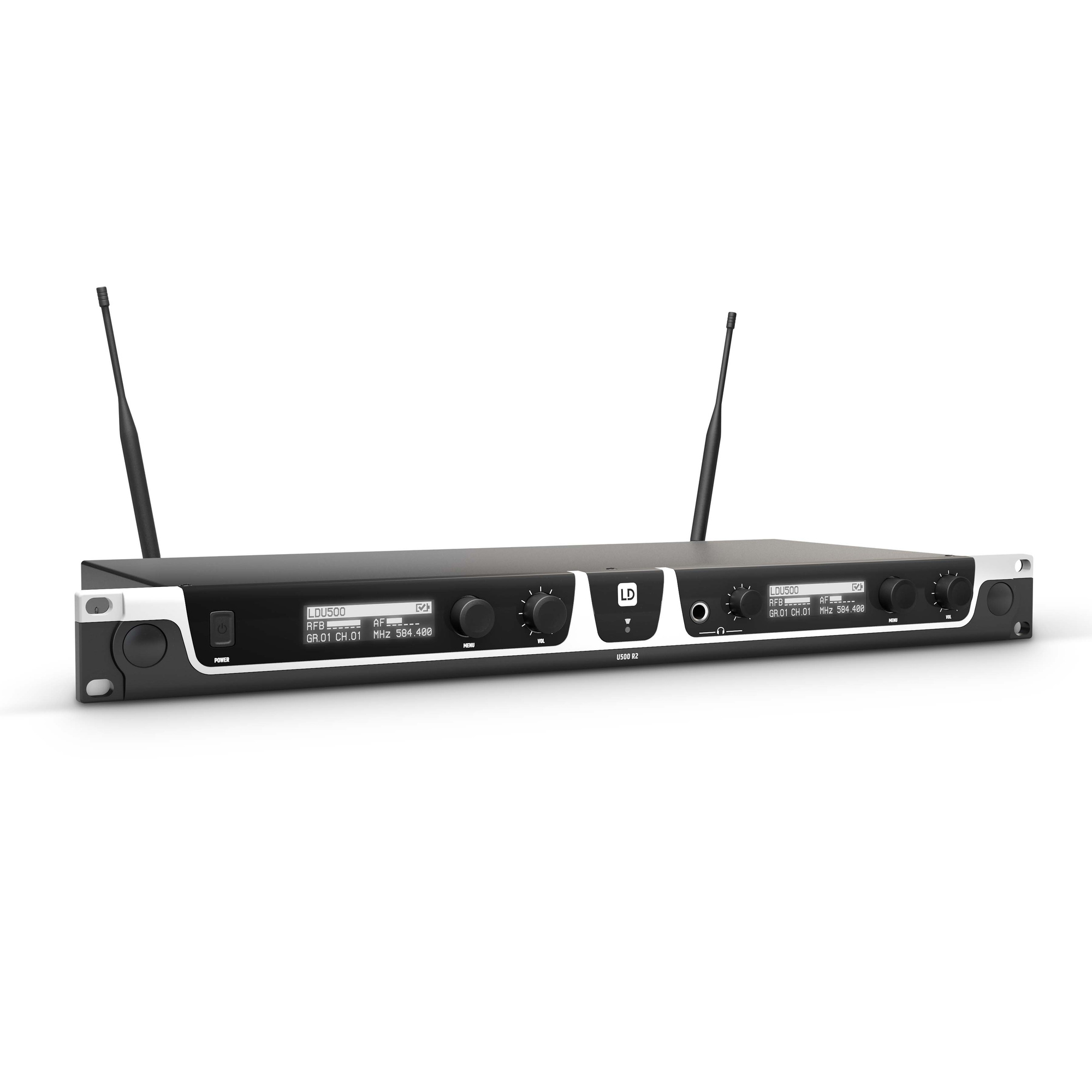

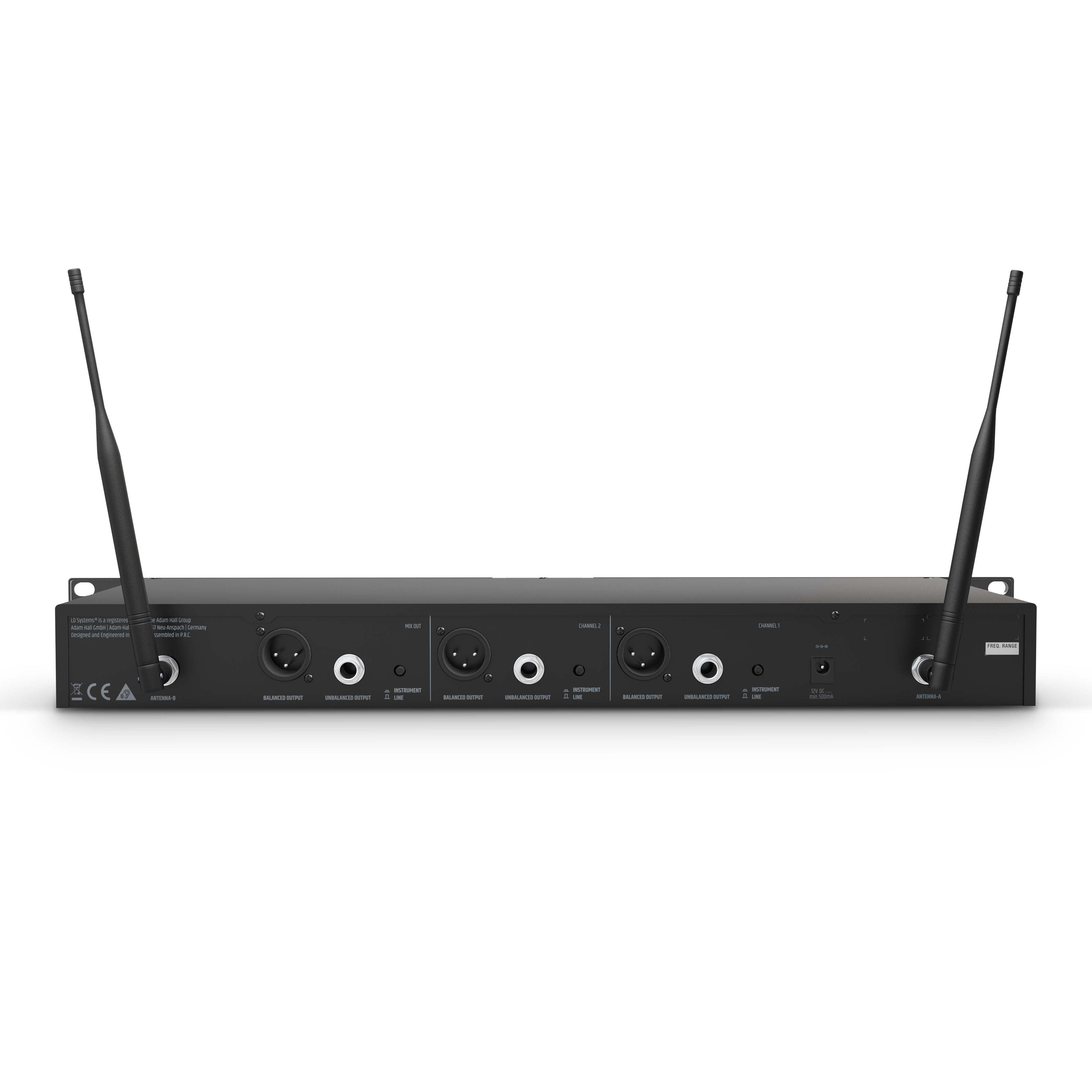

Dual receiver LDU505R2 - LD Systems U506 R2

  • UHF frequency range: 823 - 832 MHz + 863 - 865 MHz
  • Type: true diversity
  • Modulation type: FM
  • Channels: 2 x 160
  • Groups: 2 x 10
  • Antennas inputs: 2
  • Antennas connector: BNC
  • Frequency response: 60 - 16,000 Hz
  • Noise reduction: squelch
  • Signal-to-noise ratio: > 105 dB
  • THD: < 0.1 %
  • Controls: volume
  • Audio output: balanced 2 x XLR connector
  • Indicators: 2 x LC display
  • Power supply: 13.5 V DC
  • Mix audio output: balanced, XLR connector
  • Mix audio output: unbalanced 2 x 6.3 mm TS jack
  • Maximum output level: -8 dBu
  • Headphone output: 1 x 6.3 mm TRS jack connector
  • Weight: 2.05 kg
  • IR frequency synchronization: yes
  • Dimensions (W x H x D): 483 x 45 x 190 mm
  • Included accessories: power supply

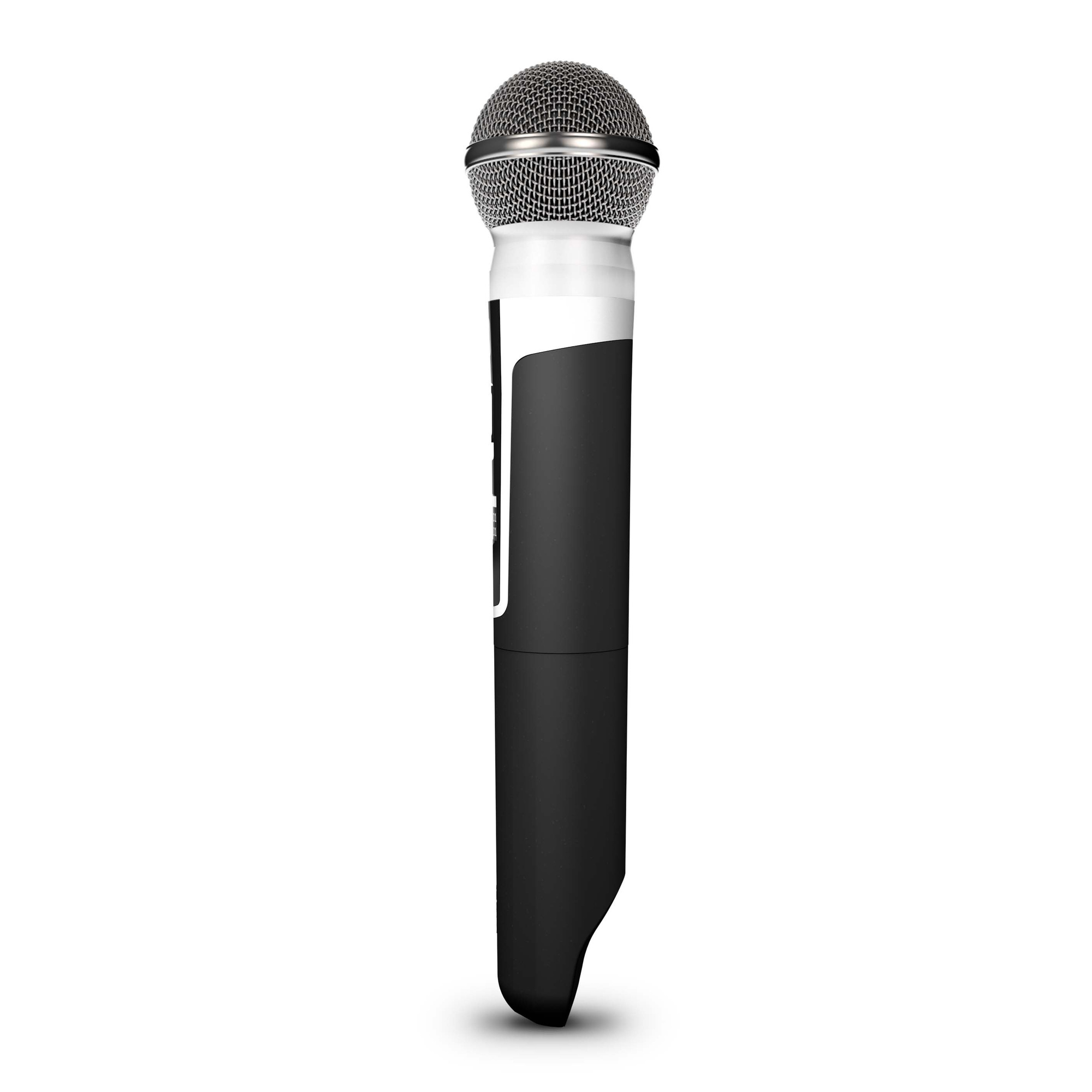

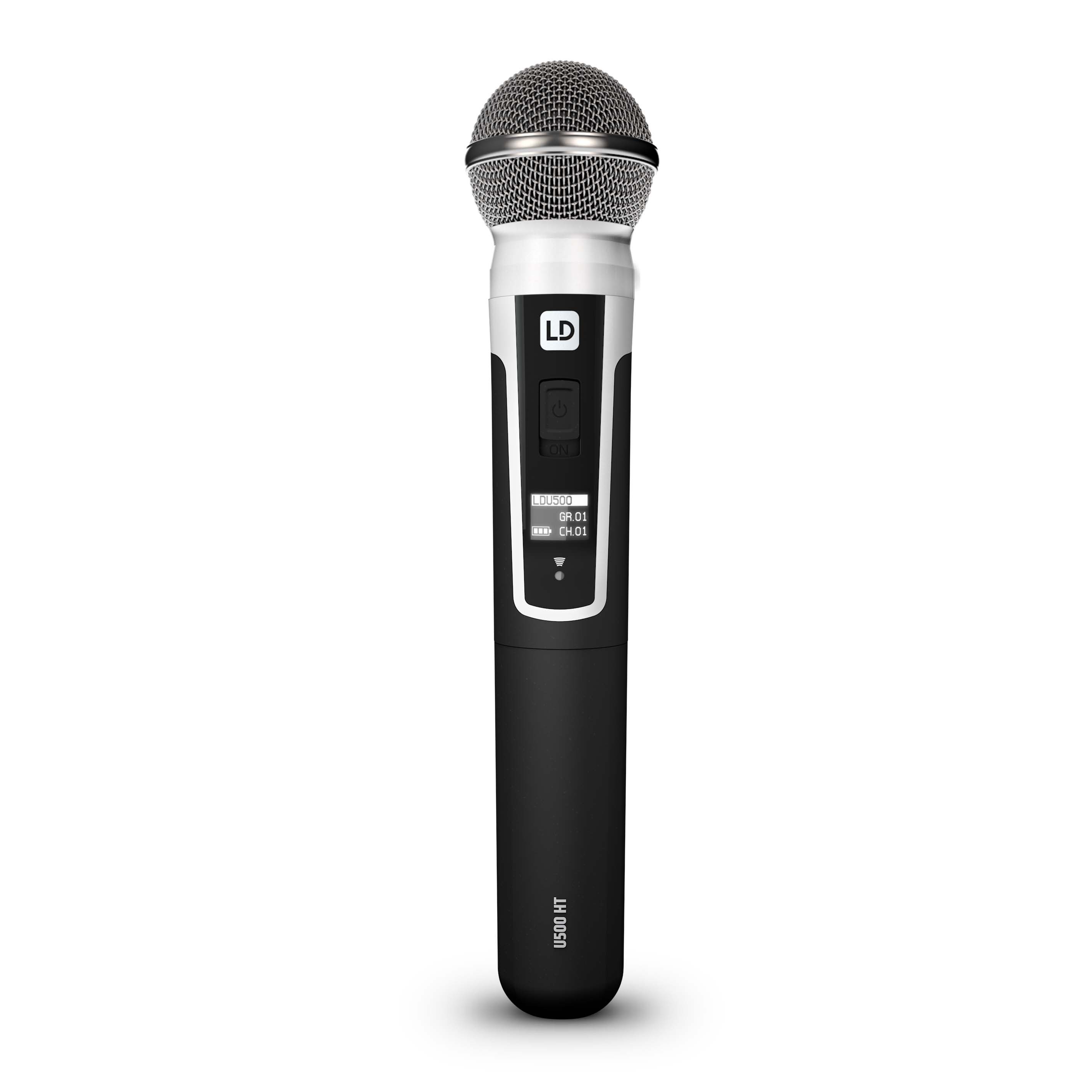

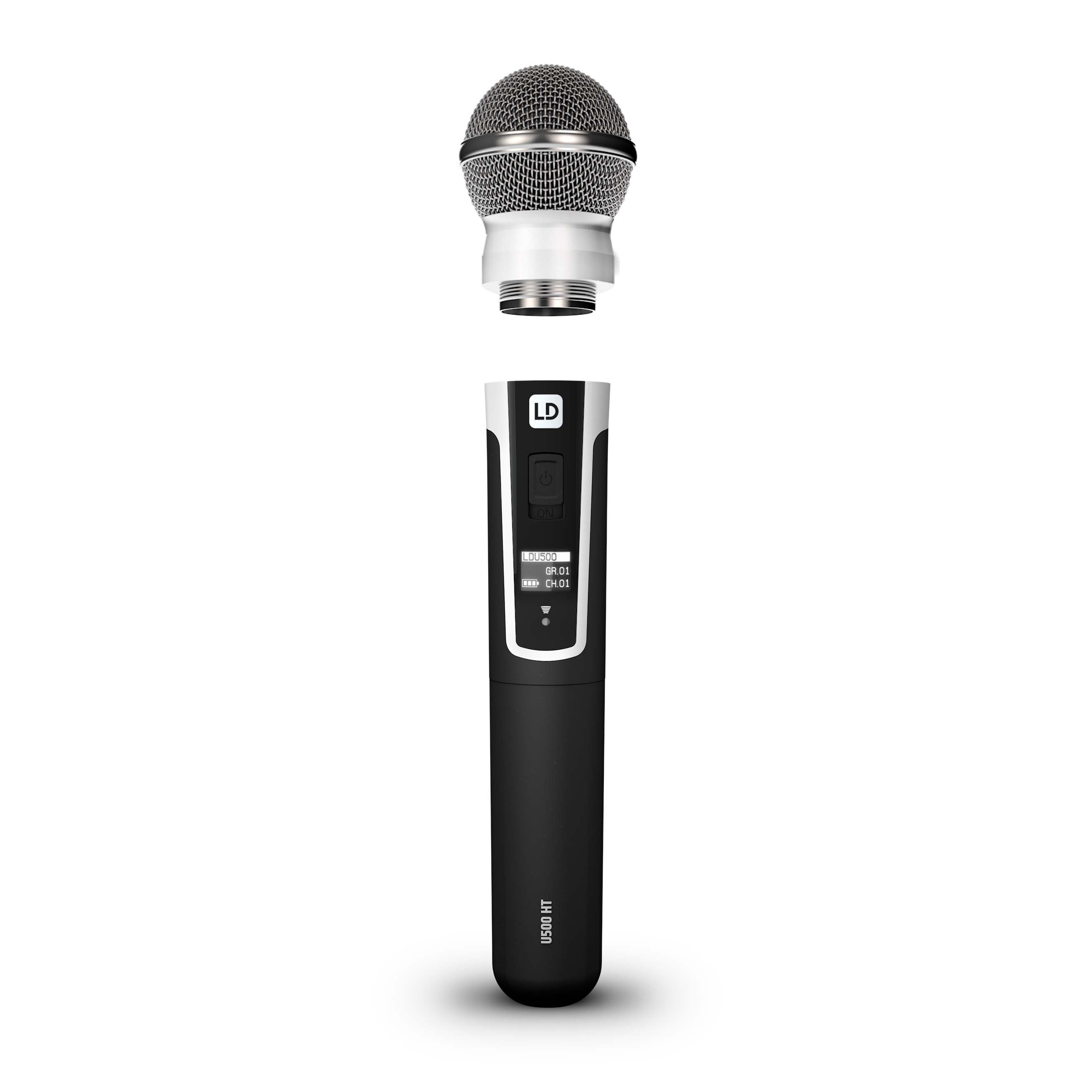

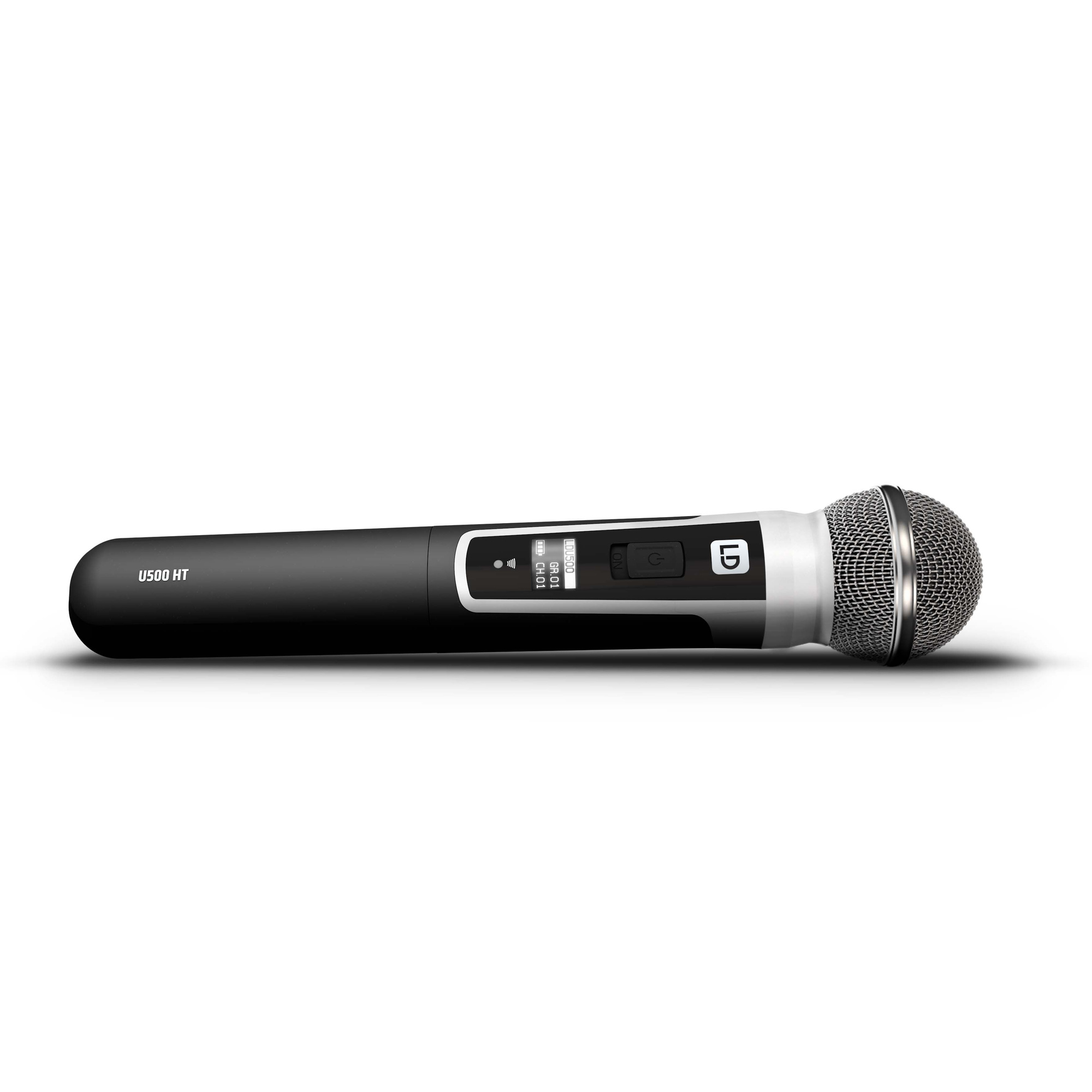

Handheld transmitter U506 MD:

  • Microphone type: dynamic
  • Polar pattern: cardioid
  • Channels: 96 (8 groups of 12 channels)
  • Frequency response: 60 - 16,000 Hz
  • HF output power: variable (2mW, 10mW, 30mW)
  • Controls: set
  • Indicators: OLED display
  • Operating voltage: 2 x 1.5 V AA batteries
  • Operating time: >10 h (with alkaline batteries)
  • Dimensions (Length x diameter): 252 x 52 mm
  • Weight: 0.25 kg
  • Other features: selectable RF power

Product code: LDU508HHD2

Unit of sale: set

Specifications:
Number of transmission/reception channels: 2
System type: analog
Capsule type: dynamic
Polar pattern: cardioid
Receiver type: Stationary
Communication frequency, global classification: 800 - 900 MHz
