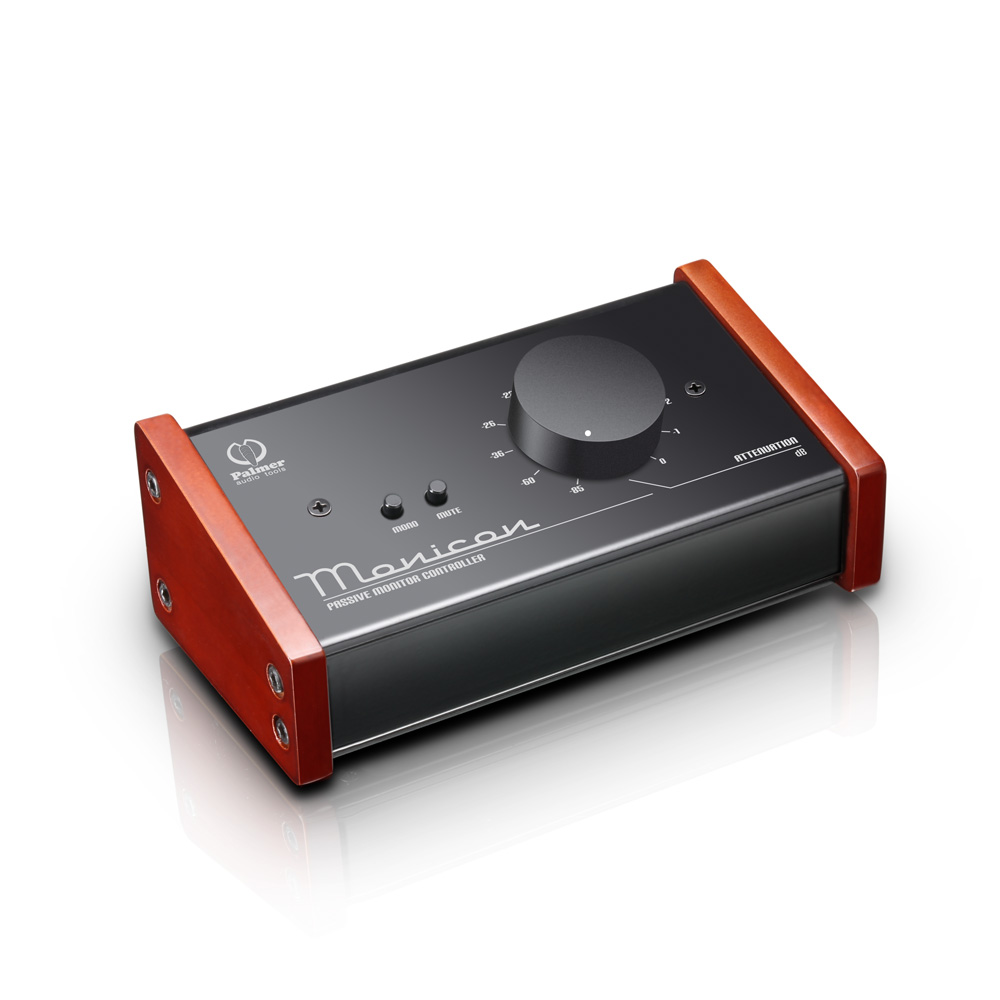

Palmer Monicon, a passive controller for studio monitors that allows precise adjustment of volume levels. The passive circuits do not alter the sound at all. The mono button combines the stereo signal into a mono signal.

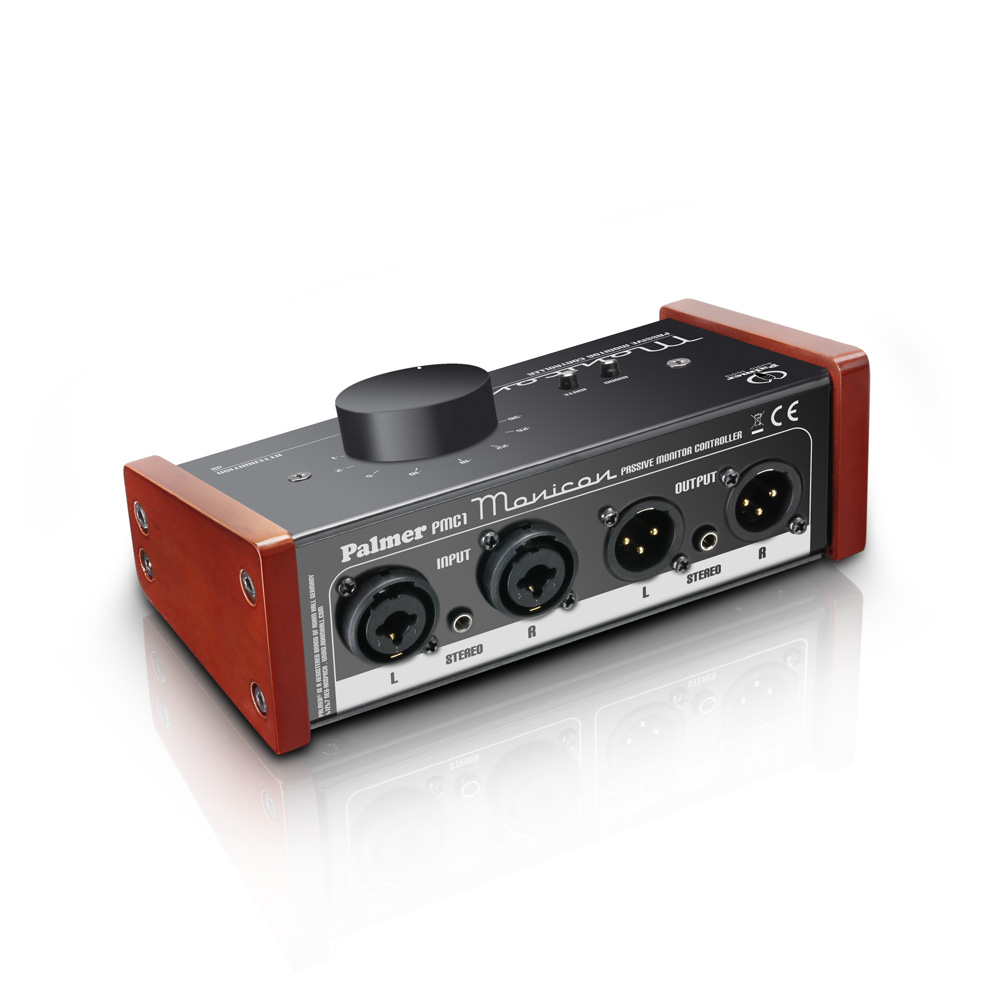

PMC1 Monicon is equipped with XLR/Jack combo inputs and a minJack input, while the outputs are XLR male and miniJack. The robust casing and wooden sides give the Monicon a distinguished, elegant look.
- 2-channel volume controller (left/right)
- maximum input level: +20 dBu
- maximum output level: +20 dBu
- output impedance: 600 ohms
- frequency range: 10Hz - 40 kHz +/- 1 dB
- THD: 0.001 %
- maximum attenuation: 85 dB (attenuator), 112 dB (attenuator + mute)
- controls: attenuator, mute, mono
- dimensions: 164 x 62 x 85 mm
