Cameo TS-60W RGBW

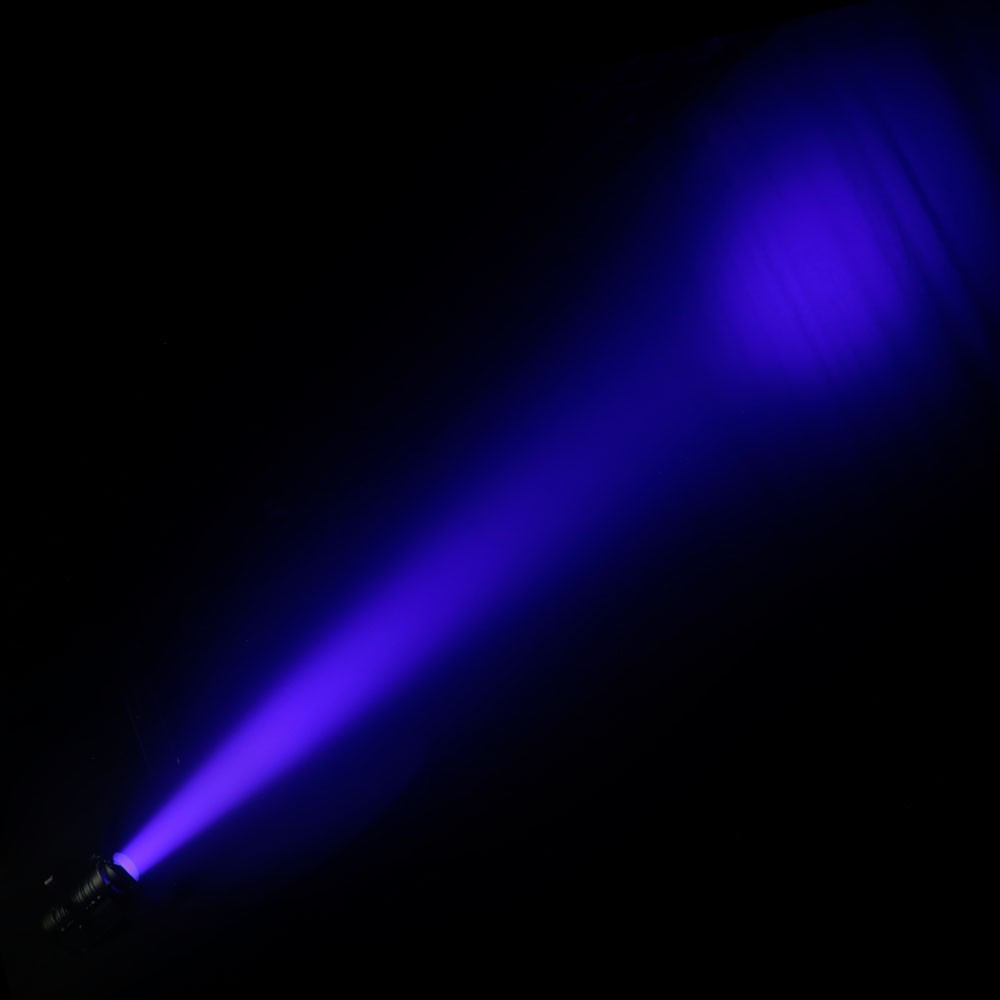

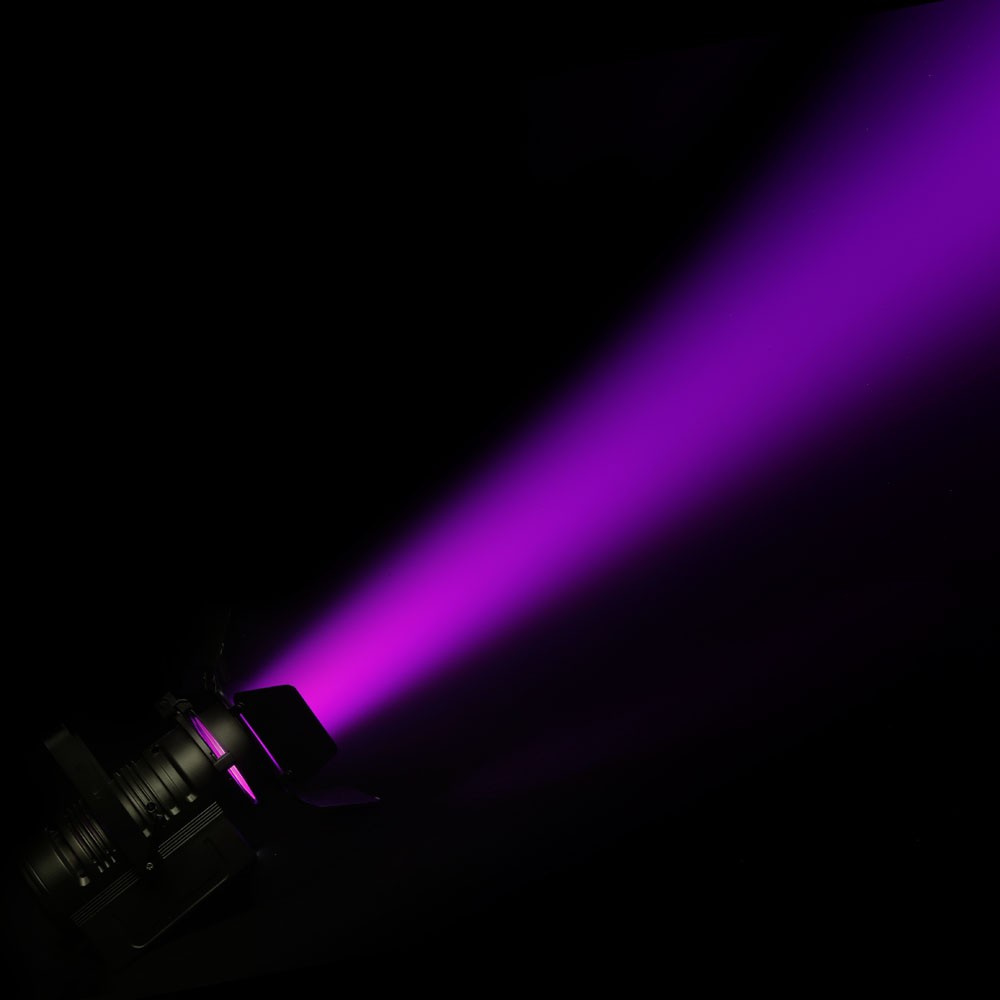

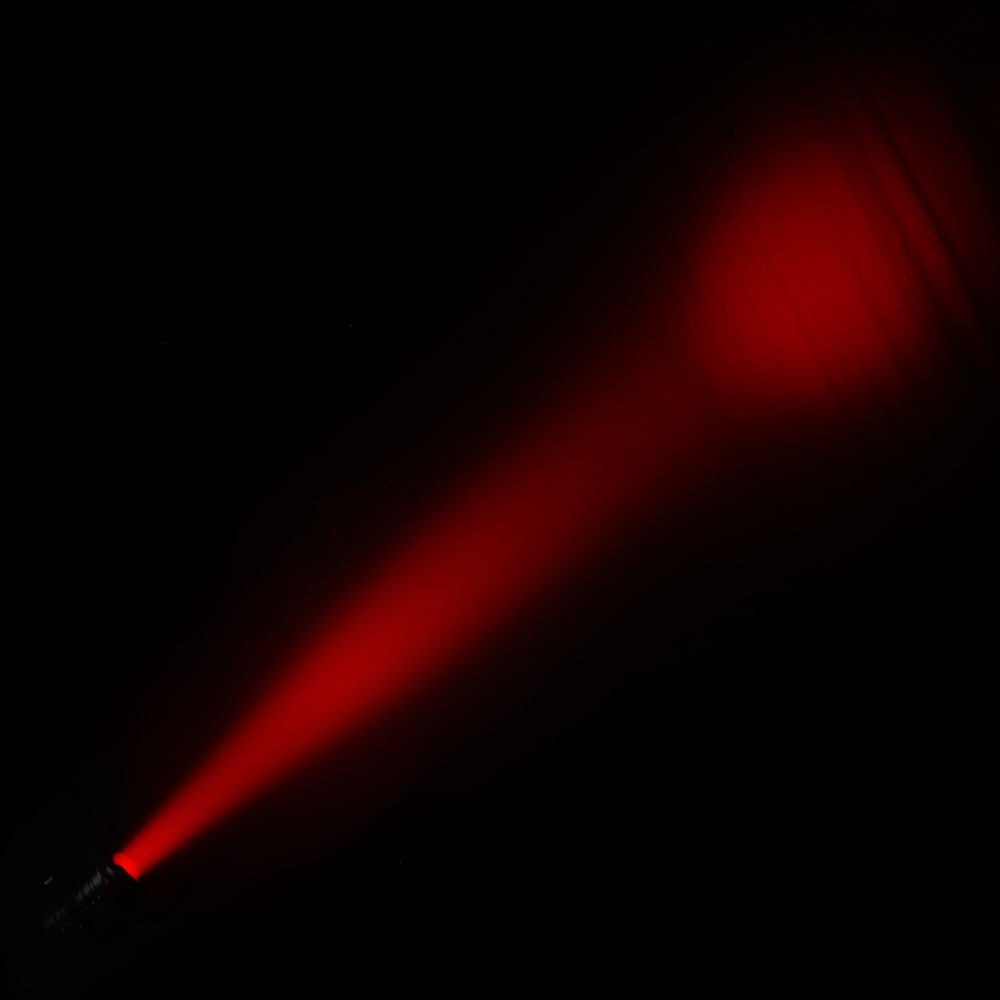

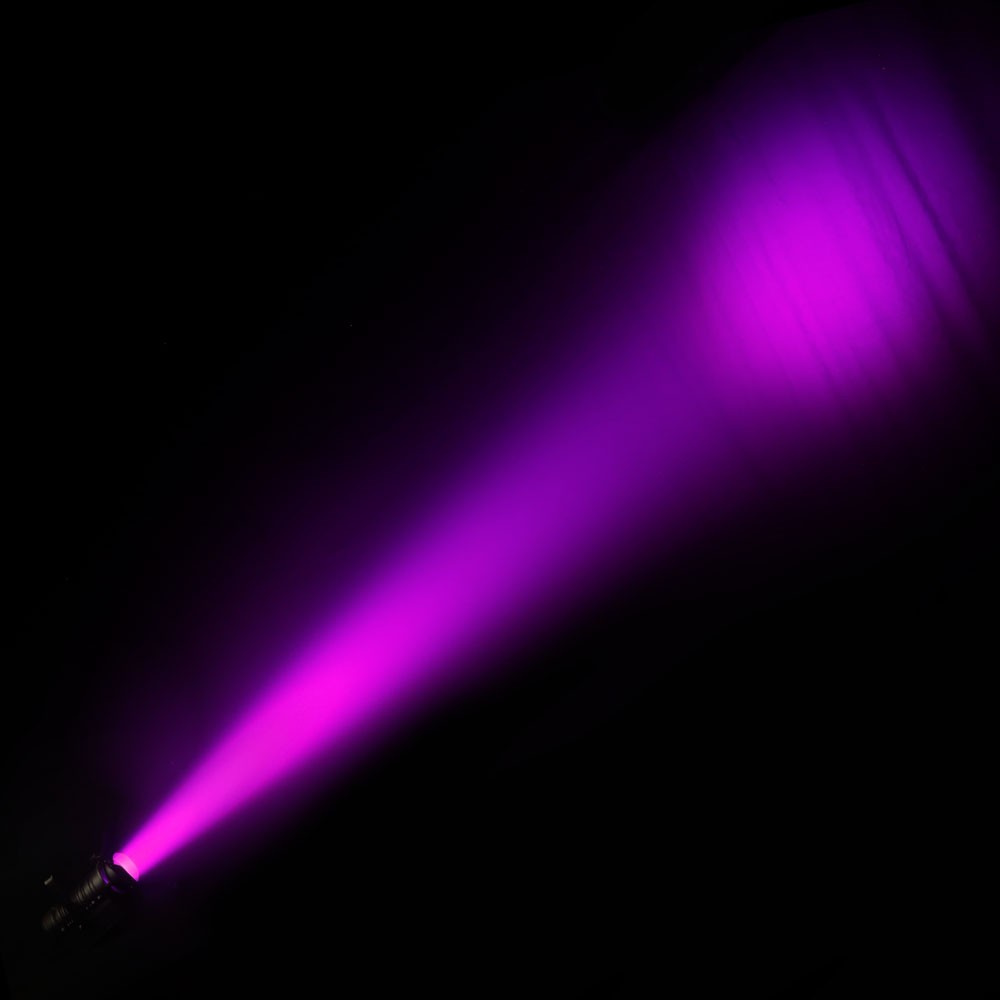

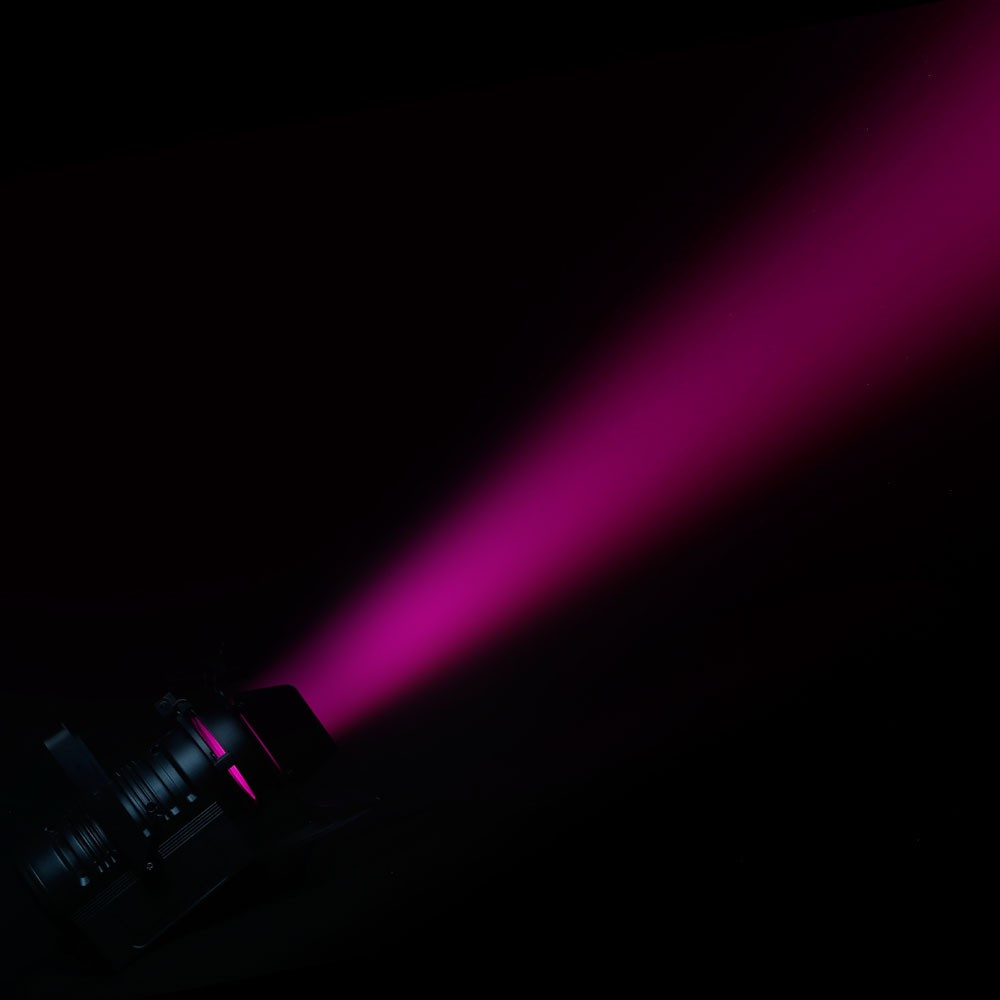

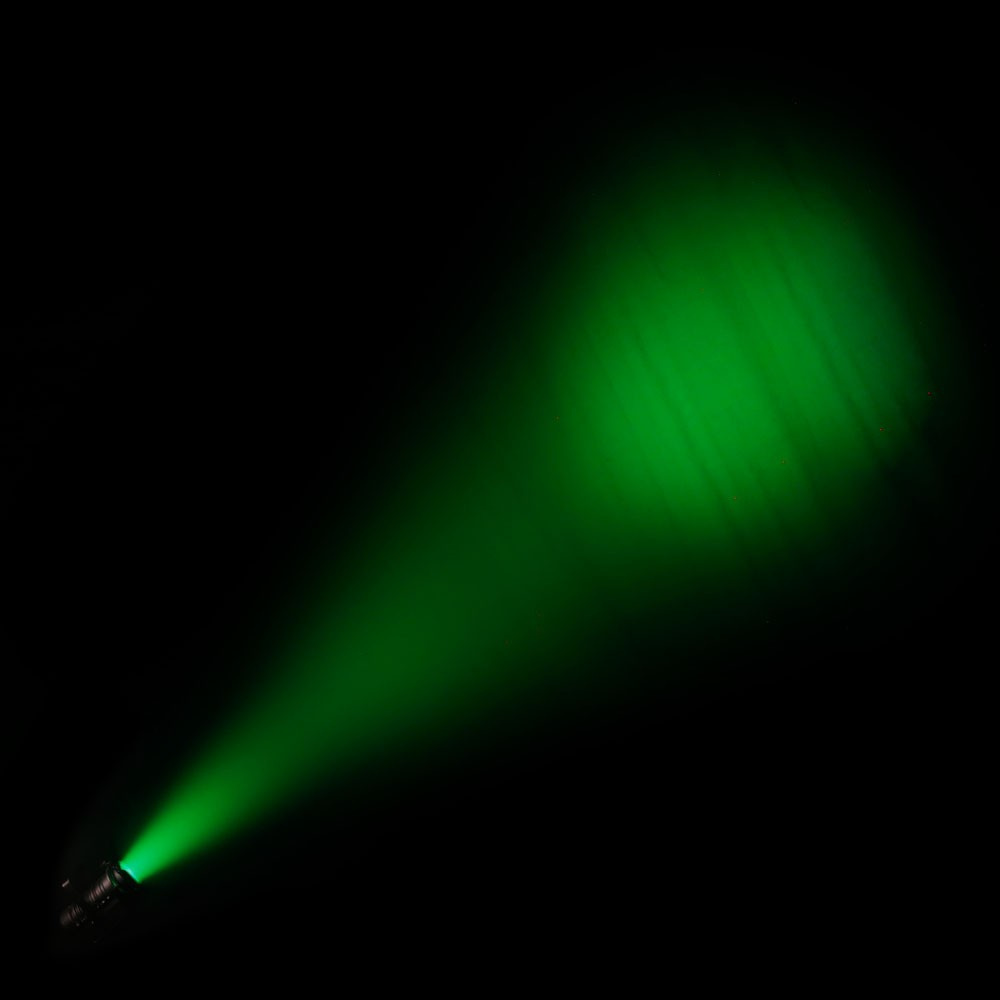

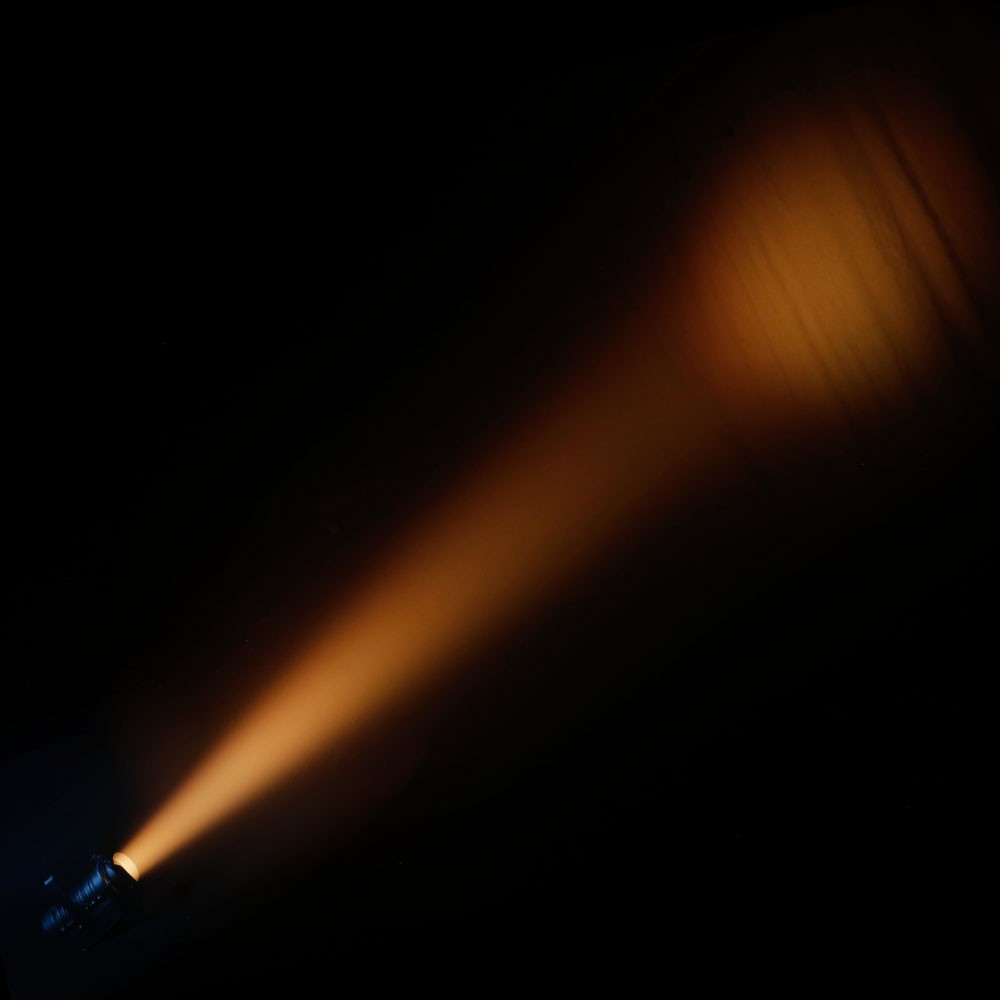

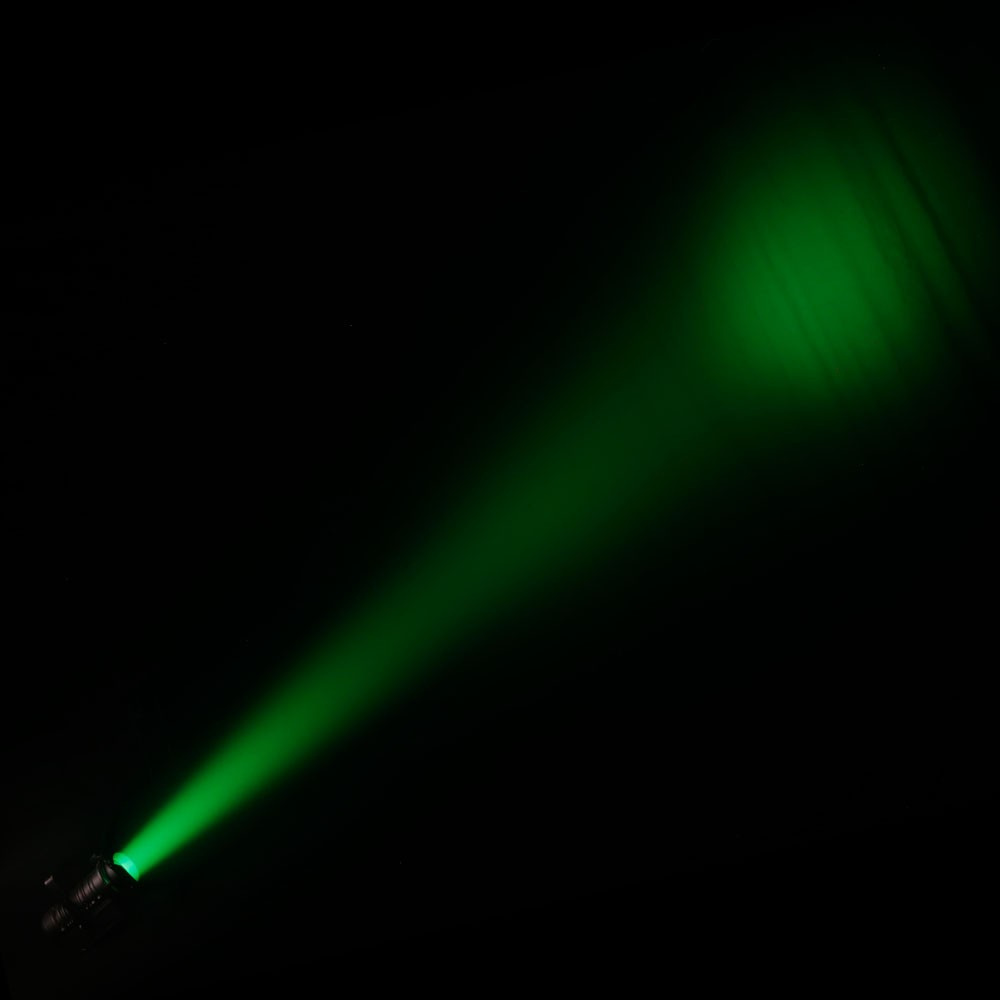

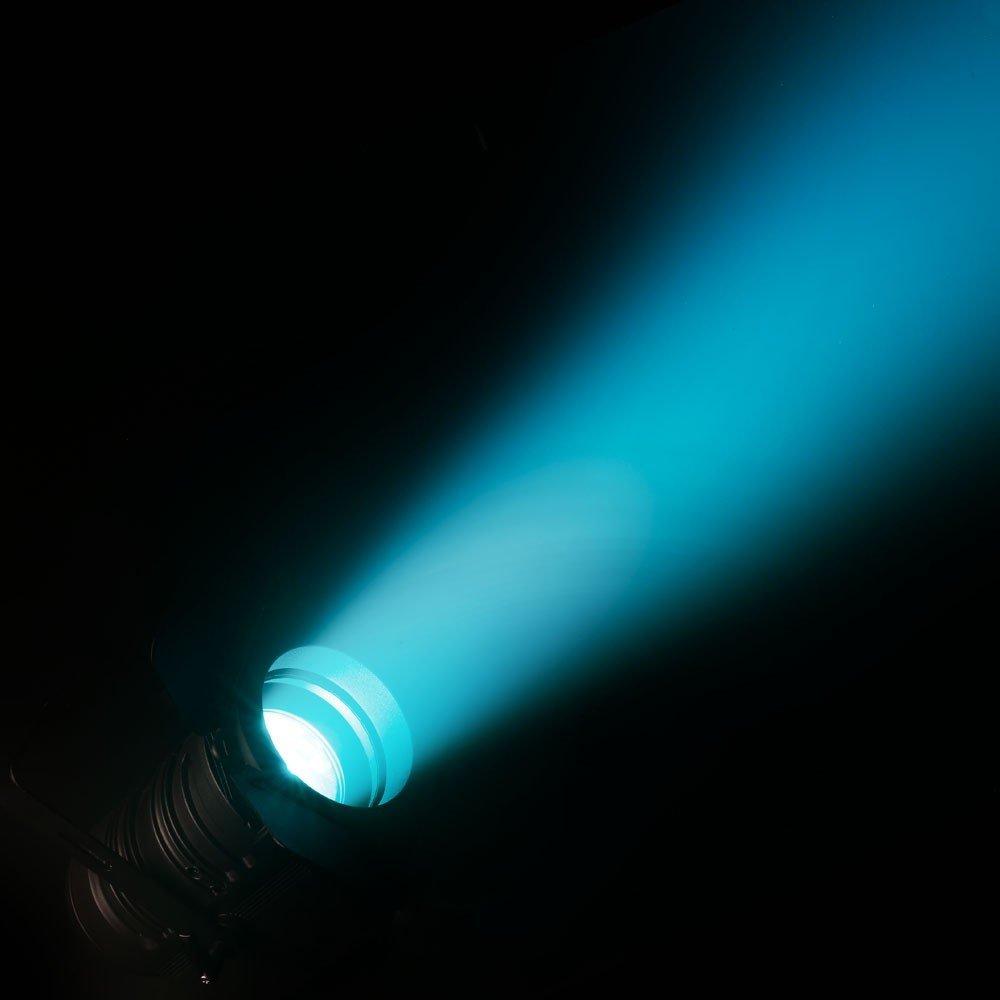

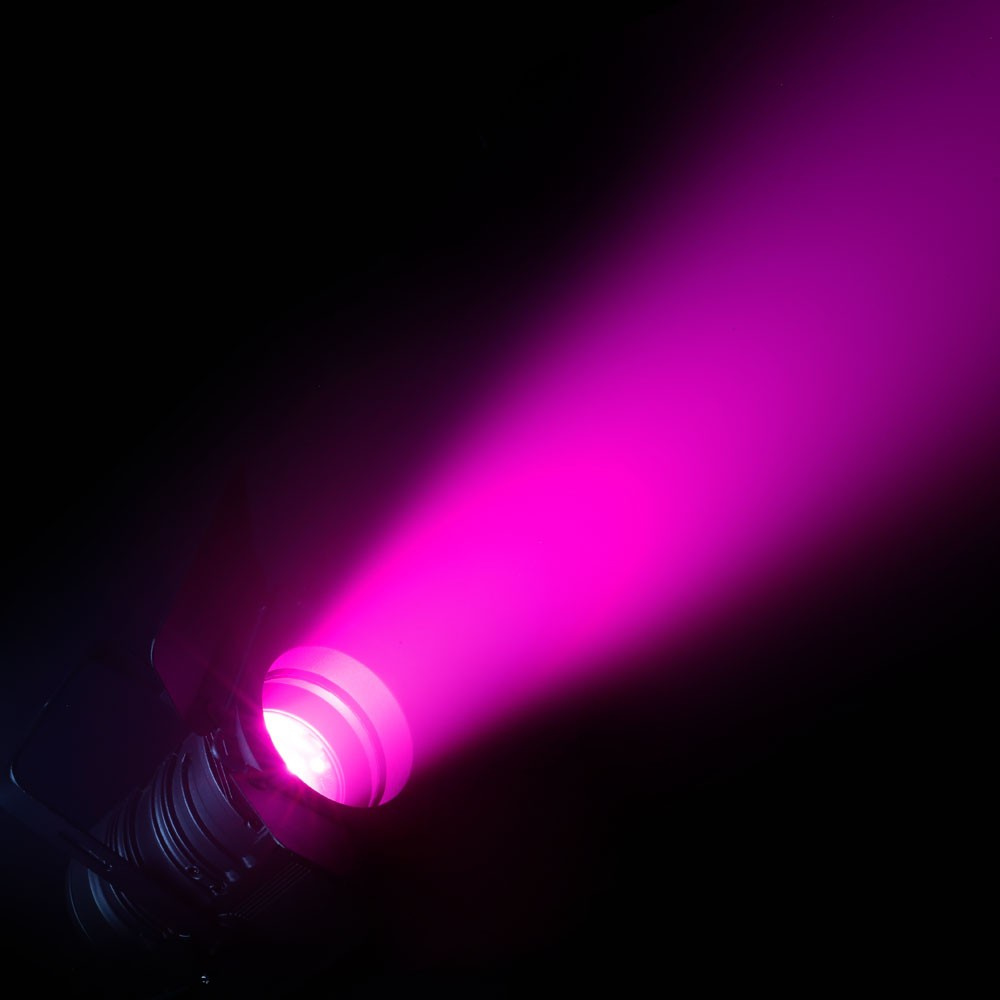

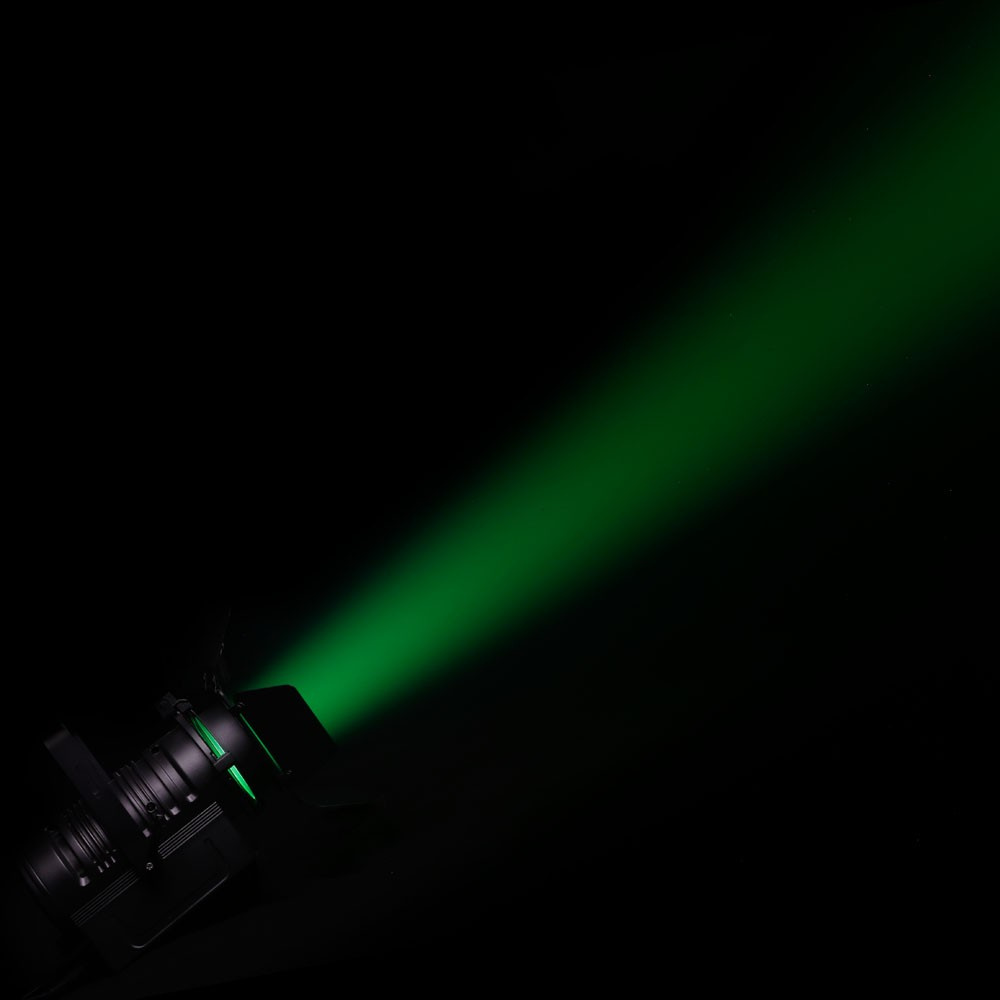

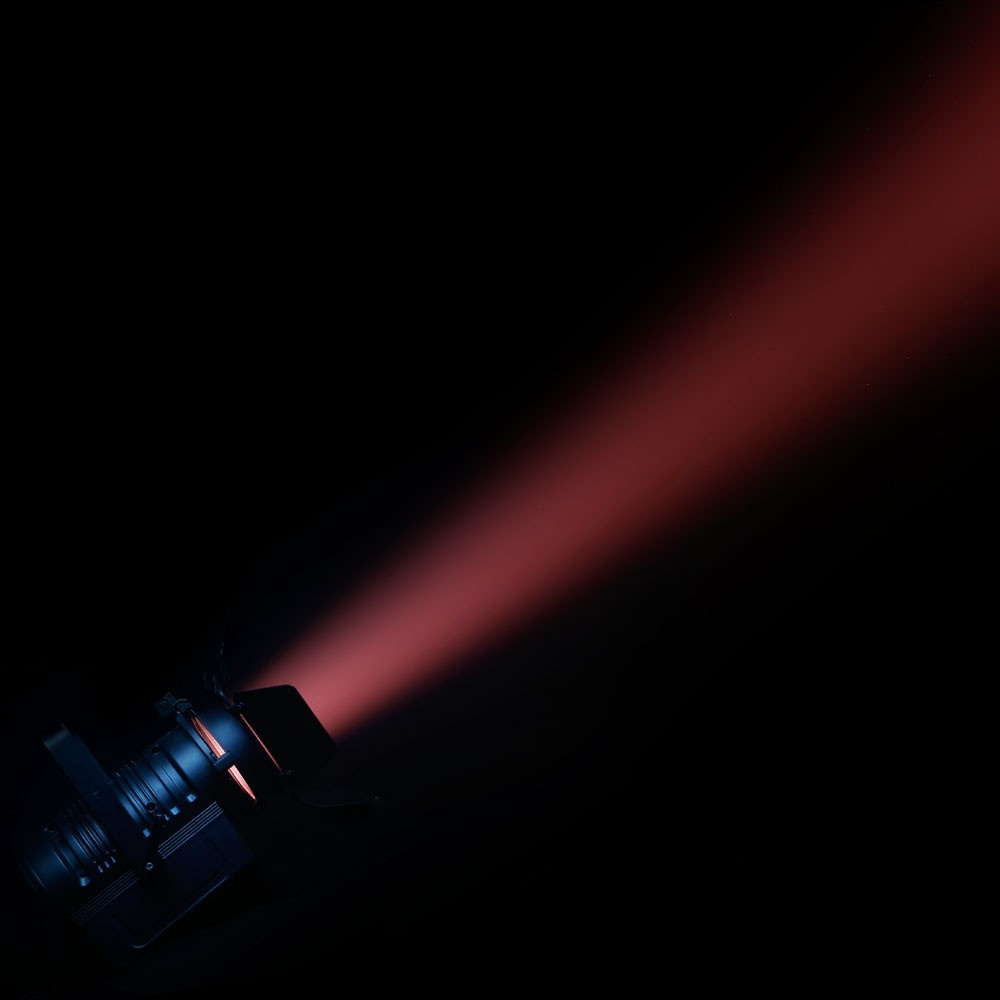

Cameo TS-60W RGBW - theatre projector, equipped with plano-convex lenses and manual zoom for spot-to-flood adjustment. It offers a light beam with soft edges and a continuously variable angle from 9° to 41°. The light is generated by a single RGBW (red, green, blue, white) 60 W LED, providing a luminous intensity of 19,800 lux at a distance of 1 metre. The projector features DMX functions including a high-speed strobe with an adjustable rate of 1 - 20 Hz and a selection of dimming curves.

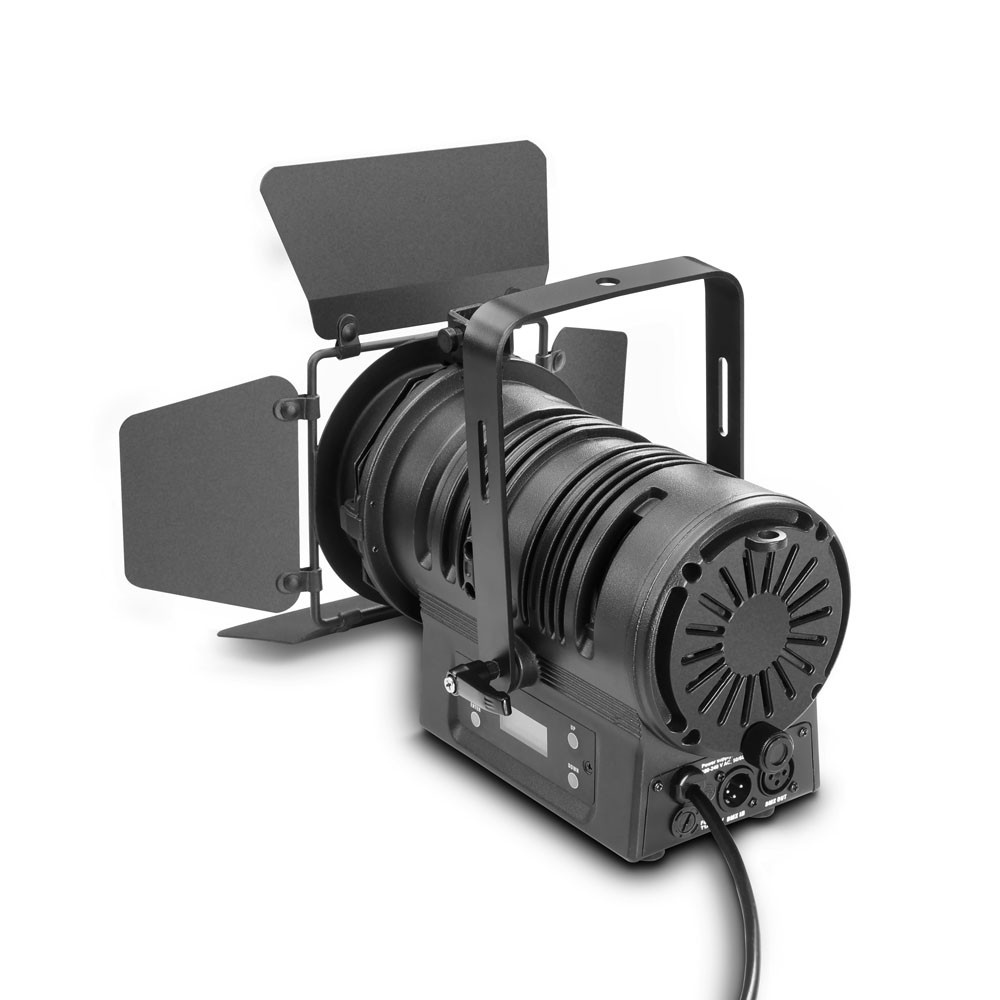

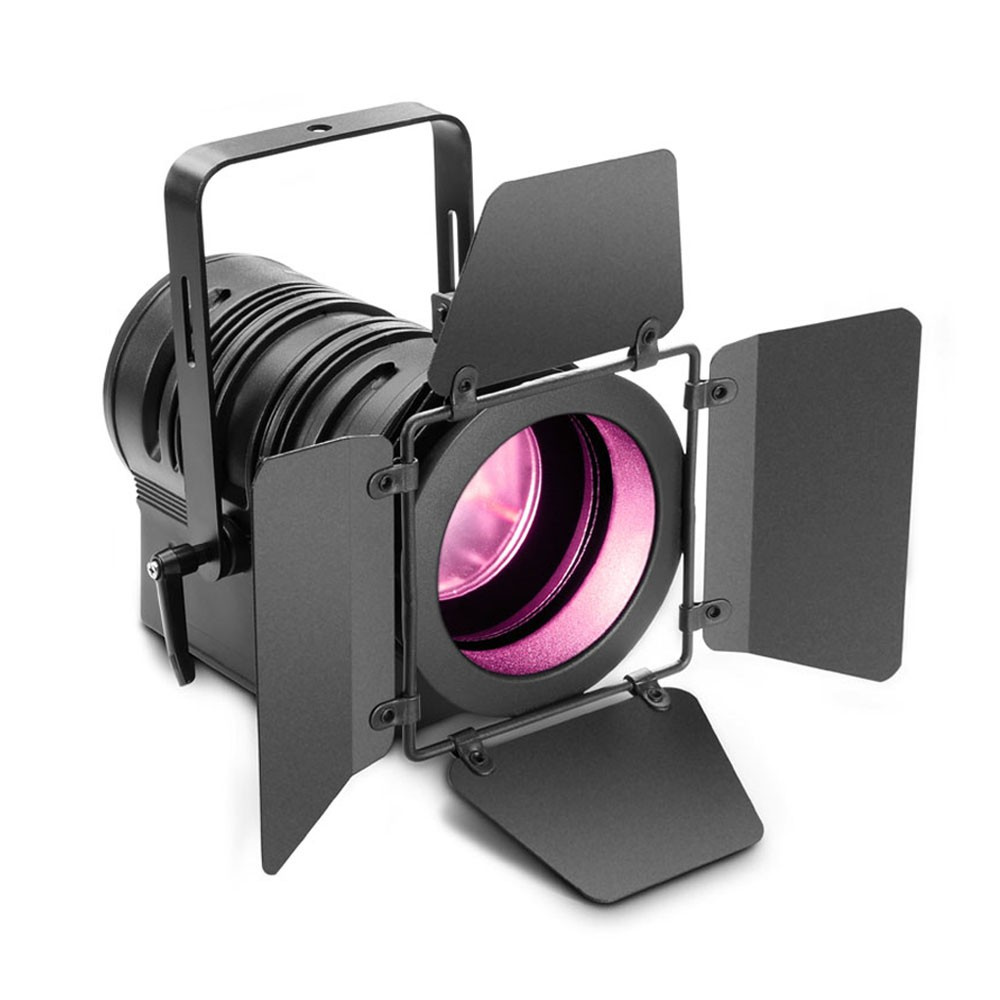

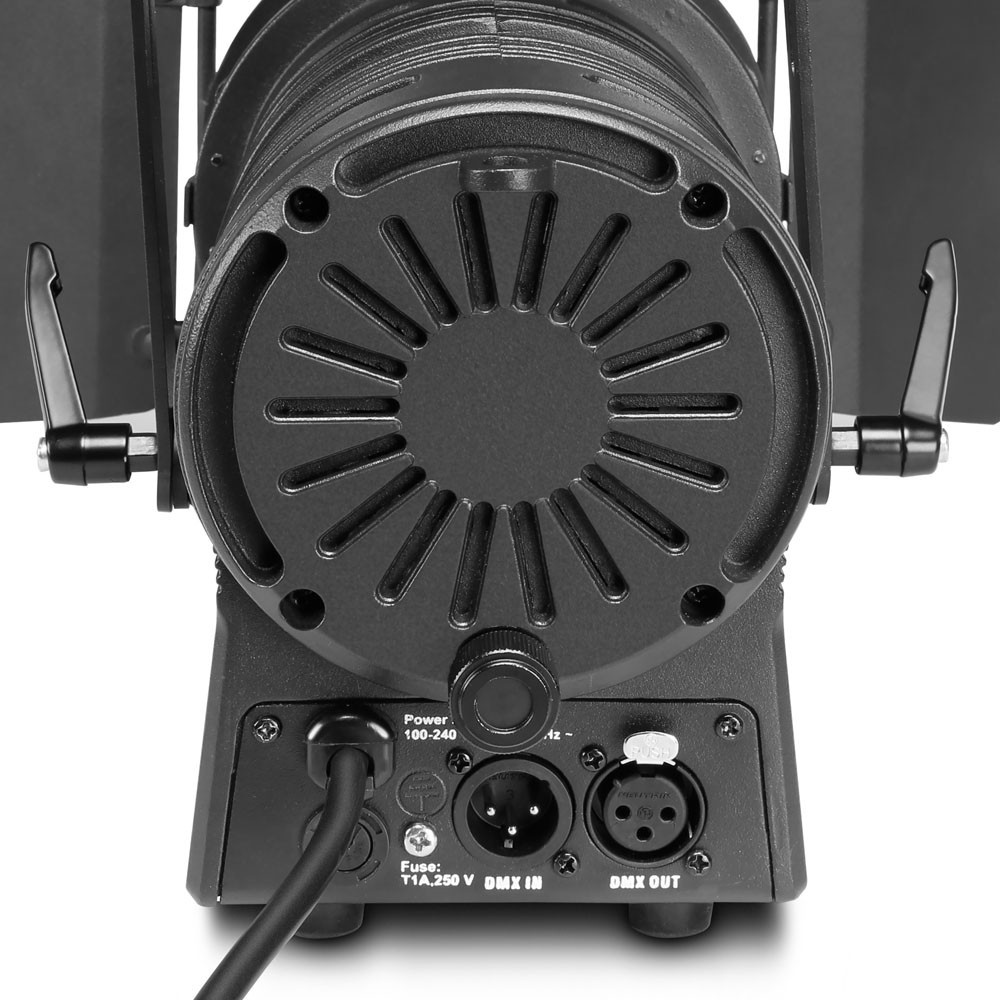

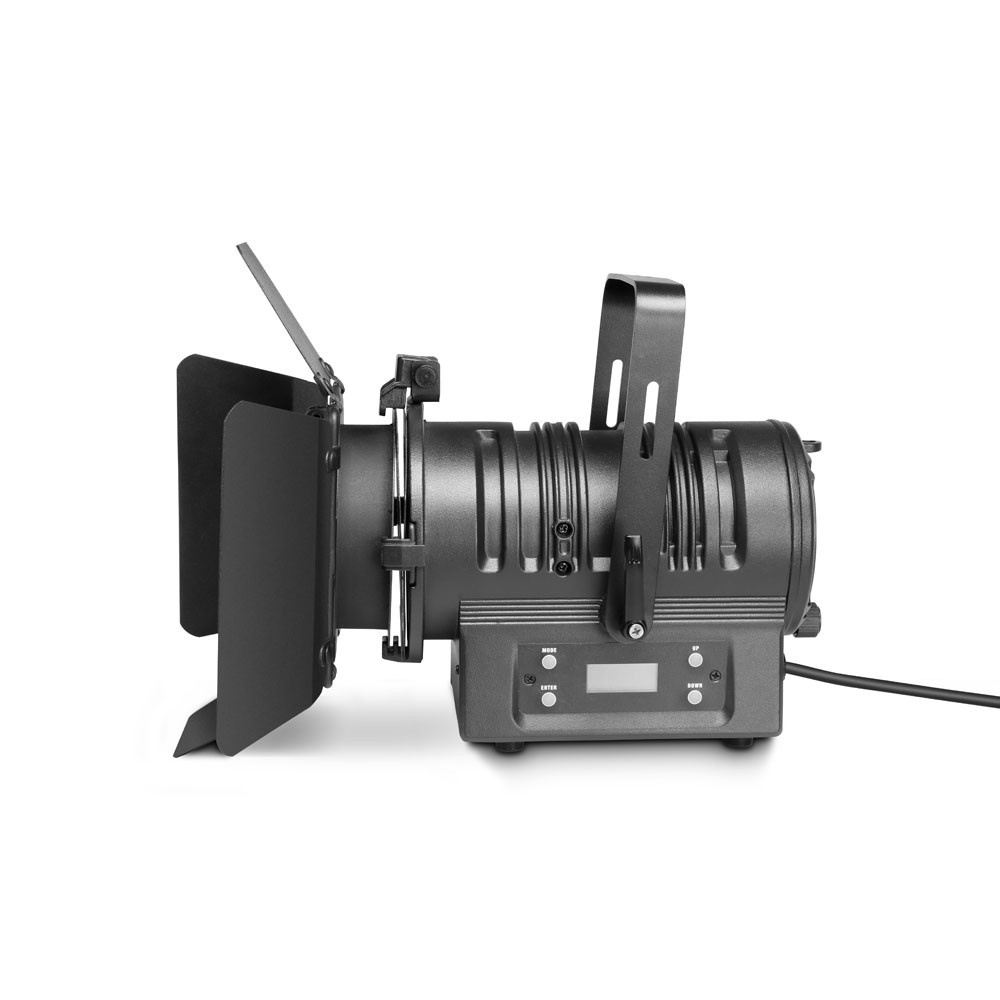

It benefits from sound activation or automatic programmes allowing standalone operation, with a refresh rate of 3,600 Hz, ensuring optimal performance. It has a sturdy metal housing with temperature-controlled fan cooling, a display with 4 buttons for easy configuration, a 3-pin DMX connector, and an IEC power connector, a frame for colour filters, and rotatable barn door flaps for shaping the light beam.

Technical Specifications:

• Product Type: LED PAR Lighting
• Usage Environment: indoor
• Colour Spectrum: RGBW
• Number of LEDs: 1
• LED Type: 60 W
• Refresh Rate: 3600MHz
• Beam Angle: (spot) 9° - 41° / (field) 16° - 49°
• DMX Input: 3-pin male XLR
• DMX Output: 3-pin female XLR
• Protocols: USITT DMX 512 protocol
• DMX Mode: 5 channels
• DMX Functions: dimmer, colour macro, CTO, strobe, RGBW
• Strobe Flash Rate: 1 - 20 Hz
• Standalone Mode: Static, sound control, slave mode, automatic programmes
• Controls: up, mode, Enter, down
• Power Supply: 100 V AC - 240 V AC, 50 - 60 Hz
• Indicators: LC display
• Power Consumption: 65 W
• Power Connector: cable with safety connector (Type E / CEE 7/7)
• Housing Material: metal
• Finish: black
• Cooling: temperature-controlled fan
• Optimal Operating Temperature: 0 - 40°C
• Luminous Intensity: 19800lx at 1m
• Light Output: 910lm
• Dimensions (W x H x D): 145 x 205 x 240 mm
• Weight: 3.6kg
• Included Accessories: barn door flaps
