Audio-Technica ATW-SC410

UHF Splitter/Combiner

passive UHF splitter/combiner for antenna signal management.
covers frequency range from 470 to 990 MHz.
standard 50-ohm impedance with BNC connectors.
typical transmission loss of 2 dB at high frequencies.
compact dimensions: 100 mm × 99.8 mm × 30 mm.

335⁶⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1746 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Audio-Technica ATW-SC410 Add to cart: 335⁶⁴ €

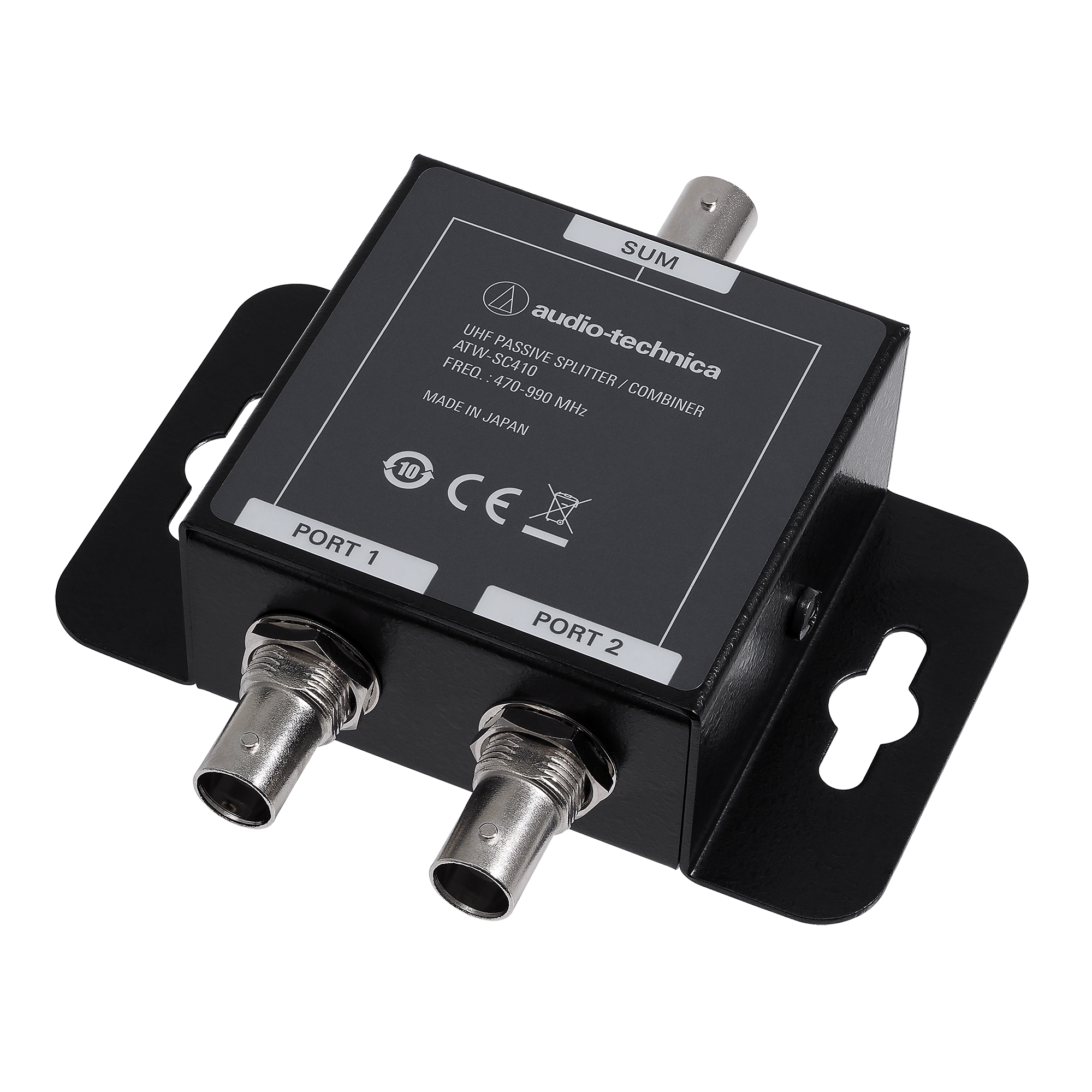

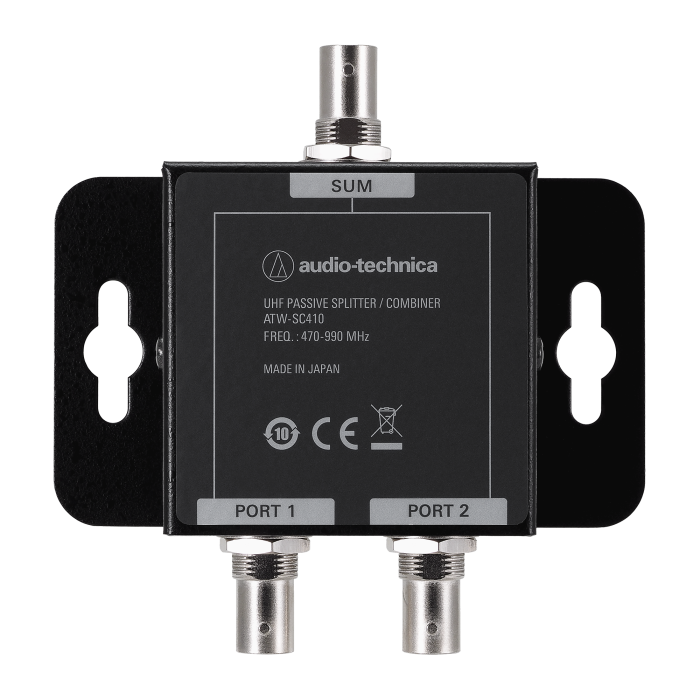

Audio-Technica ATW-SC410 – Passive UHF Splitter/Combiner that can be used to combine or distribute antenna signals. Standard industry BNC connectors allow for easy connection of wireless microphone antennas without the need for power or user configuration. The wideband capacity covers the entire frequency range between 470 and 990 MHz.

Passive operation
Frequency range 470 - 990 MHz
Impedance 50 ohms
Transmission loss at high frequencies 2 dB (typical)
Current pass 420 mA
BNC-J connections x 3
Dimensions 100 mm × 99.8 mm × 30 mm (L × W × H)
Weight 204 g
Made in Japan

Product code: ATW-SC410

Unit of sale: pereche
