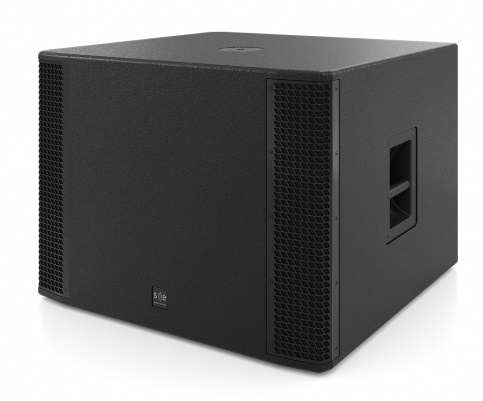

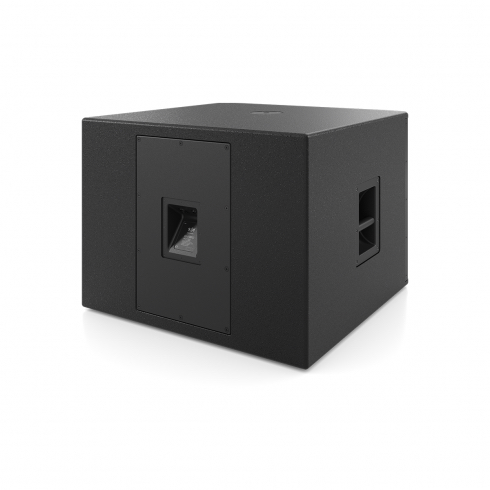

SE Audiotechnik CV-118B - The CV-118B band-pass subwoofer is a perfect match for the CV series and makes bass a truly perceptible experience. Good sound needs a strong foundation. With its superior technical design, the CV-118B easily enriches the SE AUDIOTECHNIK CV-Line and other SE speaker systems with its rich, clear, and dynamic bass response.
The highly efficient 18-inch woofer, combined with a large 4-inch coil, achieves up to 142 dB SPL maximum and reproduces down to 31 Hz. With a continuous power of 850 W (3,400 W peak) and a decent sensitivity of 101 dB (1W/1m), the CV-118B subwoofer covers a wide dynamic range.
For safe and comfortable transport and setup, the CV-118B is equipped with two ergonomic handles on the sides. The anti-slip feet on the bottom ensure stable support, while the M20 pole mount on the top allows for flexible use.
The subtle cabinet, compact dimensions, and band-pass design ensure discreet integration into the surrounding environment, which is often not achievable with direct-radiating subwoofers. The CV-118B design offers uniform room coverage, with minimal nonlinear distortion and defined sound in the passband frequency range, even at higher levels.
The CV-118B subwoofer is particularly suitable for installation applications, bars, small venues, and whenever there is a short listening distance from the audience.
Technical Specifications:
Frequency response (±3 dB): 40 Hz – 130 Hz
Frequency range (-10 dB): 31 Hz – 140 Hz
Coverage angles (-6 dB) [H x V]: Omnidirectional
Nominal impedance: 8 Ω
Sensitivity: 101 dB
Peak power: 3400 W
Continuous power: 850 W
Maximum peak SPL: 142 dB
System type: 1-Way Passive System
Transducers: 1 x 18" (4" coil)
Cabinet type: Bandpass box
Connectors: Input signal: Neutrik speakON® NL4
Link output: Neutrik speakON® NL4
Wiring:
Pins +1/-1 input / THRU
Ştifturi +2/-2 N.C
Dimensions: 558 x 762 x 682 mm
Weight: 62 kg
Packaging dimensions: 676 x 860 x 780 mm
Total weight: 74 kg
Cabinet: 18 mm plywood
Finish: Coated with black polyurea
Grille: Perforated steel powder-coated
Hardware: Two ergonomically placed handles on the side
