RCF HDL 36-AS

RCF HDL 36-AS - The HDL 36-AS is the ideal bass complement for the HDL 30-A matrix system. It features a 4.0-inch voice coil, 15-inch neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with maximum linearity and low distortion. It is perfect for creating systems for theatre and indoor requirements. The built-in 3200 W class D amplifier provides excellent playback clarity and up to 135 dB SPL max.

Features:

• Max SPL 135 dB
• Peak 3200 W class D amplifier
• Frequency response 40 - 140 Hz
• RDNet network management

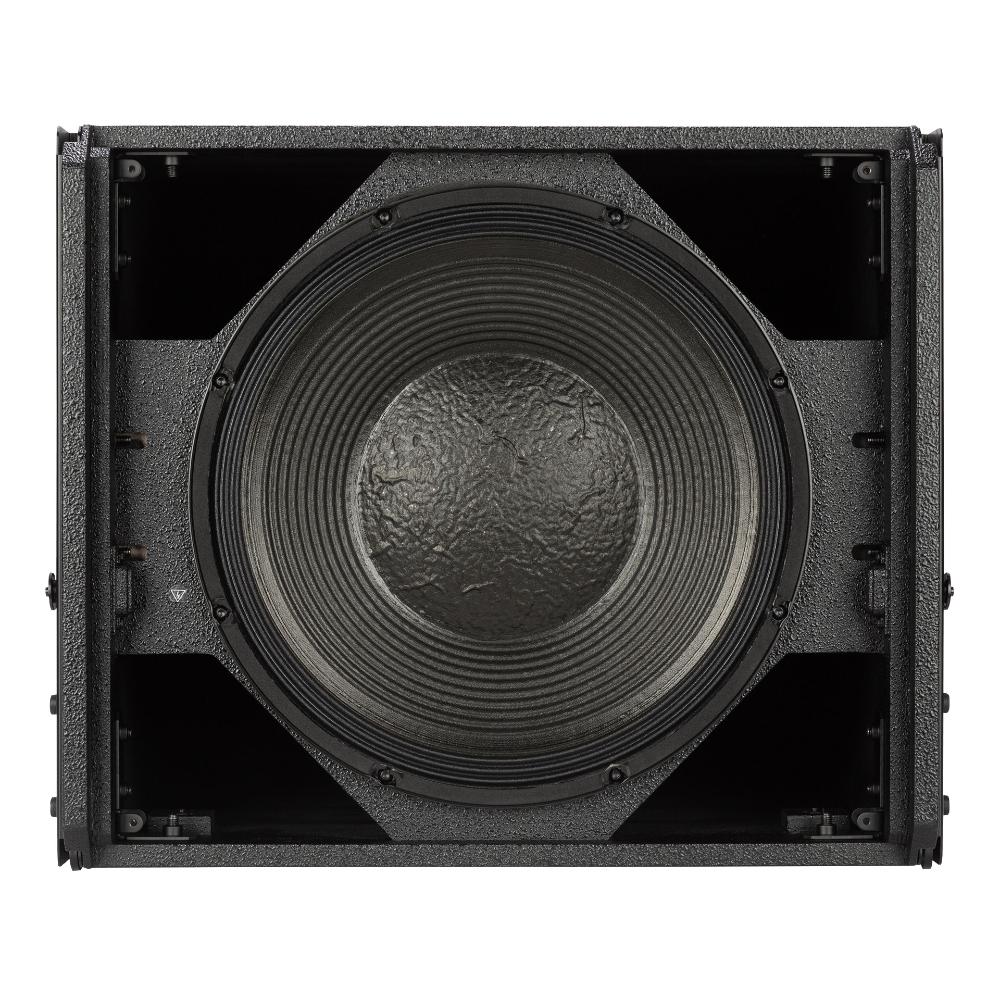

• 1x15" neodymium woofer, 4.0" voice coil

Technical Specifications:

• Frequency response: 40 - 140 Hz
• Max SPL at 1 m: 135 dB
• Woofer: 15'' neo, 4.0'' v.c
• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu
• Crossover frequency: 680 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter

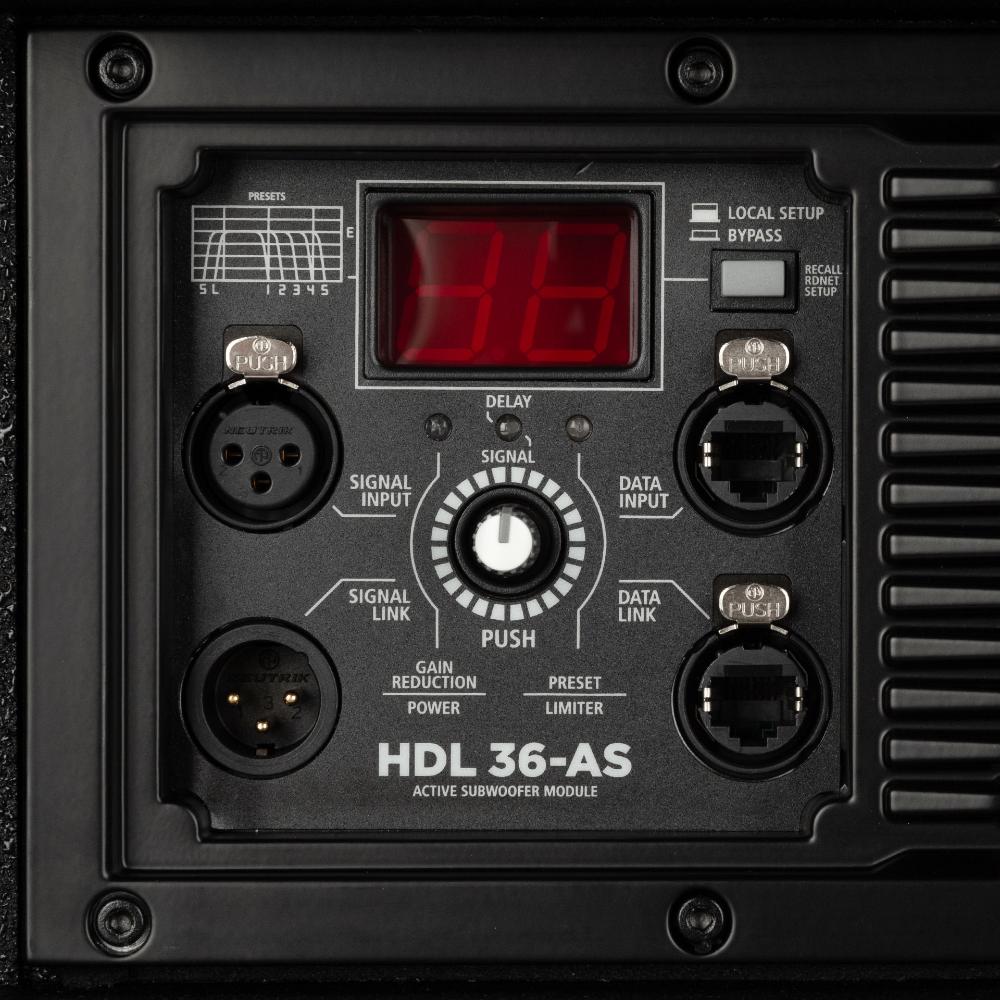

• Controls: Volume, Preset selection, RDnet onboard
• RDNet: Yes
• Total power: 3200 W peak, 1600 W RMS
• Low frequencies: 3200 W peak, 1600 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT
• Cabinet material: Baltic birch plywood
• Hardware: Array fittings 1 X M20

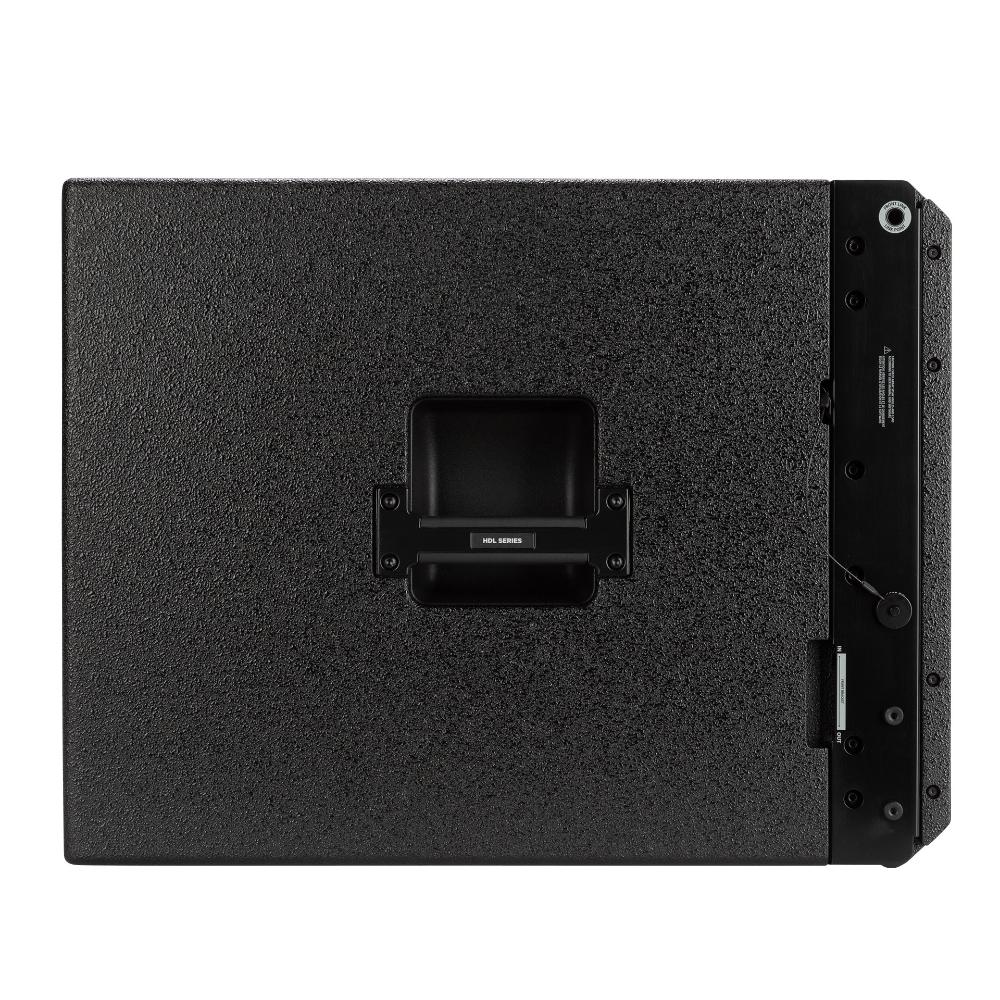

• Handles: 2 on sides
• Grille: Steel
• Colour: Black, White - RAL 9003
• Dimensions: 467 x 555 x 593 mm
• Weight: 37 kg
• Shipping dimensions: 500 x 570 x 610 mm
• Shipping weight: 40 kg
