Adam Audio T8V

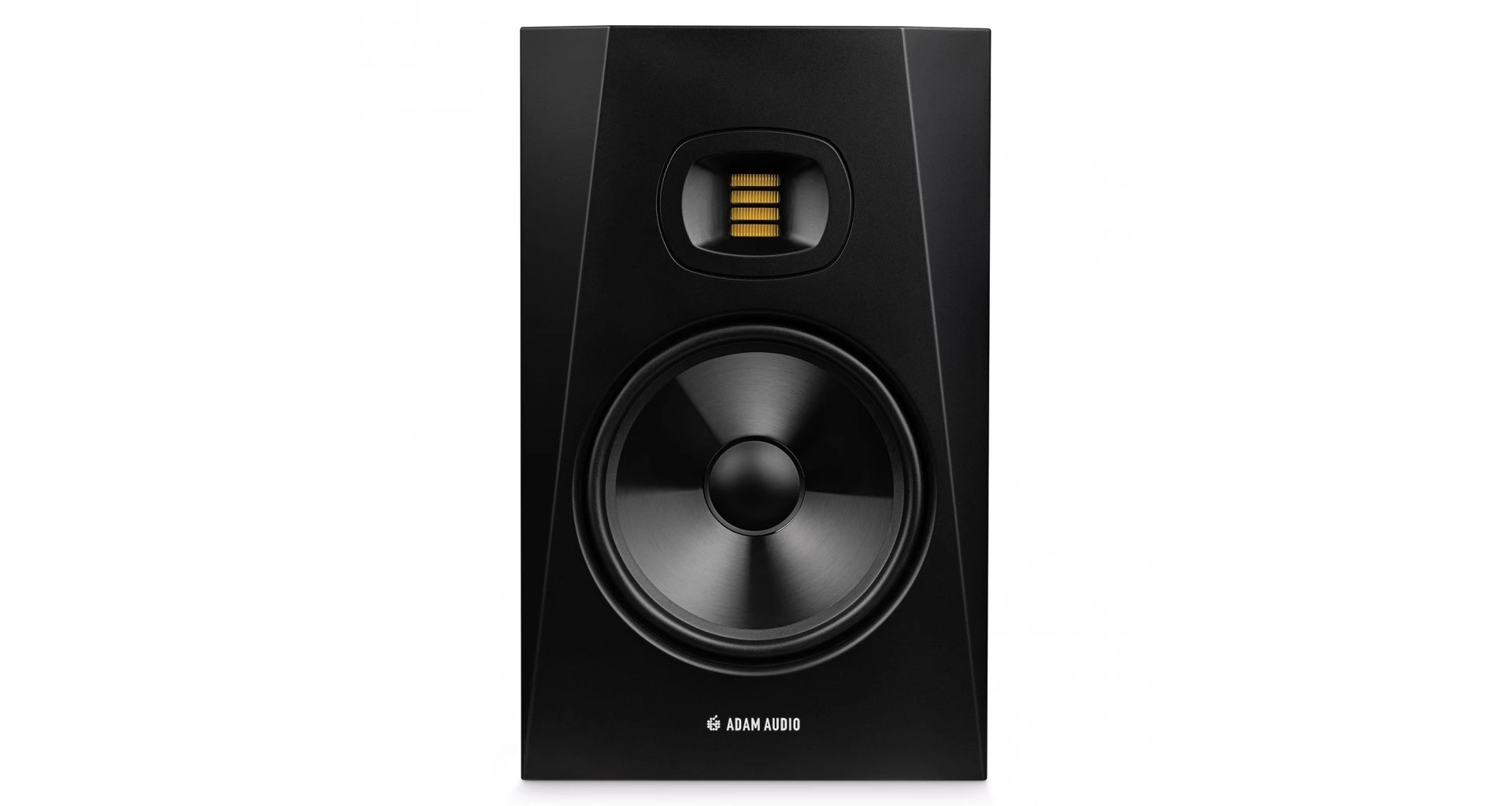

Adam Audio T8V is a professional active studio monitor, 2-way, affordable, equipped with an 8” woofer and the latest addition to the T series from ADAM Audio.

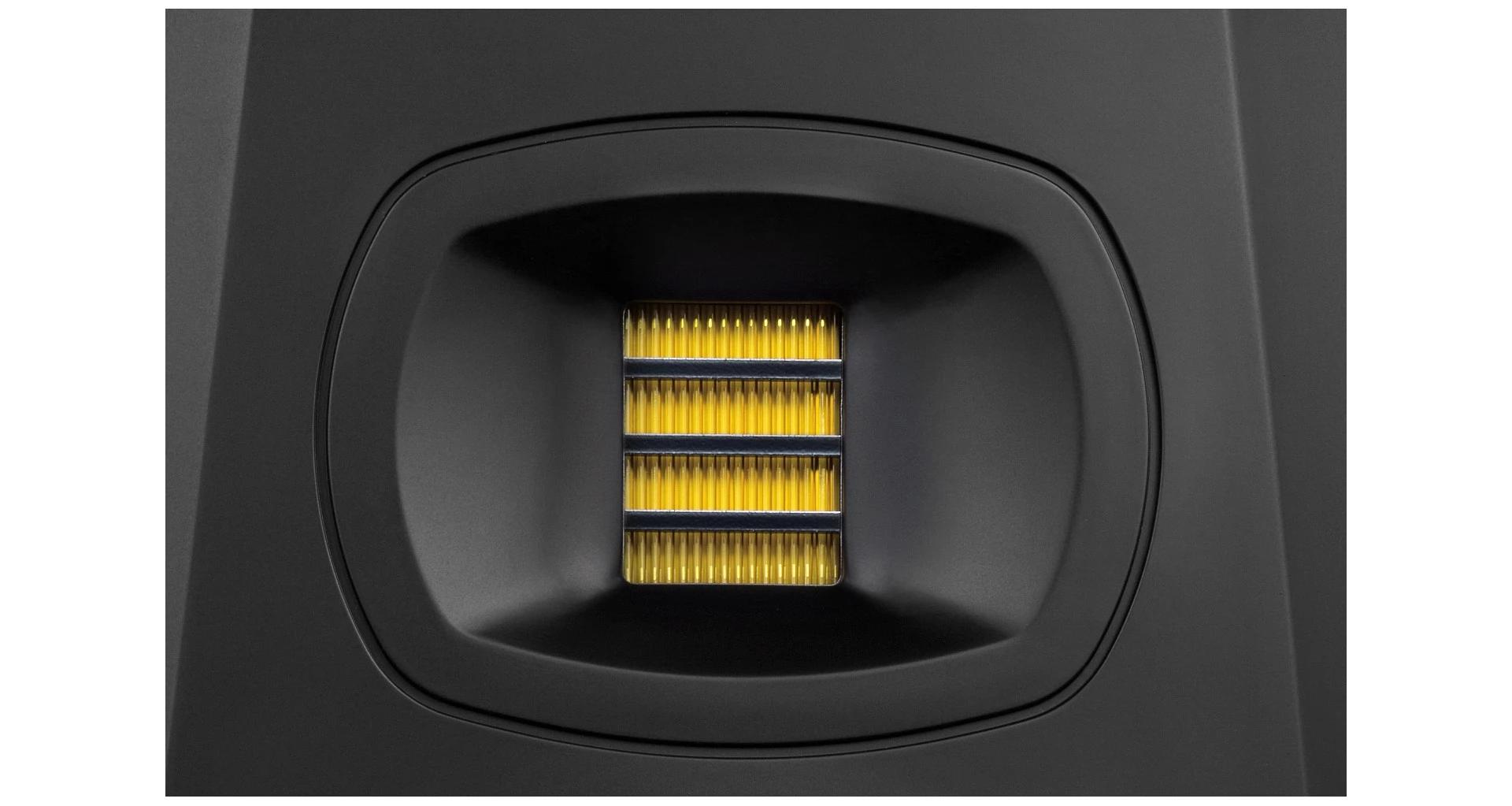

T8V impresses with a range of features that provide real benefits to the user: the U-ART tweeter, with a 4:1 speed transfer ratio, along with new high dynamic range class D amplifiers, offers a maximum sound pressure level (SPL) of 118 dB per pair. The tweeter, which extends up to 25 kHz, works in tandem with the HPS waveguide. This allows for optimal dispersion of high frequencies, resulting in a more controlled and wider sweet spot during monitoring. With a low-frequency extension down to 33 Hz, T8V is particularly suitable for users producing music with a focus on bass.

• Woofer
  • Diameter: 8 Inch (203 mm)
  • Cone Material: Polypropylene
• Tweeter
  • Tweeter type: U-ART.
  • Diaphragm diameter: 4 inch² (2420 mm²).
  • Equivalent diaphragm diameter: 1.9 Inch (48 mm).
  • Speed transfer ratio: 4:1
  • Diaphragm weight: 0.17 g
  • Waveguide: HPS
• Built-in amplifiers
  • Woofer amplifier type: PWM
  • Tweeter amplifier type: PWM.
  • RMS amplifier power: 90 W (70 woofer + 20 tweeter)
• Control Panel
  • Input sensitivity: +4dBu / -10dBV
  • High control: -2 dB, 0 dB, +2 dB
  • Low control: -2 dB, 0 dB, +2 dB
  • Gain: Yes

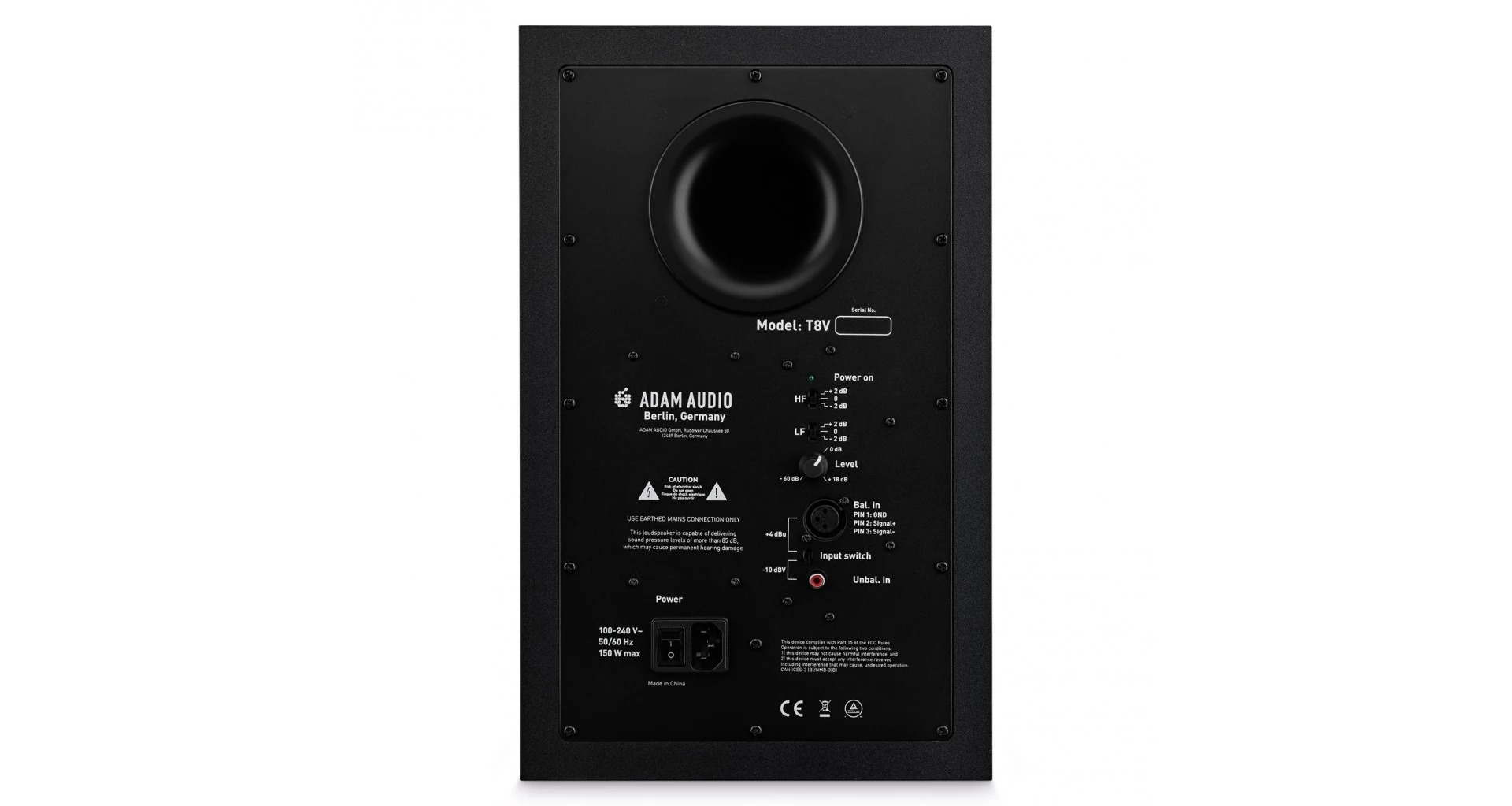

• Input connectors
  • Analog: XLR / RCA
• Frequency response: 33 Hz - 25 kHz
• THD above 80 Hz: up to 0.5 percent
• Max SPL / pair at 1m: > 118 dB
• Crossover frequency: 2.6 kHz
• Max consumption: 150 W
• Input impedance: 10 kOhm / 20 kOhm
• Weight: 9.8 kg
• Dimensions: 400 x 250 x 335 mm
