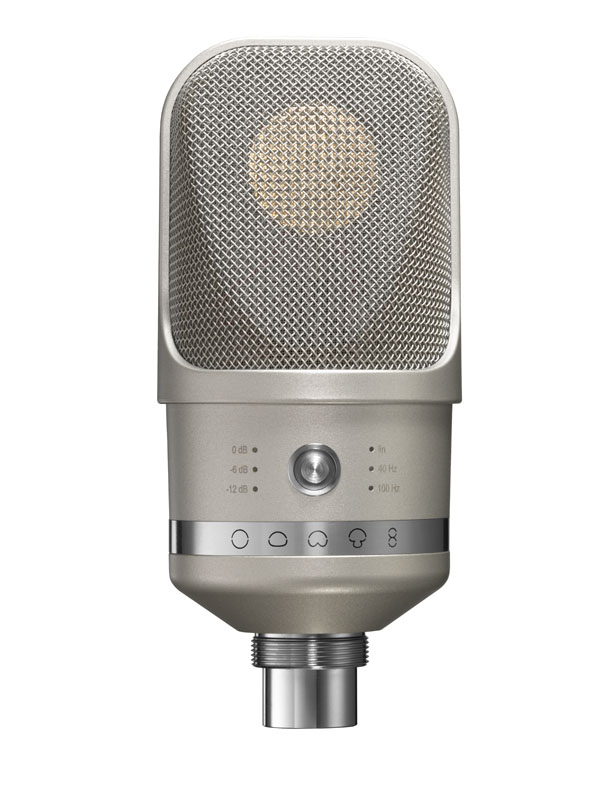

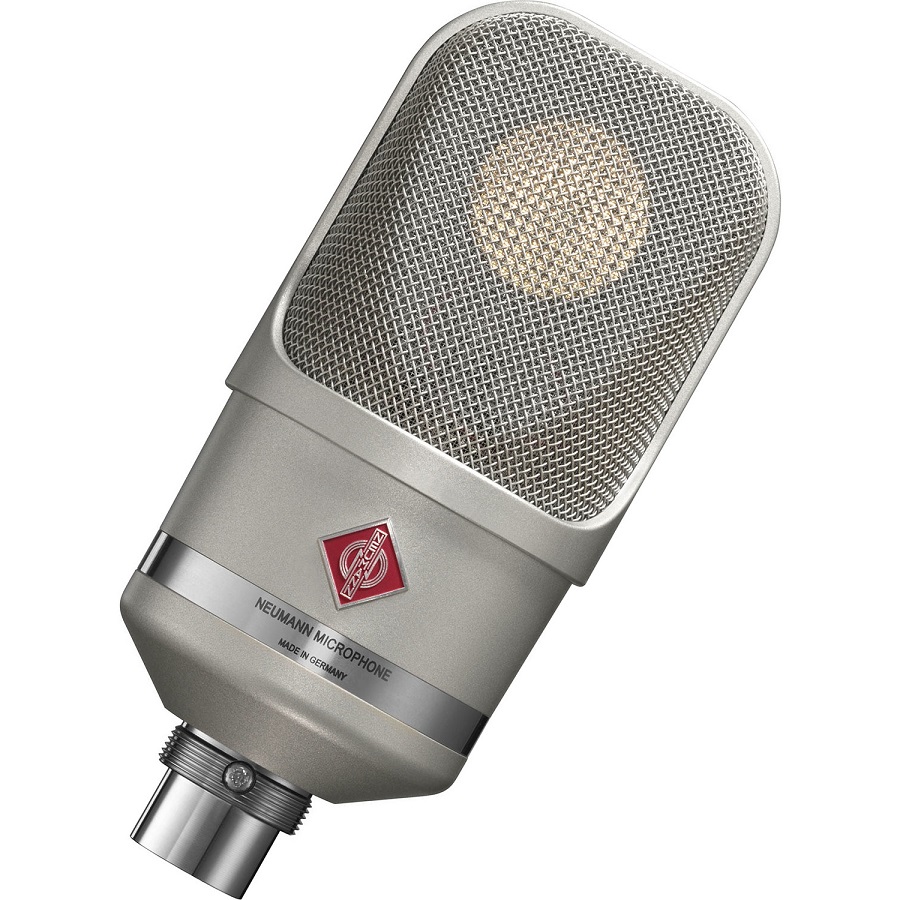

Neumann TLM 107

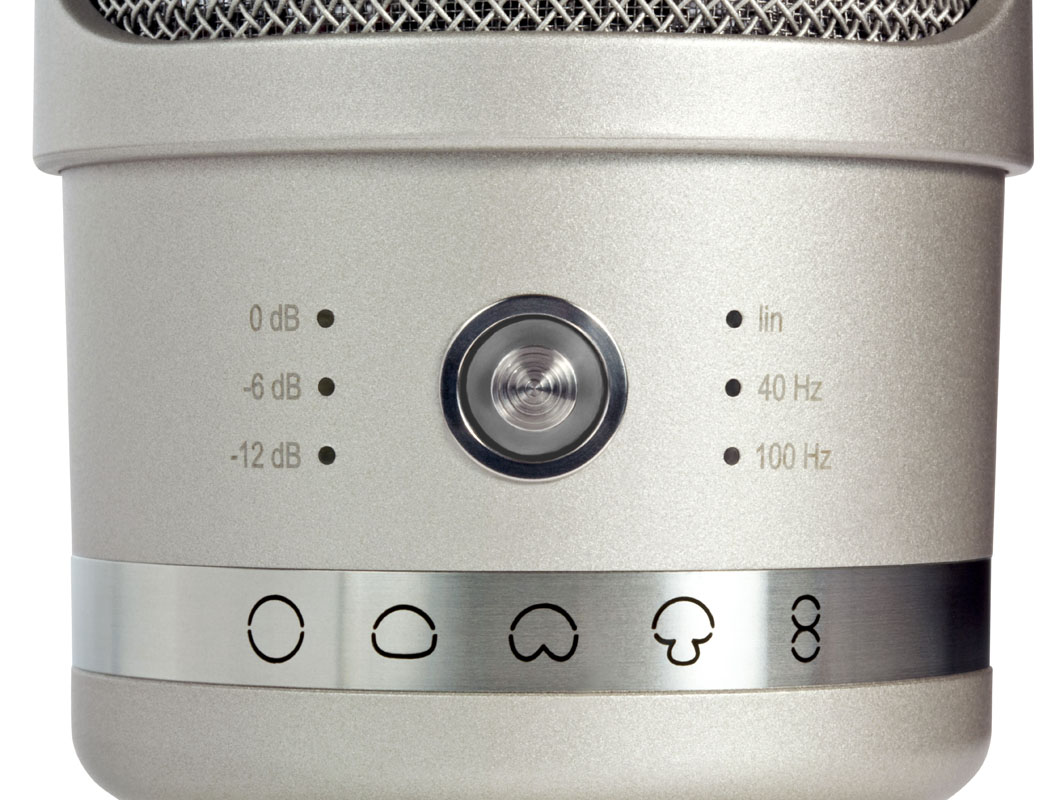

Neumann TLM 107 - studio microphone with a large diaphragm. It features 5 selectable polar patterns (omnidirectional, wide cardioid, cardioid, hypercardioid, and figure-8) via a LED display selector. It delivers a transparent, natural, and balanced sound across all 5 polar patterns.

It is suitable for most applications, from capturing vocals, orchestras, as an instrument microphone for string and wind instruments, drums, and guitar amplifiers, to broadcasting, film music, and gaming, etc.

The transformerless circuit allows for linear sound reproduction with a wide dynamic range. The sound pressure level of 141 dB SPL can be increased to 153 dB SPL through the pre-attenuation (PAD) function.

• Condenser type
• Selectable pattern: Omni, wide cardioid, cardioid, hypercardioid, figure-8
• Switchable pad attenuation
• Adjustable low-cut filter at 40 Hz or 100 Hz
• Frequency response: 20 Hz-20 kHz
• Sensitivity at 1 kHz / 1 kohm: 11 mV/Pa
• Impedance: 50 ohms
• Equivalent noise level, CCIR1: 22 dB
• Equivalent noise level, A-weighted1: 10 dB-A
• Signal-to-noise ratio, CCIR1 (ref. 94 dB SPL): 72 dB
• Signal-to-noise ratio, A-weighted1) (ref. 94 dB SPL): 84 dB
• Max SPL for THD < 0.5%2) 141 dB
• Max SPL for THD < 0.5%2) with pre-attenuation -6 dB 147 dB
• Max SPL for THD < 0.5%2) with pre-attenuation -12 dB 153 dB
• Maximum output voltage: 10 dBu
• Power supply (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3.2 mA
• 3-pin XLR connector
• Weight: 445 g
• Diameter: 64 mm
• Length: 145 mm

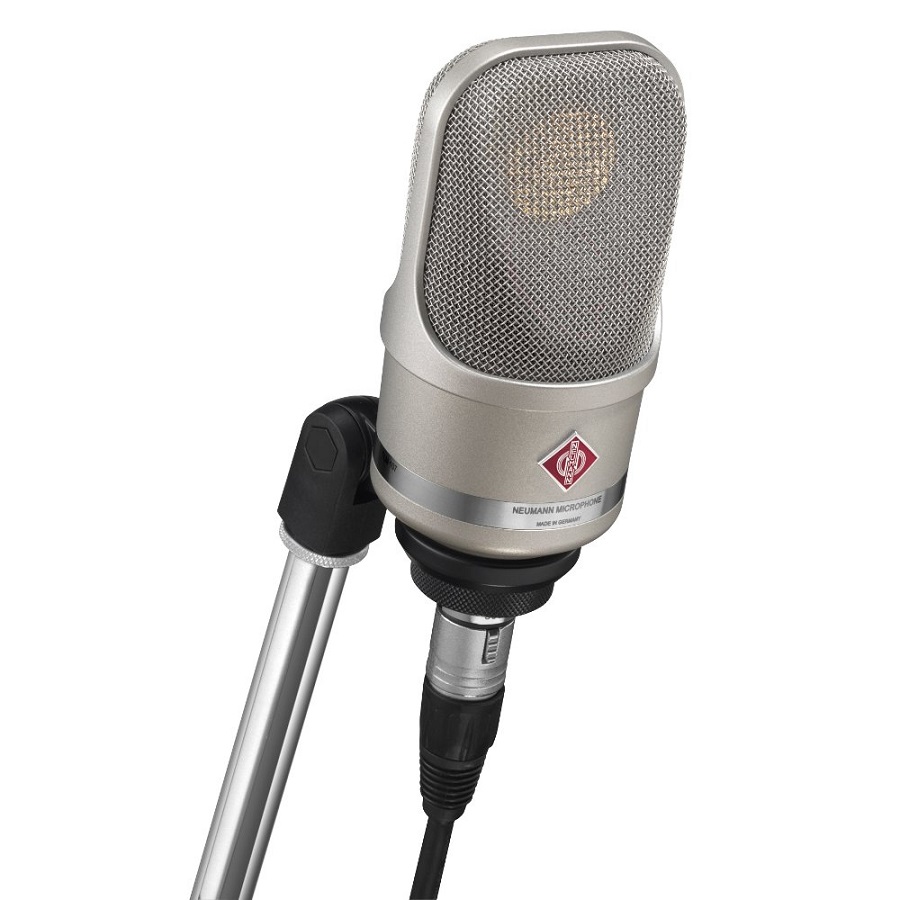

• Includes SG 2 microphone stand mount.
• Nickel finish
