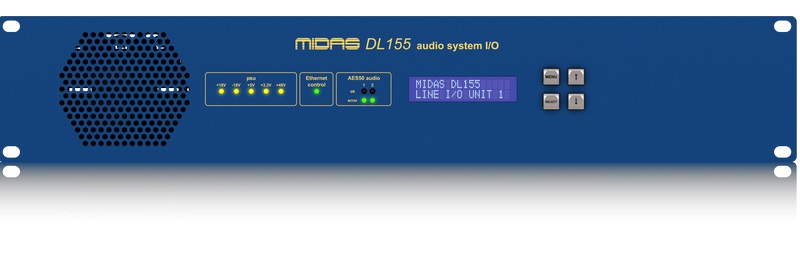

Midas DL155

Stage Box Midas DL155

• 8 Midas microphone preamplifiers
• +48 V phantom power
• Remote control via cable up to 100 m using CAT5/5e
• 8 digital AES3 (AES/EBU) inputs/outputs
• Sample rate 96 kHz or 48 kHz
• All settings selectable
• LCD screen
• Supports dual AES50 network
• Neutrik etherCON* AES50 port
• 2U chassis
• Colour: Blue

Specifications:

• Type: stage box, Mic/Line Level
• Analog inputs: 8 XLR
• Analog outputs: 8 XLR
• Digital inputs: 4 (8 channels)
• Digital outputs: 4 (8 channels)
• 1 x RJ45 Ethernet
• 2 x Neutrik etherCON
• 1 x 9 pin diagnostic
• +48 V phantom power
• Sample rate: 48 kHz, 96 kHz
• Dynamic range: 107 dB (20 Hz - 20 kHz)
• Input/output impedance: 10k Ω/ 50 Ω
• 24 bit, 96 kHz D/A conversion
• Power consumption: 150 W
• Dimensions: 483 x 416 x 88 mm
• Weight: 6.7 kg
