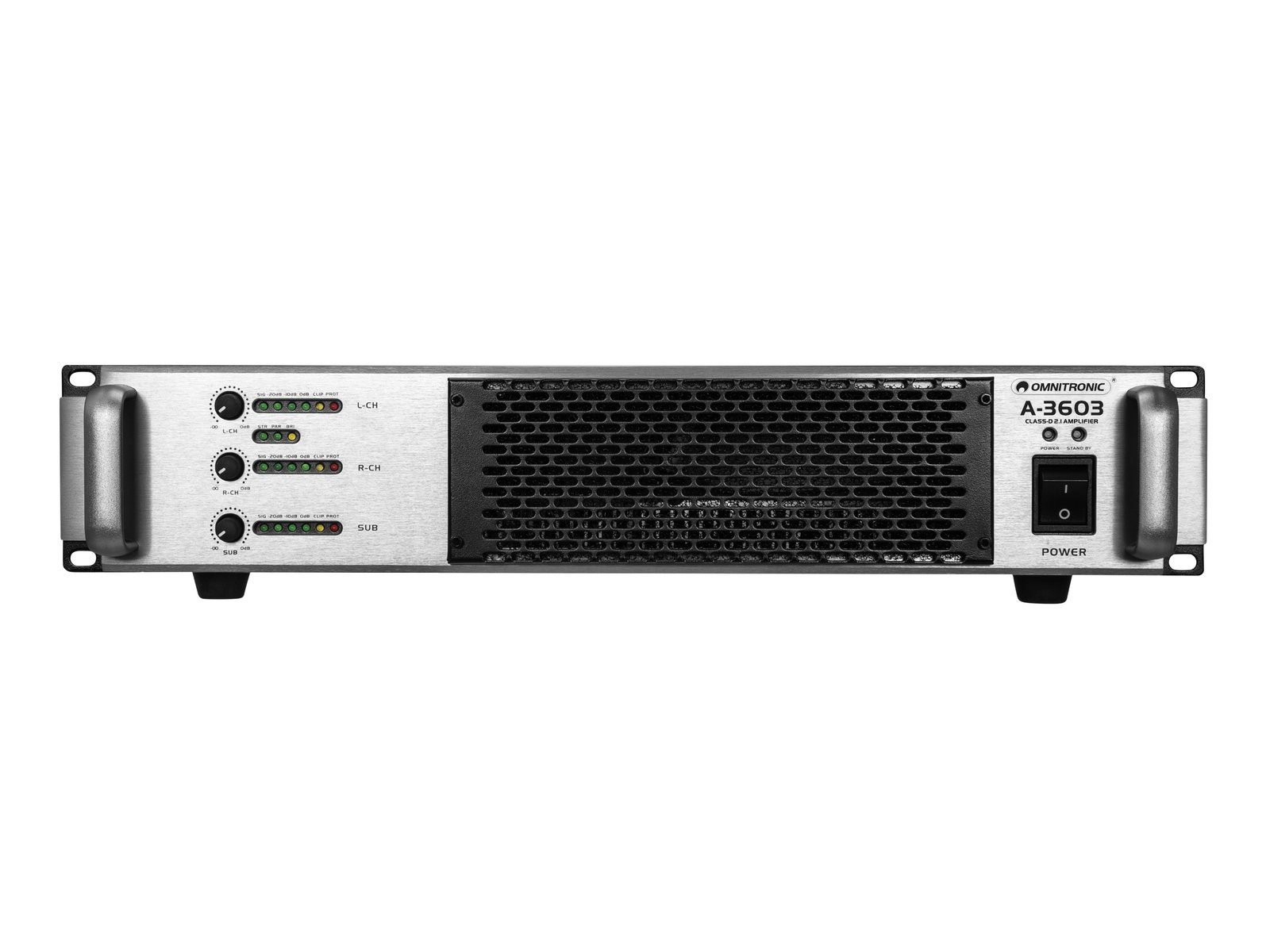

Omnitronic A-3603

2.1 Amplifier

powerful 3-channel amplifier for classic 2.1 applications.
adjustable crossover frequency for optimal sound tuning.
selectable 2.1 or 3-channel operation for versatility.
robust steel chassis with aluminium front panel for durability.
includes power cable, user manual, and mounting accessories.

745⁸⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

3677 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Omnitronic A-3603 Add to cart: 745⁸⁶ €

Powerful amplifier with 3 channels - for classic 2.1 applications with two top speakers and one subwoofer. Sufficient potential that you can use in clubs, lounges, restaurants, dance schools and fitness studios, among others. Set the frequency between tops and subs using the built-in crossover. It also has a bypass function, allowing you to connect a DSP speaker management system in front. You can also switch from 2 stereo input channels to 3 separate channels. Save weight when you need to move it and save space when you mount it - the Class D construction and switching power technology help you do this.

3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W

3-channel PA amplifier with Class D circuits and switching power supply
Adjustable crossover frequency for satellites and subwoofer
Selectable 2.1 operation or 3-channel operation
3 level controls
VU LED meter and LEDs for activated protection circuit (protection) and overload (clipping) on channel
Electronically balanced inputs via XLR mounting jacks, with XLR pass-through outputs
Speaker outputs via lockable speaker jacks
Robust steel chassis with aluminium front panel
(19") 48.3 cm rack installation 2 U

Package contents

1 x amplifier, 1 x user manual, 1 x power cable, 4 x foot, 4 x screw

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	685 W 1/8 power
Output power:	2 x 800 W RMS (4 ohms) 2 x 400 W RMS (8 ohms) 1 x 2000 W RMS (4 ohms) 1 x 1000 W RMS (8 ohms)
Power connection:	Network input via P-Con (blue), power cable mounting version with safety plug (supplied)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0.003 % at 1 kHz
Impedance:	Input: 20 kOhm, bal. Input: 10 kOhm, unbal.
Gain:	Channel 1 26 dB Channel 2 26 dB Channel 3 32 dB
Circuits:	Class D
Slew rate:	>10 V/µs
Damping factor:	>500
Control elements:	Power switch, channel level control, mode switch (2/3 channels), crossover frequency
Status LED:	Protects, blinks, level meter, with bridge
Connections:	Input: line via 3 x 3-pin XLR Link: line via 3 x 3-pin XLR Output: speaker via 3 x built-in speaker socket (F)
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 41 cm Height: 8.9 cm
Weight:	9.10 kg
