Eurolite QuickDMX Wireless Receiver

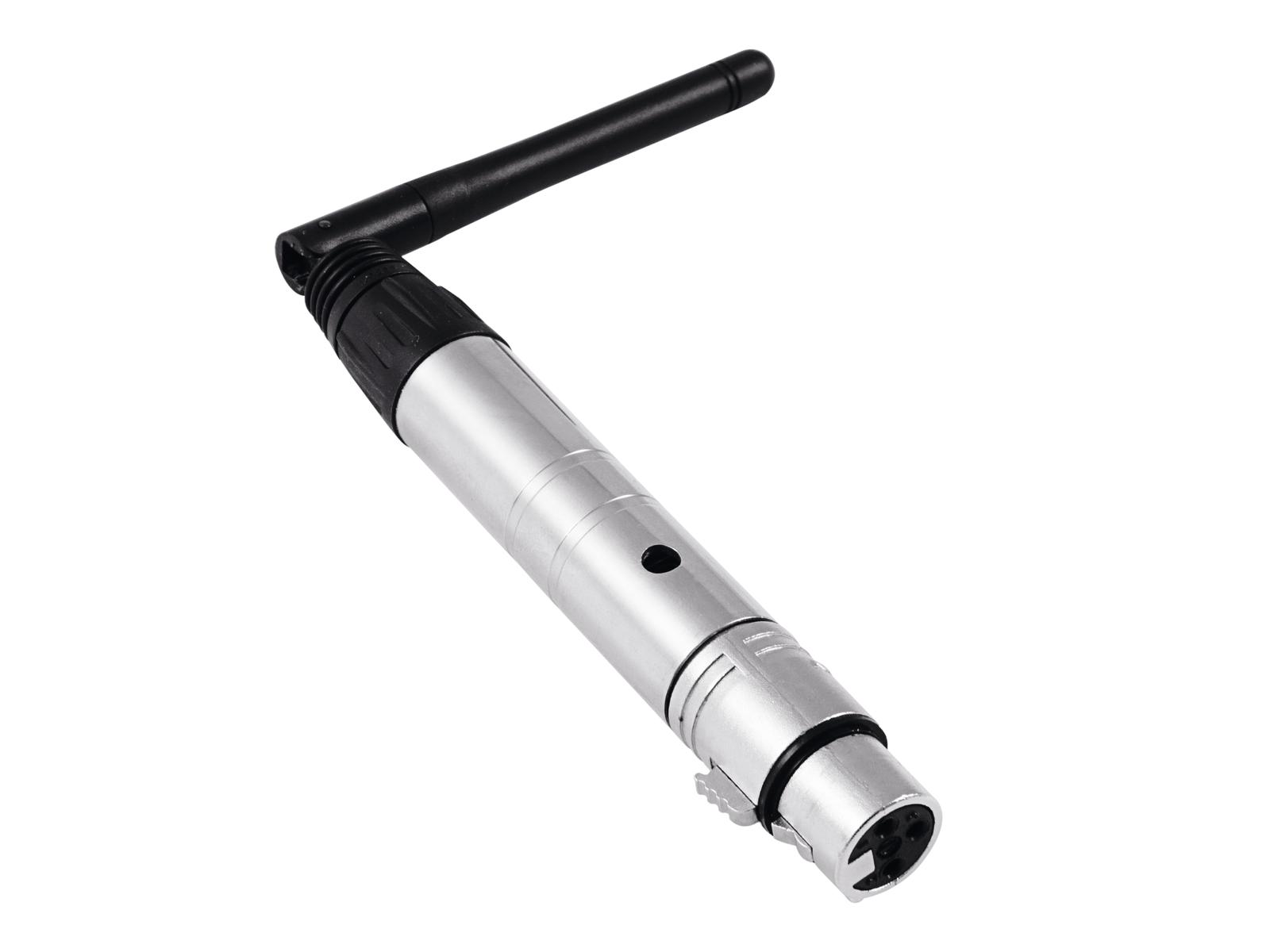

Eurolite QuickDMX Wireless Receiver - miniature wireless receiver for transmission of up to 512 DMX channels. It is equipped with a 3-pin XLR female connector and a swivel antenna. It helps eliminate wiring between DMX controllers and controlled units in lighting installations. It features GSFK modulation with 78 channels, providing interference-free transmission in the 2.4 GHz band, over a distance of up to 400 m. It can operate in parallel with 6 transmitters, allowing up to 3072 DMX channels to be controlled simultaneously. From 1 to 512 QuickDMX receivers can be controlled by each transmitter. It benefits from a quick and easy Plug & Play setup, with a single button for connecting/disconnecting QuickDMX receivers, and has an LED indicator for operation. It is powered via a PSU (included), and operates in the 2.4 GHz frequency band, which is globally license-free.

Technical Specifications:

• Power Supply: 100-240 V AC, 50/60 Hz via PSU (included)
• Carrier Frequency: in the 2.4 GHz ISM band, 78 channels
• Modulation: GFSK
• Coverage: 400 m (line-of-sight)
• Parallel Operation: up to 6 transmitters
• DMX Connector: 3-pin XLR female
• DMX Channels: 512 channels
• Dimensions with Antenna (LxWxH): 212 x 18 x 18 mm
• Weight: 80 g
