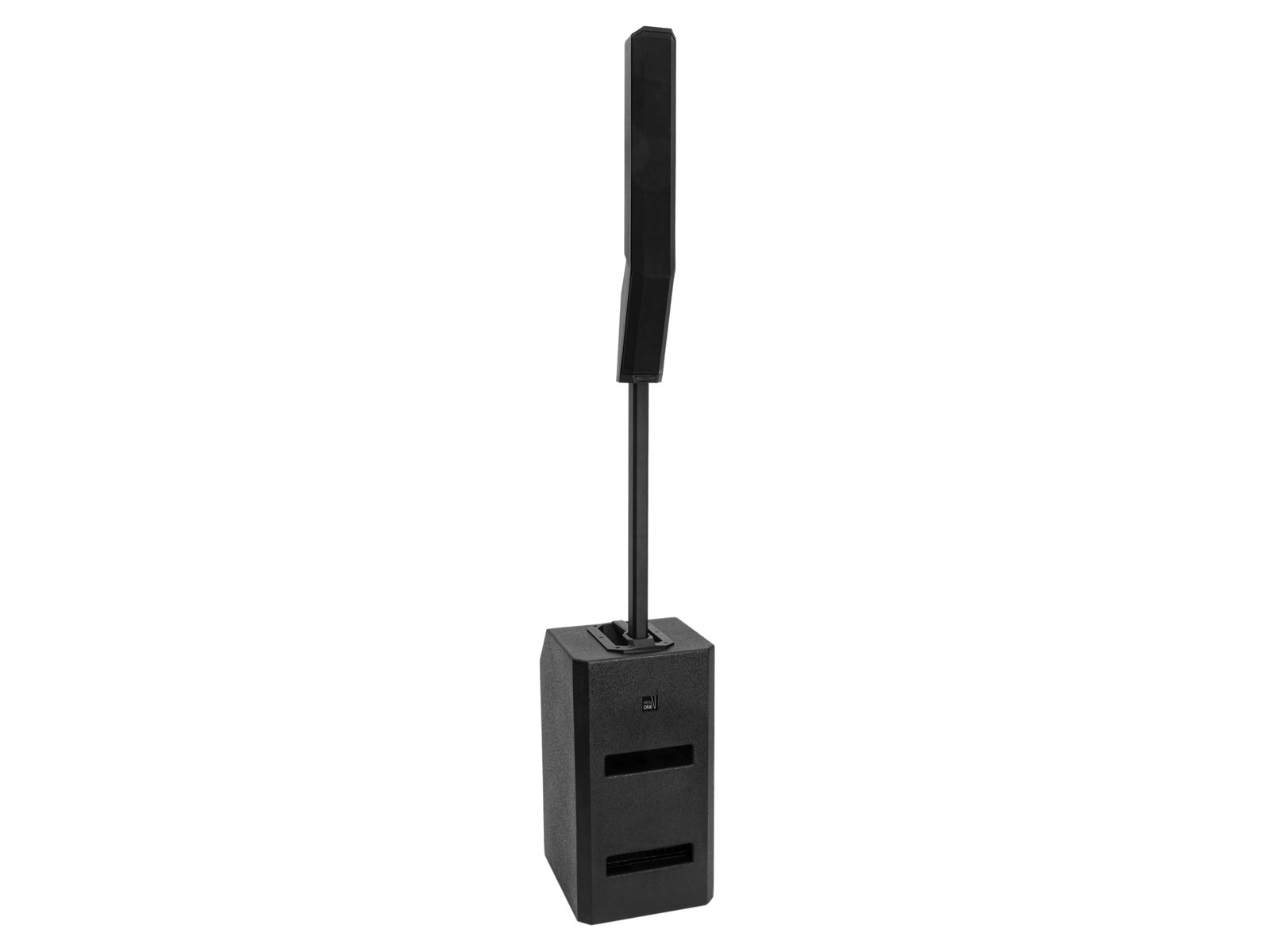

Omnitronic PEN ONE Active Column Speaker System


Column speaker system

  • highly portable column PA system with 550 watts power
  • the article is delivered with practical transport bag
  • excellent sound quality and high transmission range
  • full-featured 4-channel mixer
  • stereo Bluetooth link for wireless stereo operation with 2 systems linked together
Omnitronic
73270
Currently unavailable. Request details
Central warehouse: 0
Add to cart
3612 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days
Omnitronic PEN ONE Active Column Speaker System Add to cart: 73270
PEN ONE is an active column PA system with a high-power subwoofer with 4-channel power mixer and a full-range column speaker for mobile applications. The system offers three mono inputs (XLR and 6.3 mm jack) for microphones, instruments and line sources, one stereo input (RCA), as well as one AUX input for portable audio players. The amplifier supplies a power of 350 W and 200 W and offers cable-free plug-in connection for the column module. The latest Bluetooth 5.0 technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and links two PEN ONE systems for stereo setups.

Mobile column PA system with DSP, stereo Bluetooth link, 550 W

  • Highly portable column PA system with 550 watts power
  • The article is delivered with practical transport bag
  • Excellent sound quality and high transmission range
  • Full-featured 4-channel mixer
  • Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
  • 12" bassreflex subwoofer with class D amplifiers (350 W + 200 W)
  • Column speaker with 8 x 3" drivers
  • Digital signal processor 96kHz, 24 bit
  • DSP presets: FLAT; DJ; LIVE
  • Control via Bluetooth
  • Black metal grille
  • Bluetooth: Operating range up to 20m

Package contents

  • 1 x bass, 1 x top, 1 x distance tube, 2 x bag, 1 x power cord, 1 x user manual, 1 x declaration of conformity


Power supply:230 V AC, 50 Hz
Power consumption:600 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via IEC connector (M) mounting version (provided)
Power:Rated: 350W RMS LF
Rated: 200W RMS HF
Number of channels:4
Frequency range:45 - 20000 Hz
Max. SPL:125 dB
DSP:Digital signal processor 96kHz, 24 bit
DSP presets:FLAT; DJ; LIVE
Dispersion angle:120° x 16°
Control:Bluetooth
Bluetooth:Version: 5 with stereo link (TWS)
Bluetooth device name:PEN ONE
Circuitry:Class D
Control elements:Power switch, Master control, level control per channel, tone control, connect; Echo effect control, Phase reversal switch, Input sensitivity switch
Controls:Short-circuit; Overvoltage; overheat; limiter
Status LED:Power, signal, clip, pairing, link
Connections:Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via RCA (F) mounting version
Input: line via 3.5 mm jack (stereo) mounting version
Output: line via 3-pin XLR (M) mounting version
Channels:Input chanel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial, 2-band tone control EQ
Input channels:1 x stereo via RCA or jack plug or Bluetooth, channel control via Rotary dial
Speaker:Woofer (12") approx. 30 cm with ferrit magnet
8 x full rage loudspeaker (3") approx. 8 cm with ferrit magnet
Type of speaker:Column speaker
Type of construction:Vented
Range:Bluetooth: range up to 20m
Material:MDF (Medium-density fibreboard), 15 mm
Color:Black
Weight:28,30 kg
Distance tube
Dimensions:Length: 4,9 cm
Width: 3,8 cm
Height: 80 cm
Top
Dimensions:Length: 15,6 cm
Width: 10,5 cm
Height: 78,2 cm
Bass
Dimensions:Length: 42 cm
Width: 36 cm
Height: 68,7 cm

Product code: 11039101

Unit of sale: piece

Specifications:
woofer: 12
power: 550 W
digital playback: Bluetooth
number of input channels: 4
number of microphone channels: 0
Similar products in stock
DIRECT 121MX DIRECT 121MX
Studiomaster DIRECT 121MX
65011
in stock
Studiomaster DIRECT 121MX
MAUI 5 MAUI 5
LD Systems MAUI 5
50728
in stock
LD Systems MAUI 5
MAUI 11 G2 White MAUI 11 G2 White
LD Systems MAUI 11 G2 White
88650
in stock
LD Systems MAUI 11 G2 White
MAUI P900 Graphite Black MAUI P900 Graphite Black
LD Systems MAUI P900 Graphite Black
4 08919
-1%
in stock
LD Systems MAUI P900 Graphite Black
MAUI 5 Go 100 MAUI 5 Go 100
LD Systems MAUI 5 Go 100
75783
in stock
LD Systems MAUI 5 Go 100
DXL1K DXL1K
Yamaha DXL1K
99721
in stock
Yamaha DXL1K

Customer reviews:

19.03.2025, 22:58

Omnitronic quality at a decent price

The speaker arrived in a thick cardboard box and inside I had the pleasant surprise to find a dense and thick foam wrap that protected the speaker 100% even under improper transport conditions. I'm not a DJ or an audiophile, but I've heard a few active speakers so far and some commercial ones like JBL Partybox, Sony, etc. I wasn't leaning towards the Omnitronic brand because I hadn't heard good things about it (it's said to be below Behringer), but WOW I'm very satisfied with it. I use it in a living room of 8X6 meters via Bluetooth from my phone where the equalizer is customized especially for bass and the bass on the speaker is at maximum and the master is at maximum. I've tested it for two hours so far and it has never gone into protection (clip) and not on manele or classical music?. It vibrates everything in the house, you feel the bass in your chest from 3-4 meters and I can say from my few speakers that I’ve had that this one has not distorted the sound even at maximum volume. I had the Behringer DR115dsp and the LD Icoa 15a BT which I still have now. The Behringer DR115 DSP was and I believe is the best price-quality choice, nothing to complain about. The LD Icoa 15a BT is very powerful, coaxial with a 15-inch speaker in the middle and with four bass reflex ports (it reproduces bass very well for a two-way active speaker, it's among the top active speakers with Bluetooth) but I have never heard a column system sound like this in reality, and about this one zero even on YouTube, nothing, just a few short clips that explain nothing, I even searched on foreign sites, especially in Germany where it says on it that it was for sale on many sites but zero reviews. I can say that compared to the LD Icoa 15a BT which sounds very loud and has very good bass but up to -5 dB volume after which the processor starts cutting the bass for protection probably, let's say that up to 0 dB the bass is present, with Omnitronic being a different type of speaker and having separate bass volume this does not happen. As another comparison, it may help someone, it sounds louder than the JBL Partybox 1000 in terms of SPL and about the same bass (I'm not 100% sure because JBL has a friend and I haven't had the chance to test them side by side). There are column systems that are much more expensive and probably better, for example, I was oriented towards HK Polar 12 at 4500+ Ron, which is made of plastic (and anyone with minimal knowledge about speakers knows that a wooden or MDF enclosure sounds better), or those from LD are said to be the best column systems or Bose which are top etc. Thanks to those who had the patience to read and I hope my review will be helpful!
