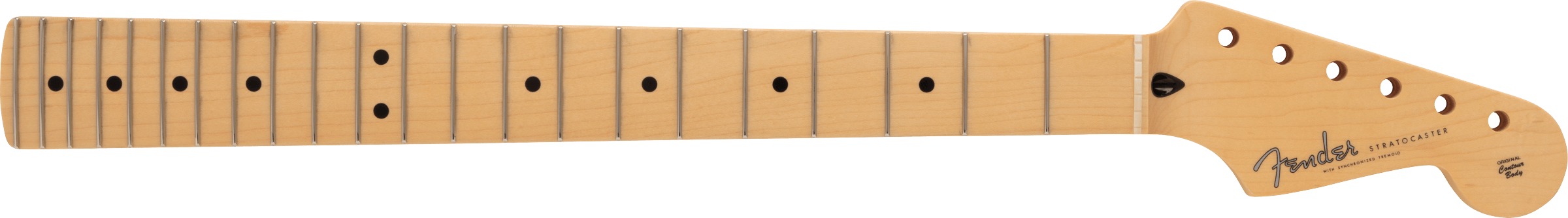

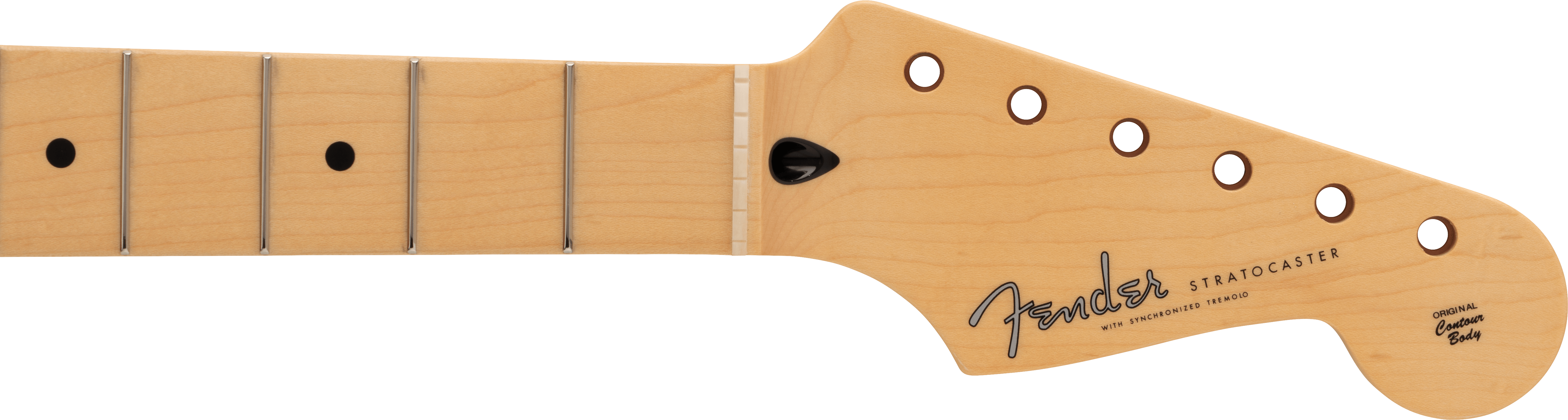

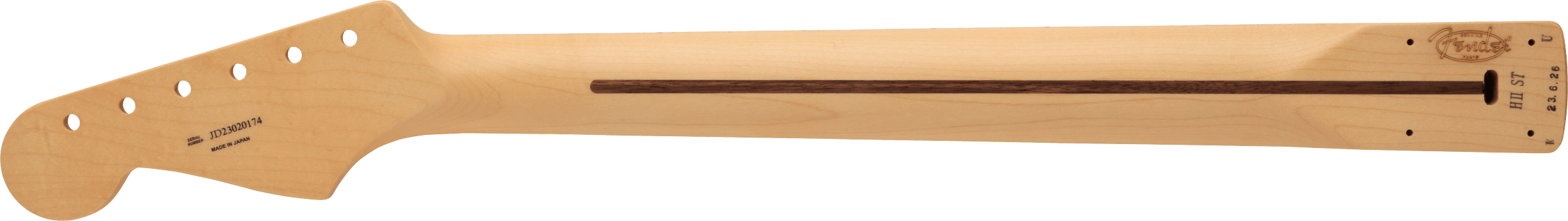

Fender Hybrid II Stratocaster Radius C Shape Maple

Fusing Fender's traditional aesthetics with sophisticated Japanese craftsmanship the made in Japan Hybrid II series necks offer the sought after and iconic feel of Fender MIJ instruments.

Crafted in the same facility as the Made in Japan series instruments, the Hybrid II Stratocaster Neck features a modern “C” shape and incorporates a flatter 9.5" radius and 22 narrow tall frets on a rosewood or maple fingerboard. A satin urethane finish provides a smooth feel and a slimmer 1-5/8" (41 mm) nut width makes for easy playability.

This replacement neck is for a Fender® or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

• Neck Shape: Modern "C"
• Scale Length: 25.5" (648 mm)
• Number of Frets: 22
• Fret Size: Narrow Tall
• Nut Width: 1.650" (42 mm)
• Fingerboard Radius: 9.5" (241 mm)
• Refinement Fingerboard Radius: Modern
• Neck Material: Maple with Walnut Stripe
• Refinement Neck Material: Maple
• Refinement Neck Shape: C Shape
• Nut Material: Bone
• Truss Rod: Standard
• Truss Rod Nut: 5 mm Hex
• Neck Thickness: 1st Fret - .800" (20.4 mm), 12th Fret - .900" (23.4 mm)
• Neck Mounting: 4-Bolt
• Tuner Mounting Config: Vintage-Style 2-Screw
• Instrument Type: Stratocaster®
• Peg Hole Diameter: 9.2 mm
• Headstock Thickness: .540" (13.71 mm)
