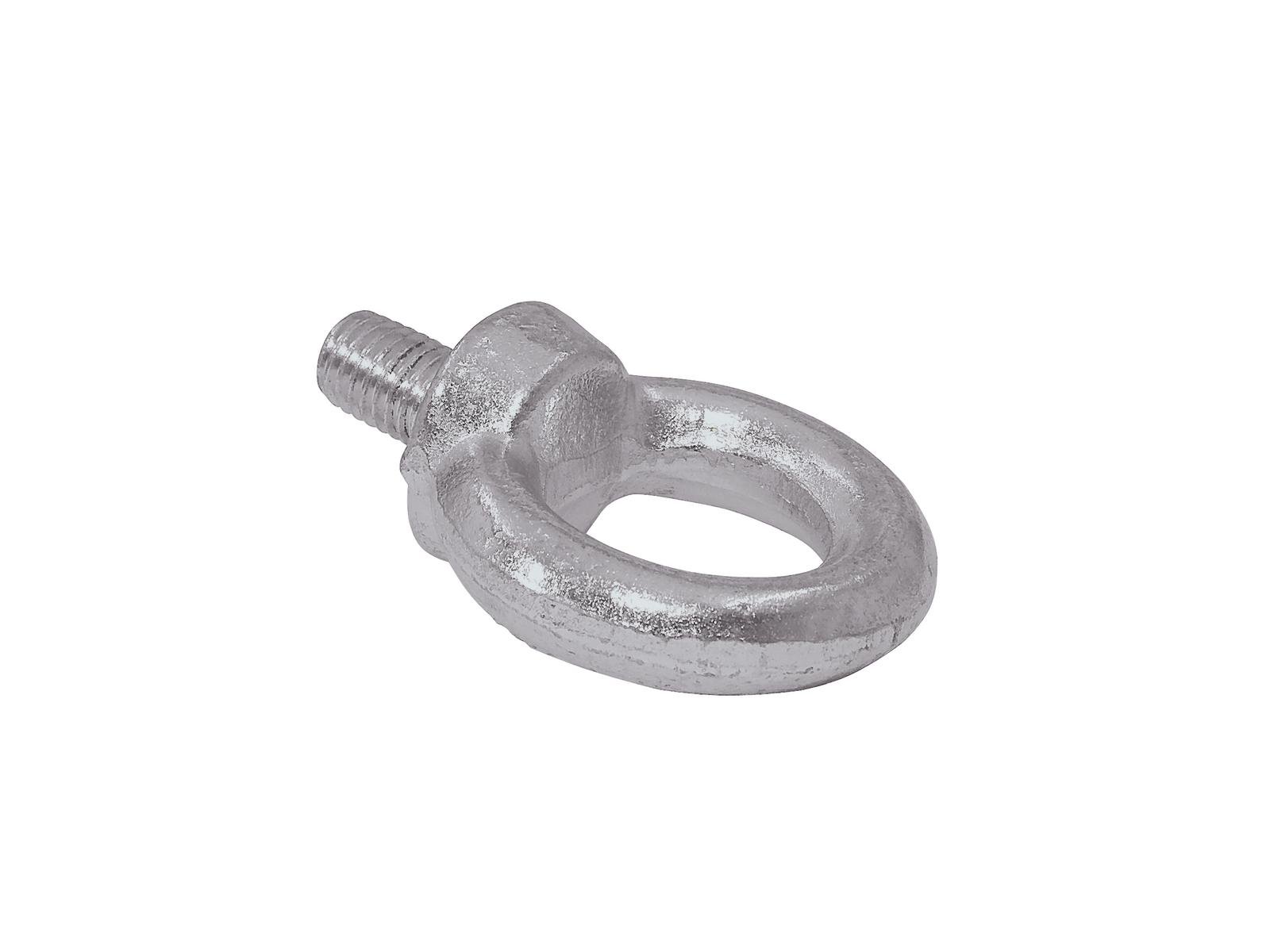

Eye Bolt M10


Stage Accessory

  • safety eye for holding, transporting, suspending, and securing.
  • can be used as an attachment device for speaker cabinets.
  • caution: WLL is for lifting loads, not for overhead mounting.
  • m10 thread for secure connections.
  • maximum load capacity of 230 kg.
Variante:
Eye Bolt M6
Eye Bolt M6
Ring Nut M20 DIN 582 C15
Ring Nut M20 DIN 582 C15
513
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
27 points of loyalty
Shipping 13.00 €
Returns 14 days

Safety Eye

  • For holding, transporting, suspending, and securing
  • Can be used as an attachment device or connecting element, for example, for screwing into the flying points of a speaker cabinet
  • Caution: the working load limit (WLL) given for this product is valid for supporting and transporting loads with a lifting device. WLL does not describe the maximum load for overhead mounting!
  • Thread M10


Maximum load BGV C1 (8 times): 115 kg
Max. WLL load (4 times): 230 kg
Inner diameter: Ø 2.5 cm
Outer diameter: Ø 4.5 cm
Thread: M10 x 17 mm thread
Dimensions: Length: 6.20 cm
Weight: 110 g

Product code: 30001166

Unit of sale: piece
