Zoom F3

Zoom F3 - With 32-bit float recording, the F3 effortlessly captures the quietest raindrops and the loudest explosions. Its compact footprint allows this recorder to be placed anywhere while you capture and monitor up to 192 kHz of high-quality sound.

When working in the field or on set, sound levels can fluctuate frequently and rapidly. The F3 allows you to adapt to the scene without needing to set gain or worry about clipping. In post-production, you will be able to work with your capture, regardless of extremely low or high levels.

"When I'm on film sets, I often record very loud sounds, like race cars and guns. That's why I love the 32-bit float technology. I can mount the F3 practically anywhere and I don't have to worry that my levels are low."

- Watson Wu | Sound Designer

Featuring dual A/D converters and low-noise preamps found in professional recorders from the F series, the F3 guarantees high-quality recordings in any frame or situation.

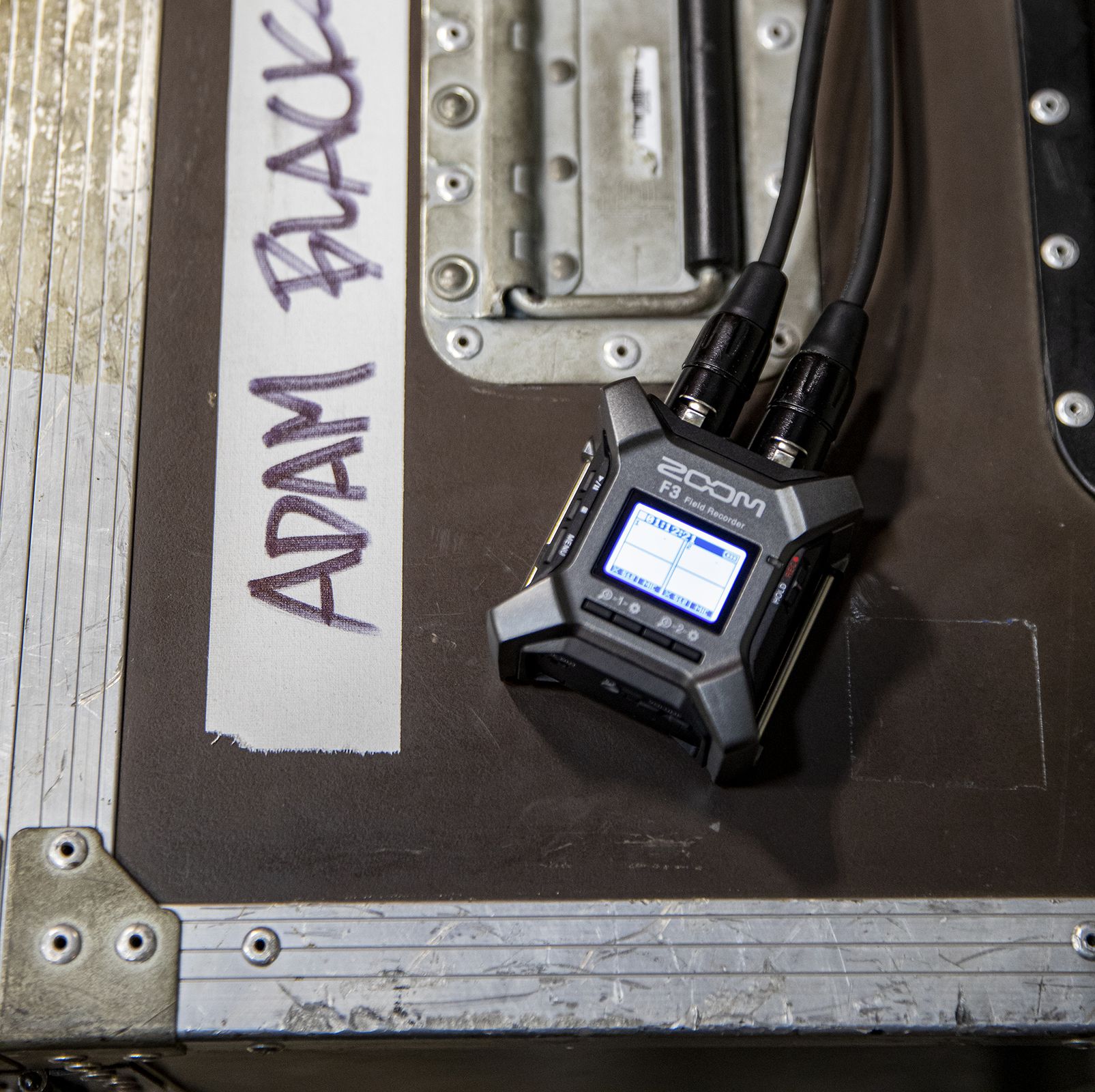

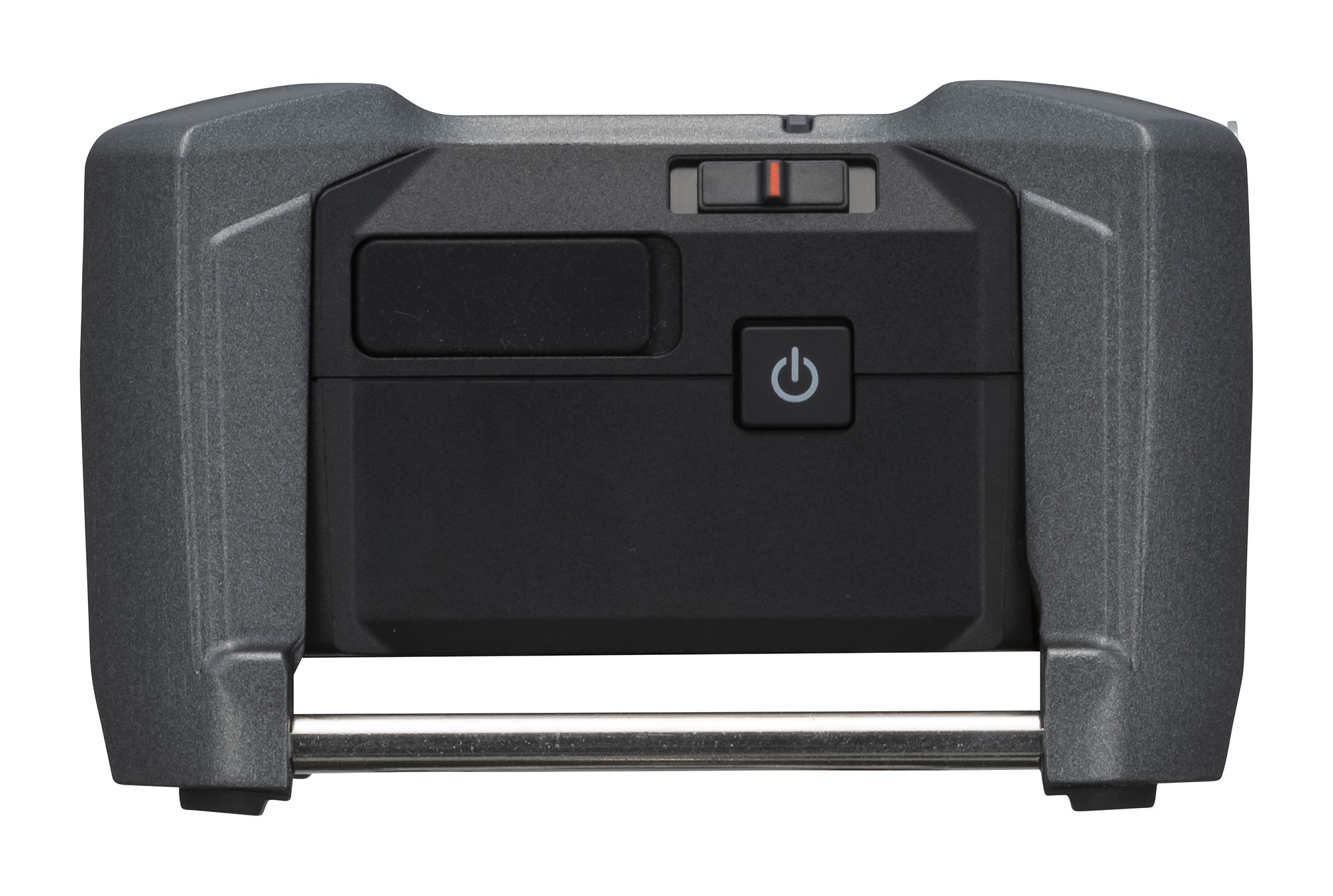

The F3 is built with durable side rails, a standard tripod mount, and slip-resistant rubber feet, ensuring that you can mount it on your equipment or hide it in any scene. The robust metal housing and locking XLR connectors are designed for use in a variety of environments.

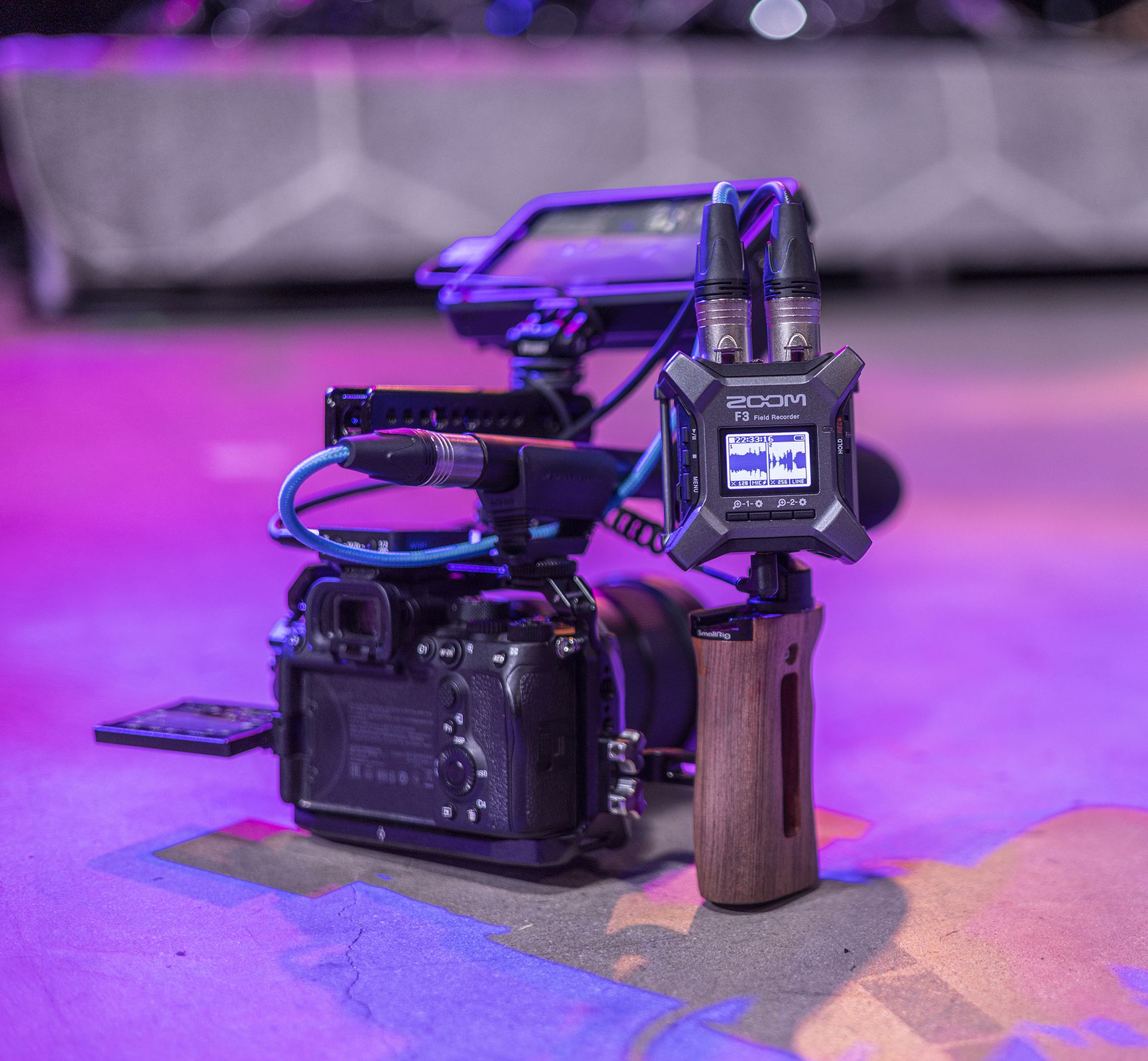

"The size of the F3 makes it so versatile. I can place it right in a chaotic scene - I can mount it on a standard arm, place it in a potted plant, or even attach it to the side of a speeding motorcycle."

- Mark A. Lanza | President, Sound Editor, Sound Designer, Sony Pictures

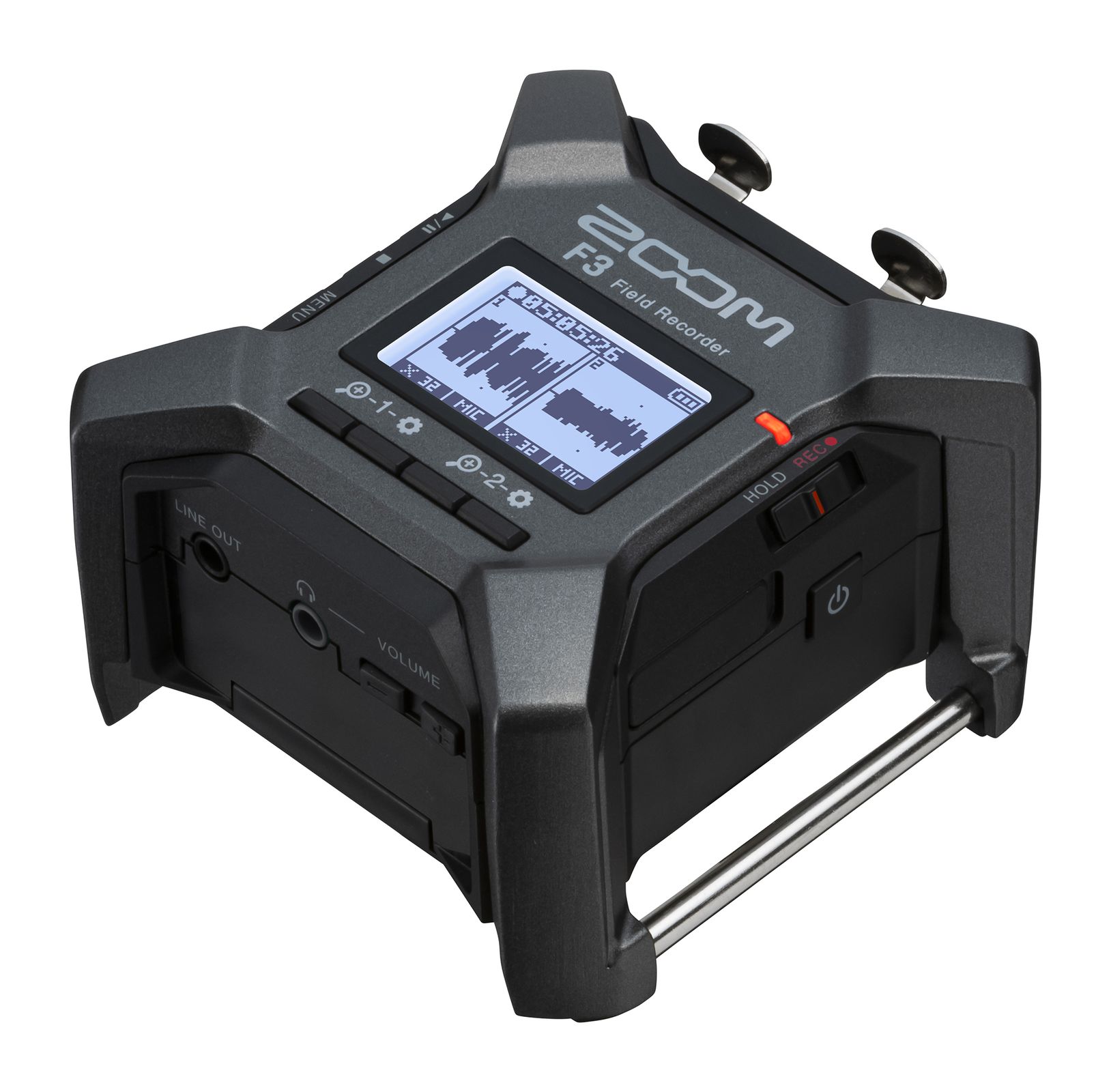

Monitor your recordings with perfect accuracy, as the F3 displays sound as waveforms in real-time.

The headphone output allows you to keep an ear on recordings, plus a line output lets you access the camera or other equipment.

The F3 is well-equipped for long-location filming or remote field work, with a variety of power options and massive storage.

With two AA alkaline batteries, enjoy over eight hours of battery life.

Get ready for unlimited charging via the AC adapter AD-17 or USB power source.

Use a micro SD card of up to 1TB to record over 180 hours of audio at the highest possible sample rate/bit depth.

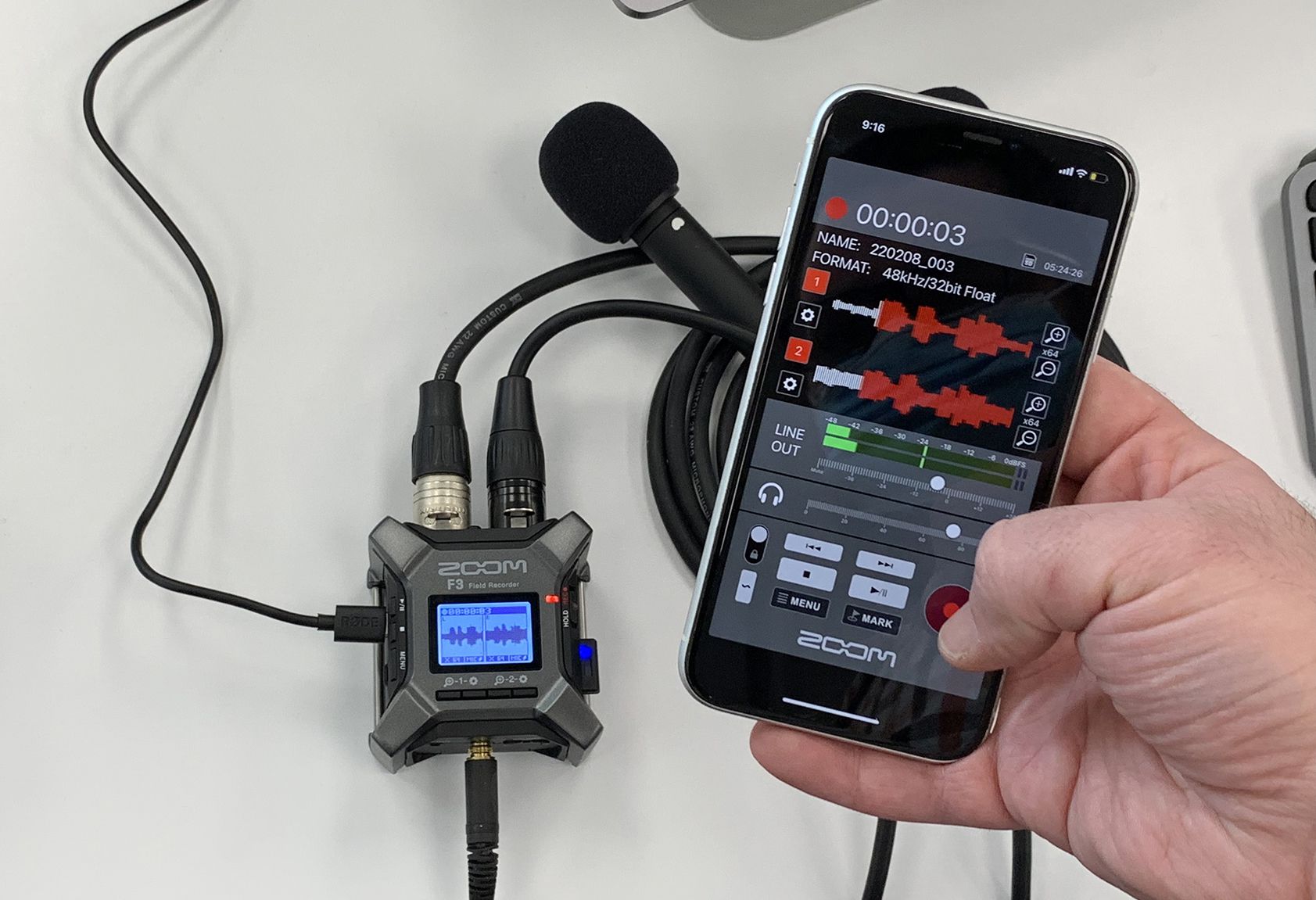

Versatile control options provide your production with more flexibility than ever. Stay away from the camera and record from a distance of up to 10m using the F3 control app for iOS and Android.

Connect the F3 to a computer or iOS device via USB as an audio interface and record or stream up to two channels at a clear resolution of 32-bit float/96 kHz. The loopback function allows you to combine the computer sound with the F3 inputs to finalize the sound for your stream.

"In my search for the perfect sound, having the freedom and portability of the F3 is a dream come true. Its dexterity is unprecedented for a portable pro kit. And, small enough to be strapped to my wrist, the F3 has become my indispensable travel companion."

- Chiara Luzzana | Soundtrack Composer

Features:

• 2-channel/2-track field audio recorder
• Featuring 32-bit float recording and dual AD converters for a complete dynamic range and audio capture without clipping
• 2 discrete inputs with locking XLR connectors
• Input signals can be monitored with real-time waveform display on LCD
• Compact and durable (can be attached to a boom microphone with Velcro)
• High-quality microphone preamps provide very low noise level (−127 dBu EIN)
• Record up to 192 kHz sampling/32-bit float WAV format, mono or stereo files
• 3.5" stereo headphone/line output jack with dedicated volume control
• Records directly to microSDHC and microSDXC cards up to 1 TB
• Wireless remote control available via optional Bluetooth BTA-1
• Use as a USB audio interface 2-in/2-out (up to 32-bit float/96 kHz)
• Over 8 hours of operation with two AA batteries
• Operates on just 2 standard AA batteries or AC adapter (AD-17) or USB rechargeable battery
• Wireless time code synchronization (*optional BTA-1 Bluetooth adapter and UltraSync Blue device from Timecode Systems required.)

Technical Specifications:

• Input and Output Channels
  • Inputs
    • MIC/LINE (mono): 2
  • Outputs
    • Line output: 1
    • Headphone output: 1
• Inputs
  • MIC/LINE (MONO)
    • Connectors: 2 XLR (2: HOT)
    • Input gain: Adjustment not necessary (uses dual AD converter circuits)
    • Input impedance:
      • MIC: 3 kΩ or more
      • LINE: 3 kΩ or more
    • Maximum input level:
      • MIC: +4 dBu
      • LINE: +24 dBu
    • Phantom power:
      • +24/48 V
      • Total combined channel of 10 mA or less
    • Equivalent input noise: −127 dBu or less (IHF-A) when waveform gain is ×1024 with 150 Ω input
• Outputs
  • Line output
    • Connector: 1 stereo mini jack
    • Maximum output level: +1 dBu
    • Output impedance: 100 Ω or less
  • Headphone output:
    • Connector: 1 stereo mini jack
    • Maximum output level: 50 mW + 50 mW (into 32 Ω load)
    • Output impedance: 15 Ω or less
• Recorder
  • Maximum number of recording tracks simultaneously: 2
  • Maximum number of playback tracks simultaneously: 2
  • Recording format:
    • WAV
    • 44.1/48/88.2/96/192 kHz,
    • Float mono/stereo at 32 bits
    • BWF and iXML formats supported
  • Recording media:
    • 4 – 32 GB cards compatible with microSDHC specification
    • 64 GB – 1 TB cards compatible with microSDXC specification
• Display
  • LCD with backlight (resolution 96×64)
• USB
  • Connector:
    • USB Type C
    • Use a USB cable that supports data transfer. USB bus power is supported.
  • Audio interface operation:
    • High-speed USB 2.0
    • 44.1/48/88.2/96 kHz, linear at 24 bits/float at 32 bits
    • 32-bit float format is supported for firmware version 2.0 or later
    • 2-in/2-out
  • Mass storage operation: High-speed USB 2.0
• Remote control
  • Dedicated wireless adapter (ZOOM BTA-1)
• Power supply
  • 2 AA batteries (alkaline, NiMH or lithium)
  • AC adapter (ZOOM AD-17): DC 5 V/1 A
  • USB bus power is supported
