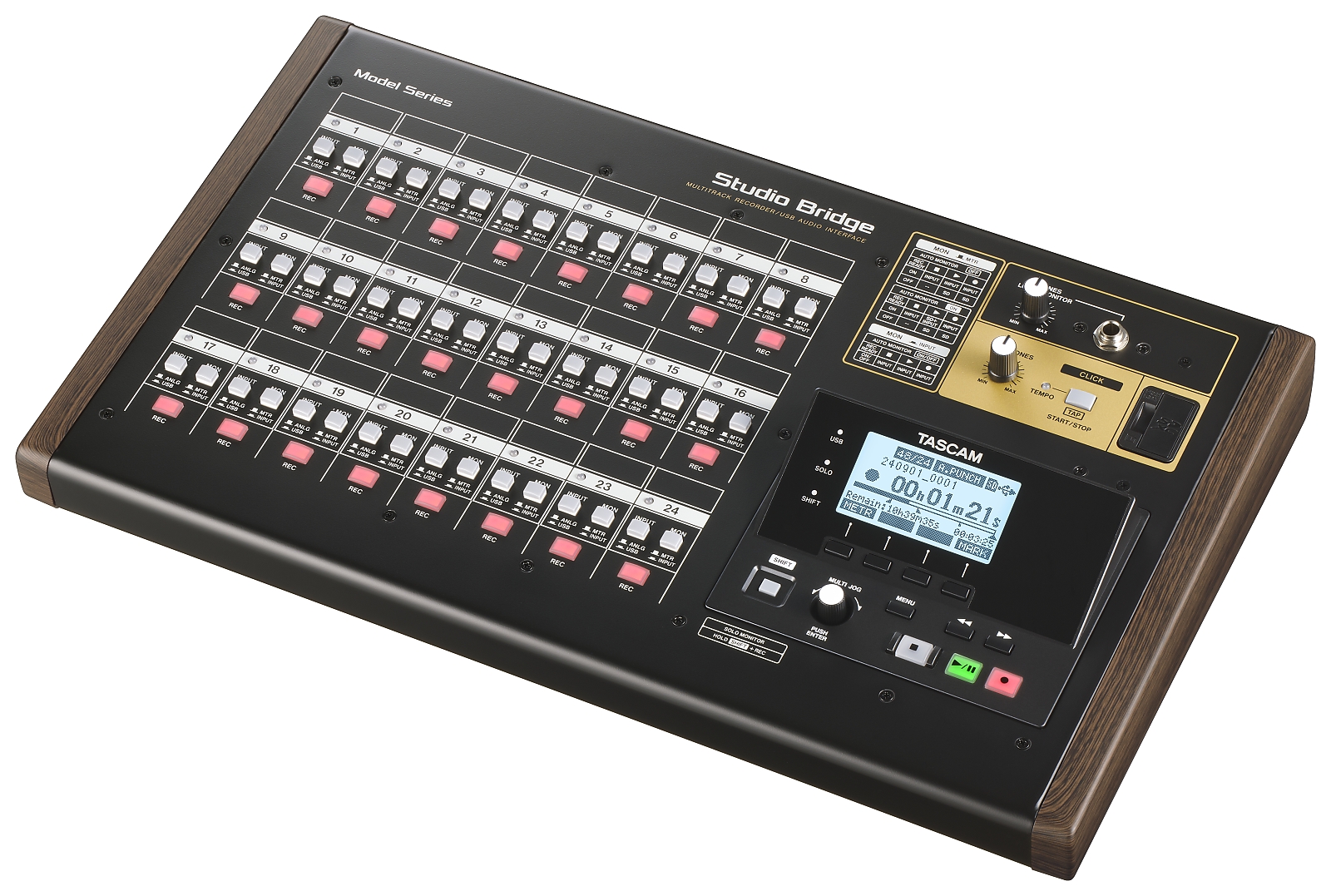

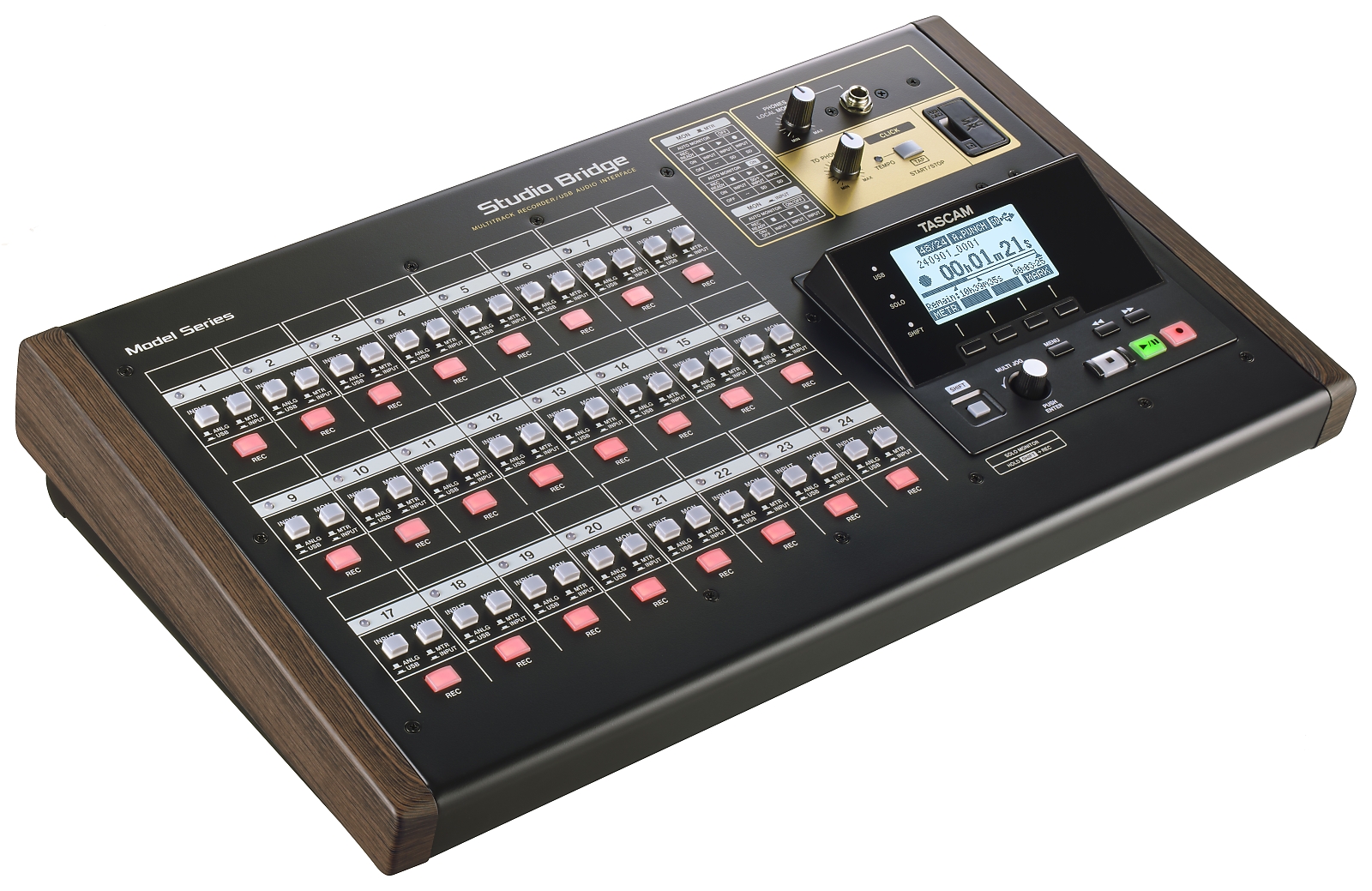

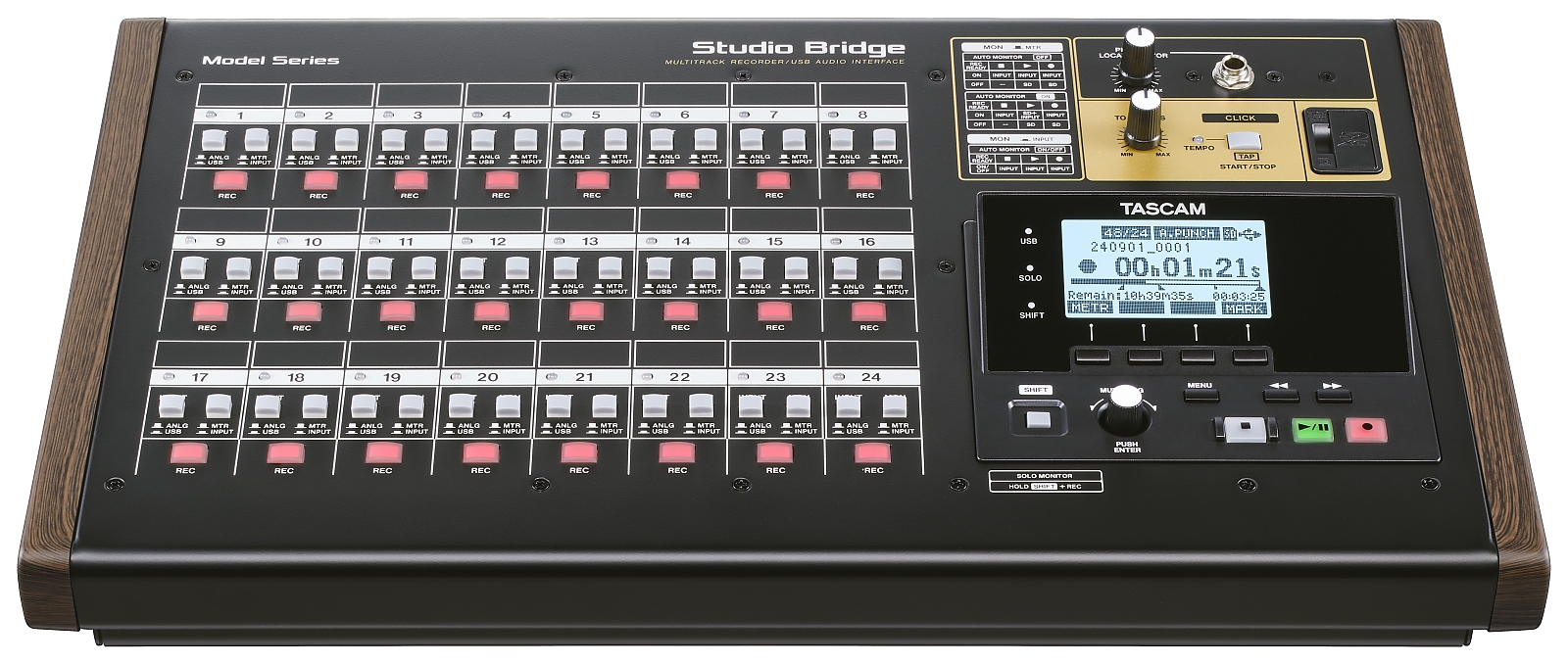

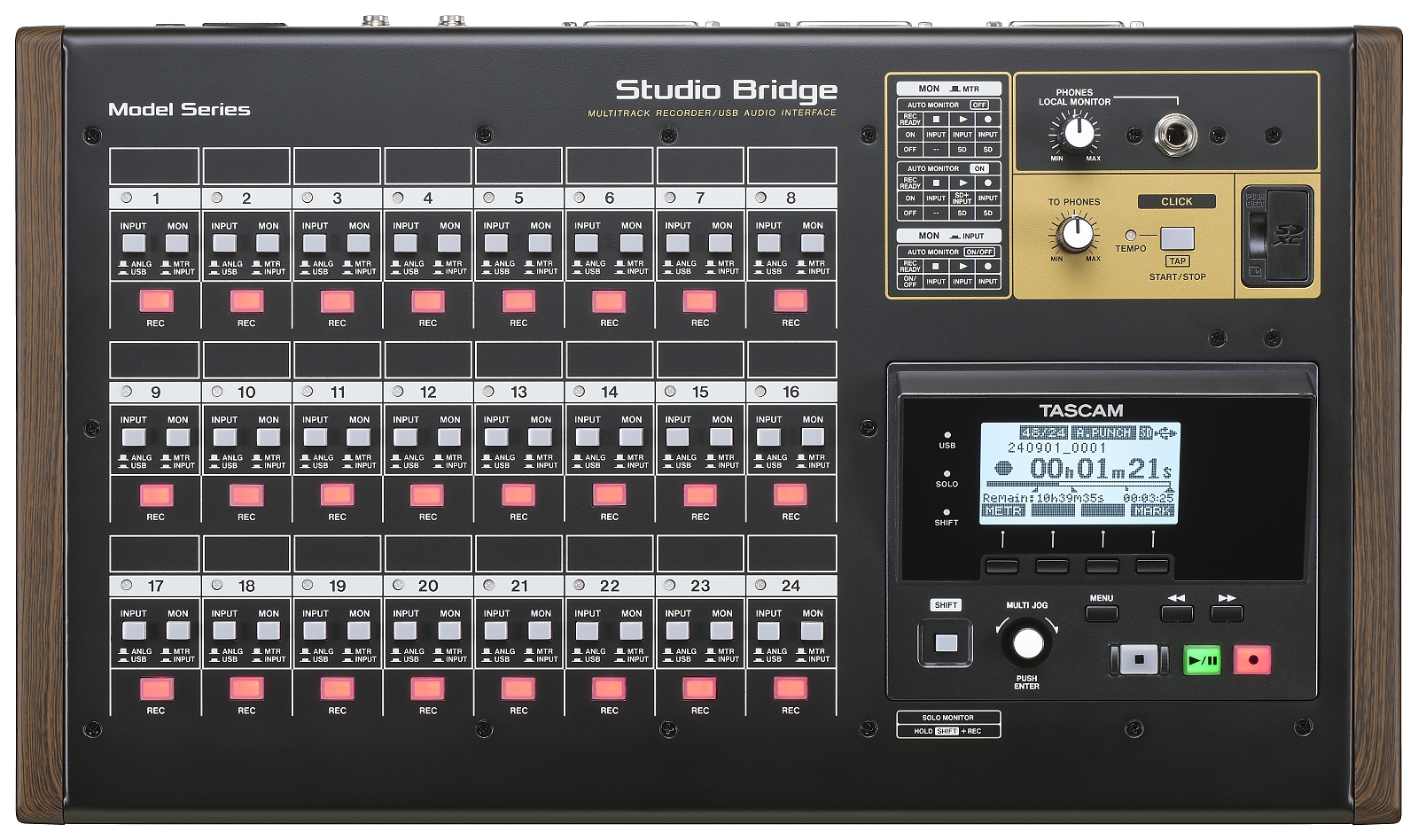

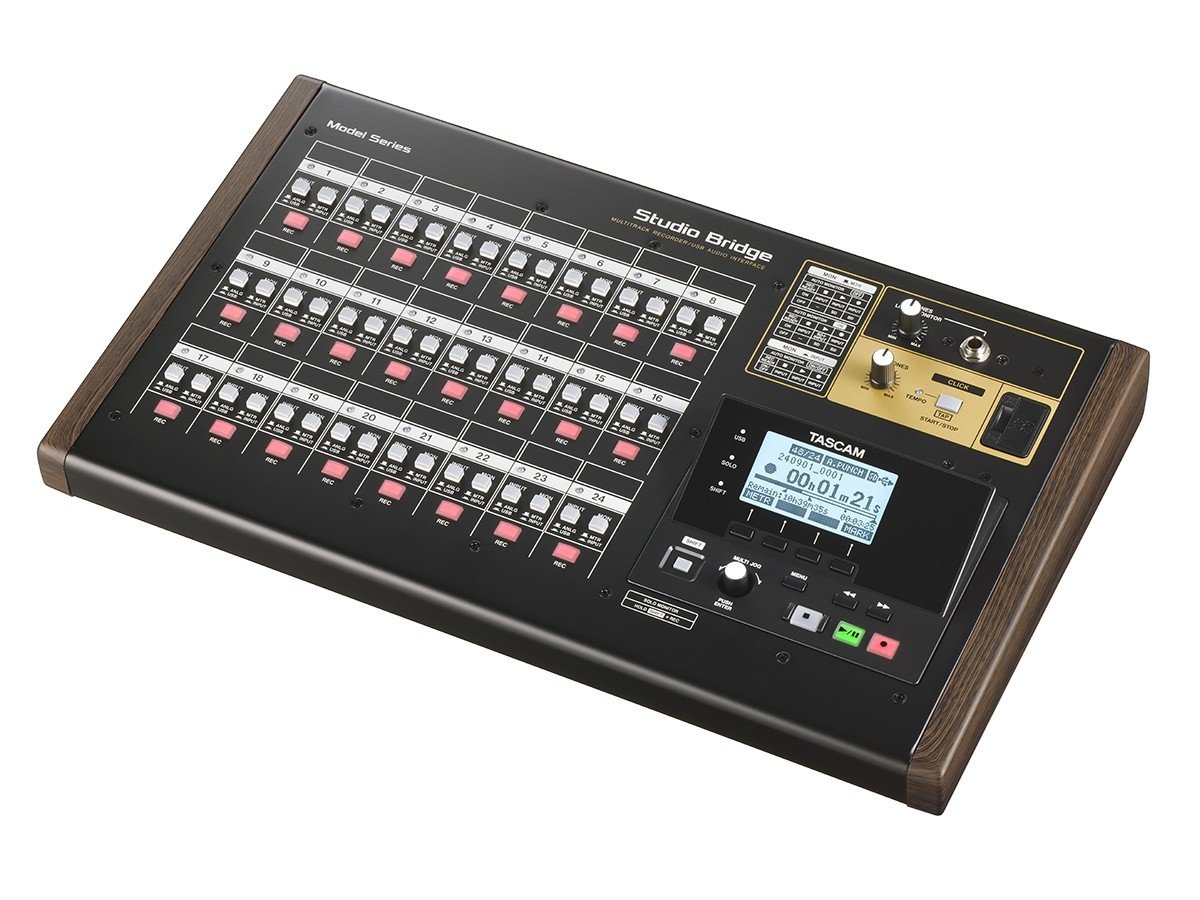

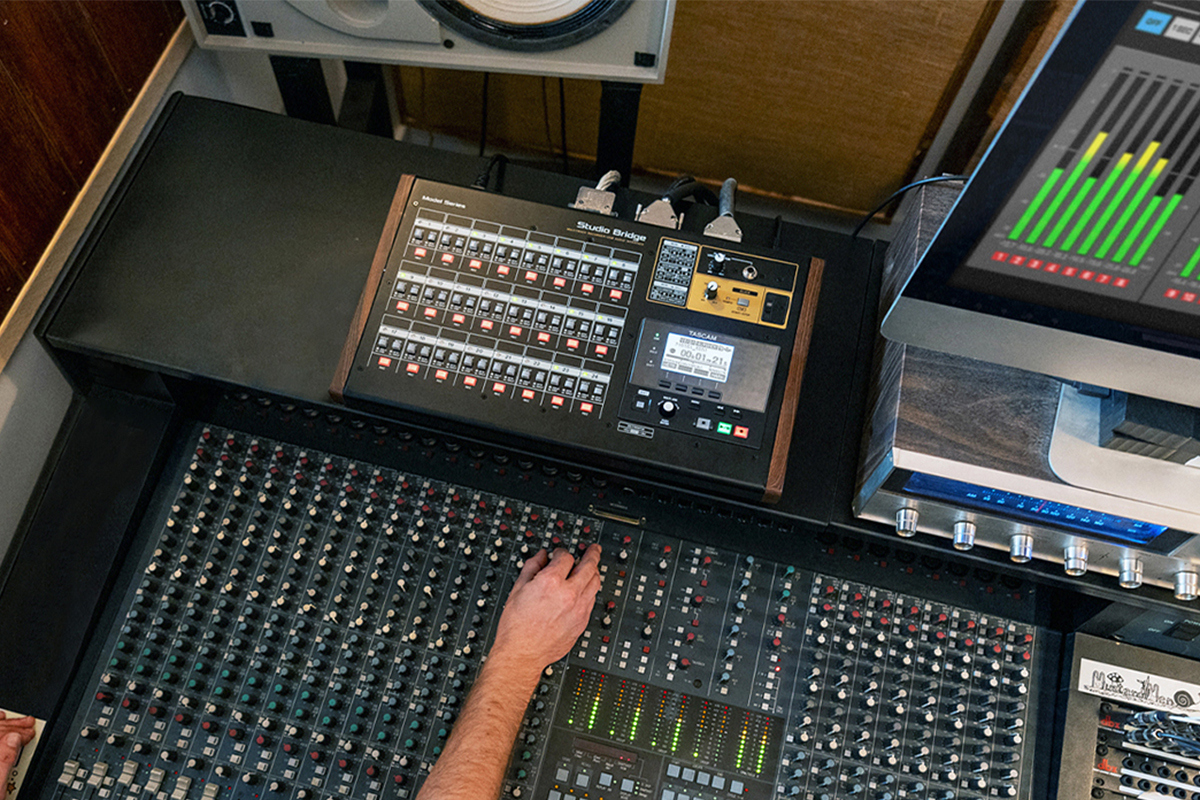

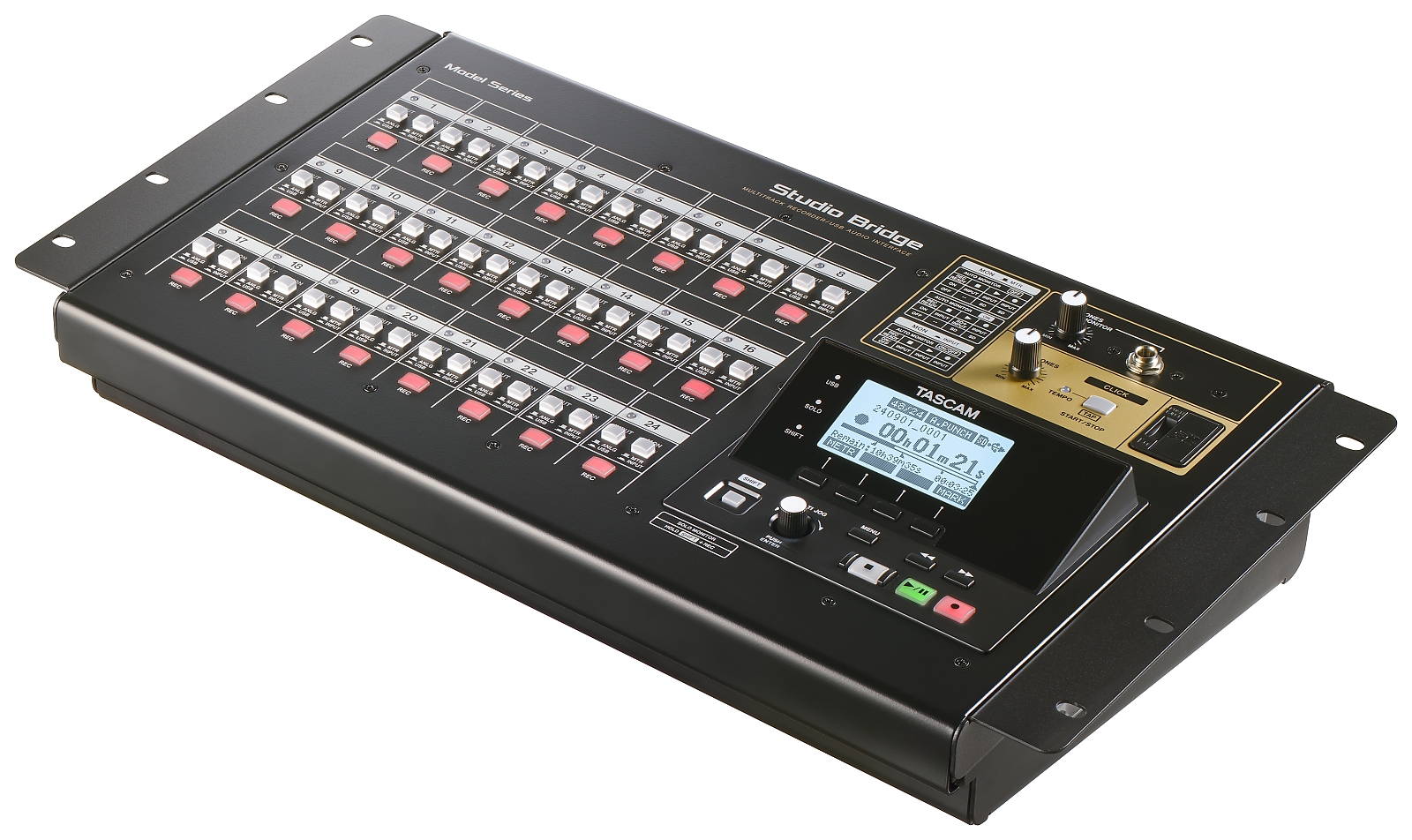

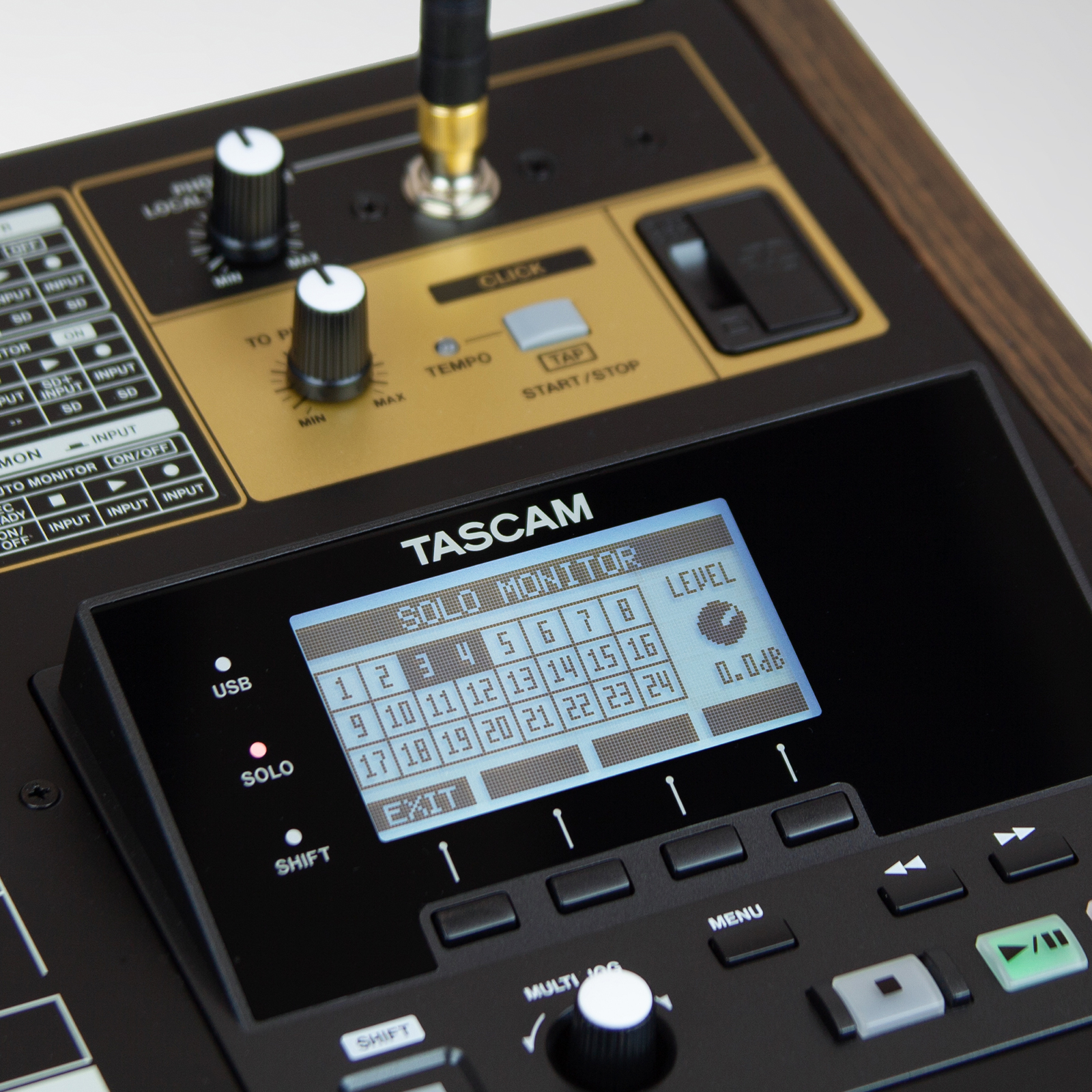

Tascam Studio Bridge

Studio Bridge is a multitrack recorder with 24 tracks and a USB audio interface. It supports recording on SDXC SD cards and offers 24 analog inputs and outputs via DB25. It features DAW control and REC READY via HUI/MCU, a dedicated settings application with Meter Bridge, as well as MIDI in/out for USB MIDI interface and MIDI sync.

Essential Features:

• Multitrack recorder with 24 tracks using SDXC SD card (supports punch-in/out)

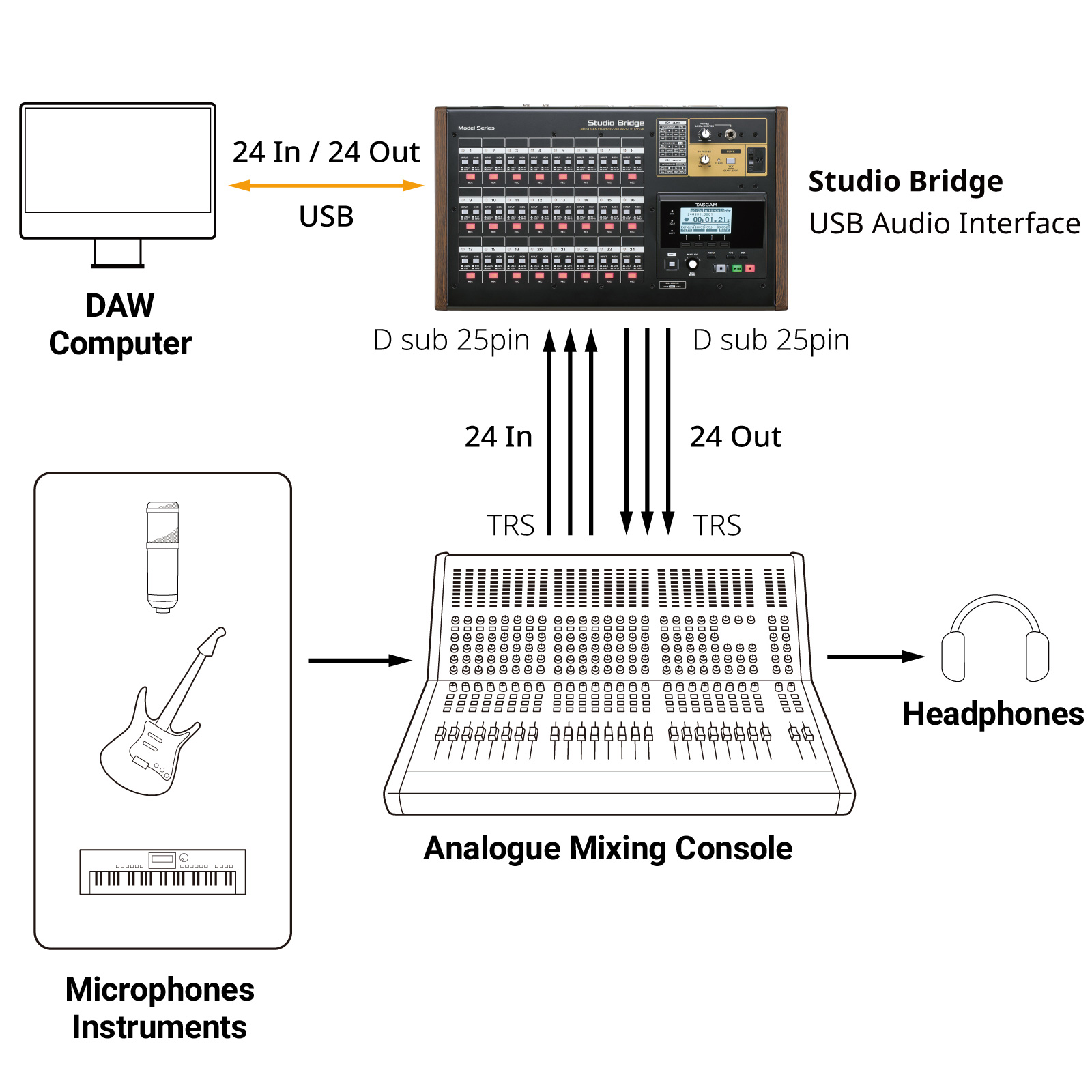

• USB audio interface 24-IN/24-OUT

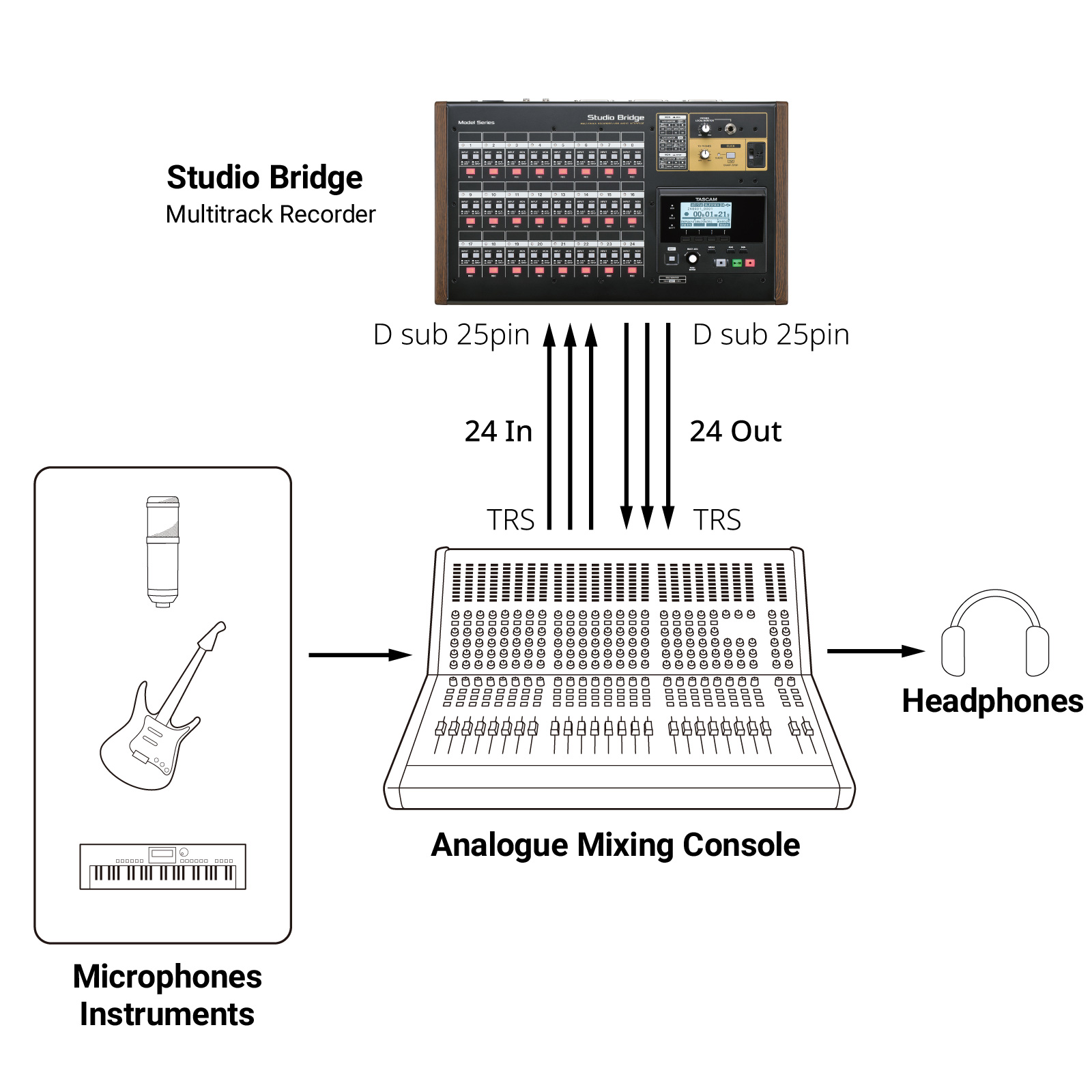

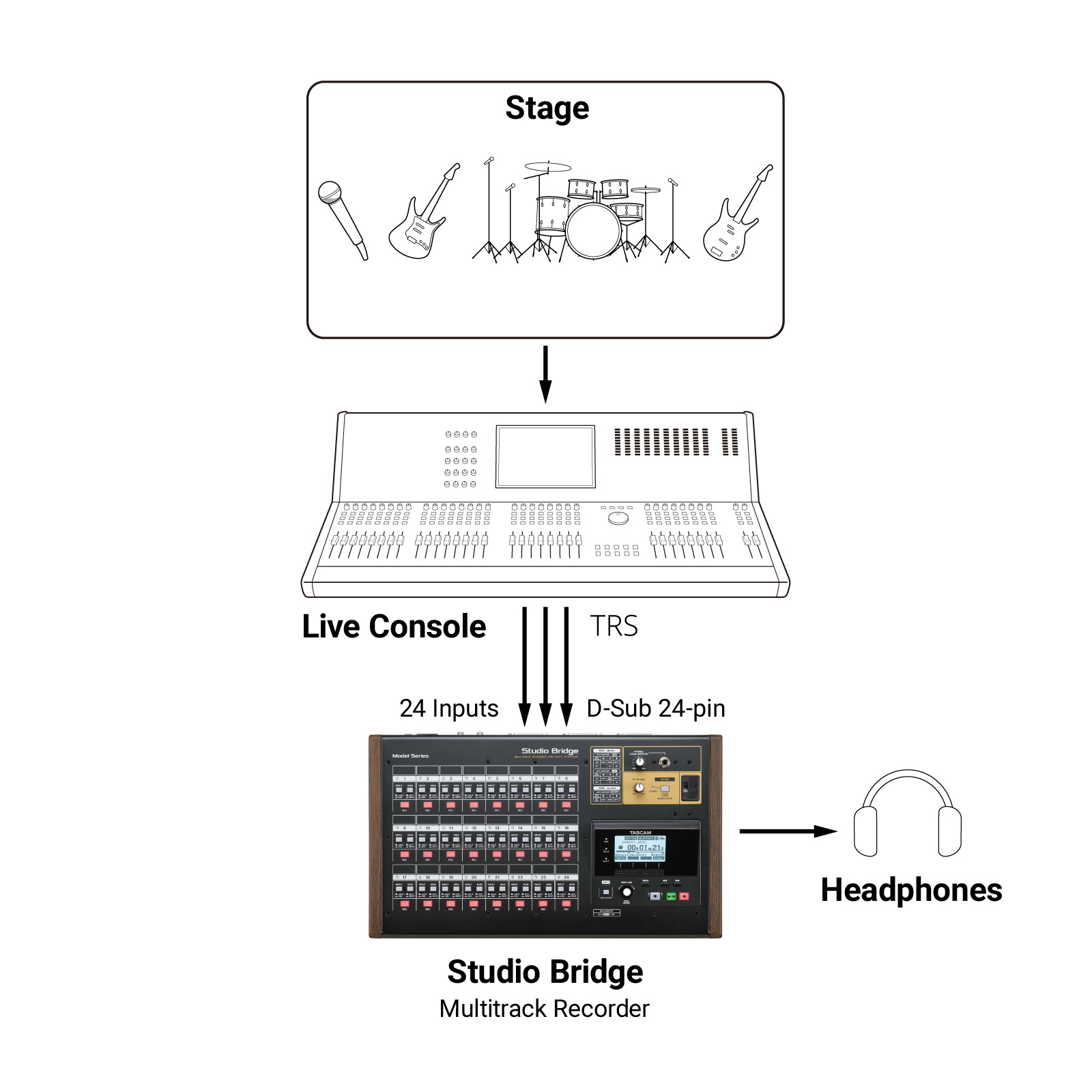

• 24 analog line level inputs and outputs DB25

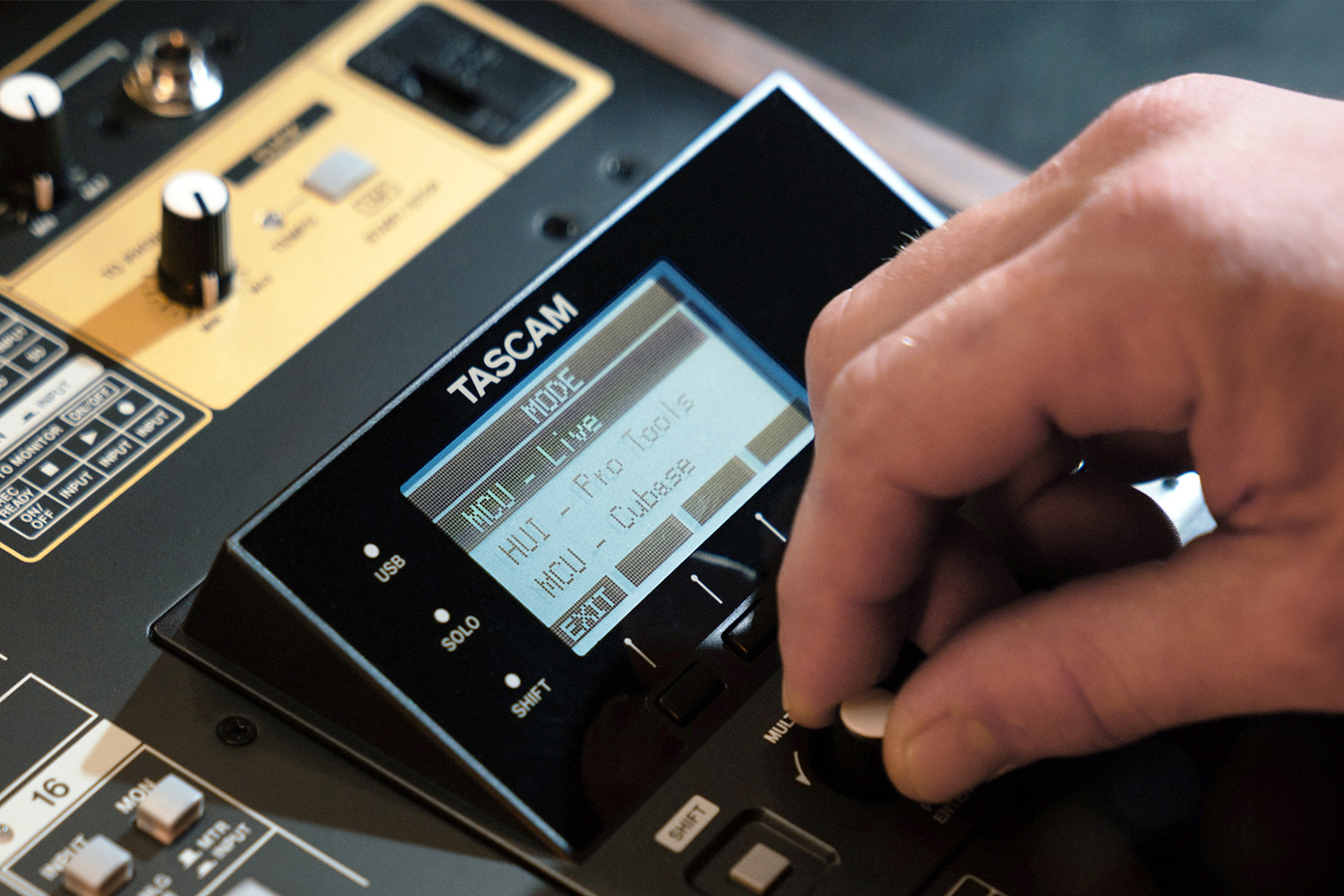

• DAW transport control and REC READY control via HUI/MCU
• Dedicated Settings application with Meter Bridge

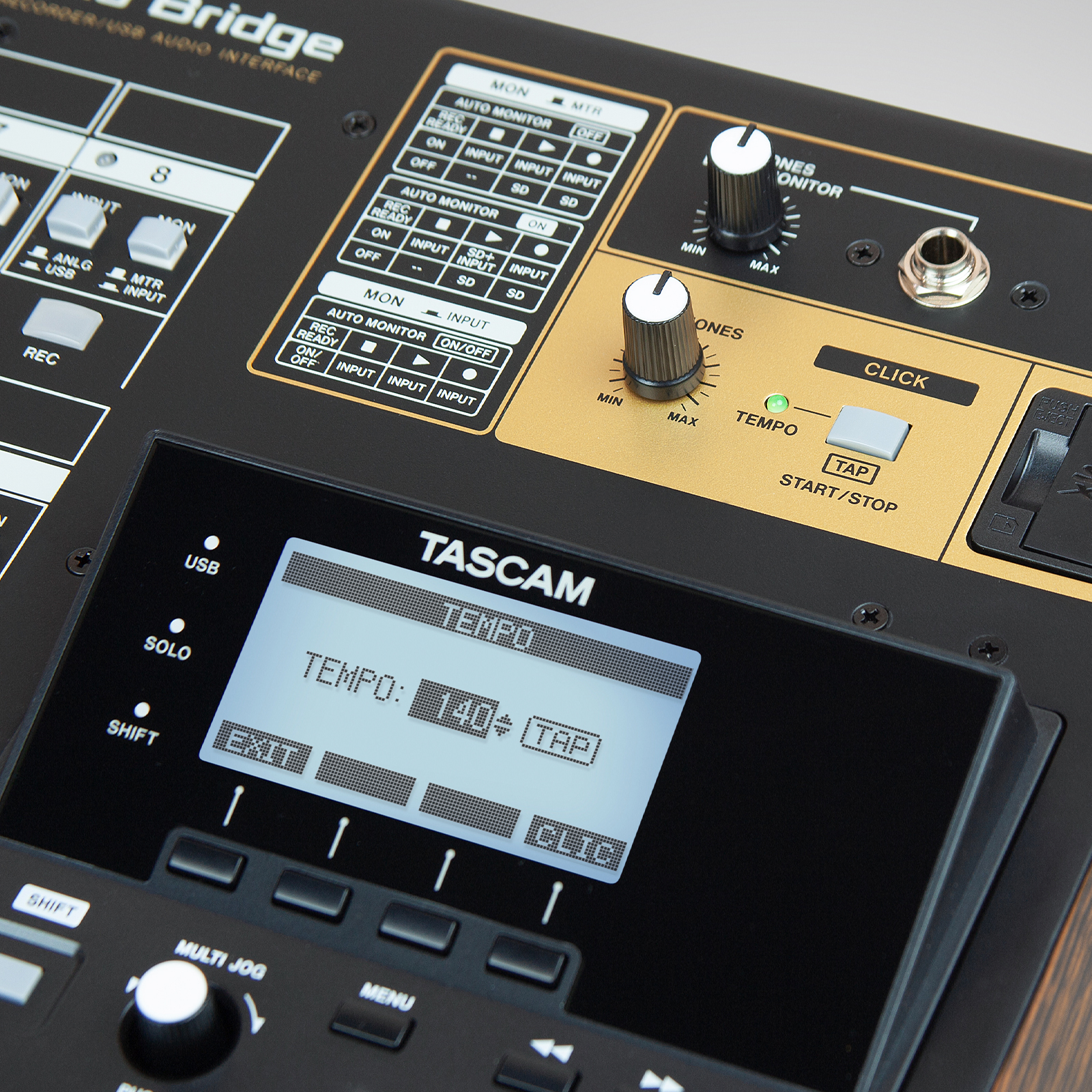

• MIDI in/out allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control

Technical Specifications:

• Supported media: SD (512 MB - 2 GB), SDHC (4 GB - 32 GB), SDXC (64 GB - 512 GB) (Class 10 or higher)
• Recording format: WAV (BWF)
• Playback format: WAV (BWF)
• Sampling frequency: 44.1/48 kHz
• Bit depth: 16-bit / 24-bit
• Maximum number of recording tracks: 24
• Maximum number of input and output channels: Inputs: 24 / Outputs: 24

Specifications for analog audio input/output

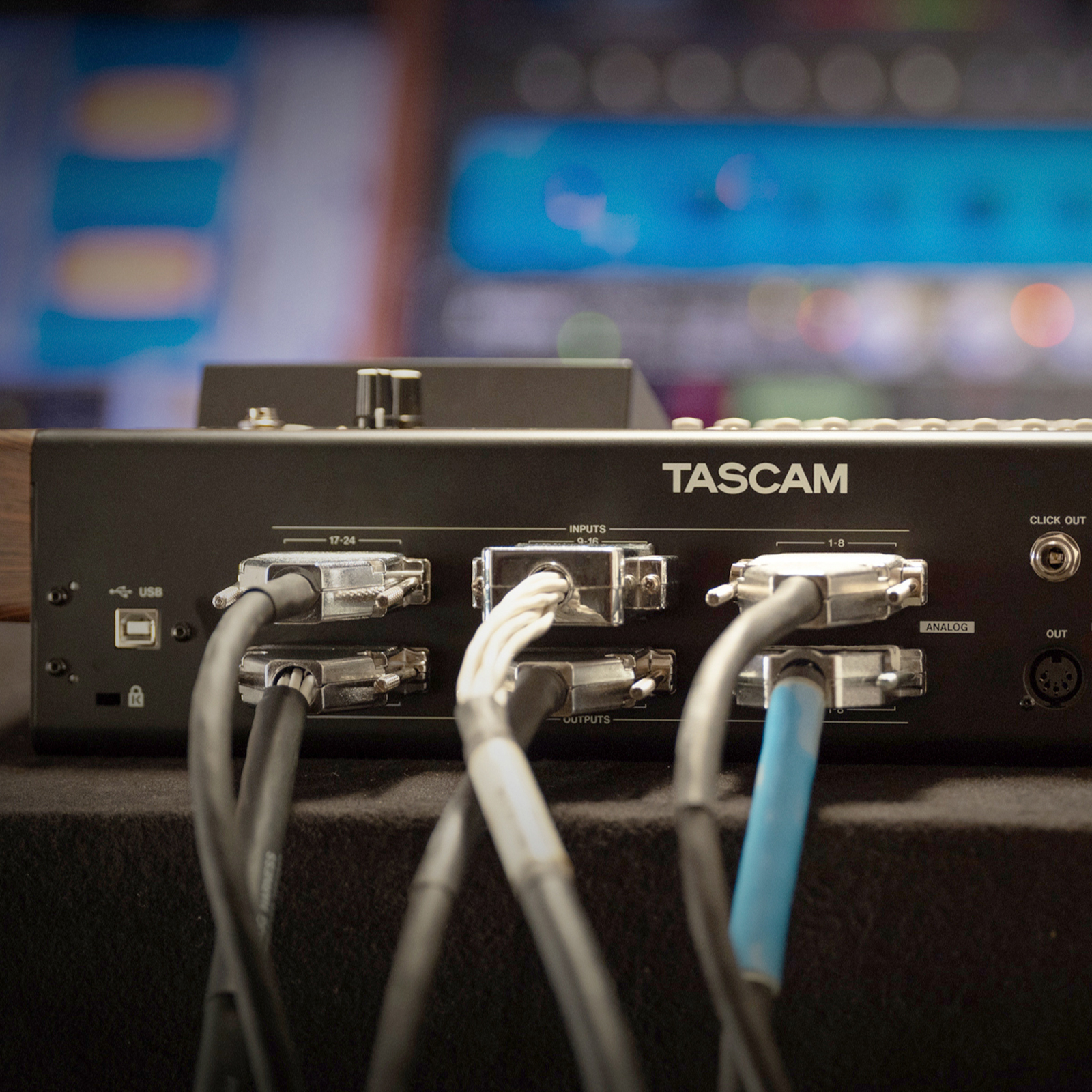

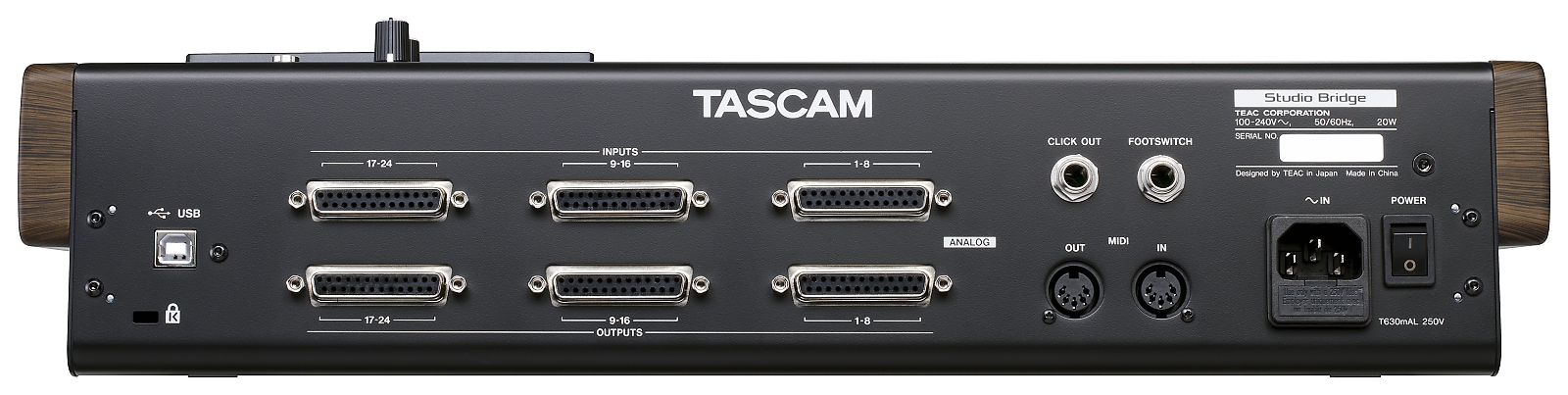

• Connectors for line input (1–8, 9–16, 17–24): TASCAM DB-25 pin standard (according to AES59-2012)
• Connector: Balanced D-sub 25-pin
• Fixed screws: No. 4-40 UNC (inch type)
• Maximum input level: +24 dBu
• Nominal input level: +4 dBu
• Input impedance: 10 kΩ or more
• Connectors for line output (1–8, 9–16, 17–24): TASCAM DB-25 pin standard (according to AES59-2012)
• Connector: Balanced D-sub 25-pin
• Fixed screws: No. 4-40 UNC (inch type)
• Maximum output level: +24 dBu
• Nominal output level: +4 dBu
• Output impedance: 200 Ω

Specifications for jacks

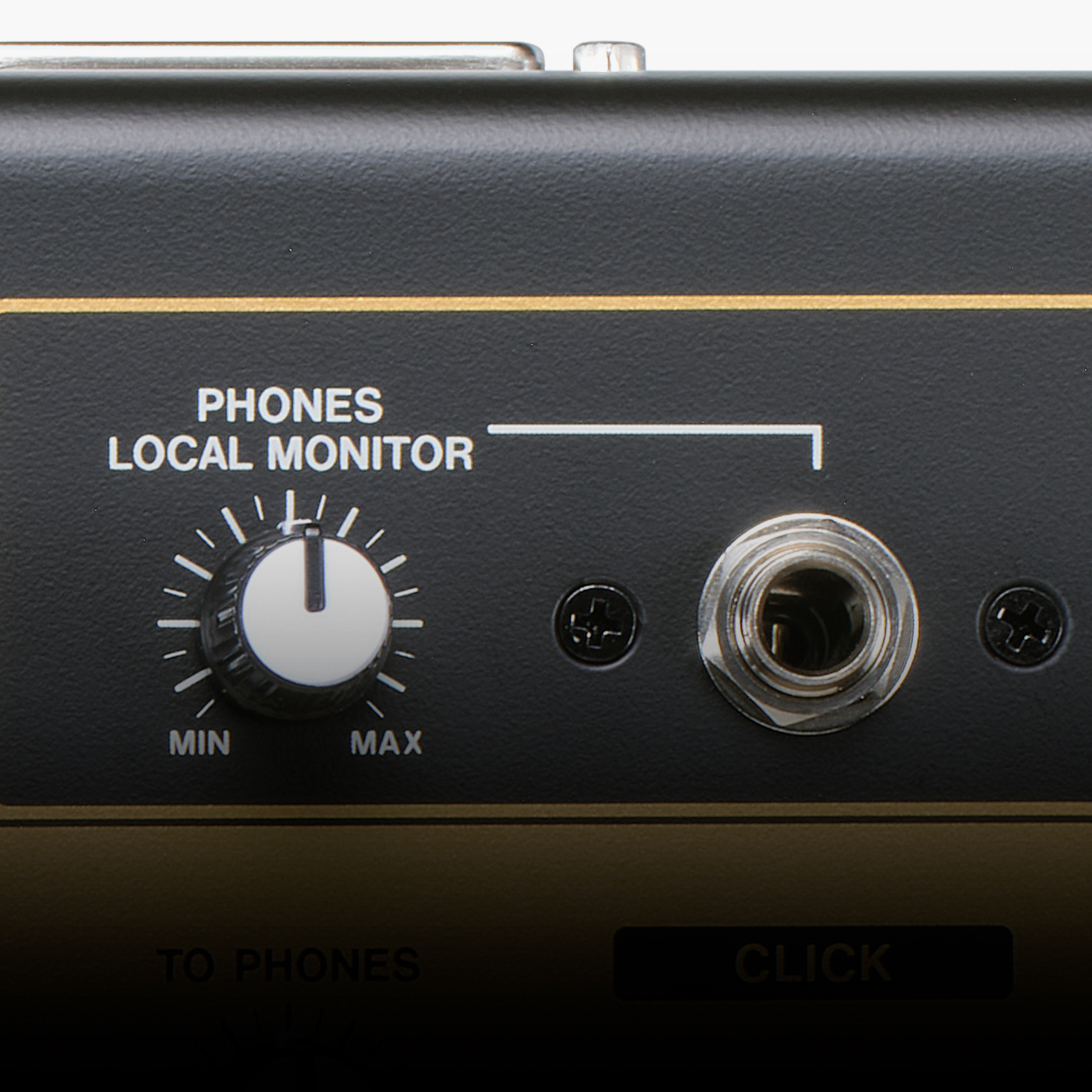

• Jack for PHONES/LOCAL MONITOR:
• Connector: Standard 6.3mm (1/4") stereo jack
• Maximum output power: 80 mW + 80 mW (at 32Ω load)
• Operating impedance: 16 - 600 Ω

Specifications for input/output control

USB:

• Connector: USB Type-B
• Transfer format: USB 2.0 High-Speed
• Device classes: Mass storage, USB audio class 2.0 (compliant USB class)

USB Audio:

• Sampling frequency: 44.1 kHz / 48 kHz
• Bit depth: 24-bit
• Number of inputs: 24 channels (Output from this device)
• Number of outputs: 24 channels (Input to this device)

Jack CLICK OUT: Connector: Standard TRS 6.3mm (1/4") jack (Tip: HOT, Ring: COLD, Sleeve: GND)

Jack FOOTSWITCH: Connector: Standard TRS 6.3mm (1/4") jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary types (unlatch))

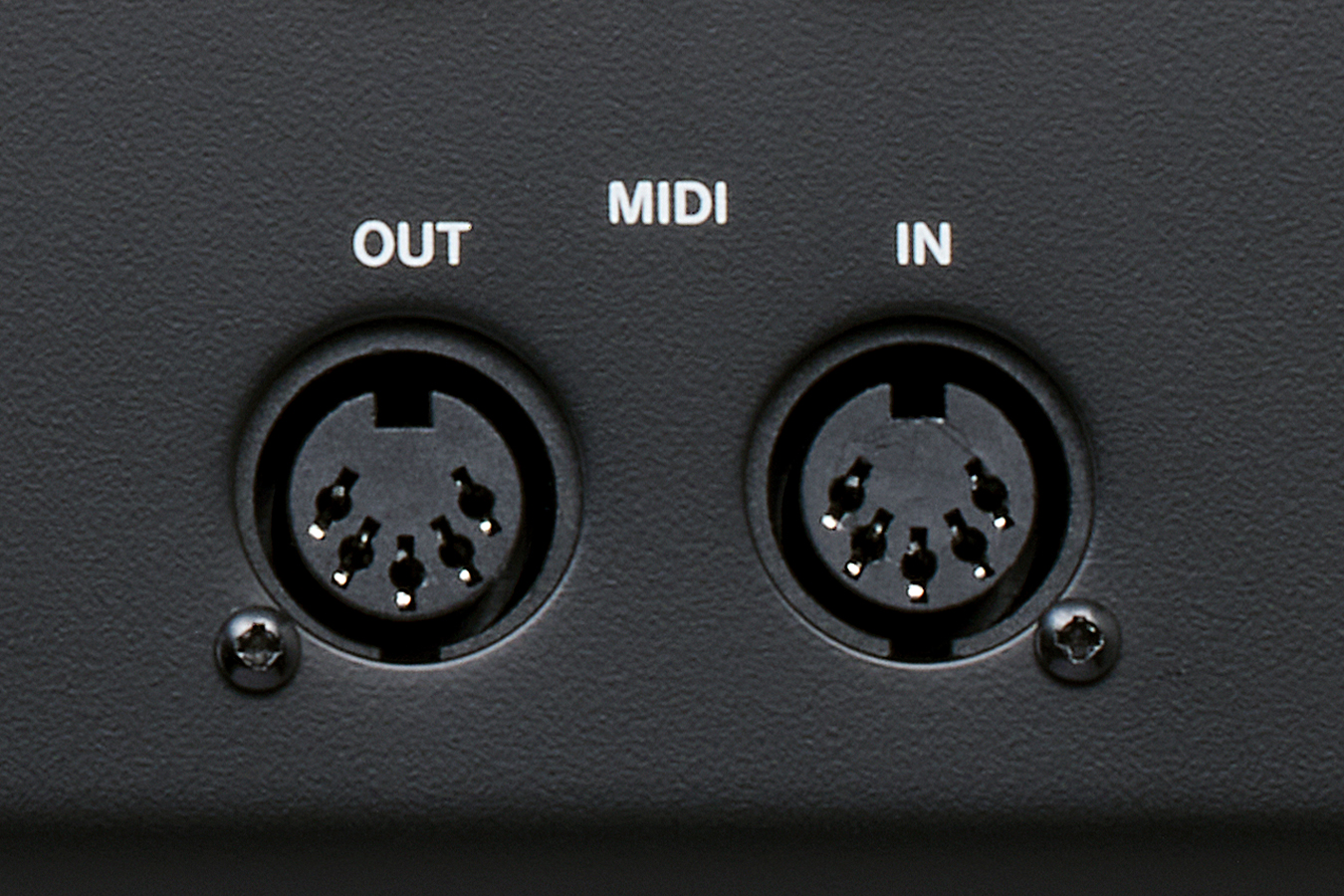

MIDI OUT connector:

• Connector: 5-pin DIN
• Format: MIDI 1.0

MIDI IN connector:

• Connector: 5-pin DIN
• Format: MIDI 1.0

Power Supply

• Power supply: AC 100-240 V, 50/60 Hz
• Power consumption: 20W

Dimensions:

• With side panels: 446.5 × 114.6 × 269.5 mm (W × H × D, including protrusions)
• Without side panels: 414.6 × 114.6 × 269.5 mm (W × H × D, including protrusions)
• Weight: 4.5 kg
• Operating temperature range: -40°C (32–104°F)
• Operating humidity range: 5–85%

Audio Performance

• Frequency response: 20 Hz – 20 kHz (+0.3/−0.7 dB, 1 kHz)
• Dynamic range: 100 dB or more (22kHz LPF + A-weight)
• Total harmonic distortion (THD+N) ratio: 0.003% or less (1 kHz, at maximum input level)
• Crosstalk: −100 dB or less (1kHz BPF)

Recording Time

• Recording format: Recording time for 32GB card
• 16-bit/44.1kHz WAV, 24 tracks: 4:10
• 16-bit/48kHz WAV, 24 tracks: 3:50
• 24-bit/44.1kHz WAV, 24 tracks: 2:47
• 24-bit/48kHz WAV, 24 tracks: 2:33
